AC ’97 SoundMAX CODEC
AD1986
FEATURES
AC `97 2.3 COMPLIANT FEATURES
6 DAC channels for 5.1 surround
S/PDIF output
Integrated headphone amplifiers
Variable rate audio
Double rate audio (F
s
= 96 kHz)
Greater than 90 dB dynamic range
20-bit resolution on all DACs
20-bit resolution on all ADCs
Line-level mono phone input
High quality CD input
Selectable MIC input w/preamp
AUX and line-in stereo inputs
External amplifier power down (EAPD)
Power management modes
Jack sensing and device identification
48-pin LQFP package
ENHANCED FEATURES
Integrated parametric equalizer
Stereo microphone with up to 30 dB gain boost
Integrated PLL for system clocking
Variable sample rate: 7 kHz to 96 kHz
7 kHz to 48 kHz in 1 Hz increments
96 kHz for double rate audio
Jack sense with auto topology switching
Jack presence detection on up to 8 jacks
Three software-controlled VREF_OUT signals
Software-enabled outputs for jack sharing
Auto-down mix and channel spreading
Microphone-to-mono output
Stereo microphone pass-through to mixer
Built-in microphone/center/LFE/line-in sharing
Built-in SURROUND/LINE_IN sharing
Center/LFE line swapping
Microphone swapping
Reduced support component count
General purpose digital output pin (GPO)
Separate LINE_OUT and HP_OUT pins
Headphone drivers on LINE_OUT and HP_OUT pins
Independent headphone/LINE_OUT operation
Rev. 0
Information furnished by Analog Devices is believed to be accurate and reliable.
However, no responsibility is assumed by Analog Devices for its use, nor for any
infringements of patents or other rights of third parties that may result from its use.
Specifications subject to change without notice. No license is granted by implication
or otherwise under any patent or patent rights of Analog Devices. Trademarks and
registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
www.analog.com
Fax: 781.326.8703
© 2004 Analog Devices, Inc. All rights reserved.
AD1986
TABLE OF CONTENTS
Functional Block Diagram .............................................................. 4
Specifications..................................................................................... 5
AC ’97 Timing Parameters .......................................................... 9
Absolute Maximum Ratings.......................................................... 12
Environmental Conditions........................................................ 12
ESD Caution................................................................................ 12
Pin Configuration And Function Description ........................... 13
AC ’97 Registers .............................................................................. 15
Register Details ............................................................................... 17
Reset (Register 0x00).................................................................. 17
Master Volume (Register 0x02) ................................................ 17
Headphone Volume (Register 0x04)........................................ 18
Mono Volume (Register 0x06).................................................. 18
PC Beep (Register 0x0A)........................................................... 19
Phone Volume (Register 0x0C) ................................................ 19
Microphone Volume (Register 0x0E) ...................................... 20
Line In Volume (Register 0x10)................................................ 21
CD Volume (Register 0x12) ...................................................... 21
AUX Volume (Register 0x16) ................................................... 22
Front DAC Volume (Register 0x18)......................................... 22
ADC Select (Register 0x1A)...................................................... 23
ADC Volume (Register 0x1C) .................................................. 24
General-Purpose (Register 0x20)............................................. 25
Audio Int and Paging (Register 0x24) ..................................... 25
Power-Down Ctrl/Stat (Register 0x26).................................... 26
Ext’d Audio ID (Register 0x28)................................................. 27
Ext’d Audio Stat/Ctrl (Register 0x2A)...................................... 28
Front DAC PCM Rate (Register 0x2C) ................................... 29
Surround DAC PCM Rate (Register 0x2E) ............................ 30
C/LFE DAC PCM Rate (Register 0x30) .................................. 30
ADC PCM Rate (Register 0x32) .............................................. 30
C/LFE DAC Volume (Register 0x36)....................................... 31
Surround DAC Volume (Register 0x38) ................................. 31
SPDIF Control (Register 0x3A)................................................ 32
EQ Control Register (Register 0x60) ....................................... 33
EQ Data Register (Register 0x62) ............................................ 34
Misc Control Bits 2 (Register 0x70)......................................... 34
Jack Sense (Register 0x72)......................................................... 35
Serial Configuration (Register 0x74)....................................... 37
Misc Control Bits 1 (Register 0x76)......................................... 39
Advanced Jack Sense (Register 0x78) ...................................... 40
Misc Control Bits 3 (Register 0x7A)........................................ 41
Vendor ID Registers (Register 0x7C to 0x7E) ........................ 42
CODEC Class/Revision Register (Register 0x60).................. 42
PCI Subsystem Vendor ID Register (Register 0x62, Page 01)
....................................................................................................... 43
PCI Subsystem Device ID Register (Register 0x64, Page 01)43
Function Select Register (Register 0x66, Page 01)................. 43
Information and I/O Register (Register 0x68, Page 01)........ 44
Sense Register (Register 0x6A, Page 01) ................................. 46
Jack Presence Detection................................................................. 48
Audio Jack Styles (NC/NO) ...................................................... 48
Microphone Selection/Mixing...................................................... 49
Outline Dimensions ....................................................................... 50
Ordering Guide .......................................................................... 50
REVISION HISTORY
10/04—Initial Version: Revision 0
Rev. 0 | Page 2 of 52
AD1986
NOTES
REDUCED SUPPORT COMPONENTS
The AD1986’s many improvements reduce external support
components for particular applications.
•
Multiple Microphone Sourcing:
The MIC_1/2, LINE_IN
and C/LFE pins may all be selected as sources for
microphone input (boost amplifier).
Multiple VREF_OUT Pins:
Each microphone-capable pin
group (MIC_1/2, LINE_IN and C/LFE) has separate,
software controllable VREF_OUT pins, reducing the need
for external biasing components.
Internal Microphone Mixing:
Any combination of the
MIC_1/2, LINE_IN and C/LFE pins may be summed to
produce the microphone input. This removes the need for
external mixing components in those applications that
externally mixed microphone sources.
•
•
Advanced Jack Presence Detection:
Using two CODEC
pins, eight resistors and isolated switch jacks, the AD1986
can detect jack insertion on eight separate jacks. Previous
CODECs would have required 8 CODEC pins and
16 resistors.
Internal Microphone/Line In/C/LFE Sharing:
On systems
that share the microphone with the C/LFE jack there are
no external components required. The micro-phone
selector can select the LINE_IN pins in those cases where
the microphone and line input devices are swapped.
Internal Line In/Microphone/Surround Sharing:
On
systems that share the line in with the surround jack there
are no external components required.
Dual Headphone Amplifiers:
The AD1986 can drive
headphones out of the HP_OUT or LINE_OUT pins.
•
•
•
•
Rev. 0 | Page 3 of 52
AD1986

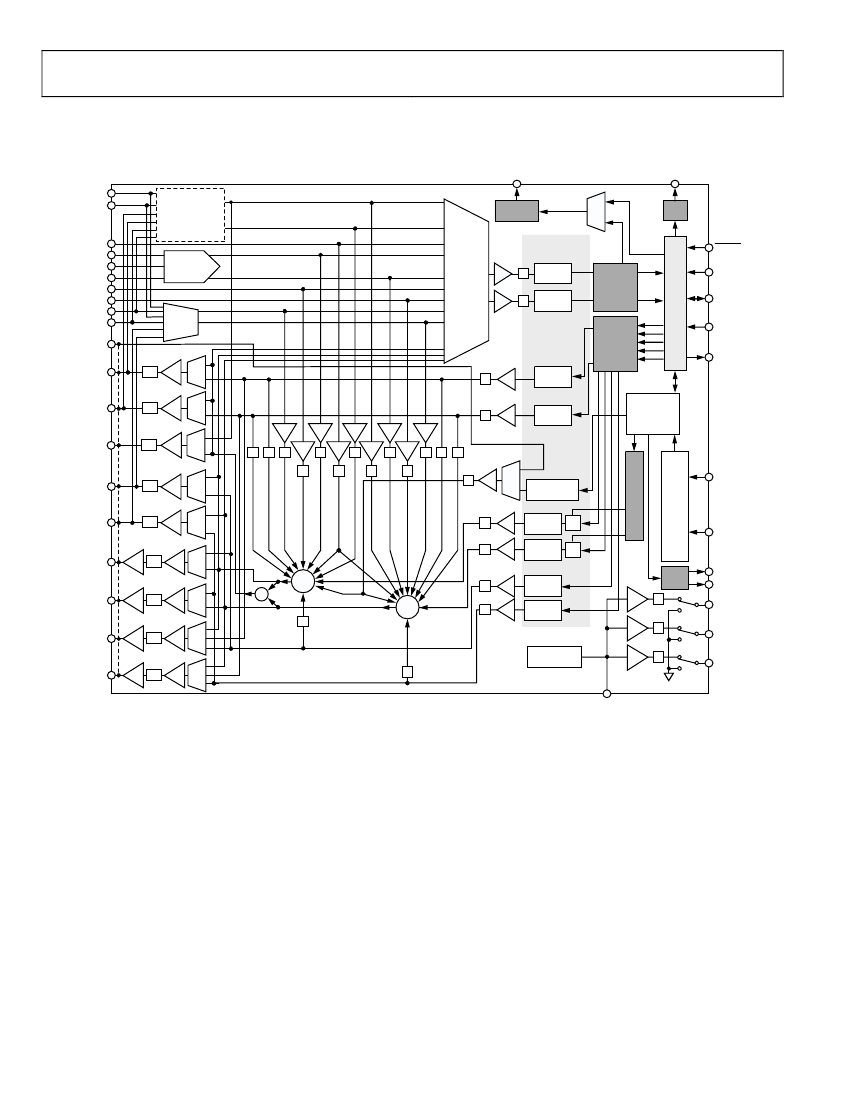

FUNCTIONAL BLOCK DIAGRAM
SPDIF_OUT
MIC_1
MIC_2
MICROPHONE
SELECTOR/
MIXING AND
GAIN BLOCK
AC97CK
AD1986
SPDIF TX
PLL
RECORD
SELECTOR
AUX_L
AUX_R
LINE_IN_L
LINE_IN_R
PCBEEP_IN
G
M
20-BIT
Σ-∆
ADC
ADC
SLOT
LOGIC
AC '97 INTERFACE V2.3
PHONE_IN
CD_L
CD_GND
CD_R
CODEC CORE
CD
DIFF AMP
RESET
SYNC
BITCLK
G
M
20-BIT
Σ-∆
ADC
LINE
IN
SELECT
SDATA_OUT
DAC
SLOT
LOGIC
24-BIT
Σ-∆
DAC
LFE_OUT
MZ
A
SPRD
SDATA_IN
M
GA
SPRD
CENTER_OUT
MZ
A
M
GA
GA
GA
M
M
GA
M
GA
M
GA
M
GA
M
GA
M
M
A
GA
M
M
M
GA
24-BIT
Σ-∆
DAC
AC '97
CONTROL
REGISTERS
MONO_OUT
M
A
MIX
ANALOG MIXING CONTROL
JACK SENSE
EQ COEF STORAGE
M
M
M
SOSEL
SURR_OUT_L
MZ
A
PC BEEP
GENERATOR
24-BIT
Σ-∆
DAC
24-BIT
Σ-∆
DAC
JACK_SENSE_A
SURR_OUT_R
MZ
A
SOSEL
M
M
GA
GA
EQ
EQ
JACK_SENSE_B
LINE_OUT_L
HP
M
A
LOSEL
LOSEL
LINE_OUT_R
HP
M
A
Σ
Σ
Σ
M
M
M
GA
GA
24-BIT
Σ-∆
DAC
24-BIT
Σ-∆
DAC
G
Z
GPIO
EAPD
EAPD
GPO
VREF_OUT
(MIC1/2)
VREF_OUT
(C/LFE)
VREF_OUT
(LINE_IN)
HPSEL
G
VOLTAGE
REFERENCE
M
Z
HP_OUT_L
HP
M
A
HPSEL
HP_OUT_R
HP
M
A
VREF_FILT
Figure 1.
Rev. 0 | Page 4 of 52
04785-0-003
G = GAIN
A = ATTENUATION
M = MUTE
Z = HI-Z
G
Z
AD1986
SPECIFICATIONS
Test conditions, unless otherwise noted.
Table 1.
Parameter
Temperature
Digital Supply (DV
DD
)
Analog Supply (AV
DD
)
Sample Rate (F
S
)
Input Signal
Analog Output Pass Band
V
IH
V
IL
V
IH
V
IL
Typ
25
3.3 ±10%
5.0 ±10%
48
1,008
20 Hz–20 kHz
2.0
0.8
2.4
0.6
Unit
°C
V
V
kHz
Hz
V
V
V
V
DAC Test Conditions
Calibrated
Output −3 dB Relative to Full Scale
10 kΩ Output Load: Line (Surround), Mono, Center, and LFE
32 Ω Output Load: Headphone
ADC Test Conditions
Calibrated
0 dB PGA Gain
Input −3.0 dB Relative to Full Scale
Table 2. Analog Input
Input Voltage
MIC_1/2, LINE_IN, CD, AUX, PHONE_IN (No Preamp)
C/LFE and SURROUND (When Used as Inputs)
MIC_1/2, LINE_IN, C/LFE With 30 dB Preamp
MIC_1/2, LINE_IN, C/LFE With 20 dB Preamp
MIC_1/2, LINE_IN, C/LFE With 10 dB Preamp
Input Impedance
2
Input Capacitance
Min
Typ
1
2.83
0.032
0.089
0.1
0.283
0.316
0.894
20
5
Max
Unit
VRMS
1
V p-p
VRMS
V p-p
VRMS
V p-p
VRMS
V p-p
kΩ
pF
2
7.5
1
2
RMS values assume sine wave input.
Guaranteed by design, not production tested.
Table 3. Master Volume
Parameter
Step Size (LINE_OUT, HP Out, Mono Out, SURROUND, CENTER, LFE)
Output Attenuation Range (0 dB to –46.5 dB)
Mute Attenuation of 0 dB Fundamental
2
Min
Typ
−1.5
−6.5
Max
−80
Unit
dB
dB
dB
Table 4. Programmable Gain Amplifier—ADC
Parameter
Step Size
PGA Gain Range Span (0 dB to 22.5 dB)
Min
Typ
1.5
22.5
Max
Unit
dB
dB
Rev. 0 | Page 5 of 52
