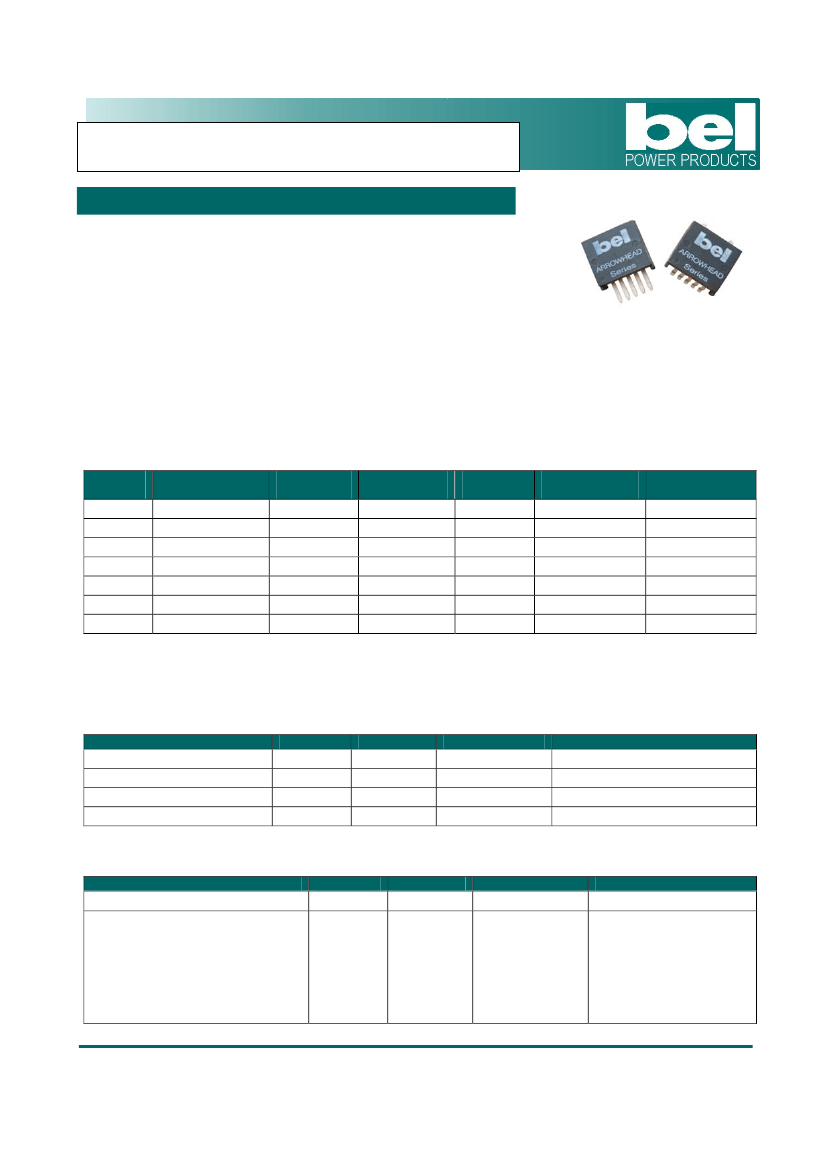

NON-ISOLATED DC/DC CONVERTERS
4.5 Vdc - 13.2 Vdc Input
1.0 Vdc - 5.0 Vdc/6 A Output
xRAH-06Exx0 Series
•
•
•
•
Non-Isolated
Fixed Frequency (400 kHz)
Remote On/Off
RoHS Compliant
•
•
•
•
Trim Function
Rev.A
OCP/SCP (Latch off)
Low Profile Package (7.82 mm)
UL60950-1 Recognized (UL/cUL)
Under-voltage Lockout (UVLO)
Description
The Bel xRAH-06Exx0 is part of the low cost non-isolated dc/dc converter series. The modules use a surface
mount package or vertical package for ease of layout and space savings, with a low profile of only 7.82 mm. The
output is closely regulated and the efficiency of 3.3 Vdc output module is typically 91% at full load. Typical
features include Remote On/Off, under-voltage lockout, over-current protection and short circuit protection.
Part Selection
Output
Voltage
5.0 Vdc
3.3 Vdc
2.5 Vdc
1.8 Vdc
1.5 Vdc
1.2 Vdc
1.0 Vdc
Input Voltage
8.0 Vdc - 13.2 Vdc
4.5 Vdc - 13.2 Vdc
4.5 Vdc - 13.2 Vdc
4.5 Vdc - 13.2 Vdc
4.5 Vdc - 13.2 Vdc
4.5 Vdc - 13.2 Vdc
4.5 Vdc - 13.2 Vdc
Max. Output
Current
6A
6A
6A
6A
6A
6A
6A
Max. Output
Power
30.0 W
19.8 W
15.0 W
10.8 W
9.0 W
7.2 W
6.0 W
Typical
Efficiency
94%
91%
89%
86%
84%
81%
79%
Part Number
Surface Mount
SRAH-06E500
SRAH-06E330
SRAH-06E250
SRAH-06E180
SRAH-06E150
SRAH-06E120
SRAH-06E100
Part Number
Vertical Mount
VRAH-06E500
VRAH-06E330
VRAH-06E250
VRAH-06E180
VRAH-06E150
VRAH-06E120
VRAH-06E100
Notes:
1. Add “0” suffix at the end of the model number to indicate “Tube Packaging”, and “R” for “Reel
Packaging”, and “G” for “Tray Packaging”.
2. All part numbers above indicate RoHS 6. Change the second letter "R" to "7" for RoHS 5 part numbers.
Absolute Maximum Ratings
Parameter
Input Voltage (continuous)
Output Enable Terminal Voltage
Ambient Temperature
Storage Temperature
Min
-0.3 V
-0.3 V
-40
°C
-40
°C
Typ
-
-
-
-
Max
14 V
6.5 V
85
°C
125
°C
Notes
Input Specifications
Parameter
Input Voltage
Input Current (full load)
V
O
=5.0 V
V
O
=3.3 V
V
O
=2.5 V
V
O
=1.8 V
V
O
=1.5 V
V
O
=1.2 V
V
O
=1.0 V
Min
4.5 V
-
-
-
-
-
-
-
Typ
-
-
-
-
-
-
-
-
Max
13.2 V
4.8 A
5.5 A
4.5 A
3.4 A
2.9 A
2.4 A
2.0 A
Notes
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
4.5 Vdc - 13.2 Vdc Input
1.0 Vdc - 5.0 Vdc/6 A Output
Input Specifications (continued)
Parameter
Input Current (no load)
V
O
=5.0 V
V
O
=3.3 V
V
O
=2.5 V
V
O
=1.8 V
V
O
=1.5 V
V
O
=1.2 V
V
O
=1.0 V
Remote Off Input Current
Input Reflected Ripple Current (pk-pk)
Min
-
-
-
-
-
-
-
-
-
Typ
55 mA
50 mA
45 mA
40 mA
35 mA
32 mA
30 mA
2 mA
150 mA
Max
95 mA
85 mA
75 mA
65 mA
60 mA
55 mA
50 mA
-
250 mA
Notes
When Vout=5 V ,Vin=8 V-13.2
V,Otherwise Vin=4.5 V-13.2 V
Input Reflected Ripple Current (rms)
I t Inrush Current Transient
Turn-on Voltage Threshold
Turn-off Voltage Threshold
2
-
-
-
3.2 V
60 mA
0.04 A s
4.2 V
3.6 V
2
120 mA
0.1 A s
4.5 V
4.0 V
2
With simulated source
impedance of 500 nH, 5 Hz to 20
MHz; use two 270 uF/16 V
Oscon capacitors with ESR =
0.018 ohm max. at 100 kHz
Only applicable to 1.0 V to 3.3
V output modules.
Note:
All specifications are typical at nominal input at 25
°C
unless otherwise stated.
Output Specifications
Parameter
Output Voltage Set Point
V
O
=5.0 V
V
O
=3.3 V
V
O
=2.5 V
V
O
=1.8 V
V
O
=1.5 V
V
O
=1.2 V
V
O
=1.0 V
Line Regulation
V
O
=5.0 V
V
O
=3.3 V
V
O
=2.5 V
V
O
=1.8 V
V
O
=1.5 V
V
O
=1.2 V
V
O
=1.0 V
Load Regulation
V
O
=5.0 V
V
O
=3.3 V
V
O
=2.5 V
V
O
=1.8 V
V
O
=1.5 V
V
O
=1.2 V
V
O
=1.0 V
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Min
4.900 V
3.234 V
2.450 V
1.764 V
1.470 V
1.176 V
0.980 V
Typ
5.0 V
3.3 V
2.5 V
1.8 V
1.5 V
1.2 V
1.0 V
±8
mV
±5
mV
±4
mV
±3
mV
±2
mV
±2
mV
±2
mV
±8
mV
±6
mV
±5
mV
±4
mV
±3
mV
±3
mV
±3
mV
Max
5.100 V
3.366 V
2.550 V
1.836 V
1.530 V
1.224 V
1.020 V
±10
mV
±8
mV
±8
mV
±6
mV
±4
mV
±4
mV
±4
mV
±15
mV
±10
mV
±8
mV
±6
mV
±5
mV
±5
mV
±5
mV
Notes
Test condition:
Vin=8 V, lout=half load
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
4.5 Vdc - 13.2 Vdc Input
Parameter
Regulation Over Temperature
(-40
°C
to 85
°C)
V
O
=5.0 V
V
O
=3.3 V
V
O
=2.5 V
V
O
=1.8 V
V
O
=1.5 V
V
O
=1.2 V
V
O
=1.0 V
Output Current
Current Limit Threshold
Short Circuit Surge Transient
Ripple and Noise (rms)
Ripple and Noise (pk-pk)
Turn on Time
Overshoot at Turn on
Output Capacitance
Transient Response
50% ~ 100%
Max Load
100% ~ 50%
Max Load
Overshoot
Settling Time
Overshoot
Settling Time
V
O
=1.0 V
-5.0 V
-
-
-
-
150 mV
100 uS
150 mV
100 uS
200 mV
150 uS
200 mV
150 uS
di/dt = 0.5 A/uS; Vin = 8 V;
with a 220 uF Tantalum
capacitor at the output.
-
-
0 uF
1.0 Vdc - 5.0 Vdc/6 A Output
Min
Typ
±15
mV
±10
mV
±10
mV
±8
mV
±6
mV
±5
mV
±5
mV
-
-
0.003 A s
30 mV
50 mV
-
3%
-
2
Output Specifications (continued)
Max
±30
mV
±20
mV
±20
mV
±15
mV
±12
mV
±10
mV
±8
mV
6A
15 A
0.006 A s
50 mV
100 mV
30 mS
7%
2400 uF
2
Notes
-
0A
7A
-
-
Latch Off
Latch Off
BW = 0-20 MHz; with 1 uF
ceramic capacitor & 10 uF
Aluminum capacitor at the
output.
Note:
All specifications are typical at 8 V input, full load at 25
°C
unless otherwise stated.
General Specifications
Parameter
Efficiency
V
O
=5.0 V
V
O
=3.3 V
V
O
=2.5 V
V
O
=1.8 V
V
O
=1.5 V
V
O
=1.2 V
V
O
=1.0 V
Switching Frequency
Output Trim Range
MTBF
Dimensions (surface mount)
Inches (L
×
W
×
H)
Millimeters (L
×
W
×
H)
Dimensions (vertical)
Inches (L
×
W
×
H)
Millimeters (L
×
W
×
H)
Weight
91%
88%
86%
83%
81%
78%
76%
340 kHz
90% V
O
94%
91%
89%
86%
84%
81%
79%
400 kHz
-
6,922,389 hours
0.78 x 0.7 x 0.32
19.81 x 17.78 x 8.13
0.7 x 0.308 x 0.65
17.78 x 7.82 x 16.51
5.5 g
-
-
-
-
-
-
-
460 kHz
110% V
O
Min
Typ
Max
Notes
Measured at Vin=8V, full load
Calculated Per Bell Core SR-332 (Vin=
8 V; Vo=3.3 V; I
O
= 4.8 A; T
a
= 25
°C)
-
-
Note:
All specifications are typical at 25
°C
unless otherwise stated.
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
4.5 Vdc - 13.2 Vdc Input
1.0 Vdc - 5.0 Vdc/6 A Output
Control Specifications
Parameter
Remote On/Off
Signal Low (Unit Off)
Signal High (Unit On)
-0.3 V
3.5 V
-
-
1.25 V
6.5 V
Remote on/off pin open, unit on.
Min
Typ
Max
Notes
Output Trim Equations
Equations for calculating the trim resistor (in kΩ) given the desired adjusted voltage (Vadj) and the nominal output
voltage of the converter (Vnom) are shown below. The Trim Down resistor should be connected between the Trim
pin and Vout. The Trim Up resistor should be connected between the Trim pin and Ground. Only one of the
resistors should be used for any given application.
R
trim
−
down
A
=
−
B
V
nom
−
V
adj
Vout
Rtrim-down
Module
Trim
GND
Vout
R
trim
−
up
=
V
adj
C
−
D
−
V
nom
Module
Trim
Rtrim-up
GND
Vnom
5.0
3.3
2.5
1.8
1.5
1.2
1.0
A
272.745
167.607
117.622
74.394
329.981
219.000
100.252
B
133.400
152.800
152.800
152.800
1365.000
666.000
898.000
C
37.140
37.140
37.140
37.140
219.000
219.000
149.400
D
71.500
90.900
90.900
90.900
1000.000
301.000
649.000
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
4.5 Vdc - 13.2 Vdc Input
1.0 Vdc - 5.0 Vdc/6 A Output

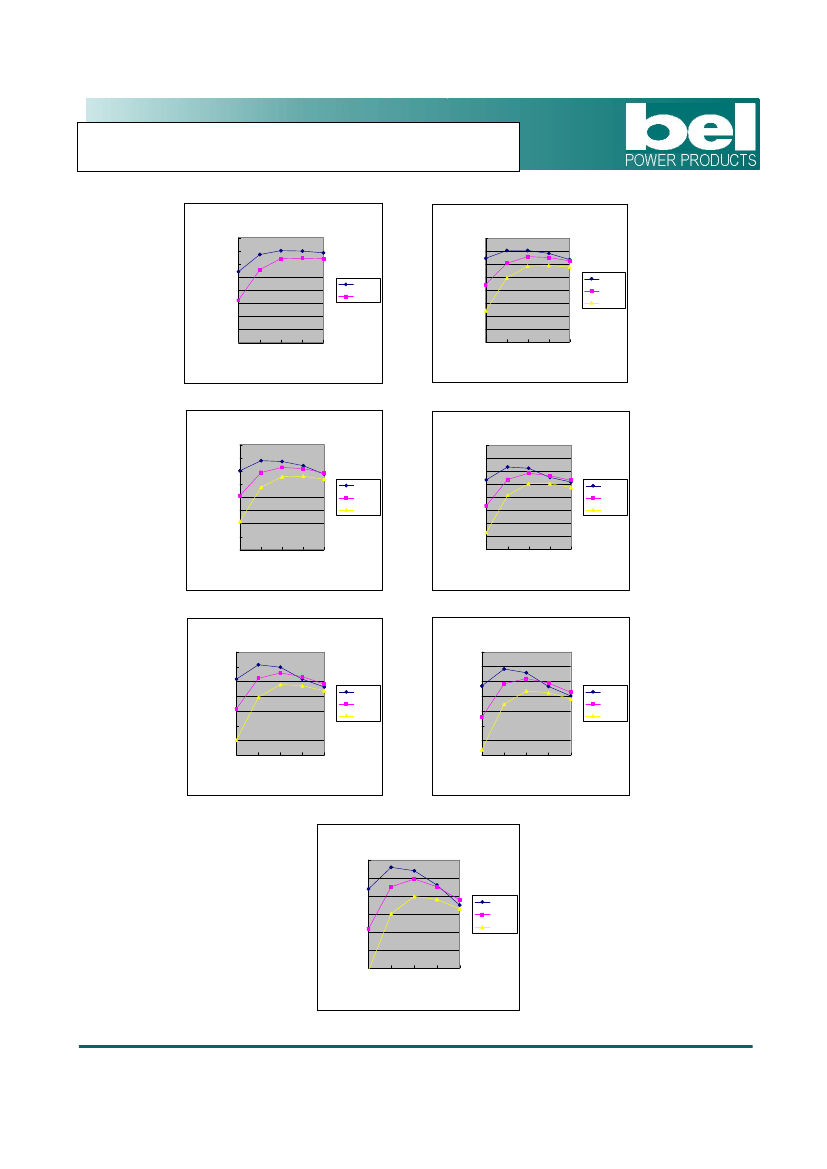

Efficiency Data
Efficiency Curve
100.0%
95.0%
90.0%
Efficiency
85.0%
80.0%
75.0%
70.0%
65.0%
60.0%
0.6
1.5
3.0
4.5
6.0
Output current (A)
Efficiency
100.0%
95.0%
90.0%
85.0%
80.0%
75.0%
70.0%
65.0%
60.0%
0.6
1.5
3.0
4.5
6.0
Output current (A)
4.5 V
8V
13.2 V
Efficiency Curve
8V
13.2 V
Vo=5.0 V
Efficiency Curve
100.0%
95.0%
90.0%
Efficiency
85.0%
80.0%
75.0%
70.0%
65.0%
60.0%
0.6
1.5
3.0
4.5
6.0
Output current (A)
Efficiency
100.0%
95.0%
90.0%
Vo=3.3 V
Efficiency Curve
4.5 V
8V
13.2 V
85.0%
80.0%
75.0%
70.0%
65.0%
60.0%
0.6
1.5
3.0
4.5
6.0
Output current (A)
4.5 V
8V
13.2 V
Vo=2.5 V
Efficiency Curve
95.0%
90.0%
4.5 V
8V
13.2 V
Vo=1.8 V
Efficiency Curve
95.0%
90.0%
Efficiency
85.0%
80.0%
75.0%
70.0%
65.0%
60.0%
4.5 V
8V
13.2 V
Efficiency
85.0%
80.0%
75.0%
70.0%
65.0%
60.0%
0.6
1.5
3.0
4.5
6.0
Output current (A)
0.6
1.5
3.0
4.5
6.0
Output current (A)
Vo=1.5 V
Efficiency Curve
90.0%
85.0%
Efficiency
80.0%
75.0%
70.0%
65.0%
60.0%
0.6
1.5
3.0
4.5
6.0
Output current (A)
Vo=1.2 V
4.5 V
8V
13.2 V
Vo=1.0 V
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
