the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
1
BSF1005RHGS.A01

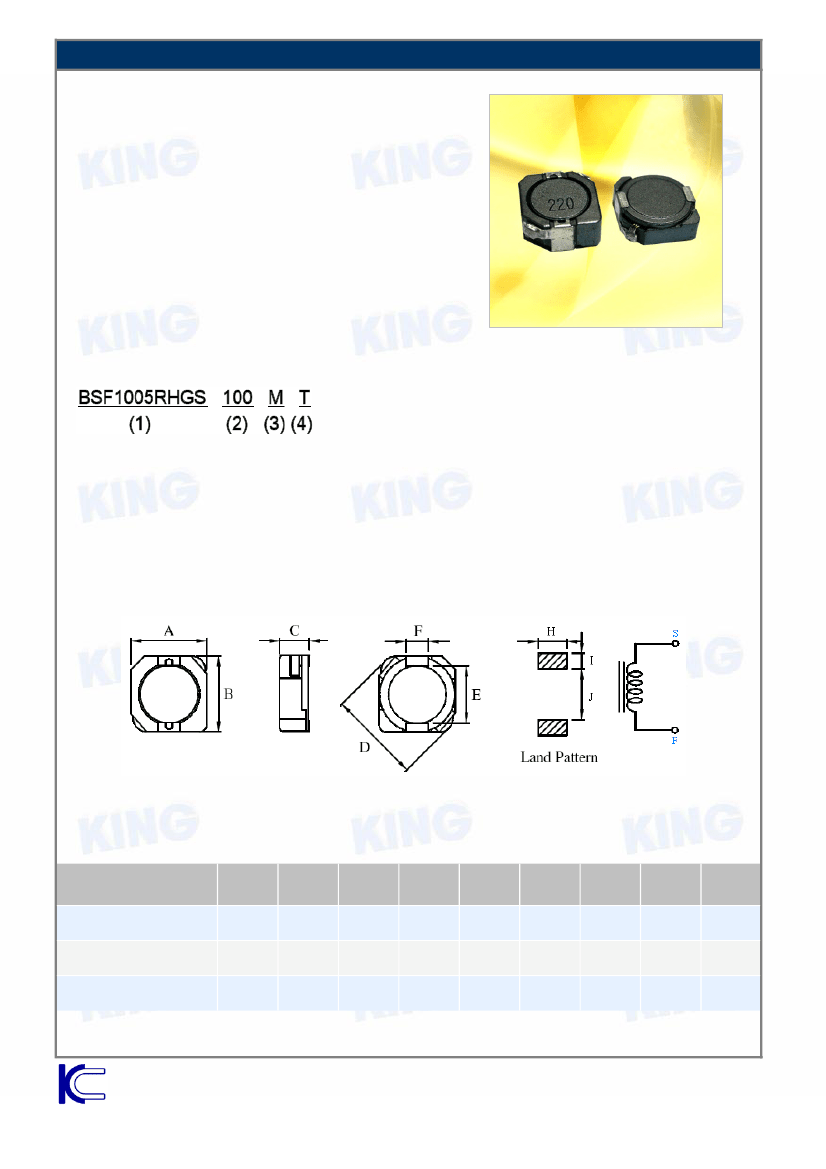

SMD POWER INDUCTORS
→
BSF□□□□RHGS SERIES
ELECTRICAL CHARACTERISTIC
Test Freq. : 100KHz /1V
Tolerance : M± 20% ,N± 30%
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
2
BSF1005RHGS.A01
SMD POWER INDUCTORS
→
BSF1005RHGS SERIES

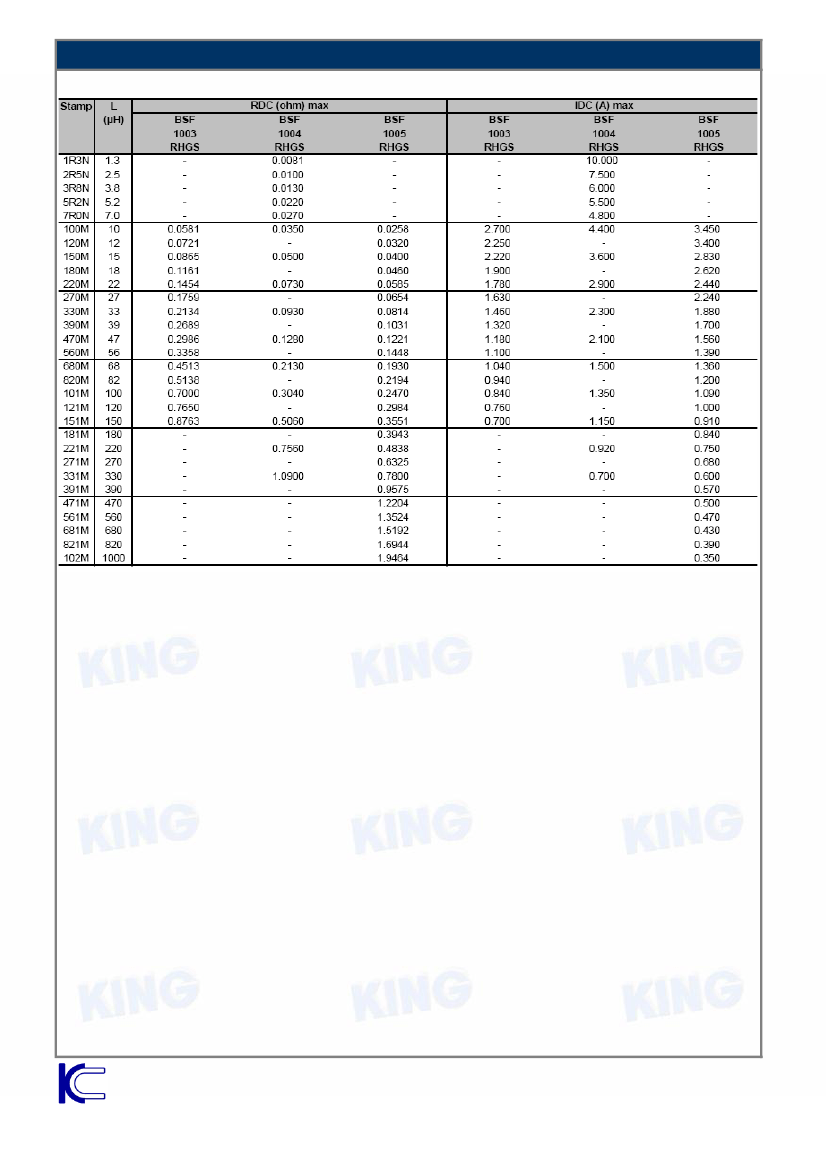

ELECTRICAL CHARACTERISTIC
ORDERING CODE
BSF1005RHGS100MT
BSF1005RHGS120MT
BSF1005RHGS150MT
BSF1005RHGS180MT
BSF1005RHGS220MT
BSF1005RHGS270MT
BSF1005RHGS330MT
BSF1005RHGS390MT
BSF1005RHGS470MT
BSF1005RHGS560MT
BSF1005RHGS680MT
BSF1005RHGS820MT
BSF1005RHGS101MT
BSF1005RHGS121MT
BSF1005RHGS151MT
BSF1005RHGS181MT
BSF1005RHGS221MT
BSF1005RHGS271MT
BSF1005RHGS331MT
BSF1005RHGS391MT
BSF1005RHGS471MT
BSF1005RHGS561MT
BSF1005RHGS681MT
BSF1005RHGS821MT
BSF1005RHGS102MT
Test Freq.:100KHz/1V
Tolerance : M± 20% ,N± 30%
Inductance
(μH)
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
120.0
150.0
180.0
220.0
270.0
330.0
390.0
470.0
560.0
680.0
820.0
1000.0
Test Frequency
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DC Resistance
(Ω)max
0.0258
0.0320
0.0400
0.0460
0.0585
0.0654
0.0814
0.1031
0.1221
0.1448
0.1930
0.2194
0.2470
0.2984
0.3551
0.3943
0.4838
0.6325
0.7800
0.9575
1.2204
1.3524
1.5192
1.6944
1.9464
IDC
(A)max
3.45
3.40
2.83
2.62
2.44
2.24
1.88
1.70
1.56
1.39
1.36
1.20
1.09
1.00
0.91
0.84
0.75
0.68
0.60
0.57
0.50
0.47
0.43
0.39
0.35
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
