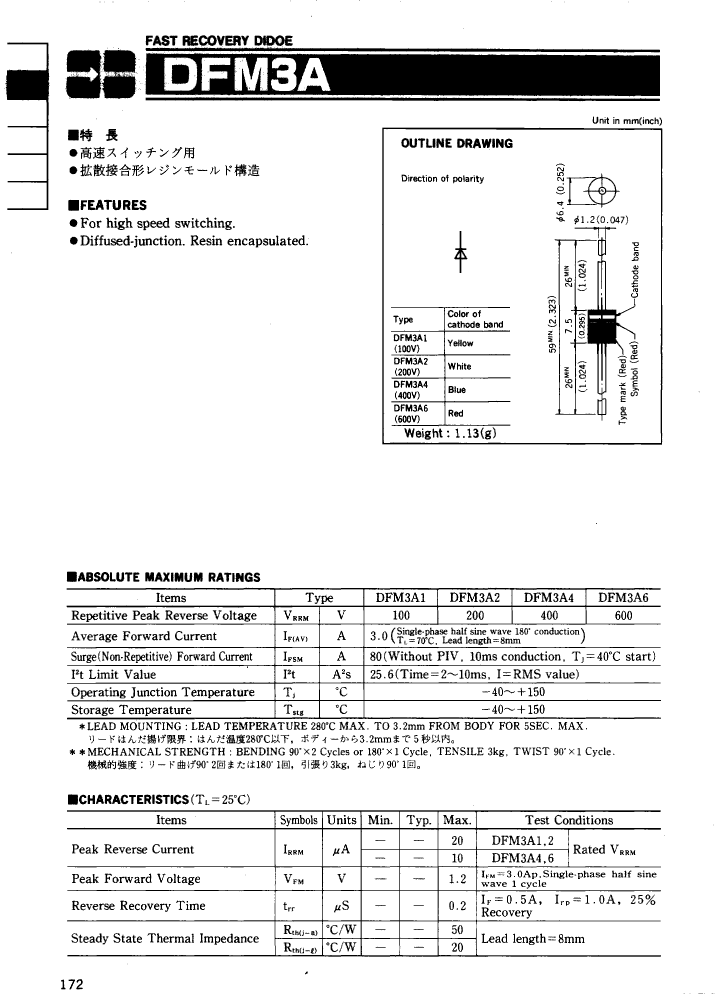

DFM3A2 datasheet, PDF - EEWORLD Datasheet

DFM3A2: Description3A, 200V, SILICON, RECTIFIER DIODE, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size131KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

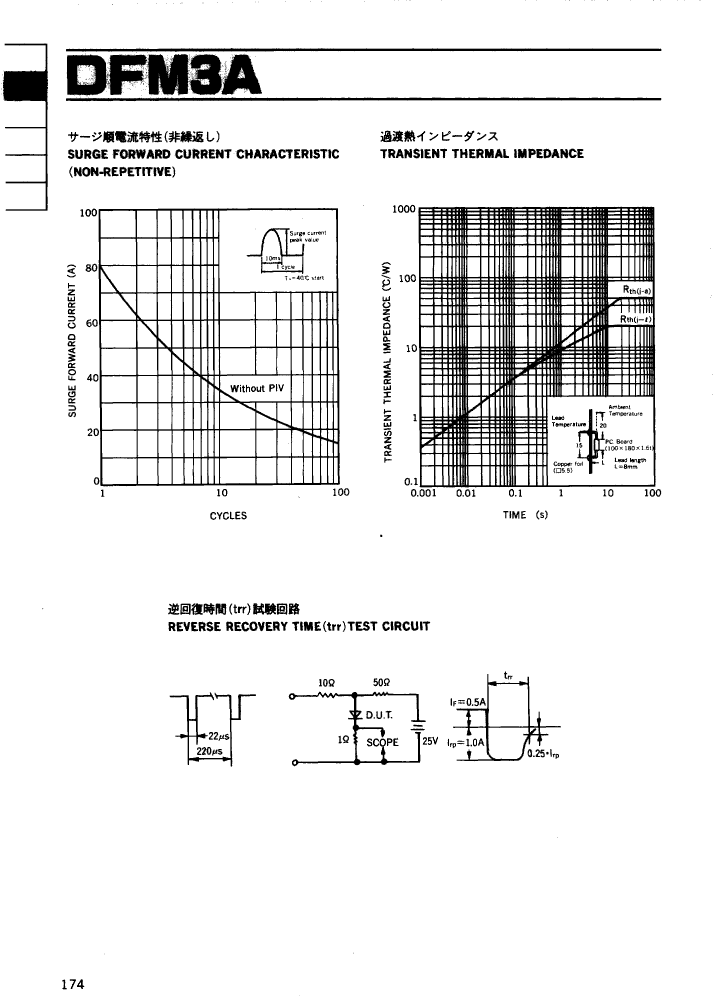

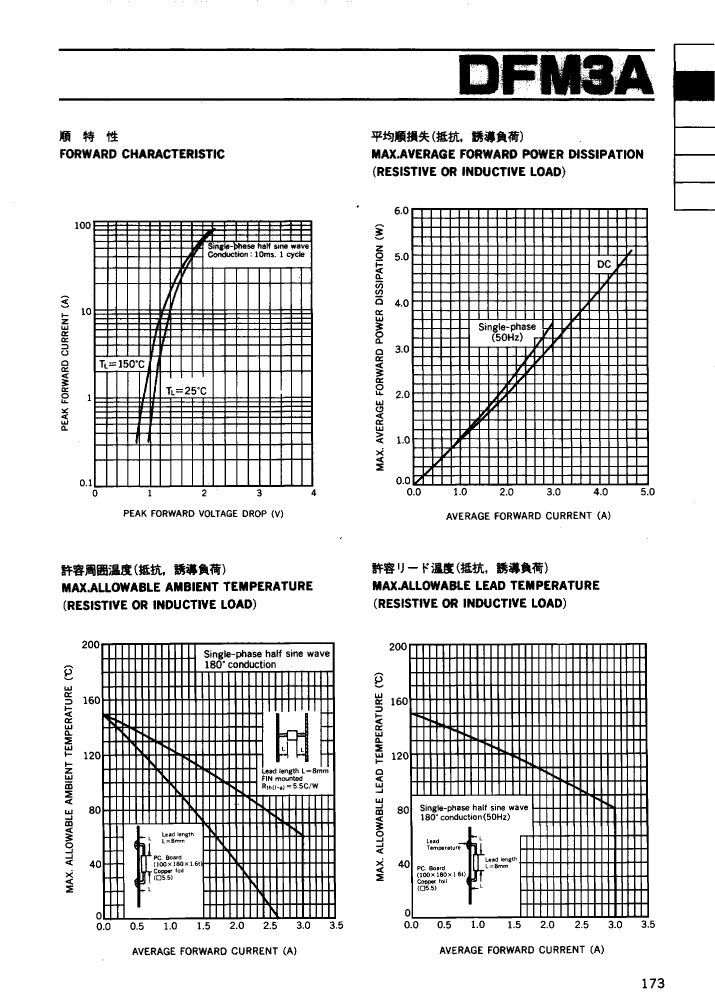

DFM3A2 Overview

3A, 200V, SILICON, RECTIFIER DIODE, PLASTIC PACKAGE-2

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
package instruction	O-LALF-W2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum output current	3 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.2 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

	DFM3A2	DFM3A4	DFM3A6	DFM3A1
Description	3A, 200V, SILICON, RECTIFIER DIODE, PLASTIC PACKAGE-2	3 A, 400 V, SILICON, RECTIFIER DIODE, PLASTIC PACKAGE-2	3A, 600V, SILICON, RECTIFIER DIODE, PLASTIC PACKAGE-2	3A, 100V, SILICON, RECTIFIER DIODE, PLASTIC PACKAGE-2
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Contacts	2	2	2	2
Reach Compliance Code	unknown	compliant	unknown	compli
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum output current	3 A	3 A	3 A	3 A
Package body material	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	400 V	600 V	100 V
Maximum reverse recovery time	0.2 µs	0.2 µs	0.2 µs	0.2 µs
surface mount	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
