Modular Jacks — Single Port PCB Mount
TE Connectivity’s comprehensive single port modular jack product portfolio has been designed to meet the
diverse design requirements of the data communications market. The product portfolio, which includes both
right-angle jacks and vertical jacks, specifically suits applications that require performance in voice, data, and
high-speed networking.
Available in a variety of styles and configurations, TE’s single port modular jacks offer compact size, and meet
FCC rules and regulations part 68 as supported by Telecommunications Industry Association (TIA-1096-A).
PRODUCT APPLICATIONS
•
Communications
–
Telephones
–
Routers
–
Servers
–
Switches
•
Computers
•
Business equipment
•
Consumer electronics
FEATURES AND BENEFITS
•
•
•
•
Standardization for network connections
Ease of use
Broad portfolio
RoHS compliant
te.com/products/stdmodjacks
TE Connectivity
Single Port Modular Jacks
Basic Information
PERFORMANCE CATEGORY
Category
Cat 3
Cat 5
Cat 5e
Cat 6a
Applications
10 BASE-T
10/100 BASE-T
10/100/1000 BASE-T or
Gigabit Ethernet
10 Gigabit Ethernet
RJ Designation
Modular jacks are commonly misrepresented by the Registered
Jack (RJ) designations shown below. TE Connectivity modular jacks
should be selected by position size and number of contacts loaded.
RJ DESIGNATION
RJ Designation
RJ11
RJ14
RJ22
RJ25
RJ45
Position/Contacts
Loaded
6/2
6/4
4/4
6/6
8/8

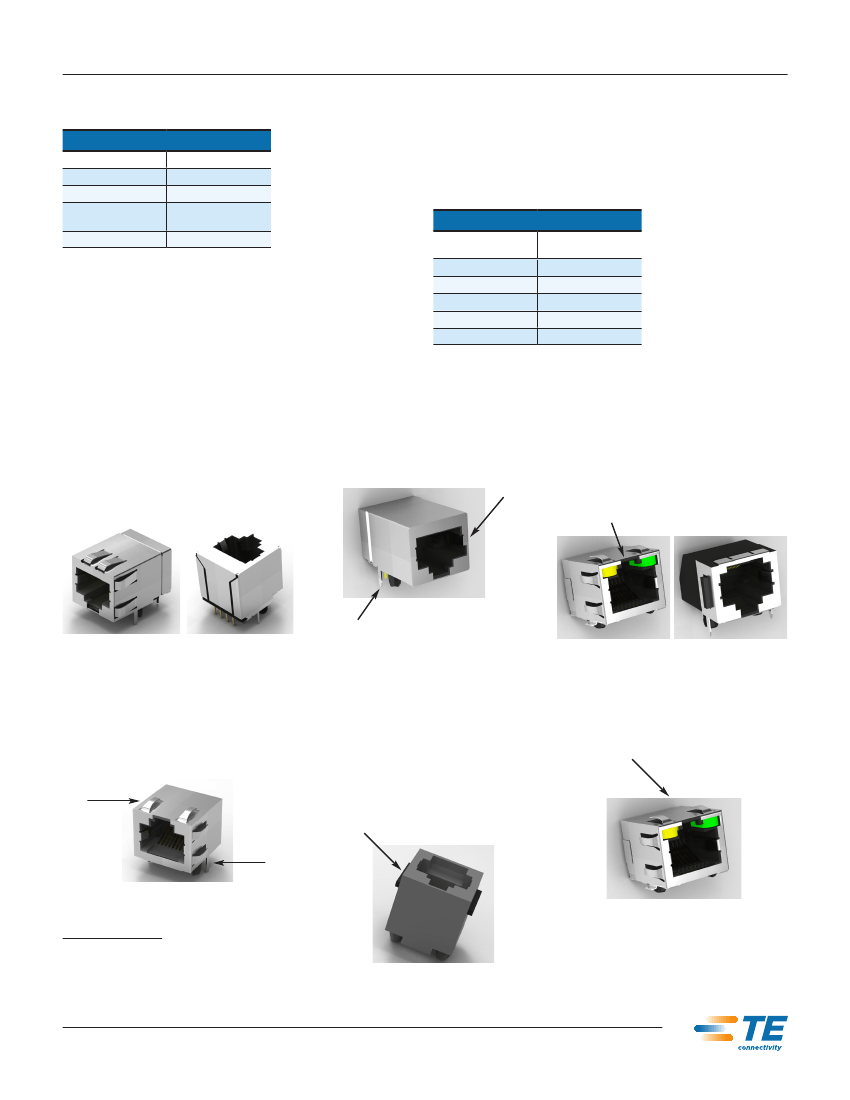

Product Features
Shielded
A metal shell that provides EMI/RFI
protection. EMI* RFI is unwanted
electromagnetic energy (or “noise”) in the
frequency range that is generally used in
radio communication.
Keyed
Designed for the use with a keyed plug to
ensure proper mating and will also accept a
standard plug
Inverted
Contacts are on the bottom and the latch
is on the top to allow for alternate location
of latch.
Inverted Latch
Tab Up
Standard Latch
Tab Down
Mounting pegs
Provide location and retention support dur-
ing soldering processes, but do not function
as boardlocks. The majority of modular
jacks have some type of mounting peg.
Grounding Options
Panel Ground
— Makes contact with the
panel for ground connections
PCB Ground
— Makes contact with the PCB
for ground connections
LEDs
Integrated into the modular jack, eliminating
the need for additional system space for
indicators. Available in multiple colors and
configurations.
Panel Stops
Provides additional mechanical support,
especially with top entry jacks.
*Terminology Key
EMI — Electro Magnetic Interference
RFI — Radio Frequency Interference
te.com/products/stdmodjacks
TE Connectivity
Single Port Modular Jacks

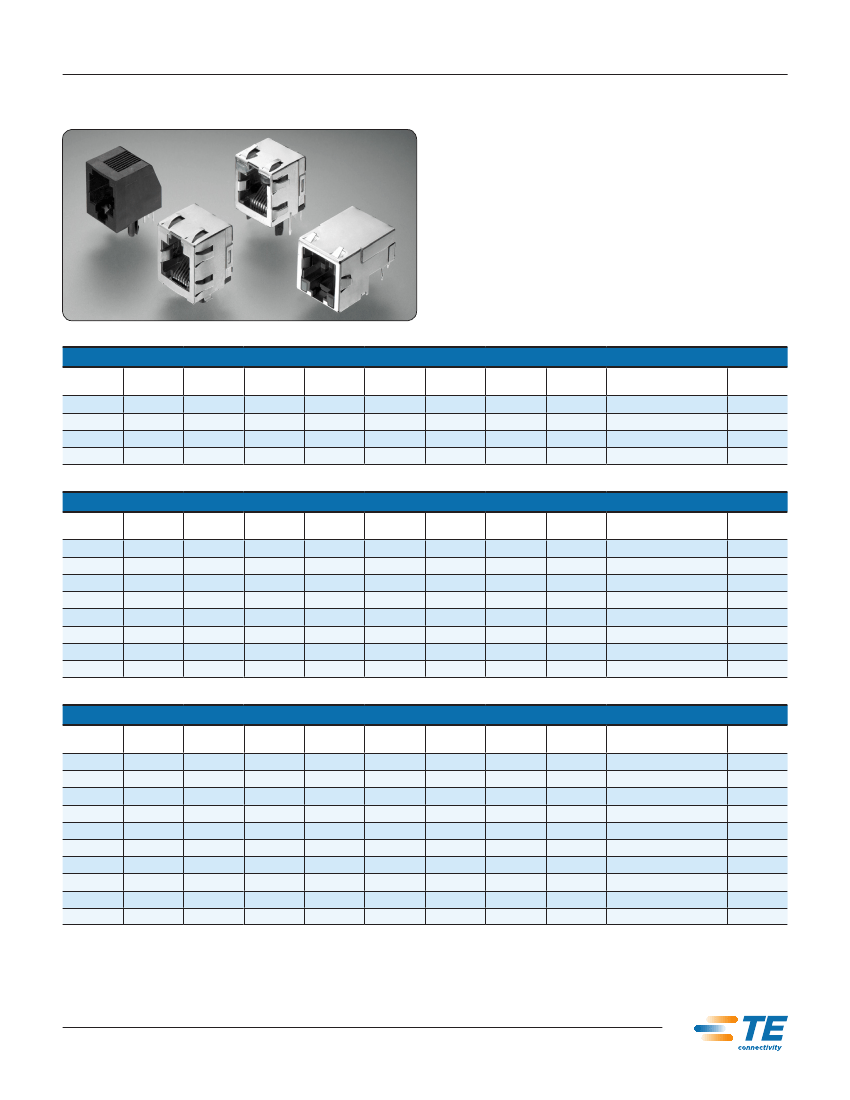

Right Angle Jacks
TE Connectivity’s extensive product offering provides a broad
selection of right angle modular jacks.
Features
•
CAT 3, CAT 5, CAT 5e performance ratings
•
Low-profile, through-hole, or SMT
•
With and without shielding
•
With and without LEDs
•
Grounding and panel features
4 POSITIONS/ 4 CONTACTS
Part
Number
215875-1
5555980-1
5520249-2
5520241-2
Height
(mm)
11.5
16.2
16.2
17.4
Mount
Style
T/H
T/H
T/H
T/H
Shielded
No
No
No
No
Ground
Option
No
No
No
No
Panel
Stops
No
No
Yes
No
LEDs
No
No
No
No
Tail Length
(mm)
3.1
3.81
3.81
3.43
Designed
For..
Cat 3
Cat 3
Cat 3
Cat 3
Flanged
Other Features
Inverted
No
No
No
No
6 POSITIONS/ 4 CONTACTS
Part
Number
5520250-2
5555979-1
215876-2
5555163-2
5555165-2
5555140-2
5555154-2
5406545-1
Height
(mm)
16.2
16.2
11.5
12.7
12.7
12.7
12.7
12.4
Mount
Style
T/H
T/H
T/H
T/H
T/H
T/H
T/H
SMT
Shielded
No
No
No
No
No
Yes
Yes
No
Ground
Option
No
No
No
No
No
Panel & PCB
PCB
No
Panel
Stops
Yes
No
No
Yes
No
Yes
Yes
Yes
LEDs
No
No
No
No
No
No
No
No
Tail Length
(mm)
3.81
3.81
3.2
3.81
3.81
3.81
3.81
N/A
Designed
For..
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Other Features
Inverted
No
No
No
No
No
No
No
Yes
6 POSITIONS/ 6 CONTACTS
Part
Number
215876-1
5555163-1
5555165-1
5520250-3
5555003-1
5520470-3
5555154-1
5555140-1
5406514-1
5555077-1
Height
(mm)
11.5
12.7
12.7
16.2
16.13
16.13
12.7
12.7
12.4
12.7
Mount
Style
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
SMT
SMT
Shielded
No
No
No
No
No
No
Yes
Yes
No
No
Ground
Option
No
No
No
No
No
No
PCB
Panel & PCB
No
No
Panel
Stops
No
Yes
No
Yes
Yes
No
Yes
Yes
Yes
Yes
LEDs
No
No
No
No
No
No
No
No
No
No
Tail Length
(mm)
3.2
3.81
3.81
3.81
3.81
3.81
3.81
3.81
N/A
N/A
Designed
For..
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Offset Latch
Other Features
Inverted
No
No
No
No
No
No
No
No
Yes
No
te.com/products/stdmodjacks
TE Connectivity
Single Port Modular Jacks
Right Angle Jacks
(Continued)
8 POSITIONS/ 8 CONTACTS
Part
Number
215877-1
5555162-1
5555164-1
5555166-1
5555167-1
5520251-4
5520252-4
5520426-4
5554517-1
2-5338556-1
3-5338556-1
5555141-1
5555153-1
5556591-1
5406216-1
5557786-1
5557789-1
5406298-1
5569564-1
5406533-1
5558341-1
5558343-1
1-406525-1
1116503-2
1116062-2
1888542-2
1-406541-1
1-406541-5
6364288-1
5558344-1
6116526-1
5406299-1
5558342-1
1888566-1
2-406549-1
5406721-2
5555078-1
5555764-1
6339191-1
5558178-1
6339160-1
1888250-2
1888250-3
Height
(mm)
11.5
12.7
12.7
12.7
12.7
16.13
16.2
16.2
16.2
12.1
12.1
12.7
12.7
12.7
13.72
13.64
13.64
13.72
13.64
12.83
13.39
13.39
12.83
9.58
9.58
9.58
13.34
13.34
13.34
13.64
13.64
13.72
13.64
13.34
13.34
12.4
12.7
12.7
13.34
12.7
13.34
7.38
7.38
Mount
Style
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
SMT
SMT
SMT
SMT
SMT
SMT
Press Fit
Press Fit
Shielded
No
No
No
No
No
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
Yes
Yes
Yes
Yes
Yes
Ground
Option
No
No
No
No
No
No
No
No
No
Panel & PCB
Panel & PCB
Panel & PCB
PCB
PCB
Panel & PCB
PCB
PCB
Panel & PCB
Panel & PCB
No
No
No
No
PCB
Panel & PCB
Panel & PCB
Panel & PCB
PCB
Panel & PCB
Panel & PCB
PCB
Panel & PCB
PCB
Panel & PCB
Panel & PCB
No
No
No
Panel & PCB
PCB
Panel & PCB
Panel & PCB
Panel & PCB
Panel
Stops
No
Yes
No
Yes
No
Yes
Yes
No
No
No
No
No
Yes
No
No
No
No
No
No
No
No
Yes
No
No
No
No
No
No
No
No
No
No
No
No
No
Yes
Yes
No
No
Yes
No
No
No
LEDs
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
G/Y
G/Y
No
No
No
No
No
No
No
No
No
No
No
No
No
Y/G-Y/G
G/Y
No
No
No
G/Y
No
No
G/Y-G/Y
No
Tail Length
(mm)
3
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.1
3.1
3.81
3.81
3.81
3.56
3.56
3.56
3.56
2.79
2.54
3.56
3.56
2.54
3.48
3.48
3.48
2.54
2.54
2.6
3.56
3.56
3.56
3.56
3.18
2.54
N/A
N/A
N/A
N/A
N/A
N/A
1.74
1.74
Designed
For..
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 5
Cat 5e
Cat 5e
Cat 5
Cat 5
Cat 5
Cat 5
Cat 5
Cat 5
Cat 5
Cat 5e
Cat 5
Cat 5e
Cat 5e
Cat 5
Cat 5
Cat 3
Cat 3
Cat 3
Cat 5
Cat 3
Cat 5
Cat 5
Cat 5
ATCA/AMC Module compliant
ATCA/AMC Module compliant
Keyed
Non-traditional CAT 5 Pinout
RJ11 blocking feature
Bezel Grounds
Non-traditional CAT 5 Pinout
Non-traditional CAT 5 Pinout
Shorting Feature
Keyed
Keyed
Staggered side panels
No Side Panels
Keyed
Keyed
Keyed
Other Features
Inverted
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
Yes
No
No
Yes
No
No
No
Yes
Yes
Yes
No
No
No
No
Yes
Yes
Yes
No
No
Yes
No
Yes
No
No
10 POSITIONS/ 10 CONTACTS
Part
Number
5558065-1
5558066-1
5558067-1
5558070-1
Height
(mm)
13.39
13.34
13.64
13.64
Mount
Style
T/H
T/H
T/H
T/H
Shielded
No
No
Yes
Yes
Ground
Option
No
No
PCB
Panel & PCB
Panel
Stops
No
No
No
No
LEDs
No
No
No
No
Tail Length
(mm)
3.56
3.56
3.56
3.56
Designed
For..
Cat 3
Cat 3
Cat 3
Cat 3
Keyed
Other Features
Inverted
No
No
No
No
te.com/products/stdmodjacks
TE Connectivity
Single Port Modular Jacks

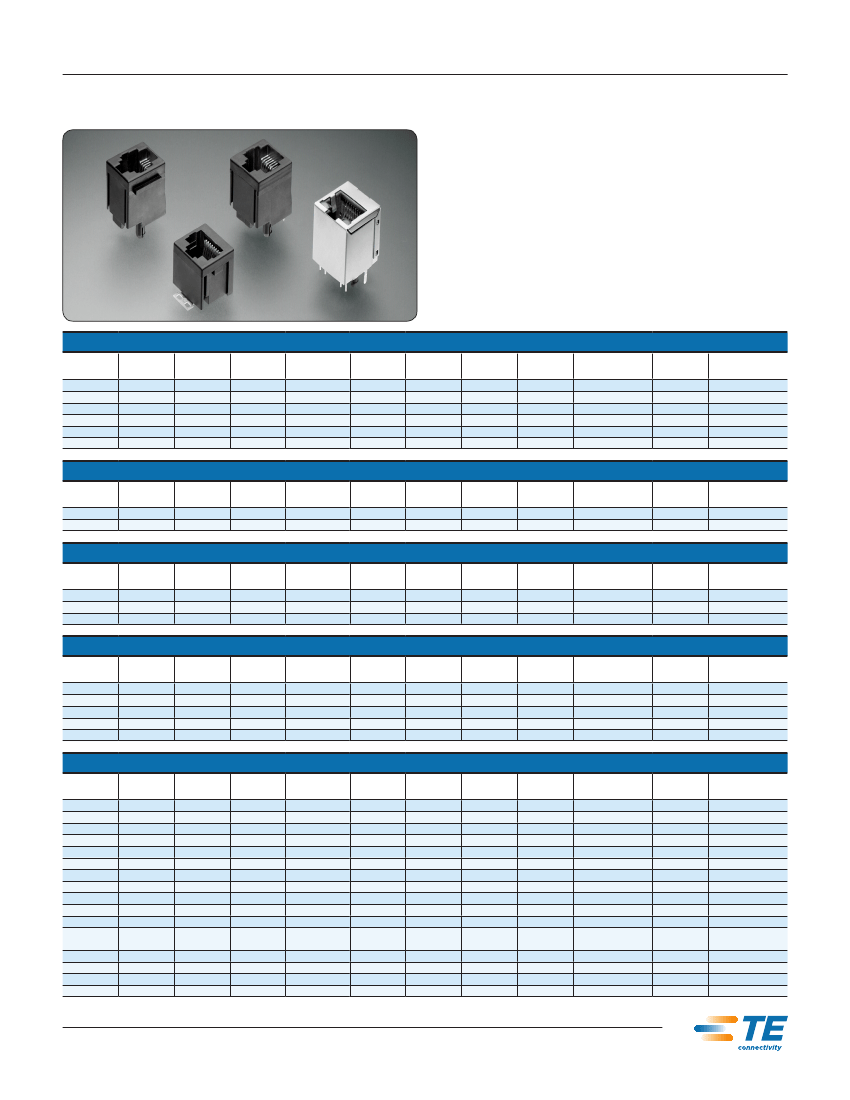

Vertical Jacks
TE Connectivity’s extensive product offering provides a broad
selection of vertical modular jacks for your jack application needs.
Features
•
CAT 3, CAT 5 performance ratings
•
Low-profile, through-hole, or SMT
•
With and without shielding
•
With and without LEDs
•
Grounding and panel features
4 POSITIONS/ 4 CONTACTS
Part
Number
216444-1
216562-1
5558872-1
5520257-2
1-338084-3
2-338084-5
Height
(mm)
12
16.4
16.51
16.51
12.7
12.7
Mount
Style
T/H
T/H
T/H
T/H
SMT
SMT
Shielded
No
No
No
No
No
No
Ground
Option
No
No
No
No
No
No
Panel
Stops
No
Yes
No
Yes
No
No
LEDs
No
No
No
No
No
No
Tail Length
(mm)
2.79
3.1
3.81
3.43
N/A
N/A
Designed
For..
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Other Features
W/ Solder Stop
Inverted
N/A
N/A
N/A
N/A
No
No
PCB Mount
Angle
Bottom Entry
Top Entry
Top Entry
Top Entry
Top Entry
Bottom Entry
6 POSITIONS/ 2 CONTACTS
Part
Number
5406010-2
5569984-2
Height
(mm)
16.51
16.51
Mount
Style
T/H
T/H
Shielded
No
No
Ground
Option
No
No
Panel
Stops
No
No
LEDs
No
No
Tail Length
(mm)
3.81
3.81
Designed
For..
Cat 3
Cat 3
Other Features
RJ-11T Bridged
Inverted
N/A
N/A
PCB Mount
Angle
Top Entry
Top Entry
6 POSITIONS/ 4 CONTACTS
Part
Number
5520258-2
5520425-2
1-338086-4
Height
(mm)
16.51
16.51
12.7
Mount
Style
T/H
T/H
SMT
Shielded
No
No
No
Ground
Option
No
No
No
Panel
Stops
Yes
No
No
LEDs
No
No
No
Tail Length
(mm)
3.81
3.81
N/A
Designed
For..
Cat 3
Cat 3
Cat 3
Other Features
Inverted
N/A
N/A
N/A
PCB Mount
Angle
Top Entry
Top Entry
Top/ Bottom Entry
6 POSITIONS/ 6 CONTACTS
Part
Number
216446-1
5520258-3
5554990-1
5520425-3
1-338086-6
Height
(mm)
12
16.51
16.51
16.51
12.7
Mount
Style
T/H
T/H
T/H
T/H
SMT
Shielded
No
No
No
No
No
Ground
Option
No
No
No
No
No
Panel
Stops
No
Yes
Yes
No
No
LEDs
No
No
No
No
No
Tail Length
(mm)
2.79
3.81
3.81
3.81
N/A
Designed
For..
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Other Features
W/ Solder Stop
Offset Latch
Inverted
N/A
N/A
N/A
N/A
N/A
PCB Mount
Angle
Bottom Entry
Top Entry
Top Entry
Top Entry
Top/ Bottom Entry
8 POSITIONS/ 8 CONTACTS
Part
Number
216550-1
5520259-4
5520260-4
5555799-1
5556416-1
5569284-1
5557969-1
5557484-1
100616-1
5557730-1
1734577-1
5558397-1
6368150-1
6116202-1
6116418-1
1-338088-3
Height
(mm)
16.4
16.51
16.51
16.51
16.51
16.51
16.64
16.64
16.71
16.77
16.51
16.38
16.82
16.82
16.82
12.7
Mount
Style
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
T/H
Press Fit
Press Fit
SMT
Shielded
No
No
No
No
No
No
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
Yes
No
Ground
Option
No
No
No
No
No
No
Panel & PCB
Panel & PCB
PCB
Panel & PCB
PCB
No
PCB
PCB
Panel & PCB
No
Panel
Stops
Yes
Yes
Yes
No
No
No
Yes
Yes
Yes
Yes
No
No
No
No
No
No
LEDs
No
No
No
No
No
No
No
No
No
No
G/Y
No
No
No
No
No
Tail Length
(mm)
3.1
3.81
3.81
3.81
3.81
3.43
3.43
3.9
3.1
3.43
3.25
3.56
3.99
3.99
3.99
N/A
Designed
For..
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 3
Cat 5
Cat 5
Cat 5
Cat 5
Cat 3
Other Features
Inverted
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
PCB Mount
Angle
Top Entry
Top Entry
Top Entry
Top Entry
Top Entry
Top Entry
Top Entry
Top Entry
Top Entry
Top Entry
Top Entry
Top Entry
Top Entry
Top Entry
Top Entry
Top/ Bottom Entry
Keyed
Keyed
Low Panel Stop
Keyed
Non-traditional
CAT 5 Pinout
Compliant Pin
Compliant Pin
te.com/products/stdmodjacks
京公网安备 11010802033920号
EEWORLD
