ATT-0394-20-NNN-07 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ATT-0394-20-NNN-07

ATT-0394-20-NNN-07: DescriptionFixed Attenuator, 0MHz Min, 2000MHz Max, STAINLESS STEEL; CategoryWireless rf/communication Radio frequency and microwave; File Size79KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric View All

ATT-0394-20-NNN-07 Overview

Fixed Attenuator, 0MHz Min, 2000MHz Max, STAINLESS STEEL

ATT-0394-20-NNN-07 Parametric

Parameter Name	Attribute value
Maker	Vertiv
Reach Compliance Code	unknown
Other features	N-F; N-M, I/P POWER-MAX(PEAK)=100W
Nominal attenuation	20 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	36.99 dBm
Maximum operating frequency	2000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.1

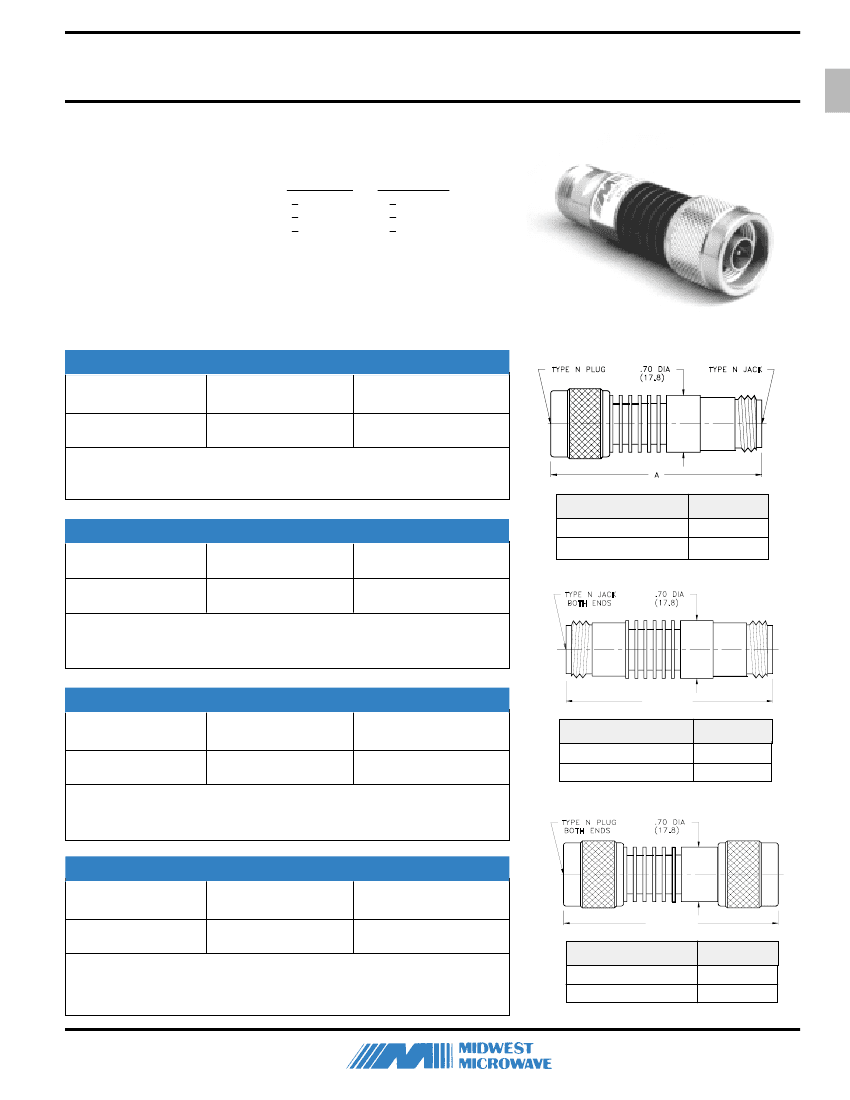

Preview

Download Datasheet

View All

Attenuators

Frequency:

DC - 18.0 GHz, DC - 12.4, DC - 8, and DC - 2.0 units available

Attenuation Values:

1 - 40 dB as noted

Attenuation Accuracy:

DC-12.4 GHz

12.4-18.0 GHz

1 - 6 dB

7 - 20 dB

21 - 40 dB

+ 0.3 dB

+ 0.5 dB

+ 0.7 dB

+ 0.5 dB

+ 0.75 dB

+ 1.0 dB

Type N - Medium Power

5 Watts - DC - 18 GHz Precision Performance

Impedance:

50 Ohms

VSWR:

1.06 + 0.02 f (GHz) max

Power:

5 Watts average @ +40

C derated linearly to 1 Watt @ +125

Peak Power:

100 Watts

Operating Temperature Range:

-54

C to +125

Finish:

Stainless Steel

DC - 18.0 GHz

Male / Female

ATT-0390-XX-NNN-07

390 Series

Female / Female

ATT-390F-XX-NNN-07

Model Number

Male / Male

ATT-390M-XX-NNN-07

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

5 Watts

Attenuation Value

Length A

2.38 (60.5)

2.82 (71.6)

DC - 12.4 GHz

Male/Female

ATT-0391-XX-NNN-07

391 Series

Female/Female

ATT-391F-XX-NNN-07

Model Number

Male/Male

ATT-391M-XX-NNN-07

1 - 6 dB

7 - 40 dB

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

5 Watts

DC - 8.0 GHz

Male/Female

ATT-0393-XX-NNN-07

393 Series

Female/Female

ATT-393F-XX-NNN-07

Model Number

Male/Male

ATT-393M-XX-NNN-07

Attenuation Value

1 - 6 dB

7 - 40 dB

Length A

2.32 (59.0)

2.75 (69.9)

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

5 Watts

DC - 2.0 GHz

Male/Female

ATT-0394-XX-NNN-07

394 Series

Female/Female

ATT-394F-XX-NNN-07

Model Number

Male/Male

ATT-394M-XX-NNN-07

1 - 6 dB

7 - 40 dB

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

Attenuation Value

Length A

2.48 (63.0)

2.91 (74.0)

5 Watts
