ZBG53W-01: DescriptionSingle Color LED, Green, Water Clear, 1.2mm,; CategoryLED optoelectronic/LED photoelectric; File Size71KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/

Download Datasheet Parametric View All

ZBG53W-01 Overview

Single Color LED, Green, Water Clear, 1.2mm,

ZBG53W-01 Parametric

Parameter Name	Attribute value
Maker	SUNLED
Reach Compliance Code	compliant
ECCN code	EAR99
color	GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	130.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.75 mm
method of packing	TAPE
peak wavelength	525 nm
shape	RECTANGULAR
size	1.2 mm
surface mount	YES
Terminal pitch	1.65 mm
perspective	120 deg

Preview

Download Datasheet

View All

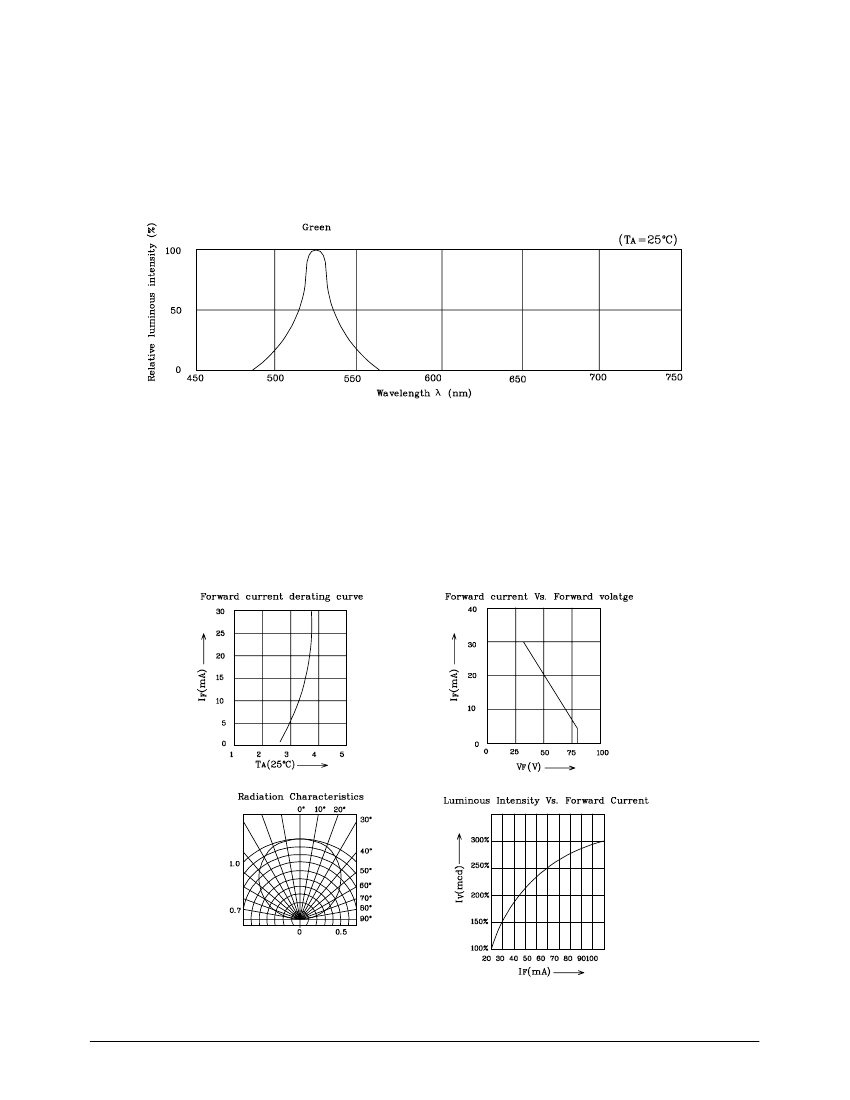

1.6x0.8mm SMD CHIP LED LAMP

ZBG53W-01

SUN LED

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.1(0.004")

unless otherwise noted.

Ab s o l u t e m a x i m u m r a t i n g s

( T

A

=25

°

C)

Reverse voltage

Forward current

Forward current (peak)

1/10Duty cycle

0.1ms pulse width

Power dissipation

Operation temperature

Storage temperature

V

R

I

F

i

FS

P

T

A

Tstg

BG

( I n G a N)

5

30

100

135

-20 ~ +80

-30 ~ +85

Un i t

Op e r a t i n g Ch a r a c t e r i s t i c s

( T

A

=25

°

C)

Forward voltage (typ.)

(I F=20mA)

Forward voltage (max.)

(I F=20mA)

Reverse current

(VR=5V)

Wavelength at peak

emission

(I F=20mA)

Spectral Line half-width

(I F=20mA)

Capacitance

(VF=0, f=1MHz)

BG

( I n G a N)

Un i t

V

mA

mW

°+

V

F

V

F

I

R

3.5

4.0

10

V

uA

λ

peak

525

nm

∆λ

C

36

90

nm

pF

P art

Nu m b e r

Em i t t i n g

Co l o r

Em i t t i n g

Ma te ria l

L e n s -c o l o r

L u min o u s

In t e n si t y

( I F = 20m A )

mc d

min .

ty p .

80

130

Wa v e l e n g t h

nm

Vi e w i n g

An g l e

ZBG53W-01

green

I nGaN

water clear

525

120°

1-1
