ZVG45W30MAV-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ZVG45W30MAV-6

ZVG45W30MAV-6: DescriptionSingle Color LED, Green, Water Clear, 2.6mm, 3.50 X 2.80 MM, ROHS COMPLIANT, SMD, 4 PIN; CategoryLED optoelectronic/LED photoelectric; File Size227KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/

Download Datasheet Parametric View All

ZVG45W30MAV-6 Overview

Single Color LED, Green, Water Clear, 2.6mm, 3.50 X 2.80 MM, ROHS COMPLIANT, SMD, 4 PIN

ZVG45W30MAV-6 Parametric

Parameter Name	Attribute value
Maker	SUNLED
package instruction	3.50 X 2.80 MM, ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	297.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	3.2 mm
method of packing	TAPE AND REEL 7\"
peak wavelength	574 nm
shape	ROUND
size	2.6 mm
surface mount	YES
perspective	60 deg

Preview

Download Datasheet

View All

Part Number: ZVG45W30MAV-6

www.SunLED.com

3.5 x2.8mm SMD CHIP LED LAMP

Features

●

Ideal for indication light on hand held products

●

Long life and robust package

●

Variety of lens types and color choices available

●

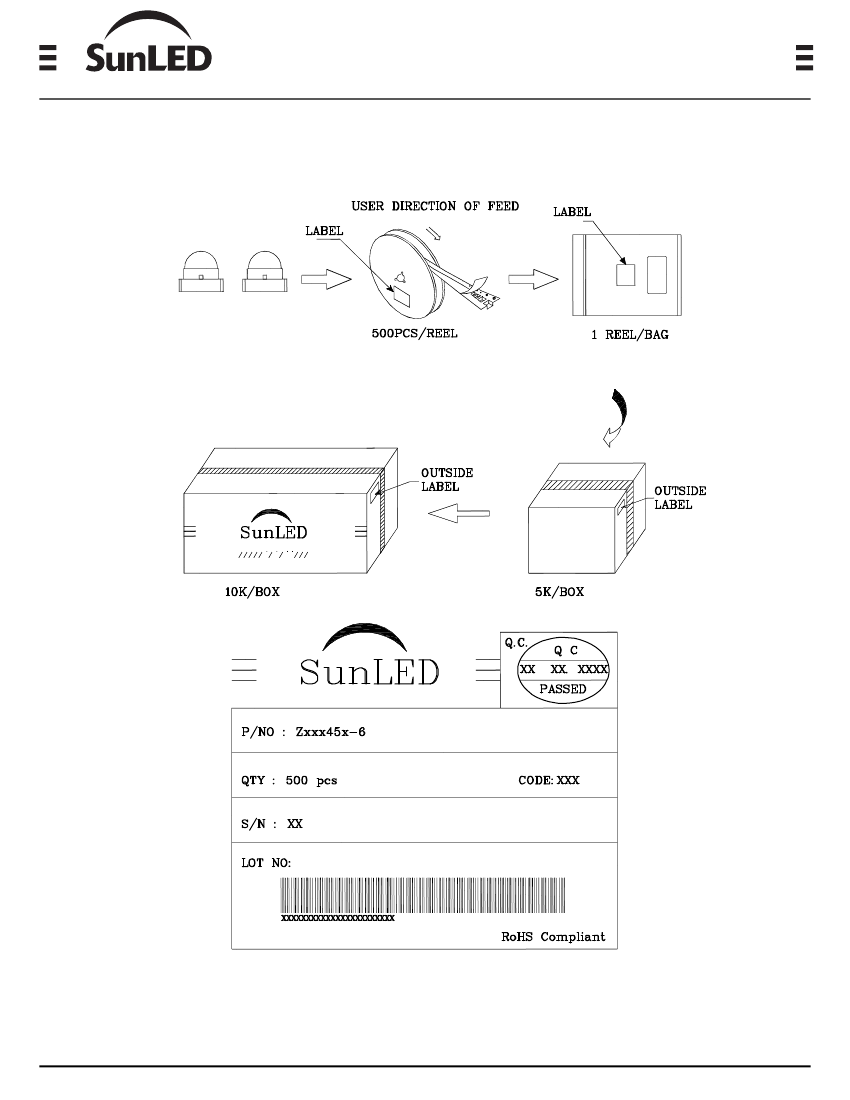

Package: 500pcs / reel

●

Moisture sensitivity level : level 3

●

RoHS compliant

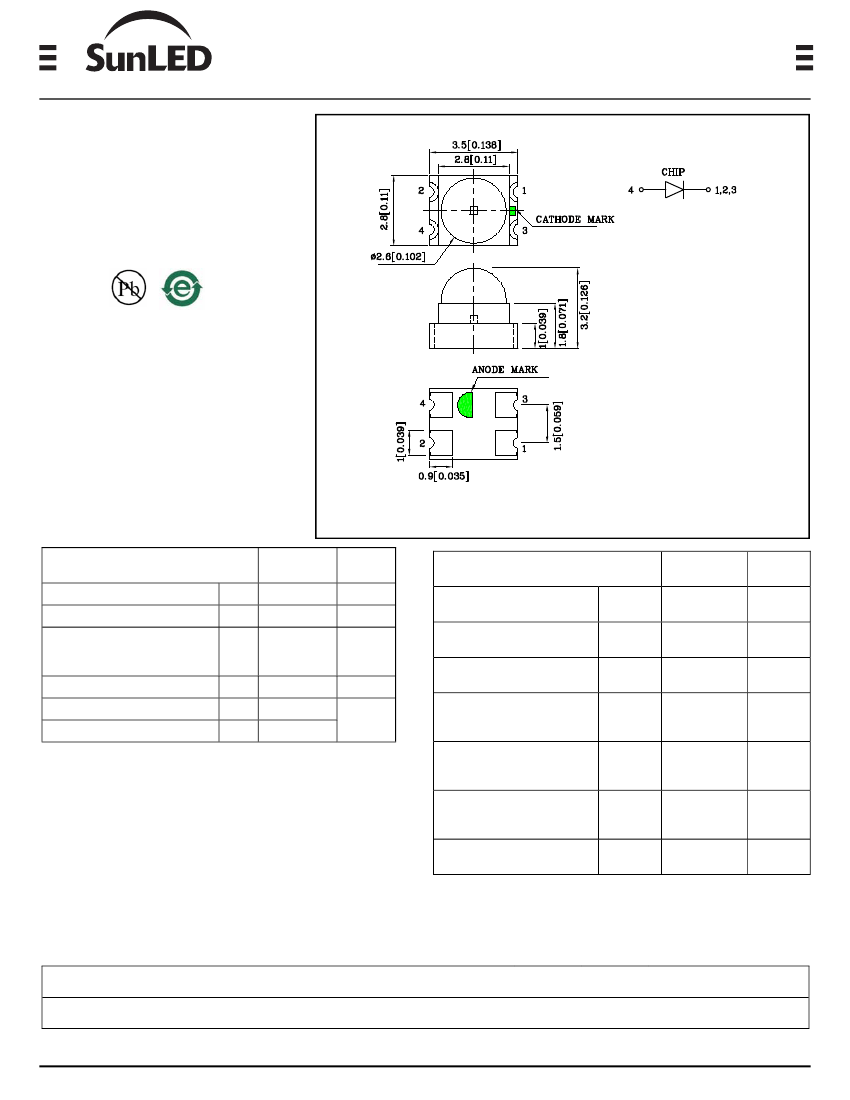

Package Schematics

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.2(0.008") unless otherwise noted.

3. Specifications are subject to change without notice.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

(AlGaInP)

150

-40 ~ +85

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=30mA)

Forward Voltage (Max.)

=30mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak

Emission (Typ.)

=30mA)

Wavelength of Dominant

Emission (Typ.)

=30mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=30mA)

Capacitance (Typ.)

=0V, f=1MHz)

(AlGaInP)

2.15

2.5

Unit

°C

Unit

λP

574

λD

570

△λ

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

=30mA)

mcd

min.

typ.

297

SDSA8223

Wavelength

λP

Viewing

Angle

2θ 1/2

ZVG45W30MAV-6

Apr 21,2011

Green

AlGaInP

Water Clear

120

574

60°

Layout: Maggie L.

P. 1/4
