THICK FILM CHIP RESISTORS
•
•
•
Small size and lightweight
Suitable for both flow and re flow soldering
Reduction of assembly costs and matching
with placement machines

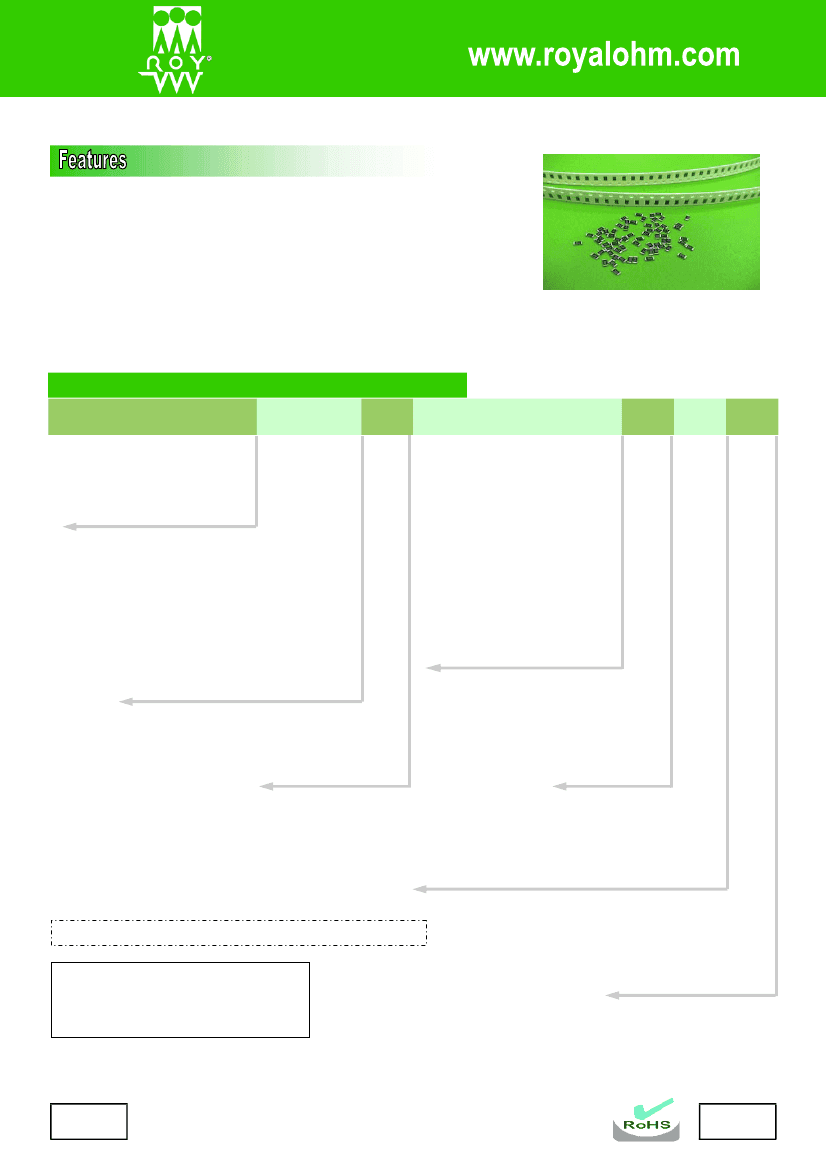

Ordering Procedure: (Ex.: 1206, 1/4W-S, 5%, 1.2Ω, T/R-5000)
1
2
0
6
S
4
J
0
1
2
J
T
5
E
Resistor Type:
Chip Resistor types as follows:
0402, 0603, 0805, 1206, 1210, 2010,
2512, 2D02, 4D02, 4D03, 10P8, 16P8
Resistance Value:
•
E-24 series: the 1
st
digit is “0”, the
2 & 3 digits are for the significant
figures of the resistance and
th
the 4 indicate the numbering of
the zeros.
st
rd
E-96 series: the 1 to 3 digits
are for the significant figures of
th
the resistance and the 4 digit
indicate the number of zeros.
“J” ~ 0.1, “K” ~ 0.01, “L” ~ 0.001
Ex.
012J ~ 1Ω2, 226K ~ 2Ω26
st
th
Jumper :
use “0” for 1 to 4 digits
nd
rd
•
Wattage:
Normal size: WH=1/32W, WG=1/16W, WA=1/10W,
W8=1/8W, W4=1/4W, W2=1/2W,
1W=1W
Small size: SA=1/10W-S, S8=1/8W-S, S4=1/4W-S,
S3=1/3W-S, 07=3/4W-S
•
Packing Type:
Tolerance:
F = ±1%, G = ±2%, J = ±5%
0
= Jumper
T =Tape / Reel
B =Bulk in Poly-bag
C =Bulk in cassette
Packing Qty:
1 = 1,000 pcs, 2 = 2,000 pcs, 3 = 3,000 pcs, 4 = 4,000 pcs,
5 = 5,000 pcs, : : 9 = 9,000 pcs,
A = 500 pcs, B = 2,500 pcs, C = 10,000 pcs, D = 20,000 pcs
* More explanation on part no, please see details on pages 79-80.
Special Feature:
0 = NIL
E = Lead (Pb) Free Plating Type /
RoHs Compliant
Note :
Special resistance value or tolerance or T.C.R.
requirement available on a case-to-case basis.
Please indicate when ordering.
Page 4
2006 - 2007

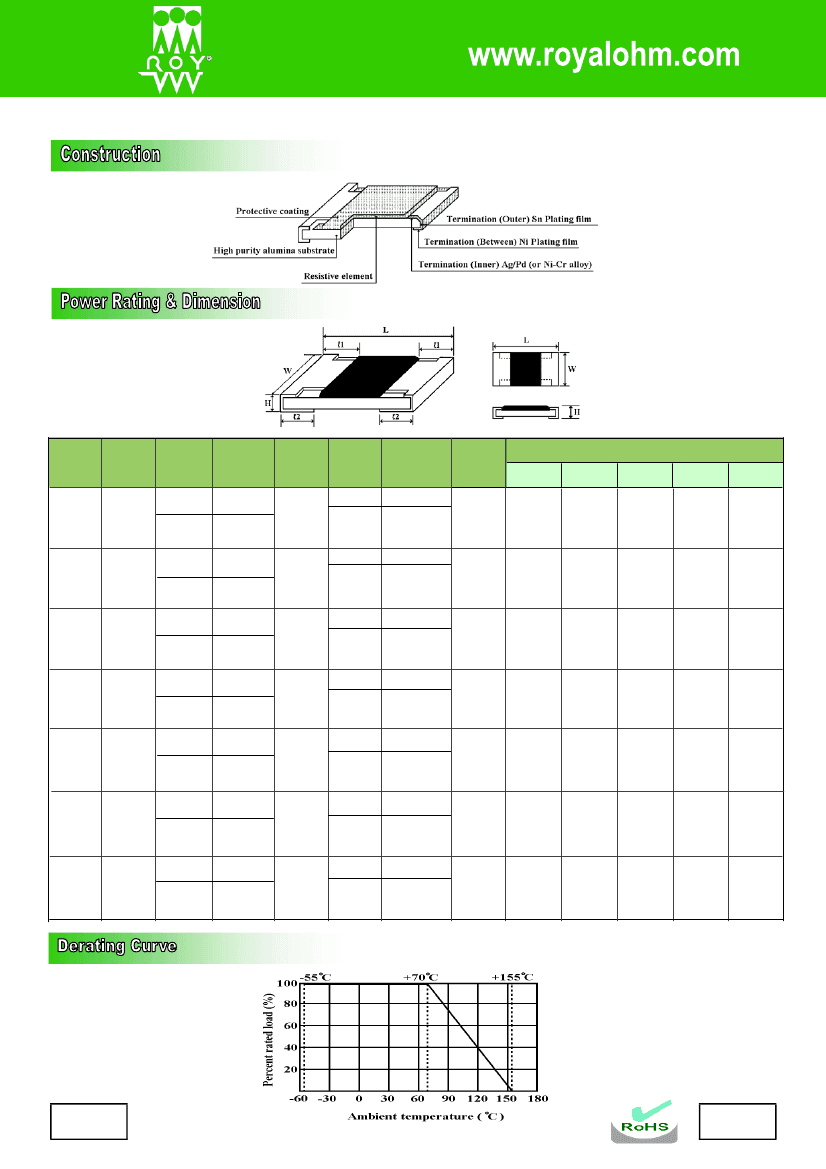

THICK FILM CHIP RESISTORS
Code
Multiplier
A
10
0
B
10
1
C
10
2
D
10
3
E
10
4
F
10
5
G
10
6
H
10
7
X
10
-1
Y
10
-2
Z
10
-3
Ω
Value
100
102
105
107
110
113
115
118
121
124
127
130
133
137
140
143
147
150
154
158
Code
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
Ω
Value
162
165
169
174
178
182
187
191
196
200
205
210
215
221
226
232
237
243
249
255
Code
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Ω
Value
261
267
274
280
287
294
301
309
316
324
332
340
348
357
365
374
383
392
402
412
Code
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Ω
Value
422
432
442
453
464
475
487
499
511
523
536
549
562
576
590
604
619
634
649
665
Code
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
Ω
Value
681
698
715
732
750
768
787
806
825
845
866
887
909
931
953
976
Code
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96

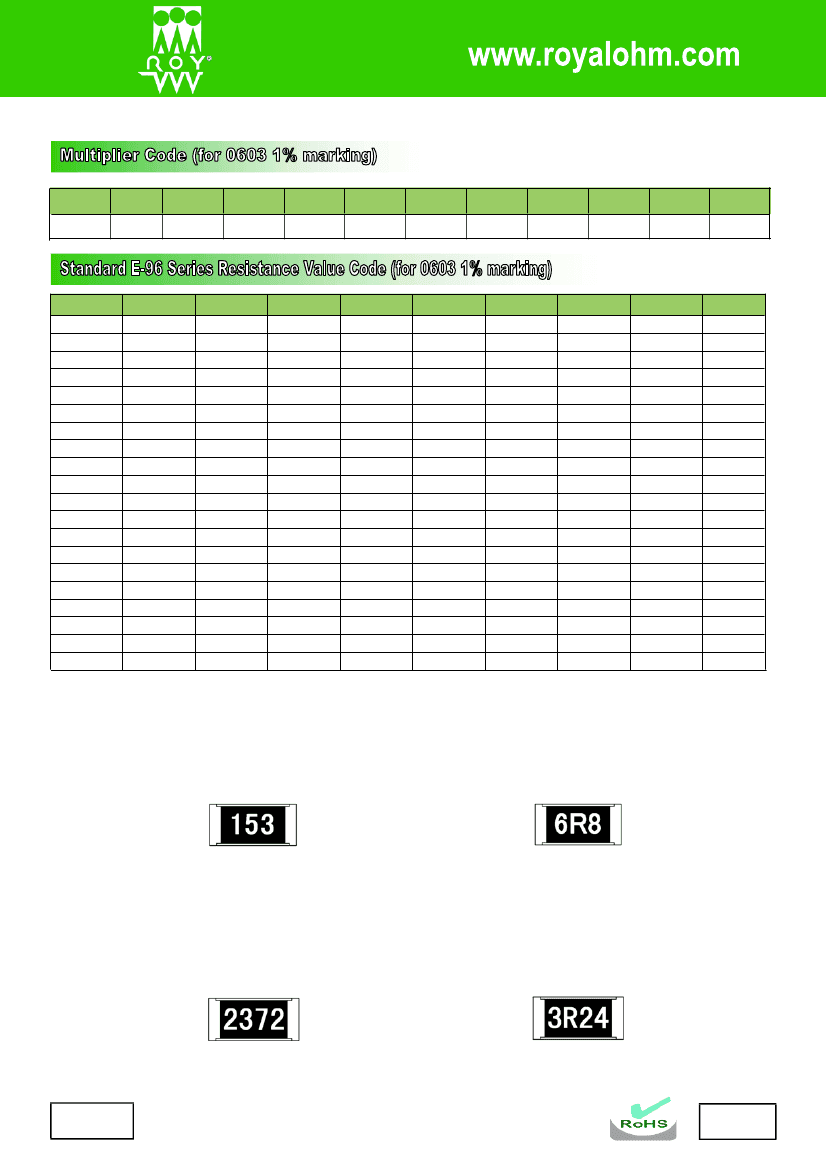

Marking on the Resistors Body:
•
•
For 0402 size, no marking on the body due to the small size of the resistor.
±5% tolerance product. (Including resistance values less than 1Ω;
both
1% and 5%) The marking is 3 digits,
the first 2 digits are the significant figures of the resistance and the 3
rd
digit denotes number of zeros.
153
= 15000Ω = 15KΩ;
120
= 12Ω
Below 10Ω shown as this:
6R8
= 6.8Ω
•
1% tolerance marking of case size 0805 and bigger is 4 digits, the first 3 digits are the significant figures
of the resistance and the 4
th
digit denotes number of zeros.
2372
= 23700Ω = 23.7KΩ;
1430
= 143Ω
Below 10Ω shown as this:
3R24
= 3.24Ω
Page 6
2006 - 2007
THICK FILM CHIP RESISTORS
•
Standard E-96 series values (±1% tolerance) of 0603 size. Due to the small size of the resistor’s body, 3 digits
marking will be used to indicate the accurate resistance value by using the Multiplier code & Standard E-96 Series
Resistance Value Code as shown on Page 7.
1.96KΩ = 196 x 10
1
Ω
=
29B
12.4Ω = 124 x 10
-1
Ω
=
10X
•
Standard E-24 series values which does not belong to E-96 series values (in ±1% tolerance) of 0603 size.
The marking is the same as 5% tolerance but marked with underline.
122
= 1200 = 1.2KΩ
680
= 68Ω
Temperature coefficient
±5%: 1Ω ~ 10Ω
≤
±400PPM/°C; 11Ω ~ 10MΩ
≤
±200PPM/°C
±1%: 10Ω ~ 100Ω
≤
±200PPM/°C; 101Ω ~ 1MΩ
≤
±100PPM/°C
Short-time overload
±5%: ±(2.0% + 0.1Ω) Max.
±1%: ±(1.0% + 0.1Ω) Max.
Insulation resistance
Dielectric withstanding voltage
Terminal bending
Soldering heat
Solderability
Temperature cycling
≥1,000
Mega Ohm
No evidence of flashover, mechanical damage, arcing or insulation breakdown.
±(1.0% + 0.05Ω) Max.
Resistance change rate is ±(1.0% + 0.05Ω) Max.
Min. 95% coverage
±5%: ±(1.0% + 0.05Ω) Max.
±1%: ±(0.5% + 0.05Ω) Max.
Humidity (Steady State)
±5%: ±(3.0% + 0.1Ω) Max.
±1%: ±(0.5% + 0.1Ω) Max.
Load life in humidity
±5%: ±(3.0% + 0.1Ω) Max.
±1%: ±(1.0% + 0.1Ω) Max.
Load life
±5%: ±(3.0% + 0.1Ω) Max.
±1%: ±(1.0% + 0.1Ω) Max.
* The values which are not of standard E-24 series (2% & 5%) and not of E-96 series (1%) could be offered on a case to case basis.
* More details, please see pages 77-78.
