HFJ11-2450E-LS21V3RL Overview

8 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, JACK

HFJ11-2450E-LS21V3RL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	HALO Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

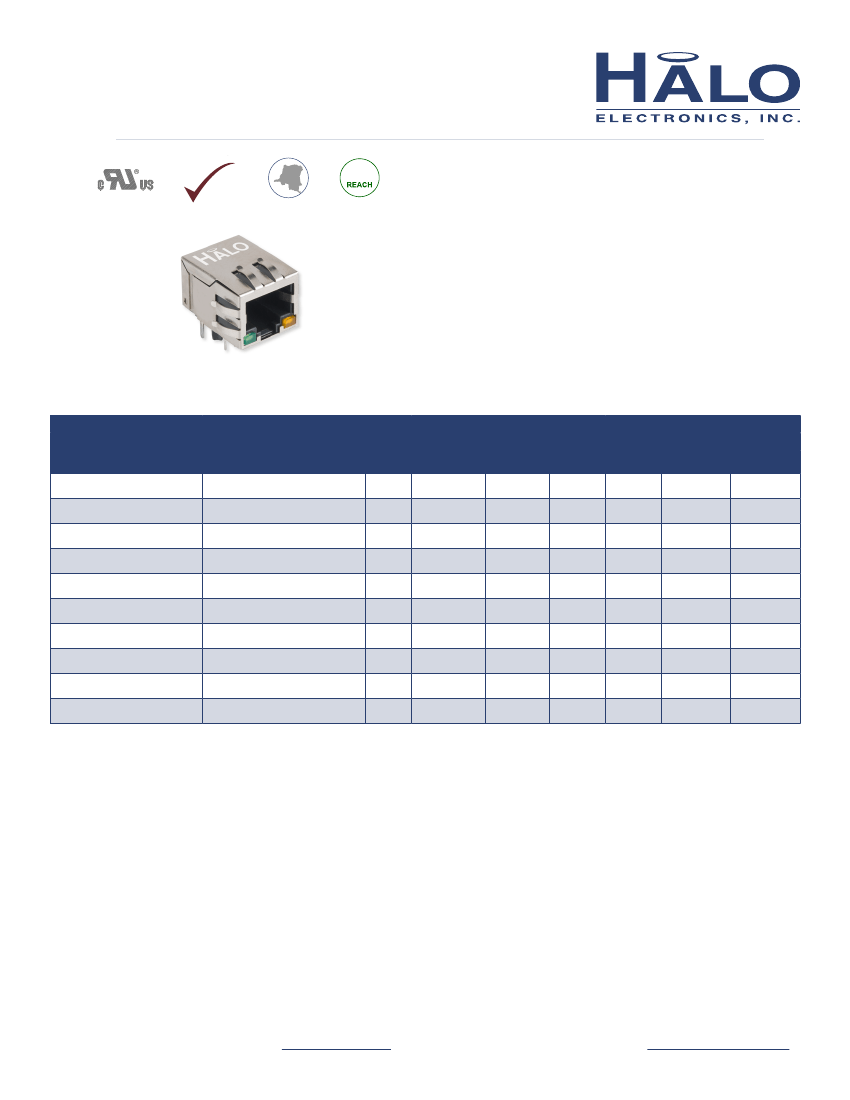

FastJack

™

1x1 Tab-Down 10/100BASE-TX RJ45

RoHS

Compliant

Conflict

FREE

ü

Product Features:

10/100 Ethernet RJ45

IEEE802.3u Compliant

30µ” Gold Plating (min) on Contacts

350uH min OCL at 8mA DC Bias Across the

Full Temp Range

100% Electrical Testing

1500Vrms Hi-Pot

Proprietary Robust Contact Design

Part Number

Standard Temp

Extended Temp

(0 to 70°C)

(-40 to +85°C)

HFJ11-2450ERL

HFJ11-2450E-L11RL

HFJ11-2450E-L12RL

HFJ11-2450E-L15RL

HFJ11-2450E-L17RL

HFJ11-2450E-L21RL

HFJ11-2450E-L55RL

HFJ11-2450E-L56RL

HFJ11-2450E-L77RL

HFJ11-2450E-L78RL

HFJ11-E2450ERL

HFJ11-E2450E-L11RL

HFJ11-E2450E-L12RL

HFJ11-E2450E-L15RL

HFJ11-E2450E-L17RL

HFJ11-E2450E-L21RL

HFJ11-E2450E-L55RL

HFJ11-E2450E-L56RL

HFJ11-E2450E-L77RL

HFJ11-E2450E-L78RL

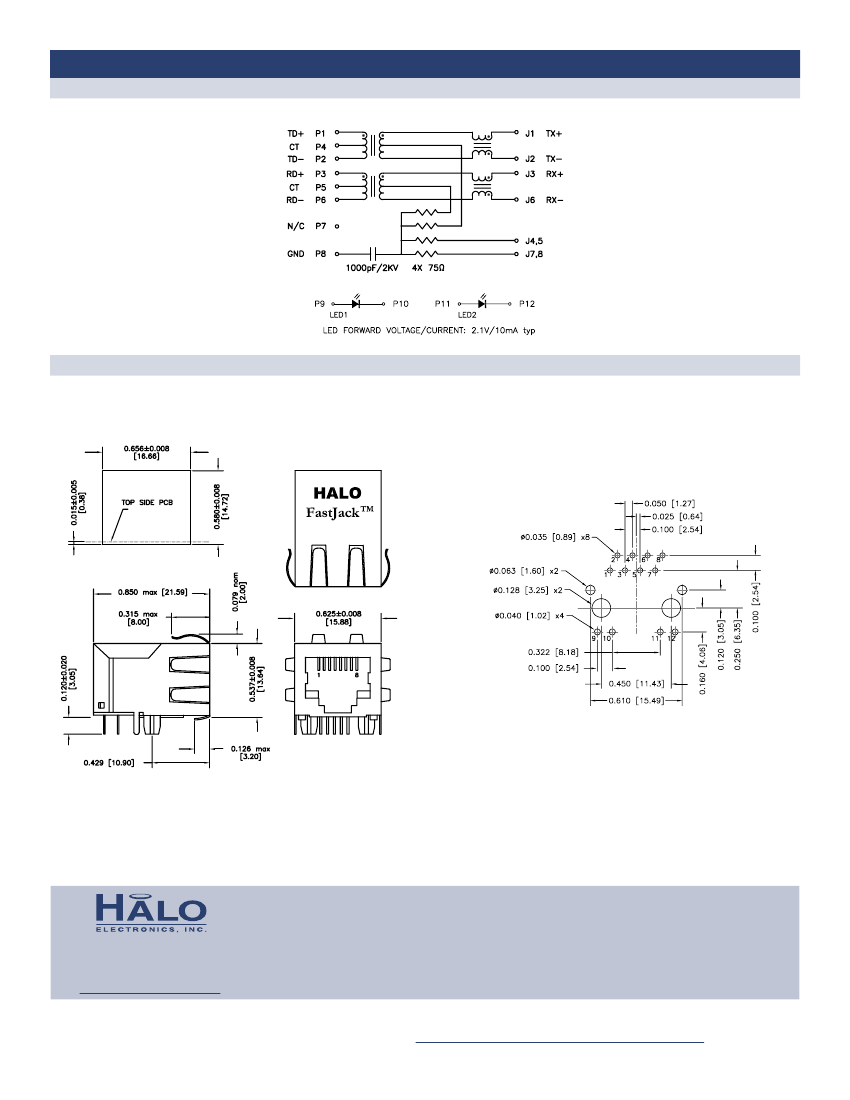

Circuit

A

LED’s

(L/R)

None

G/G

G/Y

G/G(Y)

G/G(O)

Y/G

G(Y)/G(Y)

G(Y)/Y(G)

G(O)/G(O)

G(O)/O(G)

Insertion

Return Loss (min)

Loss

1-30MHz 40MHz 50MHz 60-80MHz

(typ)

-18dB

-15.5dB -13.6dB

-12dB

-1.1dB

Notes:

1. LED Key : G = Green, Y = Yellow, O = Orange, ( ) = Bi-Color

2. Other LED colors, bi-colors, polarities, and current limiting versions available

3. Unshielded or shielded without ground tabs available

4. Part specific datasheets available

For additional information contact your

local representative,

or HALO’s support staff at (650) 903-3800 or

info@haloelectronics.com
