TS0503W3F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> TS0503W3F

TS0503W3F: DescriptionFixed Attenuator, 0MHz Min, 18000MHz Max, DIE; CategoryWireless rf/communication Radio frequency and microwave; File Size194KB，1 Pages; ManufacturerEMC Technology RF Labs; Environmental Compliance

Download Datasheet Parametric View All

TS0503W3F Overview

Fixed Attenuator, 0MHz Min, 18000MHz Max, DIE

TS0503W3F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EMC Technology RF Labs
Reach Compliance Code	compliant
Other features	HIGH RELIABILITY
Nominal attenuation	3 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	20 dBm
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	Silver (Ag)
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

Call Us: 1-800-544-5594 |

Search for:

Contact Request

Request For Quotes or Samples

eBiz

Home

Microwave Components

Cable Assemblies

News

About Us

Microwave Components

Attenuators - Fixed

Standard

Chip

> TS05 (18.0GHz)

Microwave

Components

Overview

Thermopad® Temp Variable

Attenuators

Attenuators - Fixed

Standard

Chip

TS02 (2.5GHz)

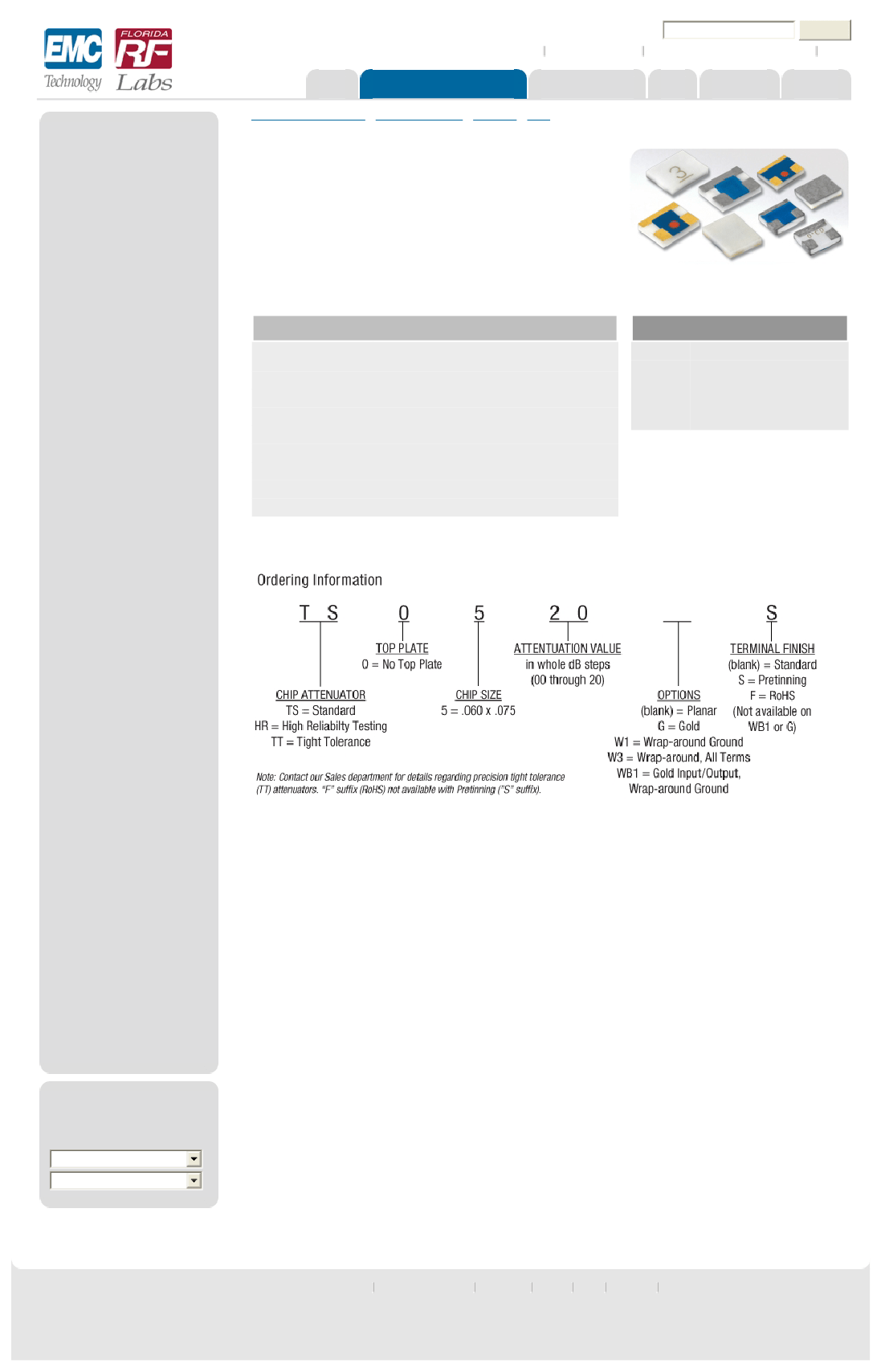

Chip Attenuators TS05 Series

EMC Technology’s TS05 chip attenuators offer rated input power

of 100 miliwatts with attenuation values from 0 dB to 20 dB in

frequencies from DC to 18 GHz. This product is available with

various metallization styles and plating options including RoHS

compliant silver over nickel, solder plated with SN62 tin/lead, or

SN62 solder fused for easy reflow processing.

General Specification

Size

0.060 x 0.075

(1.52mm x 1.91mm)

50 Ohms

DC to 18 GHz

0.0001dB/dB/C

1.25 @ DC-4GHz 1.35 @ 4-8GHz 1.50 @ 8-18GHz

100 mWatts

100% to 125 °C

0% @ 150 °C

-55 °C to 150 °C

Substrate

Resistive

material

Terminal

material

Material Specification

Aluminia

Thin film

Thick film, Nickel Barrier with Solder

Plated Finish Gold and Wire

Bondable are also available

TS03 (12.4GHz)

Impedance

TS04 (6.0GHz)

TS05 (18.0GHz)

Single Wrap

Planar

Triple Wrap

Wire Bond Gold

TS07 (6.0GHz)

TS09 (20.0GHz)

KFA (36.0GHz)

QFA (50.0GHz)

HPCA Series

83 Series

Tab & Cover

Flange

Coaxial

High Reliability

Film Cards

Frequency

AttenuationStability

VSWR (Max)

Power Rating

Power derating

derates to

Operating Temperature

HybriX® Couplers

Resistors

Terminations

Other HybriX® Signal

Distribution

Application Notes

Product Search Tool

Use our search tool to quickly

find the component you need.
