TX6A-28
™
Category 6A Performance
28 AWG Shielded Patch Cords
specifications
Category 6A/Class E
A
, F/UTP, small diameter patch cords are constructed
of 28 AWG, shielded, twisted pair, solid copper (dual-rated CM/LSZH) cable
with high performance RJ45 modular plugs. Patch cords are offered in
multiple lengths and colors for design flexibility.
S P E C I F I C AT I O N S H E E T
Category 6A 28 AWG Patch Cords
Meters:
0.2m:
STP28X*MIG^
STP28X0.2M^
technical information
Category 6A/
Class
E
A
channel
and component
performance:
Exceeds all ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class E
A
Edition 2.1
electrical performance requirements for all frequencies from 1 to 500 MHz
Note: These patch cords utilize 28 AWG conductors which do not meet the 22
to 26 AWG conductor size of patch cable referenced in ANSI/TIA-568-C.2,
resulting in an increased attenuation de-rating value of 1.9. Supports 96 meter
channels that include 90 meter permanent links. Supports 93 meter channels with
10 meters of patch cords included in the channel.
0.185 in. (4.7mm) nominal
Meets ANSI/TIA-1096-A (formerly FCC Part 68)
Meets IEC 60603-7
Supports IEEE 802.3af/802.3at (48 cables in a bundle) and proposed 802.3bt
type 3 and type 4 (24 cables in a bundle) PoE applications
cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886)
Compliant
14°F to 140°F (-10°C to 60°C)
*Meter lengths: 0.5 – 10 meters (every 0.5m)
11 – 20 meters (every 1m)
25 – 40 meters (every 5m)
^ For standard cable colors other than Int'l Gray,
change IG suffix to: BL (Black), BU (Blue), RD
(Red), YL (Yellow), GR (Green), OR (Orange),
or VL (Violet).
For example, the part number for a 5 meter,
blue patch cord is STP28X5MBU.
Cable diameter:
FCC and
ANSI compliance:
IEC compliance:
PoE compliance:
Safety compliance:
RoHS compliance:
Operating
temperature:
Storage temperature:
-40°F to 158°F (-40°C to 70°C)
Plug housing:
UL94V-0 rated clear Polycarbonate
Contacts:
Gold plated phosphor bronze; contacts plated with 50 microinches of gold for
superior performance
Flammability rating:
CM/LSZH dual-rated
key features and benefits
Smaller diameter, flexible
cable design
Tight bend radius enables improved cable routing and management
in high density applications. Smaller cable diameter allows about 70%
more cords to be routed through cable managers and pathways
compared to traditional Category 6A shielded patch cords. Reduced
cable diameter facilitates improved air flow, cooling, resulting in lower
operating costs than traditional Category 6A shielded patch cords
Meets all Category 6A requirements (including alien crosstalk), with a
cable diameter smaller than traditional Category 5e, 6 and 6A shielded
patch cords
Confidence that each patch cord delivers critical electrical component-
level performance
Centered de-embedded plug performs in center of ANSI/TIA-568-C.2
Category 6A component range, ensuring interoperability and optimum
performance
Optimizes performance and consistency by reducing untwist at plug
Prevents snags and provides easy release, saving time on frequent
moves, adds, and changes
Provides identification of performance level, length, and quality
control number for traceability
Plug contact plated with 50 microinches of gold and rated to 2500
mating cycles
Meets individual length and color-coding requirements for greater
system flexibility
Plug lock-in and latch guard devices to prevent unauthorized or
unintended removal of patch cords

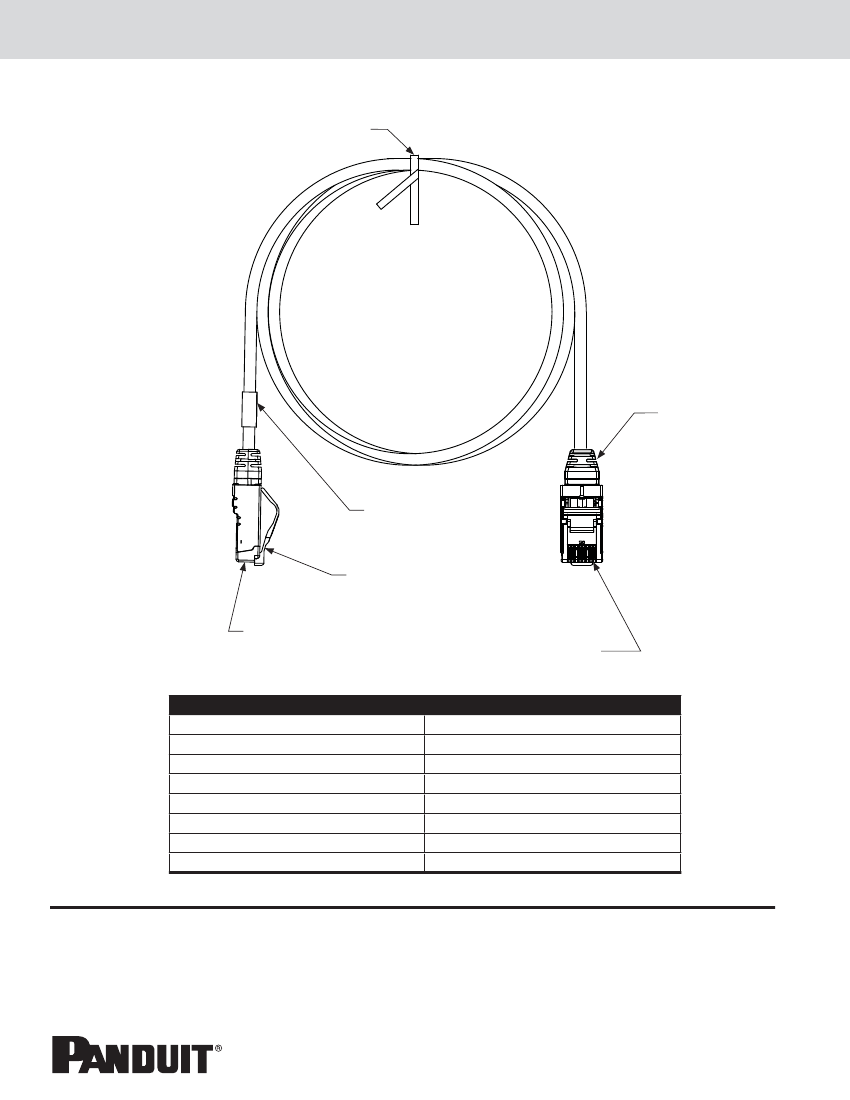

Category 6A Performance
100% performance tested for
wire map, NEXT and return
loss
Integral pair manager
Patented tangle-free latch
Identification label
Robust construction
Variety of cable colors and
lengths
Available plug lock-in
devices (optional)
applications
TX6A-28™ Category 6A Performance 28 AWG Shielded
Patch Cords support the following applications:
•
10GBASE-T Ethernet
•
Data center I/O Consolidation
•
Data center server virtualization
•
Backbone aggregation
•
Parallel processing and high speed computing
w w w.pand uit.co m
