CMD28-21SRC/TR8/T1 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> CMD28-21SRC/TR8/T1

CMD28-21SRC/TR8/T1: DescriptionSINGLE COLOR LED, RED, 2.5mm, SMT, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size138KB，1 Pages; ManufacturerCML Innovative Technologies; Environmental Compliance

Download Datasheet Parametric Compare View All

CMD28-21SRC/TR8/T1 Overview

SINGLE COLOR LED, RED, 2.5mm, SMT, 2 PIN

CMD28-21SRC/TR8/T1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CML Innovative Technologies
package instruction	SMT, 2 PIN
Reach Compliance Code	unknown
color	RED
color@wavelength	Red
Configuration	SINGLE
Maximum forward current	0.15 A
Maximum forward voltage	2.4 V
Lens type	CLEAR
Nominal luminous intensity	1.6 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.4 mm
method of packing	TAPE AND REEL
peak wavelength	660 nm
Maximum reverse voltage	5 V
shape	RECTANGULAR
size	2.5 mm
surface mount	YES
perspective	150 deg

Preview

Download Datasheet

View All

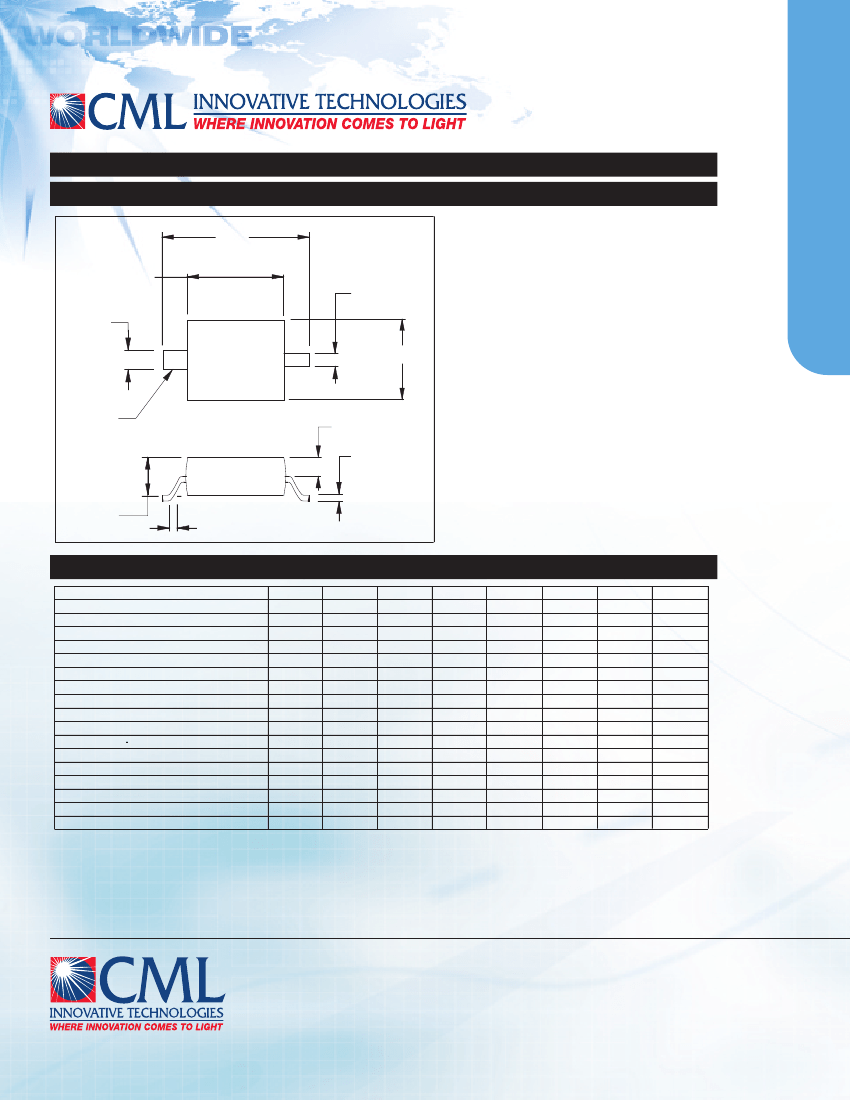

CMD28-21 Series SMT LEDs

DESCRIPTION AND FEATURES

4.20

MAX.

2.50±0.20

0.40

0.50

2.00±0.20

All dimensions

in mm.

Surface Mount Technology

• Tape and reel packaged for high-speed

autoinsertion.

• Convection and vapor-phase reflow compatible.

• Compactform enables high density placement.

• Gull Wing lead form

• Packaged 2000 pieces per reel.

Leading Edge LED Optoelectronic Performance

• Consistent high brightness.

• Low current types available.

Exceptional Reliability

• Stringent process controls assure quality.

• Extensive qualification testing to meet

strictest requirements.

• Designed to permit easy post-reflow solder

joint inspection.

C ATHODE

(ANODE FOR SRC MODELS)

0.80

0.13±0.07

MAX.

1.40±0.20

0.26

ELECTRO-OPTICAL CHARACTERISTICS AND RATINGS

CMD28-21VGC/TR 8

CMD28-21VYC/TR 8

CMD28-21VR C/TR 8 CMD28-21S R C/TR 8

CMD28-21VRC/TR8/T1

CMD28-21VYC/TR8/T1

CMD28-21VGC/TR8/T1

CMD28-21SRC/TR8/T1

P AR T NUMB E R

G reen

Y ellow

R ed

G reen

Y ellow

R ed

H.E . R ed

R ed

Output C olor

S ingle

P ackage T ype

C lear

P ackage C olor

T est C urrent (mA)

2.1

1.7

2.0

2.1

2.0

1.7

2.0

F orward Voltage Typ. (V)

2.8

2.4

2.8

2.4

2.8

F orward V oltage Max. (V )

0.1

0.25

1.0

3.5

1.0

1.5

11.0

0.1

Luminous Intensity Min. (mcd)

0.4

0.16

1.6

5.5

6.0

3.0

17.0

0.16

Luminous Intensity T yp. (mcd)

Luminous Intensity Max. (mcd)

570

585

660

P eak Wavelength (nm)

570

585

640

660

640

150

Viewing Angle 20 1/2 (degrees)

105

100

105

P ower Dissipation (mW)

105

100

105

-40 to +85 -40 to +85 -40 to +85

-40 to +85 -40 to +85 -40 to +85 -40 to +85 -40 to +85

Operating Temperature (°C )

-40 to +85 -40 to +85 -40 to +85 -40 to +85 -40 to +85 -40 to +85 -40 to +85 -40 to +85

S torage T emperature (°C )

150

P eak Forward C urrent Max. (1 s @ 10% duty cycle) (mA)

150

5.0

R everse V oltage (IR =100 A) (V )

5.0

Lead S older T ime @ 260°C

America:

CML Innovative Technologies,Inc.

147 Central Avenue

Hackensack, NJ 07601 -USA

Tel:1-201-489 -8989

Fax:1-201-489 -6911

e-mail:americas@cml-it.com

Europe:

CML Technologies GmbH &Co.KG

Robert-Bunsen-Str.1

67098 Bad Dürkheim -GERMANY

Tel:+49 (0)6322 9567-0

Fax:+49 (0)6322 9567-88

e-mail:europe@cml-it.com

Asia:

CML Innovative Technologies,Inc.

61 Aida Street

Singapore 459975

Tel:(65)9630 -5003

e-mail:asia@cml-it.com

CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product

CMD28-21 Series SMT LEDs

CMD28-21SRC/TR8/T1 Related Products

	CMD28-21SRC/TR8/T1	CMD28-21VRC/TR8	CMD2821VGCTR8T1	CMD28-21SRC/TR8	CMD28-21VYC/TR8/T1	CMD28-21VYC/TR8	CMD2821VRCTR8T1	CMD2821VYCTR8T1
Description	SINGLE COLOR LED, RED, 2.5mm, SMT, 2 PIN	SINGLE COLOR LED, RED, 2.5 mm, SMT, 2 PIN	Single Color LED, Green, Clear, 2.5mm, SMT, 2 PIN	Single Color LED, Red, Clear, 2.5mm, SMT, 2 PIN	SINGLE COLOR LED, YELLOW, 2.5 mm, SMT, 2 PIN	SINGLE COLOR LED, YELLOW, 2.5 mm, SMT, 2 PIN	Single Color LED, High Efficiency Red, Clear, 2.5mm, SMT, 2 PIN	Single Color LED, Yellow, Clear, 2.5mm, SMT, 2 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	SMT, 2 PIN	SMT, 2 PIN	SMT, 2 PIN	SMT, 2 PIN	SMT, 2 PIN	SMT, 2 PIN	SMT, 2 PIN	SMT, 2 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow	unknow	unknow
color	RED	RED	GREEN	RED	YELLOW	YELLOW	HIGH EFFICIENCY RED	YELLOW
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Lens type	CLEAR	CLEAR	CLEAR	CLEAR	CLEAR	CLEAR	CLEAR	CLEAR
Nominal luminous intensity	1.6 mcd	3.0 mcd	0.16 mcd	17.0 mcd	0.4 mcd	6.0 mcd	0.16 mcd	0.4 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	660 nm	640 nm	570 nm	660 nm	585 nm	585 nm	640 nm	585 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
perspective	150 deg	150 deg	150 deg	150 deg	150 deg	150 deg	150 deg	150 deg
Is it lead-free?	Lead free	Lead free	-	Lead free	Lead free	Lead free	-	-
Maker	CML Innovative Technologies	-	-	CML Innovative Technologies	CML Innovative Technologies	CML Innovative Technologies	CML Innovative Technologies	CML Innovative Technologies
color@wavelength	Red	Orange-Red	-	Red	Yellow	Yellow	-	-
Maximum forward current	0.15 A	0.15 A	-	0.15 A	0.15 A	0.15 A	-	-
Maximum forward voltage	2.4 V	2.8 V	-	2.4 V	2.8 V	2.8 V	-	-
Maximum reverse voltage	5 V	5 V	-	5 V	5 V	5 V	-	-
