UFS160JE3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> UFS160JE3

UFS160JE3: DescriptionRectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-214BA, DO-214BA, 2 PIN; CategoryDiscrete semiconductor diode; File Size101KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric Compare View All

UFS160JE3 Overview

Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-214BA, DO-214BA, 2 PIN

UFS160JE3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Microsemi
Parts packaging code	DO-214BA
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-214BA
JESD-30 code	R-PDSO-C2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	600 V
Maximum reverse recovery time	0.06 µs
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

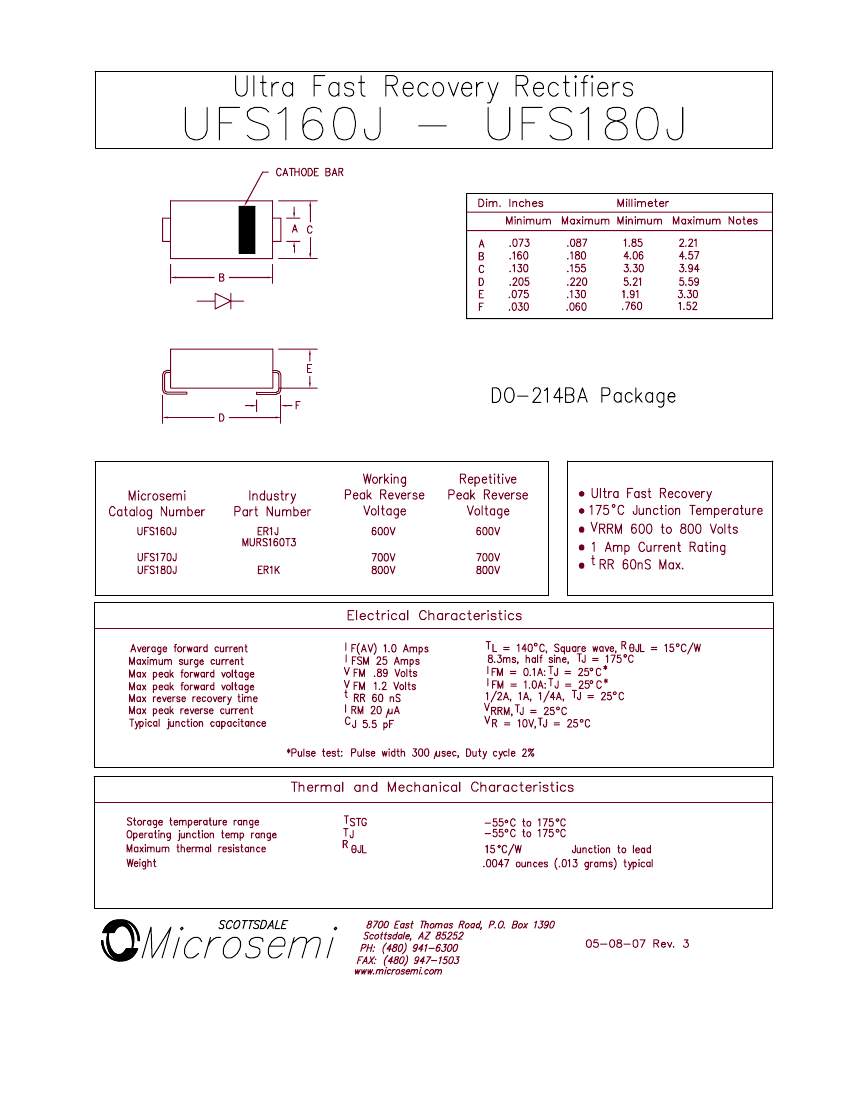

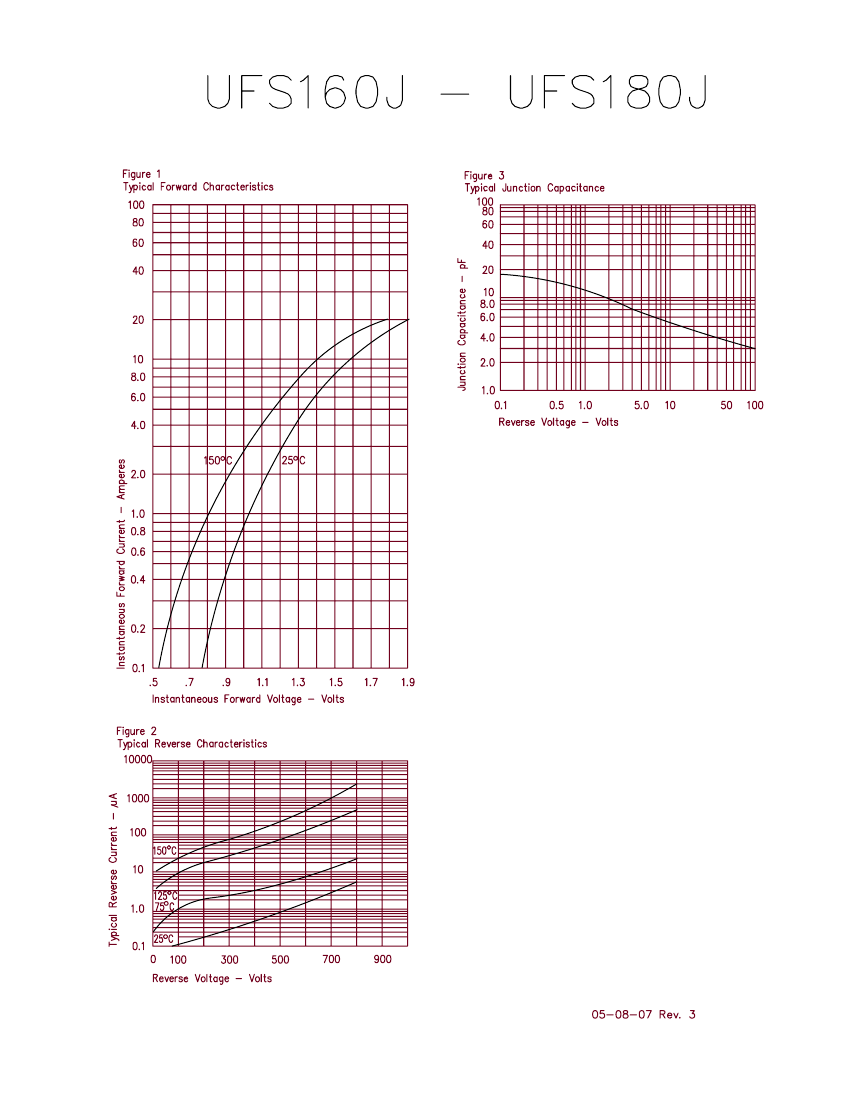

Preview

Download Datasheet

View All

UFS160JE3 Related Products

	UFS160JE3	UFS160JE3/TR13	UFS170JE3/TR13	UFS180JE3/TR13	UFS170JE3	USF160J	USF170J	UFS180JE3	USF180J
Description	Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-214BA, DO-214BA, 2 PIN	DIODE GEN PURP 600V 1A DO214BA	DIODE GEN PURP 700V 1A DO214BA	DIODE GEN PURP 800V 1A DO214BA	Rectifier Diode, 1 Element, 1A, 700V V(RRM), Silicon, DO-214BA, DO-214BA, 2 PIN	Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-214BA, DO-214BA, 2 PIN	Rectifier Diode, 1 Element, 1A, 700V V(RRM), Silicon, DO-214BA, DO-214BA, 2 PIN	Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214BA, DO-214BA, 2 PIN	Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214BA, DO-214BA, 2 PIN
Diode type	RECTIFIER DIODE	standard	standard	standard	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maker	Microsemi	-	-	-	-	Microsemi	Microsemi	Microsemi	Microsemi
package instruction	R-PDSO-C2	-	-	-	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Reach Compliance Code	compliant	-	-	-	compliant	unknown	unknown	compliant	unknown
ECCN code	EAR99	-	-	-	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	-	-	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	-	-	-	SILICON	SILICON	SILICON	SILICON	SILICON
JEDEC-95 code	DO-214BA	-	-	-	DO-214BA	DO-214BA	DO-214BA	DO-214BA	DO-214BA
JESD-30 code	R-PDSO-C2	-	-	-	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Number of components	1	-	-	-	1	1	1	1	1
Number of terminals	2	-	-	-	2	2	2	2	2
Maximum operating temperature	175 °C	-	-	-	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-55 °C	-	-	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	1 A	-	-	-	1 A	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	-	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	-	-	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum repetitive peak reverse voltage	600 V	-	-	-	700 V	600 V	700 V	800 V	800 V
Maximum reverse recovery time	0.06 µs	-	-	-	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs
surface mount	YES	-	-	-	YES	YES	YES	YES	YES
Terminal form	C BEND	-	-	-	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	-	-	-	DUAL	DUAL	DUAL	DUAL	DUAL
