LBMN-182211322

Description
Switch, 1X8 Port, FC/PC Connector, 67 X 25 MM, 10 MM HEIGHT, ROHS COMPLIANT PACKAGE
CategoryWireless rf/communication    Optical fiber
File Size261KB，3 Pages
ManufacturerLaser Components USA Inc.
Environmental Compliance
Download Datasheet Parametric Compare View All

LBMN-182211322 Overview

Switch, 1X8 Port, FC/PC Connector, 67 X 25 MM, 10 MM HEIGHT, ROHS COMPLIANT PACKAGE

LBMN-182211322 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerLaser Components USA Inc.
Reach Compliance Codeunknown
body width25 mm
body height10 mm
Body length or diameter67 mm
Connection TypeFC/PC CONNECTOR
Crosstalk50 dB
Fiber optic equipment typesSWITCH
Fiber typeSMF-28
Maximum insertion loss1.2 dB
Installation featuresTHROUGH HOLE MOUNT
Maximum operating temperature70 °C
Minimum operating temperature-5 °C
Maximum optical input power500 mW
Port configuration1X8
minimum return loss55 dB
surface mountNO
Switch actionNON-LATCHING
switching speed3 ms
switching voltage5 V

Preview

Download Datasheet
LightBendTM Mini 1x8
OptoMechanical Fiberoptic Switch
(Protected by U.S. patent 6823102 and pending patents)
Product Description

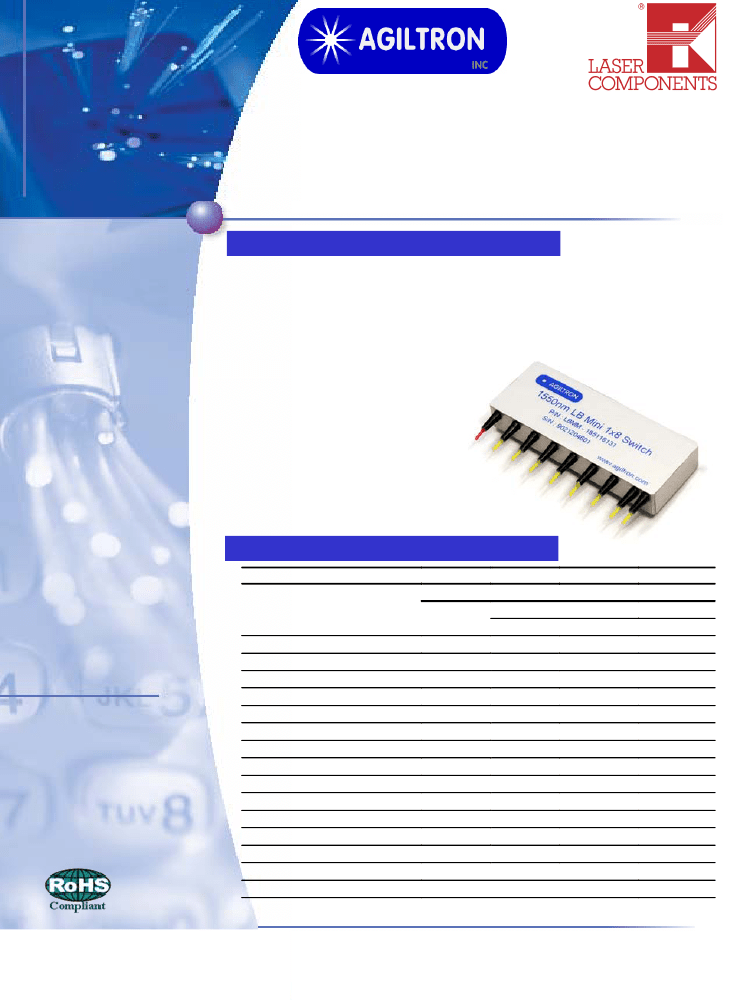

The LB Series Mini 1x8 fiber optic switch connects optical channels by redirecting an
incoming optical signal into a selected output fiber. This is achieved by using a patent
pending opto-mechanical configuration activated via an electrical control signal.
Latching operation preserves the selected optical path after the drive signal has been
removed. The switch has integrated electrical position sensors, and the new material
based advanced design significantly reduces moving part position sensitivity, offering
unprecedented high stability as well as an unmatched low cost.
Features
•
•
•
•
•
Unmatched Low Cost
Low Optical Distortions
High Isolation
High Reliability
Epoxy-Free Optical Path
Performance Specifications
LB Series Mini 1x8 Switch
Operation Wavelength
Insertion Loss
1
Wavelength Dependent Loss
Polarization Dependent Loss
Return Loss
Cross Talk
Switching Time
Repeatability
Operating Voltage
Voltage Pulse Width
(Latching)
Switching Type
Operating Temperature
2
Optical Power Handling
Storage Temperature
Fiber Type
Package Dimension
Note:
1. Exclude connectors.
Min
Dual Band
Single Band
Broad Band
0.5
0.05
55
50
Typical
Max
1260~1360 and1510~1610
1260~1360 or 1510~1610
1260 ~ 1610
0.8
1.2
0.2
0.4
0.1
0.15
Applications
•
•
•
•
Channel Blocking
Configurable Add/Drop
System Monitoring
Instrumentation
3
5
5
20
Latching / Non-Latching
-5
70
300
500
-40
85
SMF-28

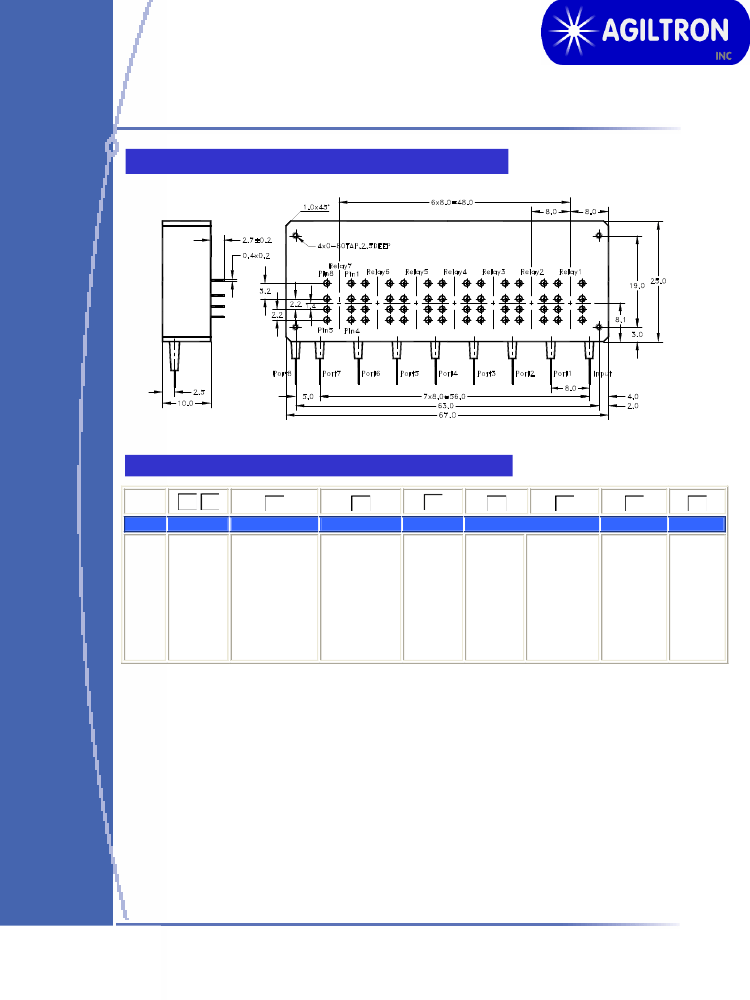

67.0L x 25.0W x 10.0H
10
±0.05
7
Unit
nm
nm
nm
dB
dB
dB
dB
dB
ms
dB
VDC
ms
C
mW
o
C
mm
o
LASER COMPONENTS GmbH
Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com

LBMN-182211322 Related Products

LBMN-182211322 LBMN-183211114 LBMN-183211332 LBMN-185211313 LBMN-812211315 LBMN-814211314 LBMN-815211127 LBMN-183211134 LBMN-184211133 LBMN-816111131
Description Switch, 1X8 Port, FC/PC Connector, 67 X 25 MM, 10 MM HEIGHT, ROHS COMPLIANT PACKAGE Switch, 1260nm Min, 1360nm Max, 1X8 Port, SC/PC Connector, 67 X 25 MM, 10 MM HEIGHT, ROHS COMPLIANT PACKAGE Switch, 1260nm Min, 1360nm Max, 1X8 Port, FC/PC Connector, 67 X 25 MM, 10 MM HEIGHT, ROHS COMPLIANT PACKAGE Switch, 1510nm Min, 1610nm Max, 1X8 Port, FC/APC Connector, 67 X 25 MM, 10 MM HEIGHT, ROHS COMPLIANT PACKAGE Switch, 8X1 Port, SC/APC Connector, ROHS COMPLIANT PACKAGE Switch, 8X1 Port, SC/PC Connector, ROHS COMPLIANT PACKAGE Switch, 8X1 Port, LC Connector, ROHS COMPLIANT PACKAGE Switch, 1260nm Min, 1360nm Max, 1X8 Port, SC/PC Connector, 67 X 25 MM, 10 MM HEIGHT, ROHS COMPLIANT PACKAGE Switch, 1X8 Port, FC/APC Connector, 67 X 25 MM, 10 MM HEIGHT, ROHS COMPLIANT PACKAGE Switch, 8X1 Port, ROHS COMPLIANT PACKAGE
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to conform to
Maker Laser Components USA Inc. Laser Components USA Inc. Laser Components USA Inc. Laser Components USA Inc. Laser Components USA Inc. Laser Components USA Inc. Laser Components USA Inc. Laser Components USA Inc. Laser Components USA Inc. Laser Components USA Inc.
Reach Compliance Code unknown unknown unknow unknow unknow unknow unknow unknow unknow unknow
body width 25 mm 25 mm 25 mm 25 mm 25 mm 25 mm 25 mm 25 mm 25 mm 25 mm
body height 10 mm 10 mm 10 mm 10 mm 10 mm 10 mm 10 mm 10 mm 10 mm 10 mm
Body length or diameter 67 mm 67 mm 67 mm 67 mm 67 mm 67 mm 67 mm 67 mm 67 mm 67 mm
Crosstalk 50 dB 50 dB 50 dB 50 dB 50 dB 50 dB 50 dB 50 dB 50 dB 50 dB
Fiber optic equipment types SWITCH SWITCH SWITCH SWITCH SWITCH SWITCH SWITCH SWITCH SWITCH SWITCH
Fiber type SMF-28 SMF-28 SMF-28 SMF-28 SMF-28 SMF-28 SMF-28 SMF-28 SMF-28 SMF-28
Maximum insertion loss 1.2 dB 1.2 dB 1.2 dB 1.2 dB 1.2 dB 1.2 dB 1.2 dB 1.2 dB 1.2 dB 1.2 dB
Installation features THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT
Maximum operating temperature 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C
Minimum operating temperature -5 °C -5 °C -5 °C -5 °C -5 °C -5 °C -5 °C -5 °C -5 °C -5 °C
Maximum optical input power 500 mW 500 mW 500 mW 500 mW 500 mW 500 mW 500 mW 500 mW 500 mW 500 mW
Port configuration 1X8 1X8 1X8 1X8 8X1 8X1 8X1 1X8 1X8 8X1
minimum return loss 55 dB 55 dB 55 dB 55 dB 55 dB 55 dB 55 dB 55 dB 55 dB 55 dB
surface mount NO NO NO NO NO NO NO NO NO NO
Switch action NON-LATCHING NON-LATCHING NON-LATCHING NON-LATCHING NON-LATCHING NON-LATCHING NON-LATCHING NON-LATCHING NON-LATCHING LATCHING
switching speed 3 ms 3 ms 3 ms 3 ms 3 ms 3 ms 3 ms 3 ms 3 ms 3 ms
switching voltage 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
Connection Type FC/PC CONNECTOR SC/PC CONNECTOR FC/PC CONNECTOR FC/APC CONNECTOR SC/APC CONNECTOR SC/PC CONNECTOR LC CONNECTOR SC/PC CONNECTOR FC/APC CONNECTOR -
Nominal operating wavelength - 1310 nm 1310 nm 1550 nm - 1410 nm 1550 nm 1310 nm 1410 nm 650 nm
