BAV19TC-C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAV19TC-C

BAV19TC-C: DescriptionRectifier Diode, 1 Element, 0.2A, 250V V(RRM), Silicon, DO-35, HALOGEN AND LEAD FREE, HERMETIC SEALED, GLASS PACKAGE-2; CategoryDiscrete semiconductor diode; File Size74KB，1 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/

Download Datasheet Parametric Compare View All

BAV19TC-C Overview

Rectifier Diode, 1 Element, 0.2A, 250V V(RRM), Silicon, DO-35, HALOGEN AND LEAD FREE, HERMETIC SEALED, GLASS PACKAGE-2

BAV19TC-C Parametric

Parameter Name	Attribute value
Maker	SECOS
Parts packaging code	DO-35
package instruction	O-LALF-W2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-35
JESD-30 code	O-LALF-W2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	0.2 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	0.5 W
Maximum repetitive peak reverse voltage	250 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal surface	TIN
Terminal form	WIRE
Terminal location	AXIAL

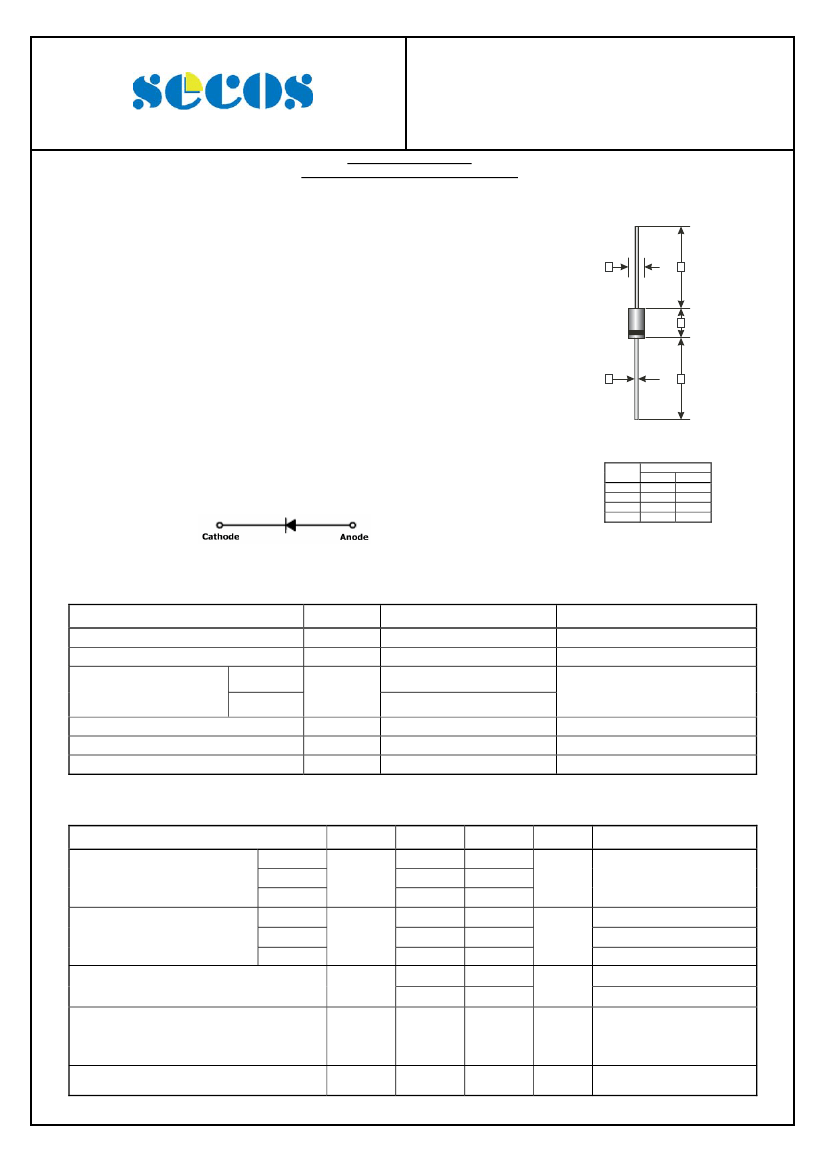

BAV19TC-C Preview

BAV19TC/BAV20TC/BAV21TC

Elektronische Bauelemente

Surface Mount Small Signal Switching Diode

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

DO-35

FEATURE



DO-35 Package (JEDEC)

Through-Hole Device Type Mounting

Hermetically Sealed Glass

Compression Bonded Construction

All external surfaces are corrosion resistant and leads

are readily solderable

RoHS Compliant

Solder hot dip Tin (Sn) lead finish

Cathode indicated by polarity band

ELECTRICAL SYMBOL

REF.

Millimeter

Min.

Max.

25.4

38.1

3.05

5.08

1.53

2.28

0.46

0.55

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

= 25°C unless otherwise noted)

Parameter

Maximum Repetitive Reverse Voltage

Average Rectified Forward Current

Non-repetitive Peak

Forward Current

Power Dissipation

Thermal Resistance Junction to Ambient

Operating Junction, Storage Temperature

PW = 1.0s

PW = 1.0μs

Symbol

RRM

F(AV)

FSM

θJA

, T

STG

Ratings

250

200

1.0

4.0

500

300

175, -65 ~ +200

Unit

°C

/ W

°C

These ratings are limiting values above which the serviceability of the diode may be impaired.

ELECTRICAL CHARACTERISTICS

= 25°C unless otherwise specified)

Parameters

BAV19TC

Breakdown Voltage

BAV20TC

BAV21TC

BAV19TC

Reverse Leakage Current

BAV20TC

BAV21TC

Forward Voltage

Symbol

Min.

120

200

250

Max.

100

1.0

1.25

5.0

Unit

Test Conditions

=100μA

= 100V

= 150V

= 200V

= 100mA

= 200mA

= I

= 30 mA,

=3mA, R

=100

= 0V, f=1MHz

Reverse Recovery Time

Capacitance

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

22-Jul-2010 Rev. A

Page 1 of 1

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BAV19TC-C Related Products

	BAV19TC-C	BAV20TC	BAV20TC-C	BAV21TC	BAV21TC-C
Description	Rectifier Diode, 1 Element, 0.2A, 250V V(RRM), Silicon, DO-35, HALOGEN AND LEAD FREE, HERMETIC SEALED, GLASS PACKAGE-2	Rectifier Diode, 1 Element, 0.2A, 250V V(RRM), Silicon, DO-35, ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2	Rectifier Diode, 1 Element, 0.2A, 250V V(RRM), Silicon, DO-35, HALOGEN AND LEAD FREE, HERMETIC SEALED, GLASS PACKAGE-2	Rectifier Diode, 1 Element, 0.2A, 250V V(RRM), Silicon, DO-35, ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2	Rectifier Diode, 1 Element, 0.2A, 250V V(RRM), Silicon, DO-35, HALOGEN AND LEAD FREE, HERMETIC SEALED, GLASS PACKAGE-2
Maker	SECOS	SECOS	SECOS	SECOS	SECOS
Parts packaging code	DO-35	DO-35	DO-35	DO-35	DO-35
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Contacts	2	2	2	2	2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-35	DO-35	DO-35	DO-35	DO-35
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
JESD-609 code	e3	e3	e3	e3	e3
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum power dissipation	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W
Maximum repetitive peak reverse voltage	250 V	250 V	250 V	250 V	250 V
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs
surface mount	NO	NO	NO	NO	NO
Terminal surface	TIN	TIN	TIN	TIN	TIN
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
