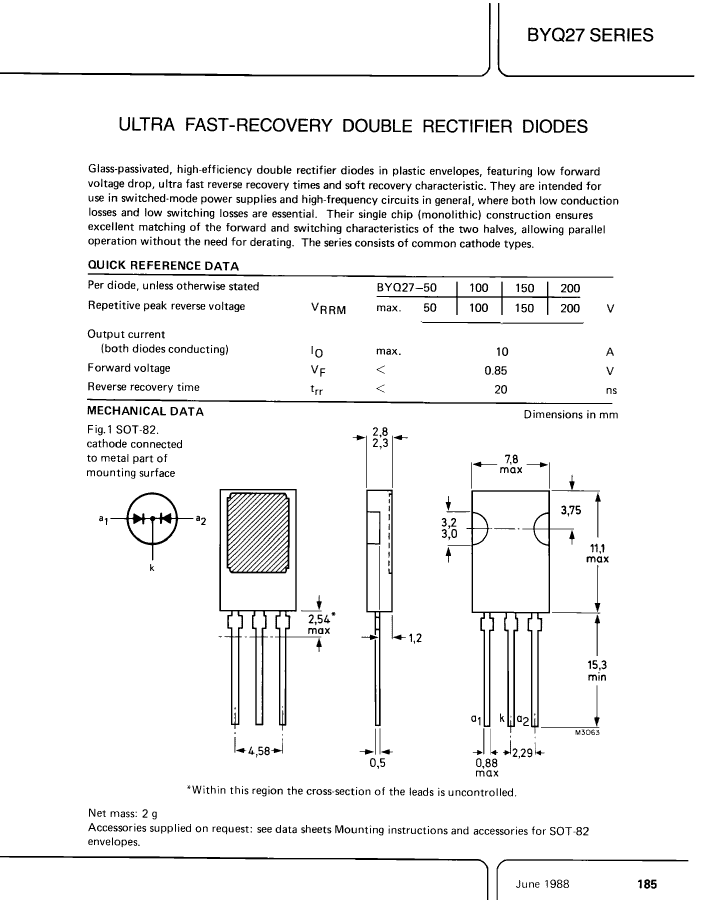

Rectifier Diode, 1 Phase, 2 Element, 5A, 100V V(RRM), Silicon,

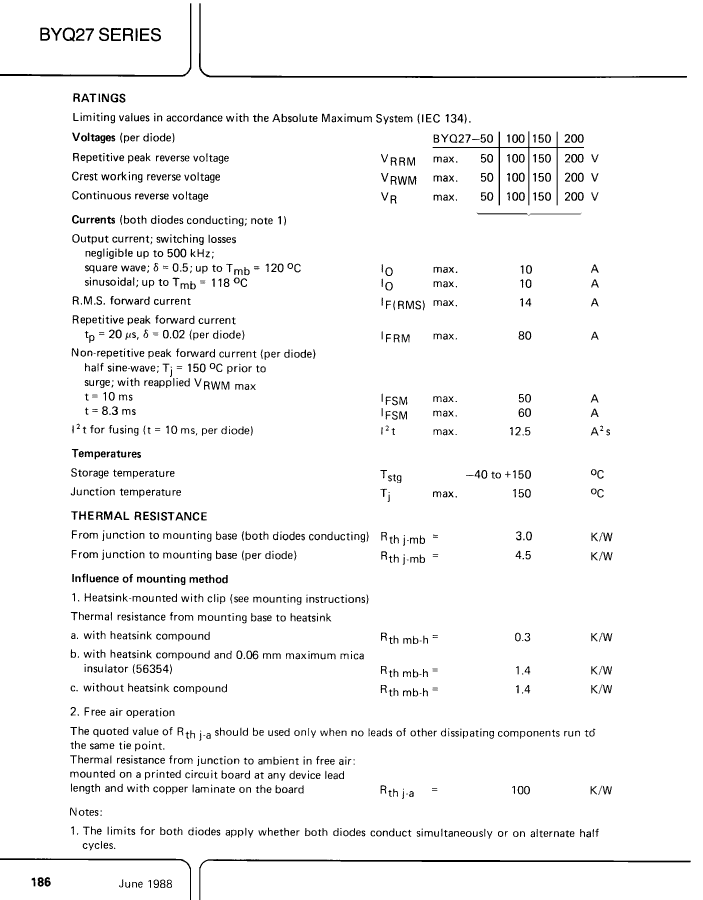

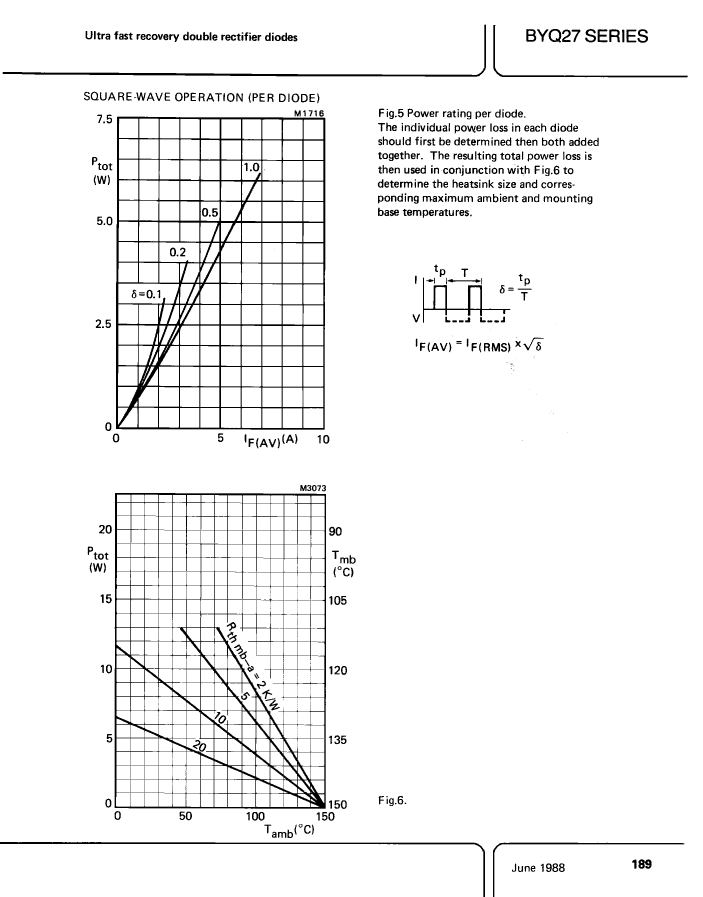

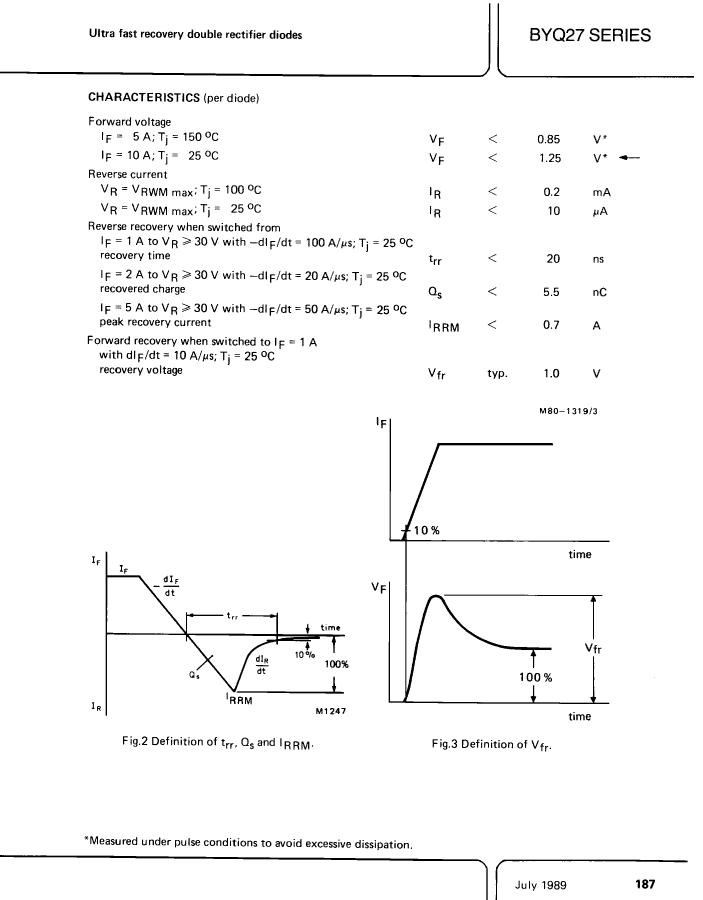

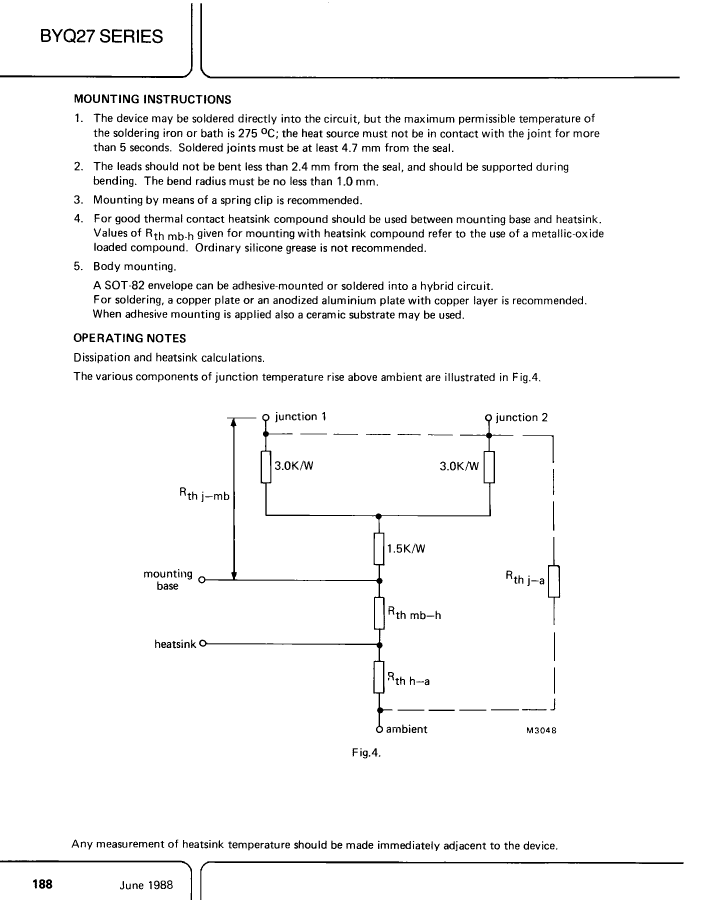

| Parameter Name | Attribute value |
| Maker | YAGEO |
| package instruction | R-PSFM-T3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| application | ULTRA FAST SOFT RECOVERY |
| Shell connection | CATHODE |
| Configuration | COMMON CATHODE, 2 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.25 V |
| JESD-30 code | R-PSFM-T3 |
| Maximum non-repetitive peak forward current | 60 A |
| Number of components | 2 |
| Phase | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Maximum output current | 5 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 100 V |
| Maximum reverse current | 10 µA |
| Maximum reverse recovery time | 0.02 µs |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| BYQ27-100 | BYQ27-150 | BYQ27-200 | BYQ27-50 | |
|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 2 Element, 5A, 100V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 2 Element, 5A, 150V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 2 Element, 5A, 200V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 2 Element, 5A, 50V V(RRM), Silicon, |
| package instruction | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| application | ULTRA FAST SOFT RECOVERY | ULTRA FAST SOFT RECOVERY | ULTRA FAST SOFT RECOVERY | ULTRA FAST SOFT RECOVERY |
| Shell connection | CATHODE | CATHODE | CATHODE | CATHODE |
| Configuration | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS |
| Diode component materials | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.25 V | 1.25 V | 1.25 V | 1.25 V |
| JESD-30 code | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 |
| Maximum non-repetitive peak forward current | 60 A | 60 A | 60 A | 60 A |
| Number of components | 2 | 2 | 2 | 2 |
| Phase | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C |
| Maximum output current | 5 A | 5 A | 5 A | 5 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 100 V | 150 V | 200 V | 50 V |
| Maximum reverse current | 10 µA | 10 µA | 10 µA | 10 µA |
| Maximum reverse recovery time | 0.02 µs | 0.02 µs | 0.02 µs | 0.02 µs |
| surface mount | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE |
| Base Number Matches | - | 1 | 1 | 1 |
