DEAN-HPF-07-01-T-S datasheet, PDF

DEAN-HPF-07-01-T-S: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket,; CategoryThe connector The connector; File Size531KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

DEAN-HPF-07-01-T-S Overview

Board Connector, 7 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket,

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	7

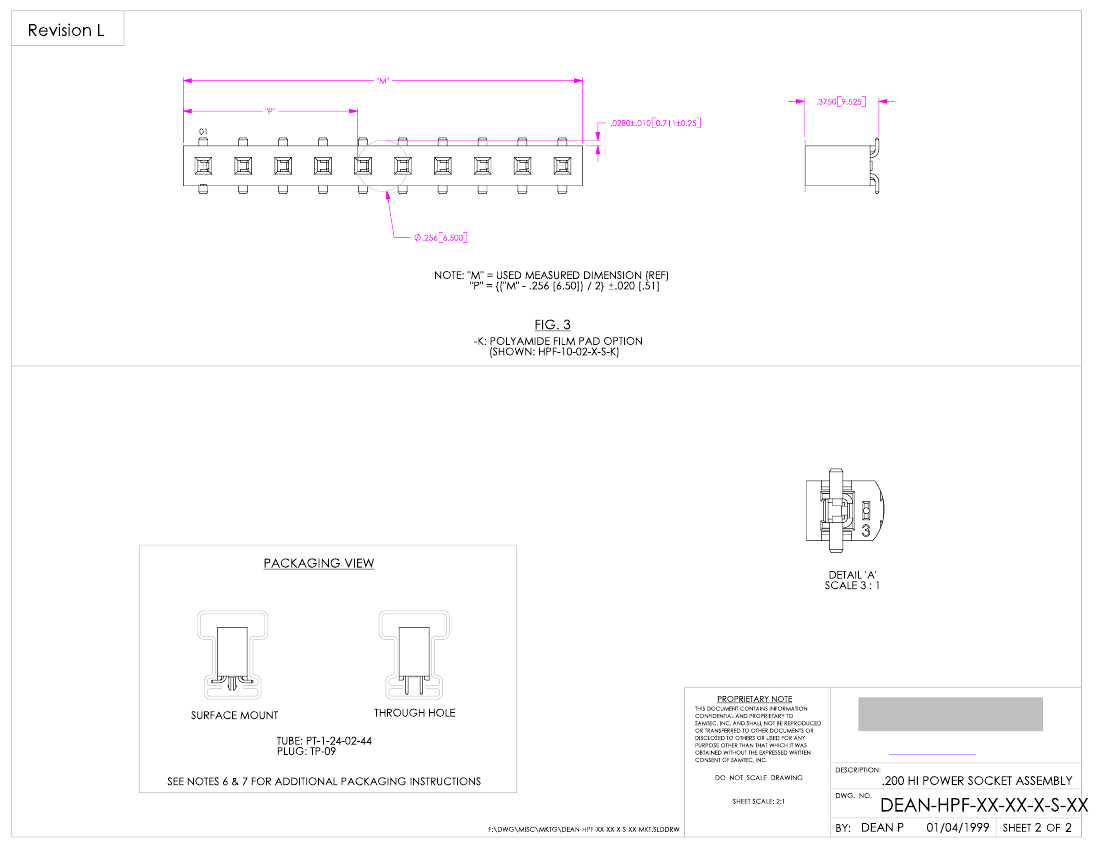

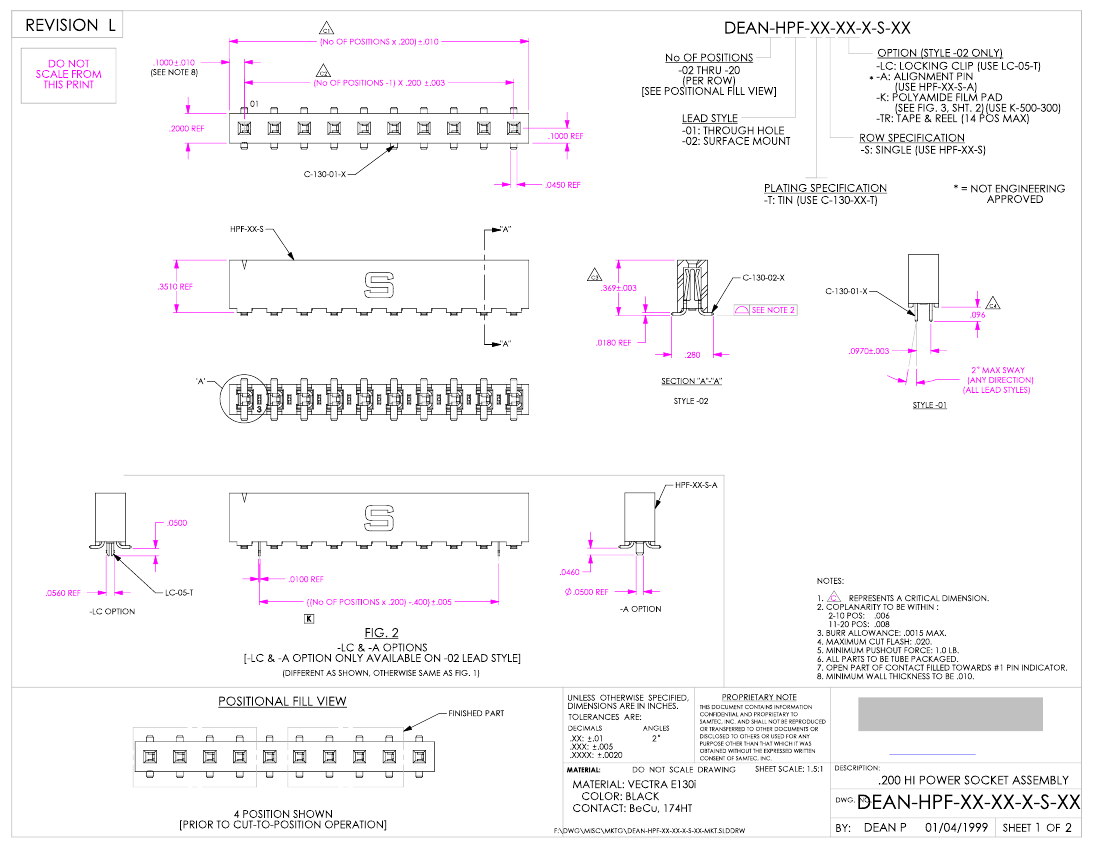

S A M TE C

5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0

P H O N E : 8 1 2 .9 4 4 .6 7 3 3

F A X : 8 1 2 .9 4 8 .5 0 4 7

e -M ail:

IN F O @ S A M T E C .C O M

C O D E: 55322
