MWDM5L-9S-0J2-18 datasheet, PDF

Datasheet> All Categories > The connector> The connector> MWDM5L-9S-0J2-18

MWDM5L-9S-0J2-18: DescriptionD Microminiature Connector, 9 Contact(s), Female, Crimp Terminal,; CategoryThe connector The connector; File Size170KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

MWDM5L-9S-0J2-18 Overview

D Microminiature Connector, 9 Contact(s), Female, Crimp Terminal,

MWDM5L-9S-0J2-18 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Glenair
Objectid	2060595195
Reach Compliance Code	compliant
compound_id	63722131
Other features	STANDARD: MIL-DTL-83513
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	WITH CABLE ASSEMBLY
Shell surface	GOLD
Shell material	ALUMINUM ALLOY
Housing size	A
Termination type	CRIMP
Total number of contacts	9

Preview

Download Datasheet

View All

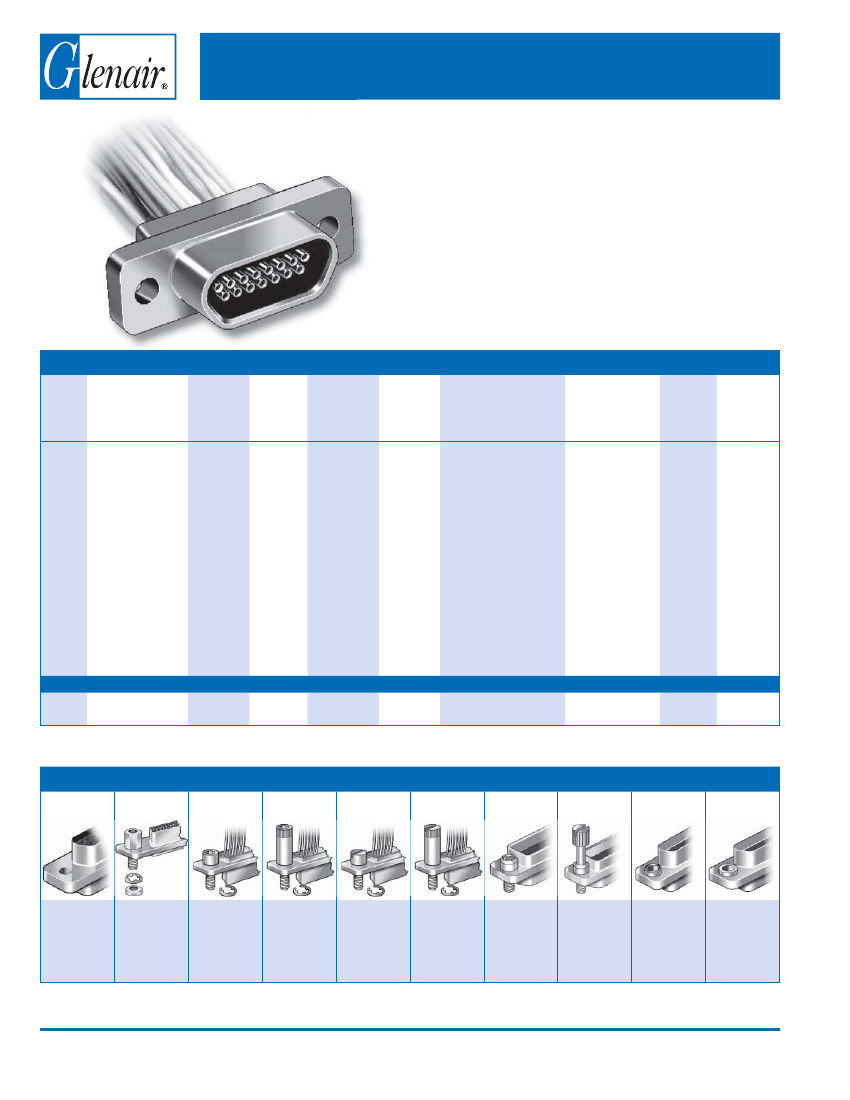

Micro-D Metal Shell

MWDM Pre-Wired with Insulated Wire

Micro-D Pre-Wired Pigtails–These

connectors feature

gold-plated TwistPin contacts and mil spec crimp

termination. Specify nickel-plated shells or cadmium

plated shells for best availability. 100% tested and

backpotted, ready for use.

Choose the Wire Type and Size To Fit Your Application–

If on-hand availability is most important, choose #26

AWG Type K mil spec Teﬂon

wire. Select M22759/33

Type J for space applications.

HOW TO ORDER METAL SHELL PRE-WIRED MICRO-D CONNECTORS

Shell Material

and Finish

Insulator Contact

Material Layout

– LCP

30% Glass-

Filled Liquid

Crystal

Polymer

Series

Contact

Type

– Pin

– Socket

Wire

Gage

(AWG)

– #24

– #26

– #28

–

#30

Wire Type

–

M22759/11

600 Vrms Teﬂon

(TFE)

Wire Color

–

White

–

Yellow

–

Color-Coded

Stripes Per

MIL-STD-

681

(Striped wire not

available on 67,

69 or 100 pin

connectors or for

#28, #30 AWG)

Wire

Length

Inches Hardware

Wire Length

In Inches. “18”

Speciﬁes 18

Inches.

MWDM

Aluminum Shell

– Cadmium

– Nickel

– Black Anodize

– Gold

– Chem Film

Stainless Steel

Shell

–

Passivated

51-2

100

–

M22759/33

600 Vrms Modiﬁed

Cross-Linked

Tefzel® (ETFE)

–

NEMA HP3-EB

600 VrmsType E

M16878/4 (TFE)

(replaced by

M22759/11 for mil

spec applications)

–

Ten Color

Repeating

Sample Part Number

MWDM

L –

S –

7 –

MICRO-D MOUNTING HARDWARE

Thru-Hole Jackpost Jackscrew Jackscrew Jackscrew Jackscrew Jackscrew Jackscrew Float Mount Float Mount

Order

Hardware

Separately

Removable

Includes Nut

and Washer

Hex Head

Removable

E-ring

Hex Head

Removable

E-ring

Extended

Slot Head

Removable

E-ring

Slot Head

Removable

E-ring

Extended

Hex Head

Non-

Removable

Slot Head

Non-

Removable

Extended

For Front

Panel

Mounting

For Rear

Panel

Mounting

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

B-4

E-Mail: sales@glenair.com
