Power Schottky Rectifier - 30Amp 200Volt
□
Features
-Plastic package has Underwriters Laboratory Flammability Classifications 94V-0
-High Junction Temperature Capability
-Low forward voltage, high current capability
-High surge capacity
-Low power loss, high efficiency
-ESD performance human body mode > 4 KV
□
Application
-AC/DC Switching Adaptor and other Switching Power Supply
-PDP
□
Absolute maximum ratings
Symbol
Ratings
30
200
350
0.72
-50 to +175
Unit
A
V
A
V
ºC
Conditions
Average Forward Current
Repetitive Peak Reverse Voltage
Peak Forward Surge Current
Forward Voltage Drop
Operating and Storage Temperature
I
F(AV)
V
RRM
I
FSM
V
F
T
j,
T
stg
□
Electrical characteristics
Parameters
Symbol
Ratings
Conditions
Per Leg at
I
F
= 15A
Maximum Instantaneous Forward Voltage
V
F
0.90V
0.72V
Tc = 25ºC
Tc = 125ºC
Per Leg at
V
R
= 200V
Maximum Reverse Leakage Current
I
R
0.05mA
10mA
Tc = 25ºC
Tc = 125ºC
Per Leg
2.2
ºC/W
Typical Thermal Resistance,Junction to Case

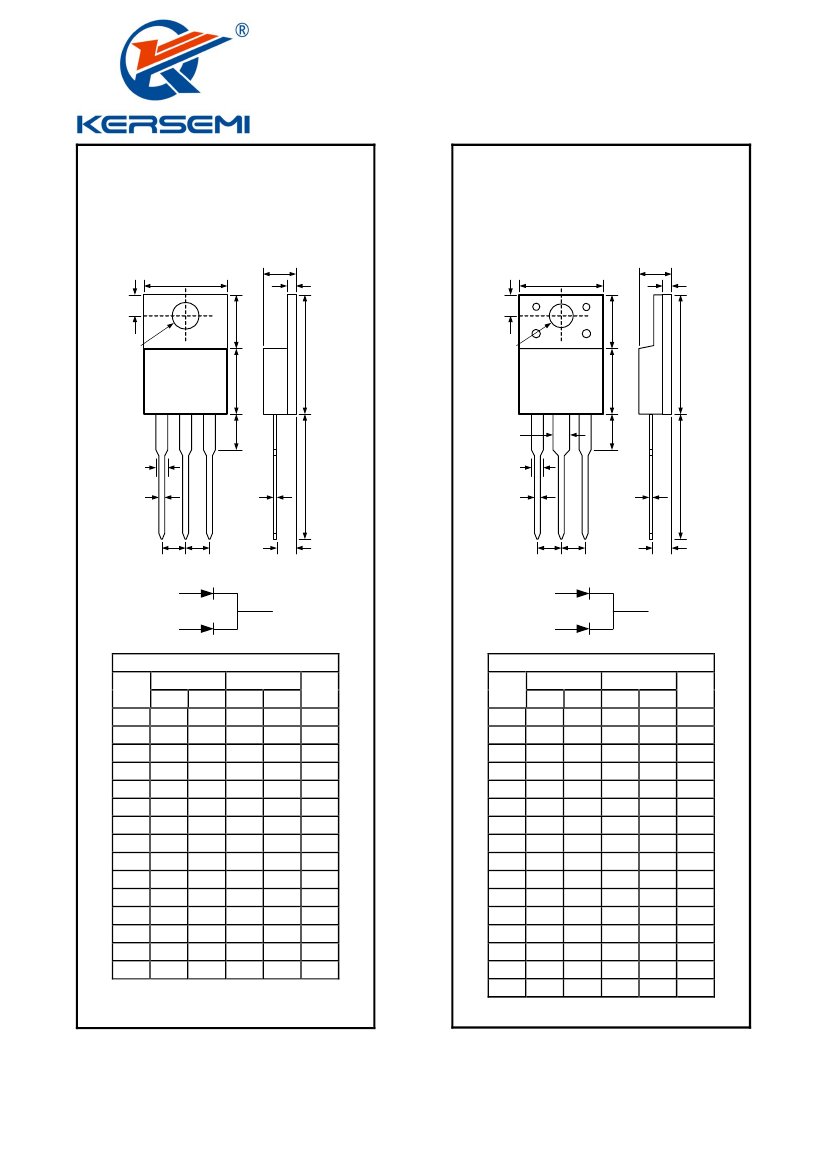

TO-220AB
ITO-220AB

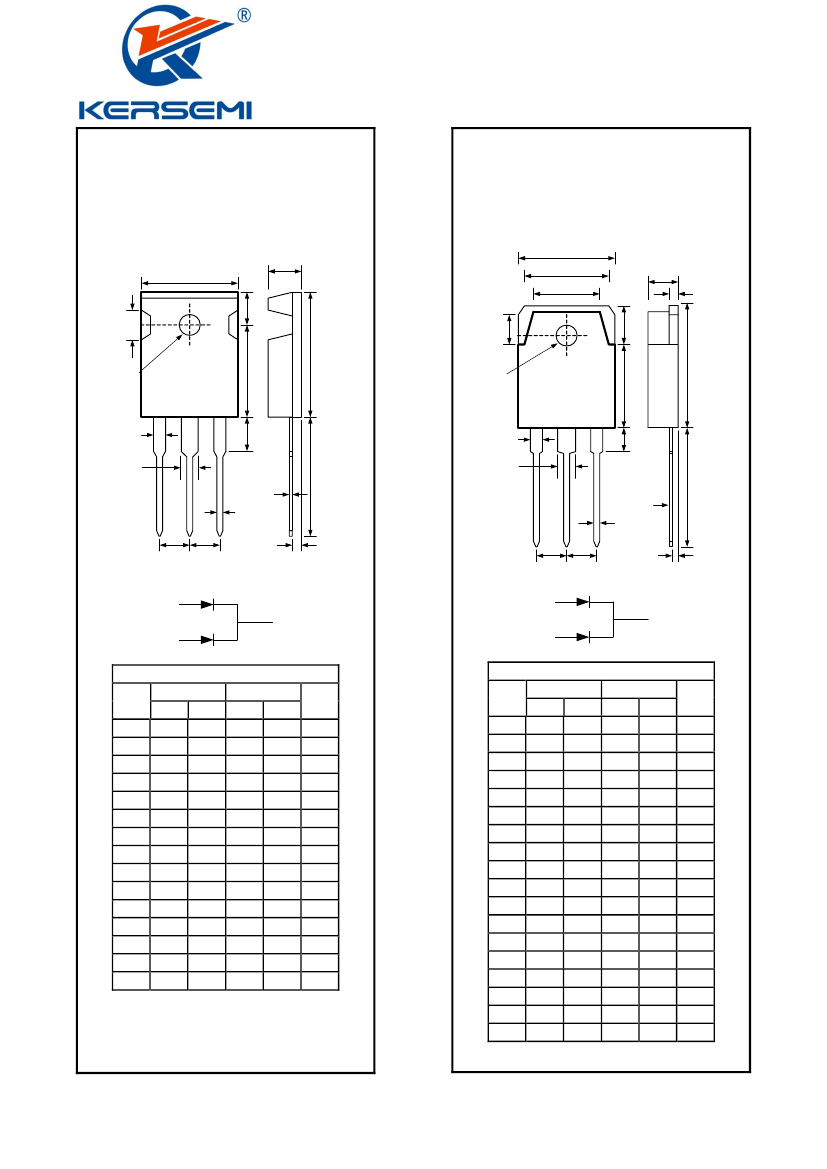

TO-247AD
TO-3P
R
θ
(j-c)
4.5
ºC/W
1.25
ºC/W
1.1
ºC/W
www.kersemi.com
1
20
400
AVERAGE FORWARD CURRENT
AMPERES
PEAK FORWARD SURGE CURRENT
AMPERES
15
300
10
200
5
100
8.3ms Single Half-Sine-Wave
(JEDEC METHOD)
0
25
50
75
100
125
150
175
0
1
2
5
10
20
50
100
AMBIENT TEMPERATURE (ºC)
NUMBER OF CYCLES AT 60Hz

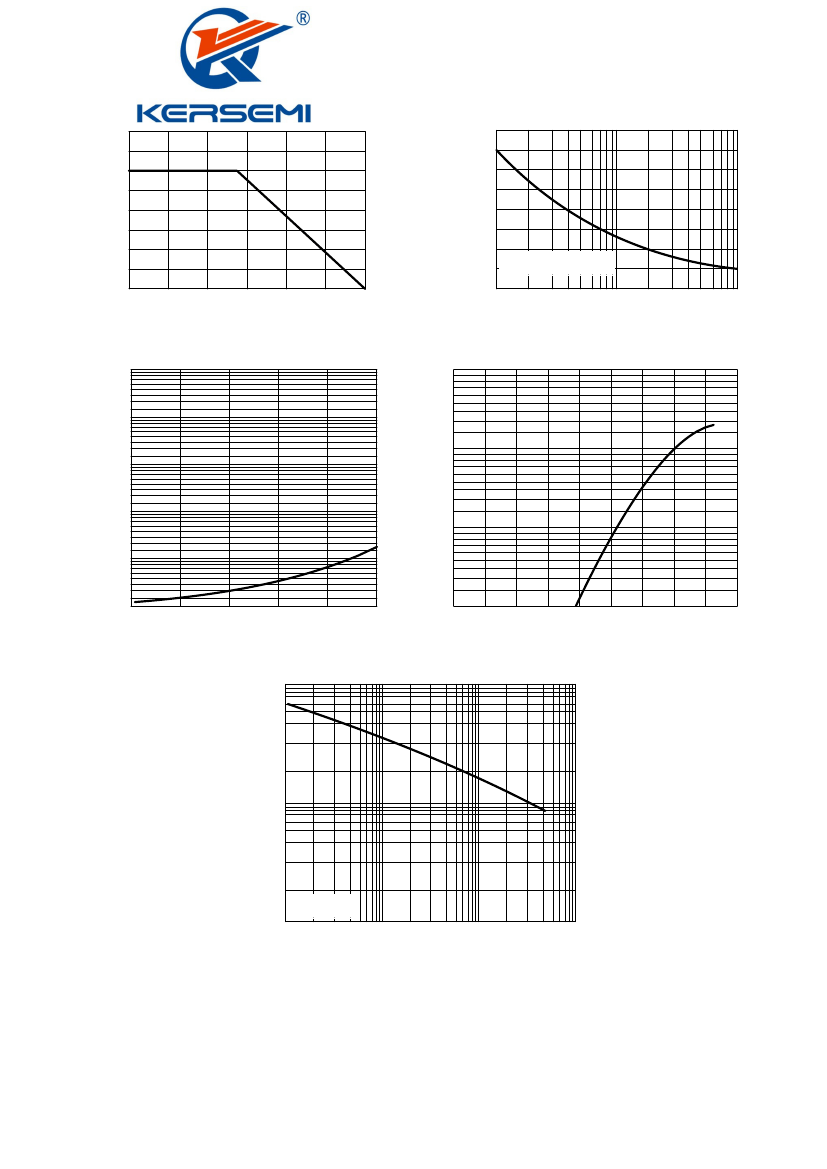

Figure 1. Forward Current Derating Curve
100
100
Figure 2. Maximum Non-repetitive Surge Current
INSTANTANEOUS REVERSE CURRENT, (mA)
10
INSTANTANEOUS FORWARD CURRENT, (A)
0
10
1
0.1
1.0
0.01
0.001
20
40
60
80
100
0.1
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
Figure 3. Typical Reverse Characteristics
1000
Figure 4. Typical Forward Characteristics
CAPACITANCE, (pF)
100
T
J
= 25ºC
f = 1MHz
10
0.1
1
4
10
100
REVERSE VOLTAGE, VOLTS
Figure 5. Typical Junction Capacitance
www.kersemi.com
2
