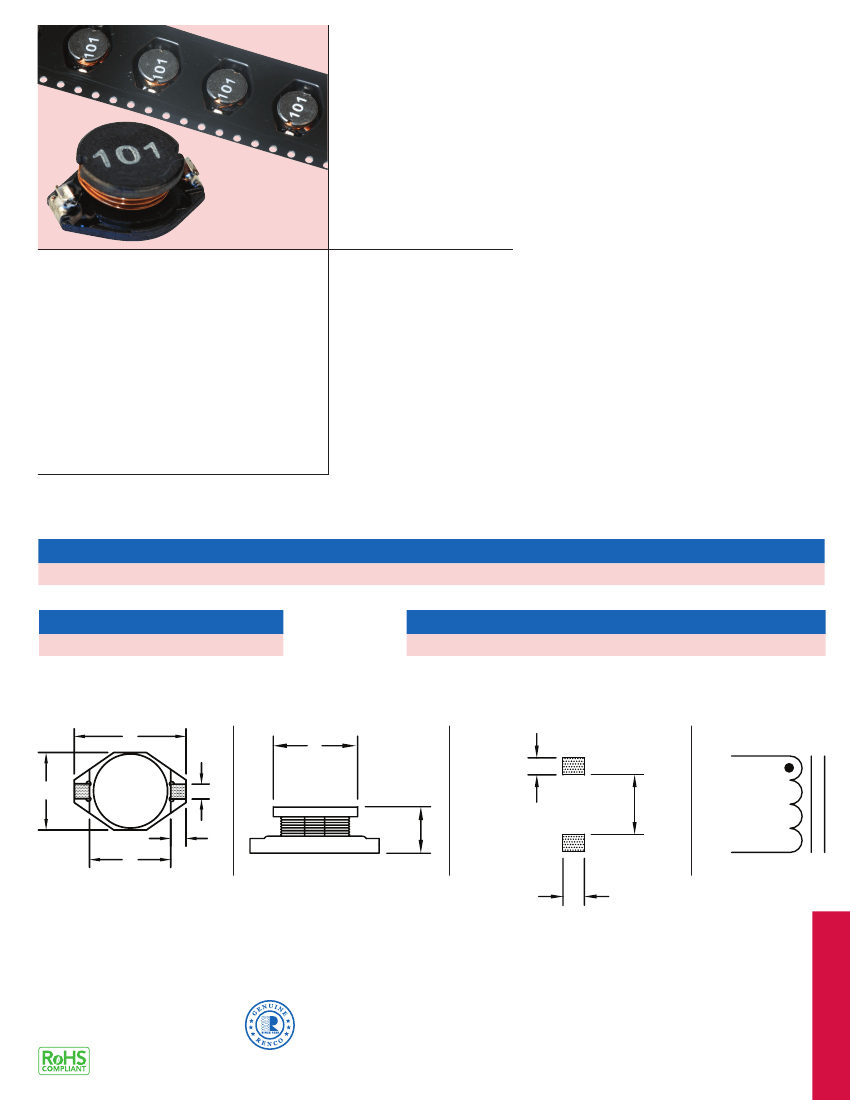

RL-3316
DESCRIPTION
• SMD Power Inductor
SMD POWER INDUCTORS
FEATURES & APPLICATIONS
• Extremely small flat top package
• Footprint of 0.370” X 0.510” and are low cost with high
energy storage
• Available in 19 values with inductance ratings from 1.0 µH
to 1.0 mH and currents up to 6.8 A
ENVIRONMENTAL DATA
•
•
Storage temperature range:
-55°C to +130°C
Operating temperature range:
-40°C to +130°C
PACKAGING INFORMATION
• Packaging information: pg. 489
Verify operation with sample in actual circuit. Order samples at www.rencousa.com.
MECHANICAL DIMENSIONS
U.S. Standard (mm)
PART NUMBER
RL-3316
A (MAX.)
0.510 (12.95)
B (MAX.)
0.400 (10.16)
C
0.100 (2.54)
D
0.300 (7.62)
E
0.100 (2.54)
F
0.345 (8.76)
PART NUMBER
RL-3316
PART WEIGHT
1.0g (0.035oz)
G (MAX.)
0.205 (5.21)
H (REF.)
0.290 (7.37)
I (REF.)
0.115 (2.92)
J (REF.)
0.110 (2.79)
TOP VIEW
A
SIDE VIEW
F
RECOMMENDED LAND PATTERN
SCHEMATIC
ST
I
B
C
H
G
FN
E
D
J
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
243
SURFACE MOUNTS
RL-3316
Renco Part No.
RL-3316
RL-3316-1.0
RL-3316-1.5
RL-3316-2.2
RL-3316-3.3
RL-3316-4.7
RL-3316-6.8
RL-3316-10
RL-3316-15
RL-3316-22
RL-3316-33
RL-3316-47
RL-3316-68
RL-3316-100
RL-3316-150
RL-3316-220
RL-3316-330
RL-3316-470
RL-3316-680
RL-3316-1000
Inductance
(µH)
1.0
1.5
2.2
3.3
4.7
6.8
10.0
15.0
22.0
33.0
47.0
68.0
100.0
150.0
220.0
330.0
470.0
680.0
1000.0
DCR Max.
(Ohms)
0.009
0.010
0.012
0.015
0.018
0.027
0.038
0.046
0.085
0.100
0.140
0.200
0.280
0.400
0.610
1.020
1.270
2.020
3.000
Isat
(A)
9.0
8.0
7.0
6.4
5.4
4.6
3.8
3.0
2.6
2.0
1.6
1.4
1.2
1.0
0.8
0.6
0.5
0.4
0.3
Irms
(A)
6.8
6.4
6.1
5.4
4.8
4.4
3.9
3.1
2.7
2.1
1.8
1.5
1.3
1.0
0.8
0.6
0.5
0.4
0.3
SRF Typ.
(MHz)
100.0
90.0
80.0
65.0
45.0
38.0
30.0
27.0
19.0
15.0
12.0
10.0
9.0
6.0
5.0
4.5
3.5
2.5
2.0
NOTES:
1. INDUCTANCE VALUES ± 20% TESTED AT 100 kHz, 0.1 Vrms
2. Isat - DC CURRENT THAT WILL CAUSE INDUCTANCE TO DROP BY 10%
3. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO
RISE APPROX. 40ºC ABOVE AMBIENT OF 25ºC
4. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
SURFACE MOUNTS
RENCO ELECTRONICS INC.
244
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free
Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
