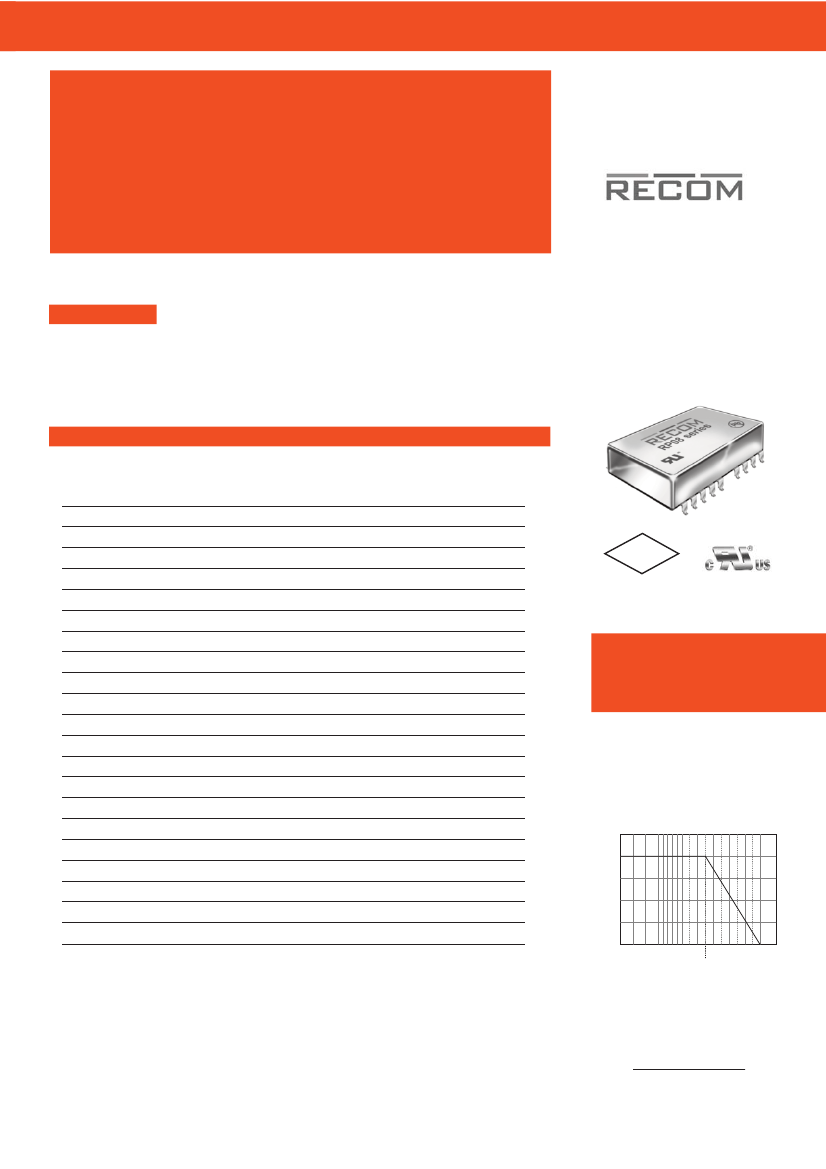

The RP08-A series DC/DC converterc are certified to UL 60950-1 and cUL 60950-1.
This makes them ideal for all telecom and industrial applications where approved
safety standards are required.
The DIP24 package is available in both pinned and SMD case styles and meets
military standards for thermal shock and vibration tolerance.
8 Watt
DIP24/SMD
Single
&
Dual Output
Selection Guide
Part Number
DIP24 (SMD)
RP08-123.3SA**
RP08-1205SA**
RP08-1212SA**
RP08-1215SA**
RP08-243.3SA**
RP08-2405SA**
RP08-2412SA**
RP08-2415SA**
RP08-483.3SA**
RP08-4805SA**
RP08-4812SA**
RP08-4815SA**
RP08-1205DA**
RP08-1212DA**
RP08-1215DA**
RP08-2405DA**
RP08-2412DA**
RP08-2415DA**
RP08-4805DA**
RP08-4812DA**
RP08-4815DA**
Input
Range
VDC
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
36-75
36-75
36-75
36-75
9-18
9-18
9-18
18-36
18-36
18-36
36-75
36-75
36-75
Output
Voltage
VDC
3.3
5
12
15
3.3
5
12
15
3.3
5
12
15
±5
±12
±15
±5
±12
±15
±5
±12
±15
Output
Current
mA
2000
1500
666
533
2000
1500
666
533
2000
1500
666
533
±800
±333
±267
±800
±333
±267
±800
±333
±267
Input
(4)
Current
mA
724
801
833
843
362
396
416
416
181
198
208
208
843
833
834
427
422
411
211
206
206
Efficiency
(5)
Capacitive
(6)
Load max.
%
80
83
88
87
80
83
86
85
80
83
86
86
83
87
85
82
86
85
85
87
87
3300µF
1600µF
350µF
240µF
3300µF
1600µF
350µF
240µF
3300µF
1600µF
350µF
240µF
±1000µF
±160µF
±100µF
±1000µF
±160µF
±100µF
Output Power (%)
125
100
75
50
25
0
-40 -25 -10 0
2011/65/EU
6/6
RoHS
UL-60950-1 Certified
E196683
RP08
Derating Graph
(Ambient Temperature)
RP08-4805SA
±1000µF
±160µF
±100µF
Natural Convection
** add Suffix SMD for SMD package
50 60 70 80 90 100
Ambient Temperature Range (°C) 65
Derating graphs are valid only for the shown
part numbers. If you need detailed derating-
information about a part-number not shown
here please contact our technical support
service at info@recom-development.at
Please Read Application Notes
www.recom-international.com
REV: 0/2014
P-1
POWERLINE
DC/DC-Converter
Specifications
(typical at nominal input and 25°C unless otherwise noted)
Input Voltage Range
(3)
12V nominal input
24V nominal input
48V nominal input
Input Filter
Input Surge Voltage (100 ms max.)
12V Input
24V Input
48V Input
Input Reflected Ripple (nominal Vin and full load)
Start Up Time (nominal Vin and constant resistor load)
Remote ON/OFF
(7)
Remote OFF input current
Output Power
Output Voltage Accuracy (full Load and nominal Vin)
Minimum Load
(1)
Line Regulation (low line, high line at full load)
Load Regulation (25% to 100% full load)
Single
Dual
Cross Regulation (asymmetrical 25%<>100% load)
Ripple and Noise (20MHz bandwith, with 1µF MLCC on output)
Temperature Coefficient
Transient Response (25% load step change)
DC-DC ON
DC-DC OFF
Nominal input
RP08-S_DA
Series
9-18VDC
18-36VDC
36-75VDC
Pi Type
36VDC
50VDC
100VDC
20mAp-p
600ms typ.
Open or 3.0V < Vr < 12V
Short or 0V < Vr < 1.2V
2.5mA
8W max.
±2%
10% of full load
±0.2%
±0.5%
±1%
±5%
50mVp-p
±0.02%/°C max.
200µs
150% typ
none
Continuous, automatic recovery
see „Selection Guide“ table
In to out
I/O to case
I/O to case
1600VDC
DIP type 1600VDC
SMD type 1000VDC
1 GΩ min.
300pF max.
100kHz min.
UL 1950, EN60950
-40°C to +85°C(with derating)
+100°C
-55°C to +125°C
Natural convection
20°C/Watt
MIL-STD-810D
10-55Hz, 10G, 30 Min. along X, Y and Z
5% to 95% RH
continued on next page
RP08
Over Load Protection (% of full load at nominal Vin)
Undervoltage Lockout
Short Circuit Protection
Efficiency
Isolation Voltage
(rated for one minute)
Isolation Resistance
Isolation Capacitance
Operating Frequency
Approved to Safety Standards
Operating Temperature Range
Maximum Case Temperature
Storage Temperature Range
Thermal Impedance
Thermal Shock
Vibration
Relative Humidity
P-2
REV: 0/2014
www.recom-power.com
POWERLINE
DC/DC-Converter
Specifications
(typical at nominal input and 25°C unless otherwise noted)
Case Material
Base Material
Potting Material
Conducted Emissions
(8)
Radiated Emissions
ESD
Radiated Immunity
Fast Transient
Surge
Conducted Immunity
Weight
EN55022
EN55022
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
DIP
SMD
Packing Quantity
Dimensions
RP08-S_DA
Series
Nickel plated copper
Non-conductive black plastic
Epoxy (UL94-V0)
Level A
Level A
Perf. Criteria B
Perf. Criteria B
Perf. Criteria B
Perf. Criteria B
Perf. Criteria B
16g
18g
7 pcs per Tube
31.8 x 20.3 x 10.2mm
32.0 x 20.3 x 10.9mm
3165 x 10
3
hours
Refer to App Notes for tube dimensions
DIP
SMD
MTBF
(2)
Notes:
1. The RP08 series requires a minimum of 10% loading on the output to maintain specified regulation. Operation under
no-load condition will not damage these devices, however they may not meet all listed specification.
2. BELLCORE TR-NWT-000332. Case l: 50% Stress, Temperature at 40°C (Ground fixed and controlled environment).
3. Start up voltage : 10VDC
4. Maximum value at nominal input voltage and full load of standard type.
5. Typical value at nominal input voltage and full load.
6. Test by minimum Vin and constant resistor load.
7. The ON/OFF control pin voltage is referenced to negative input.
8. Vin=12V, fit a 4.7µF 1210 MLCC capacitor across the input pins to meet EN55022 Class A. 24V and 48V Types meet Class A without external components
See application notes for Class B Filter suggestion.
RP08
www.recom-international.com
REV: 0/2014
P-3
POWERLINE
DC/DC-Converter
Package Style and Pinning (mm)
DIP24 Package Style
RP08-S_DA
Series
20.30
31.80
10.20
3.8
2
20.30
5.10
15.20
Pin Connections
Pin #
Single
1
ON/OFF
2
-Vin
3
-Vin
9
NC
11
NC
14
+Vout
16
-Vout
22
+Vin
23
+Vin
NC = No Connection
Dual
ON/OFF
-Vin
-Vin
Com
-Vout
+Vout
Com
+Vin
+Vin
2.54
1 2 3
Bottom View
23 22
9
11
Pin Pitch Tolerance ±0.35 mm
16
14
RP08
SMD Package Style
32.00
31.40
11.20
10.90
3.81
6.35
20.30
SMD Package Style
Same spec. as the original DIP spec. and pin
definition, excl. of the SMD type pin.
2.54
21.30
25.40
Pin Connections
Pin #
Single
1
ON/OFF
2
-Vin
3
-Vin
9
NC
11
NC
14
+Vout
16
-Vout
22
+Vin
23
+Vin
Others
NC
NC = No Connection
Dual
ON/OFF
-Vin
-Vin
Com
-Vout
+Vout
Com
+Vin
+Vin
NC
Pin area
0.1 x 0.50
1 2 3 4 5
0.50
9 10 11 12
2.54
1.60
2.40
23.40
Bottom View
24 23 22 21 20
16 15 14 13
26.54
24.14
1
Top View
Pin Pitch Tolerance ±0.35 mm
27.94
11 x 2.54
The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.
The Buyer agrees to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or damage property.
