HPM-13-05-T-S-VS datasheet, PDF

Datasheet> All Categories > The connector> The connector> HPM-13-05-T-S-VS

HPM-13-05-T-S-VS: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size453KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HPM-13-05-T-S-VS Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

HPM-13-05-T-S-VS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	5.08 mm
Termination type	SURFACE MOUNT
Total number of contacts	13

Preview

Download Datasheet

View All

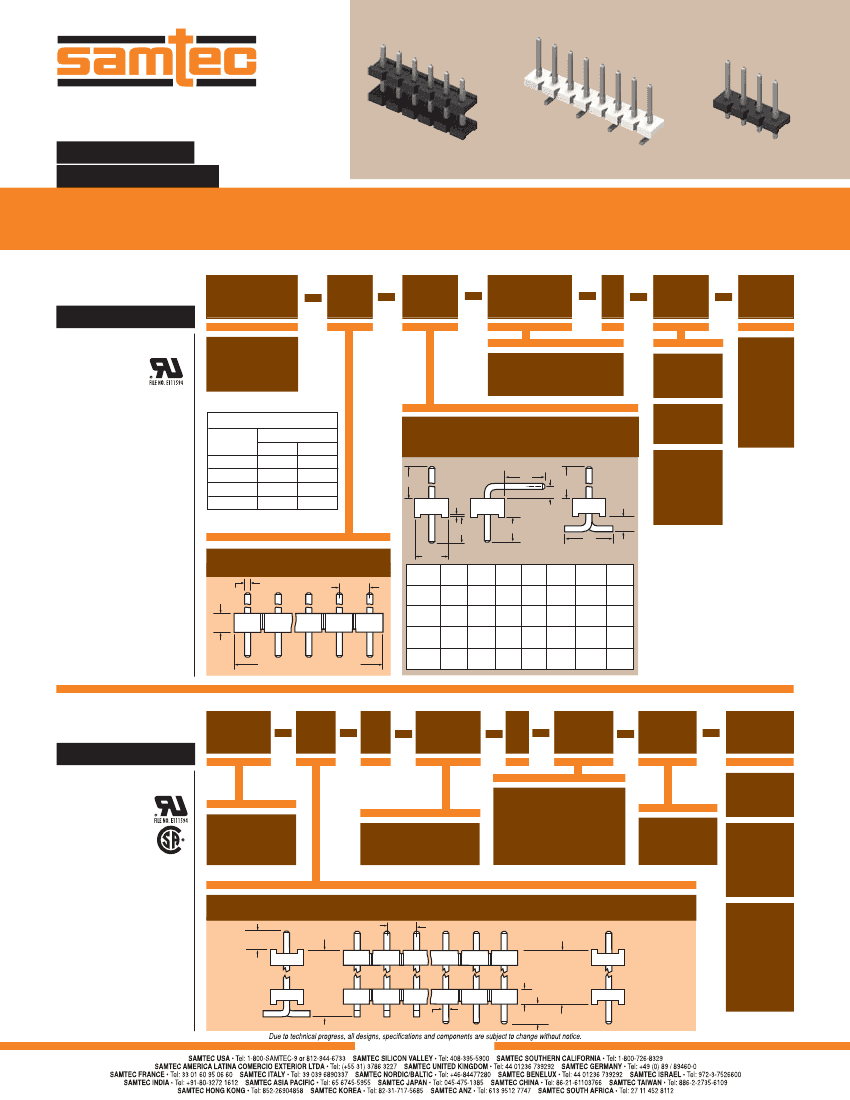

F-211

HPM–08–01–T–S–VS

(5,08mm) .200"

HPM, HPW SERIES

HPW–06–04–T–S–350–150

HPM–04–01–T–S

POWER HEADERS & BOARD STACKERS

Mates with:

HPF

TYPE

STRIP

NO.

PINS

LEAD

STYLE

PLATING

OPTION

TAIL

OPTION

OTHER

OPTION

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?HPM

Insulator Material:

Glass Filled

Polyester (TH)

Natural Liquid Crystal

Polymer (SMT)

Terminal Material:

Copper Alloy

Plating:

Sn over 50µ" (1,27µm) Ni

Operating Temp Range:

-55°C to +105°C

RoHS Compliant:

Yes

HPM

= High Temp

High Power Header

–T

= Matte Tin

Leave

blank for

Through-hole

–P

= Pick &

Place Pad

(3 Pos. min.)

(6,98mm)

.275" min.

post height

(–VS only)

CURRENT RATING

HPM/HPF

AMBIENT

TEMP

2 PINS 4 PINS

25A

22A

20°C

24A

19A

40°C

17A

15.5A

60°C

14.4A 12.7A

75°C

Specify LEAD STYLE

from chart below.

(0,51)

.020

–RA

= Right Angle

–VS

= Surface

Mount

(2 pins/row

minimum)

(2,54)

.100

Processing:

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,20mm) .008" max (02-15)

(0,25mm) .010" max (16-20)

–RA

–VS

01 thru 20

(1,14)

.045

(5,08)

.200

TYP

(6,35)

.250

LEAD

STYLE

(4,57)

.180

(4,57)

.180

(4,09)

.161

(4,57)

.180

(11,94)

.470

(13,21)

.520

(21,06)

.829

(3,81)

.150

—

(2,54)

.100

(4,95)

.195

—

–01

–02

–04

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(2,54)

.100

No. of Positions x (5,08) .200

(10,72) (8,64)

.340

.422

(4,57) (8,08) (12,24) (8,38)

.330

.482

.180 .318

(3,96) (13,82)

—

.156 .544

—

–05

Mates with:

HPF

TYPE

STRIP

NO.

PINS

PLATING

OPTION

STACK

HEIGHT

POST

HEIGHT

TAIL

OPTION

Leave

blank for

Through-hole

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?HPW

Insulator Material:

Liquid Crystal

Polymer

Terminal Material:

Copper Alloy

Plating:

Sn over 50u" (1,27um) Ni

Operating Temp Range:

-55°C to + 105°C

RoHS Compliant:

Yes

–“XXX”

HPW

= High Temp

High Power

= Stacker Height (in inches)

(0,13mm) .005" increments

–T

= Matte Tin

Example: –250 =

(6,35mm) .250"

–“XXX”

= Post Height

(in inches)

–VS

=Surface

Mount

(2 pins/row

minimum)

Processing:

02 thru 20

(5,08)

.200

TYP

POST

HEIGHT

(0,00)

.000

MIN

STACKER

HEIGHT

(22,61) .890

MAX WITH

(0,00) .000

POST

(7,62) .300

MIN

(1,14)

.045

STACKER

HEIGHT

(2,54) (25,40) 1.000

.100

MAX WITH

(0,00) .000 POST

(5,08) .200

MIN

(2,29)

.090

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,20mm) .008" max.

–P

= Pick &

Place Pad

(3 Pos. min.)

(6,98mm)

.275" max.

post height

(–VS only)

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

WWW.SAMTEC.COM
