UPD78CP14GF-3BE datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> UPD78CP14GF-3BE

UPD78CP14GF-3BE: DescriptionMicrocontroller, 8-Bit, OTPROM, 15MHz, CMOS, PQFP64, 14 X 20 MM, 2.70 MM HEIGHT, PLASTIC, QFP-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，72 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPD78CP14GF-3BE Overview

Microcontroller, 8-Bit, OTPROM, 15MHz, CMOS, PQFP64, 14 X 20 MM, 2.70 MM HEIGHT, PLASTIC, QFP-64

UPD78CP14GF-3BE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NEC Electronics
Parts packaging code	QFP
package instruction	14 X 20 MM, 2.70 MM HEIGHT, PLASTIC, QFP-64
Contacts	64
Reach Compliance Code	compliant
Has ADC	YES
Address bus width	8
bit size	8
maximum clock frequency	15 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-PQFP-G64
JESD-609 code	e0
length	20 mm
Number of I/O lines	40
Number of terminals	64
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
ROM programmability	OTPROM
Maximum seat height	3 mm
speed	15 MHz
surface mount	YES
technology	CMOS
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

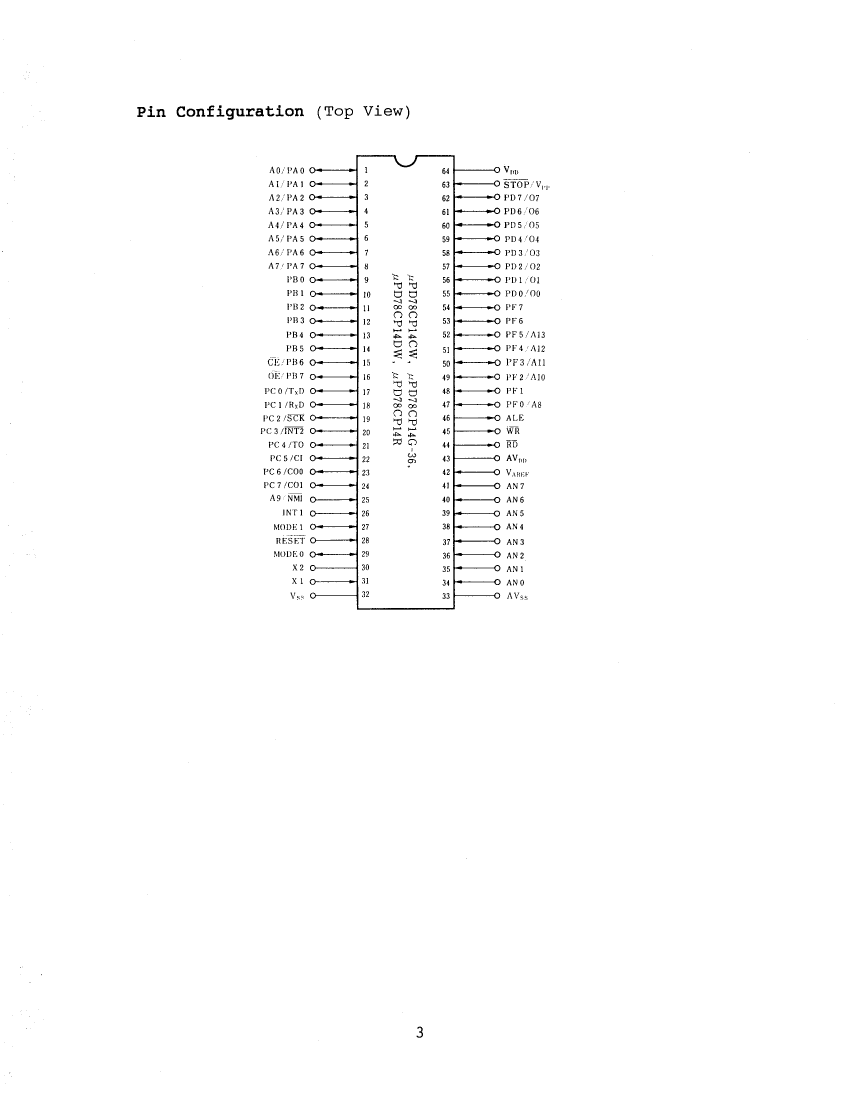

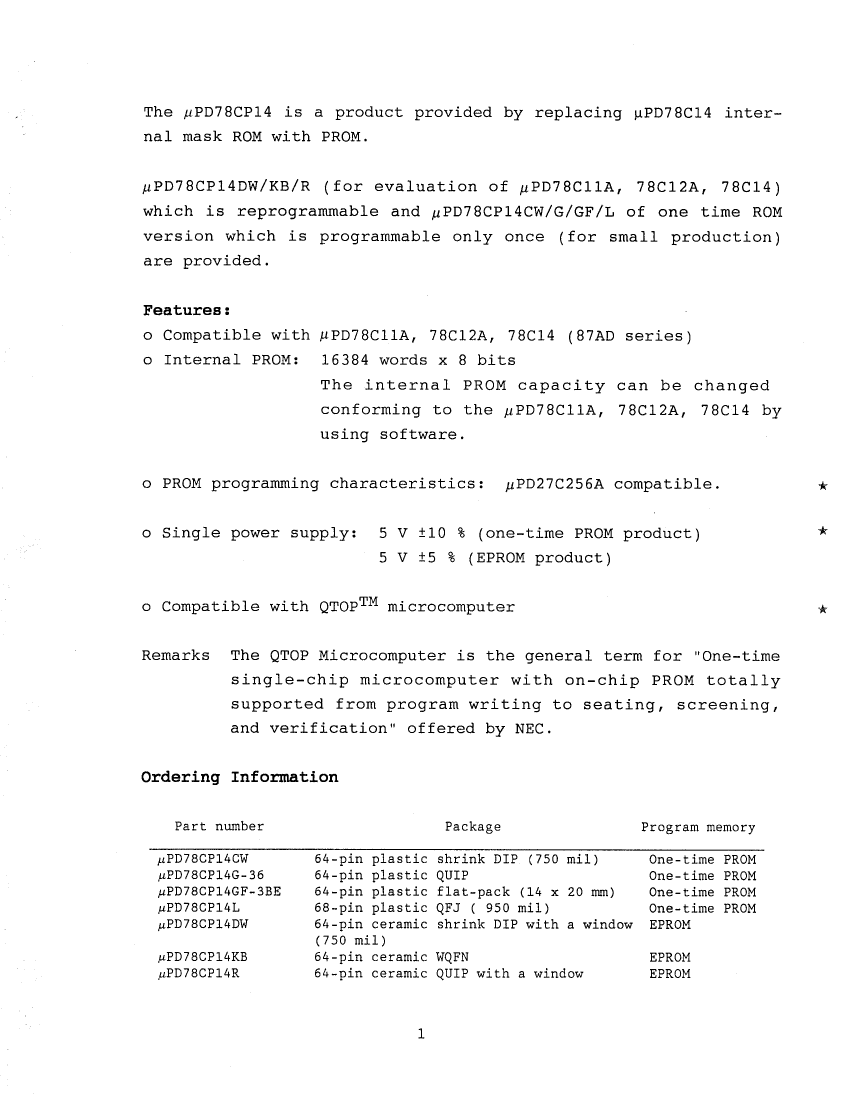

Preview

Download Datasheet

View All

UPD78CP14GF-3BE Related Products

	UPD78CP14GF-3BE	UPD78CP14KB	UPD78CP14G-36	UPD78CP14R
Description	Microcontroller, 8-Bit, OTPROM, 15MHz, CMOS, PQFP64, 14 X 20 MM, 2.70 MM HEIGHT, PLASTIC, QFP-64	Microcontroller, 8-Bit, OTPROM, 15MHz, CMOS, CQCC64, CERAMIC, WQFN-64	Microcontroller, 8-Bit, OTPROM, 15MHz, CMOS, PQIP64, PLASTIC, QUIP-64	Microcontroller, 8-Bit, UVPROM, 15MHz, CMOS, CQIP64, CERAMIC, QUIP-64
Parts packaging code	QFP	QFN	QIP	QFP
package instruction	14 X 20 MM, 2.70 MM HEIGHT, PLASTIC, QFP-64	QCCN,	PLASTIC, QUIP-64	CERAMIC, QUIP-64
Contacts	64	64	64	64
Reach Compliance Code	compliant	unknown	compliant	compliant
Has ADC	YES	YES	YES	YES
Address bus width	8	8	8	8
bit size	8	8	8	8
maximum clock frequency	15 MHz	15 MHz	15 MHz	15 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
External data bus width	8	8	8	8
JESD-30 code	R-PQFP-G64	R-CQCC-N64	R-PQIP-T64	R-CQIP-T64
length	20 mm	24.2 mm	41.5 mm	41.5 mm
Number of I/O lines	40	40	40	40
Number of terminals	64	64	64	64
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFP	QCCN	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	OTPROM	OTPROM	OTPROM	UVPROM
Maximum seat height	3 mm	4.6 mm	3.7 mm	3.7 mm
speed	15 MHz	15 MHz	15 MHz	15 MHz
surface mount	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Terminal form	GULL WING	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
width	14 mm	24.2 mm	24.13 mm	24.13 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Is it Rohs certified?	incompatible	-	incompatible	incompatible
Maker	NEC Electronics	-	NEC Electronics	NEC Electronics
JESD-609 code	e0	-	e0	e0
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Terminal surface	TIN LEAD	-	TIN LEAD	TIN LEAD
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
