P300CH02CK0 datasheet, PDF - EEWORLD Datasheet

P300CH02CK0: DescriptionSilicon Controlled Rectifier, SILICON CONTROLLED RECTIFIER,200V V(DRM),1.18KA I(T),TO-200AC; CategoryAnalog mixed-signal IC Trigger device; File Size448KB，6 Pages; ManufacturerIXYS

Download Datasheet Parametric View All

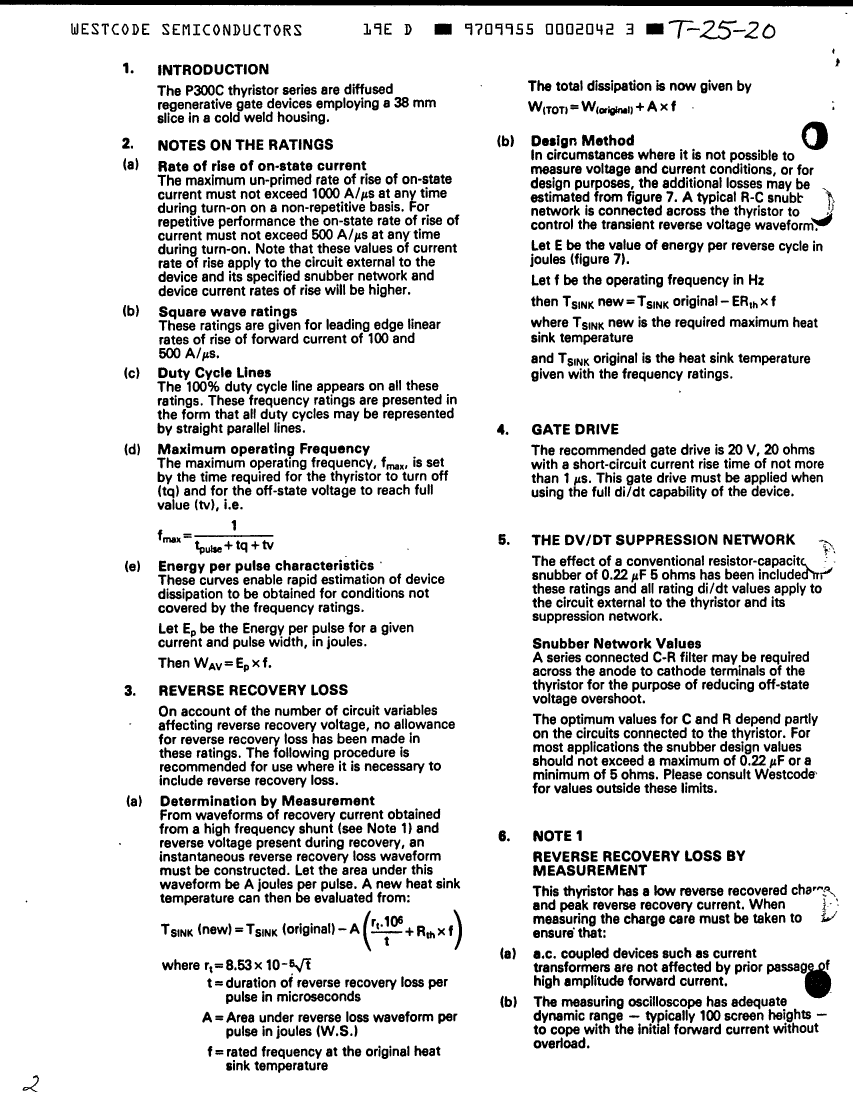

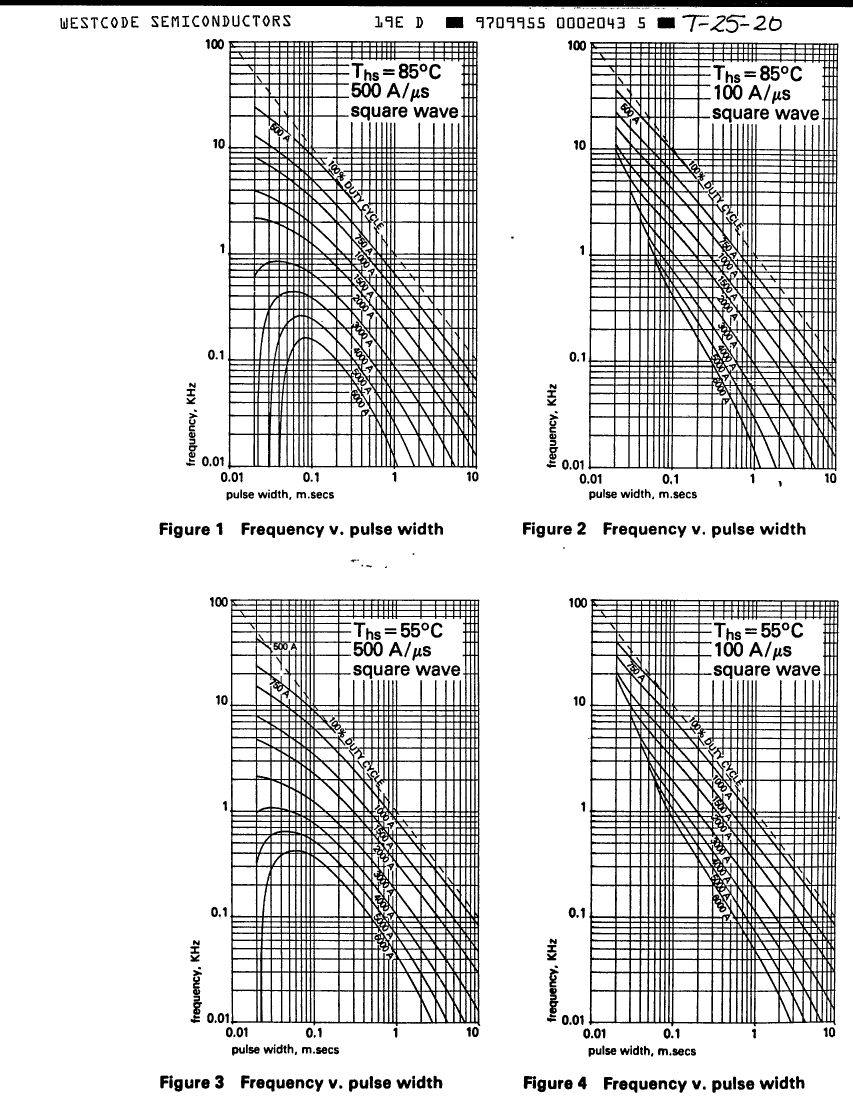

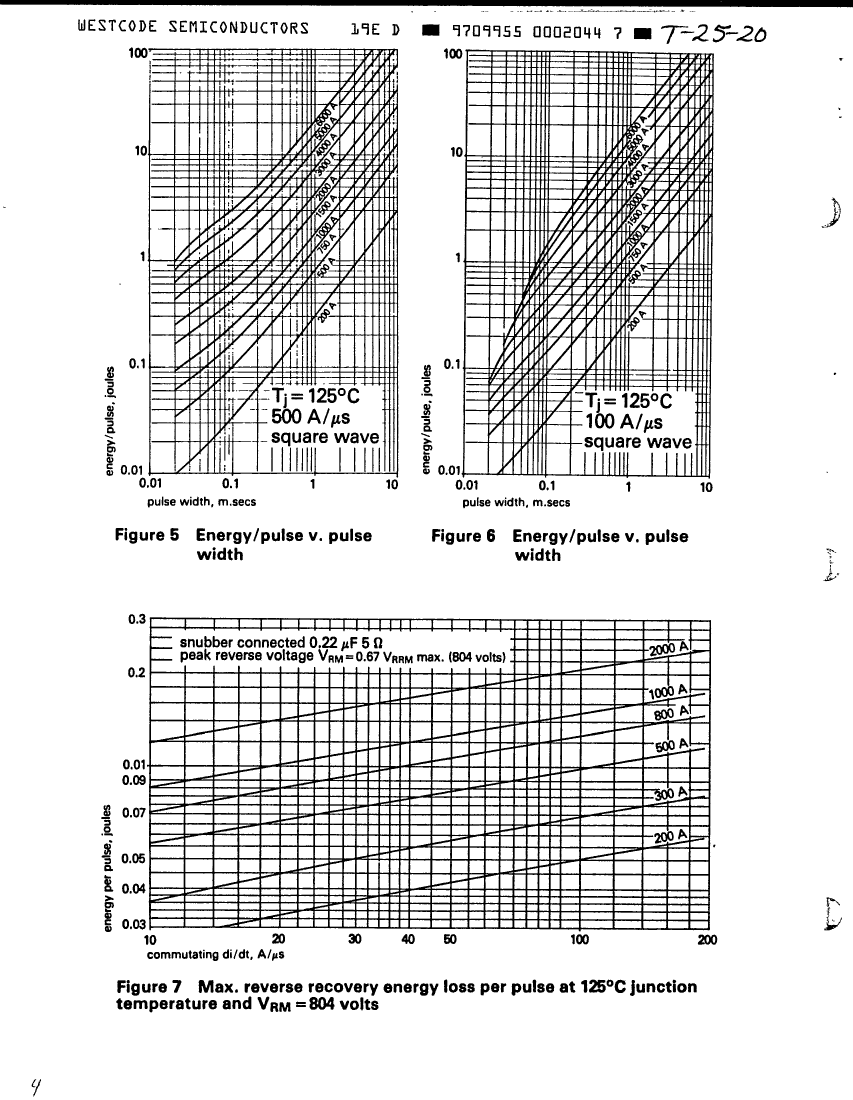

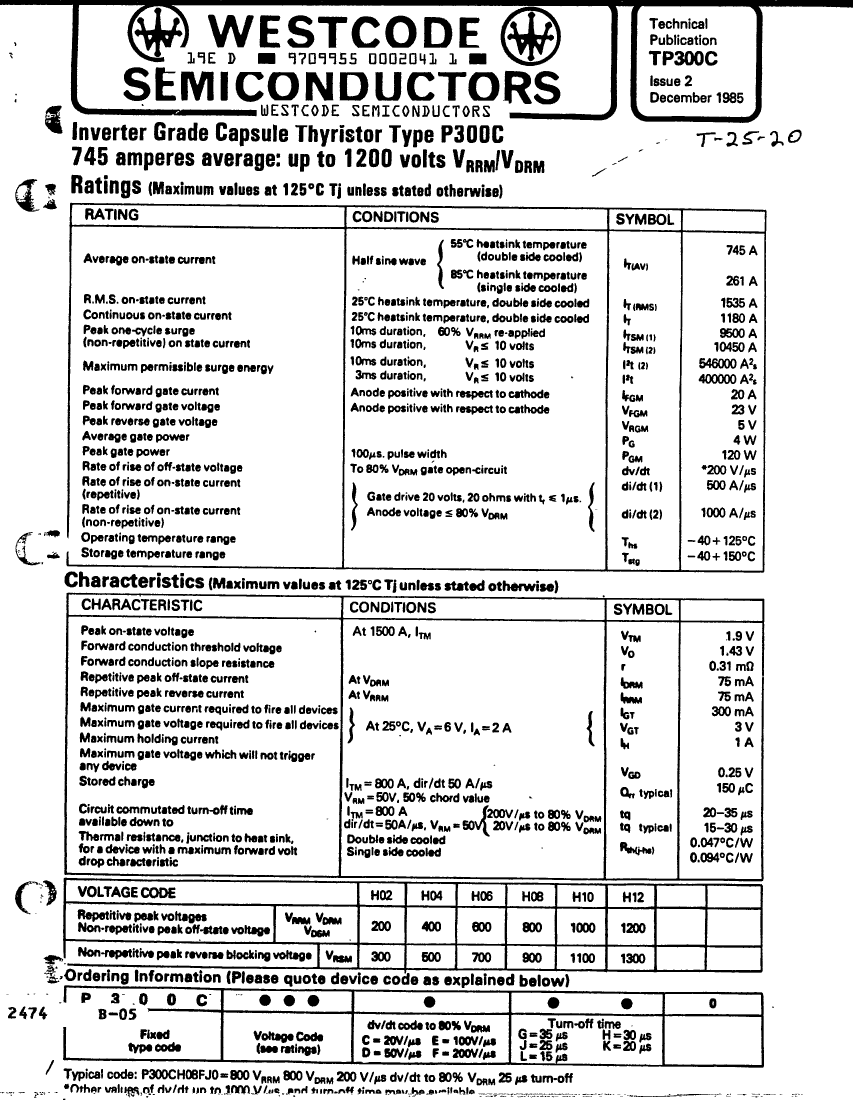

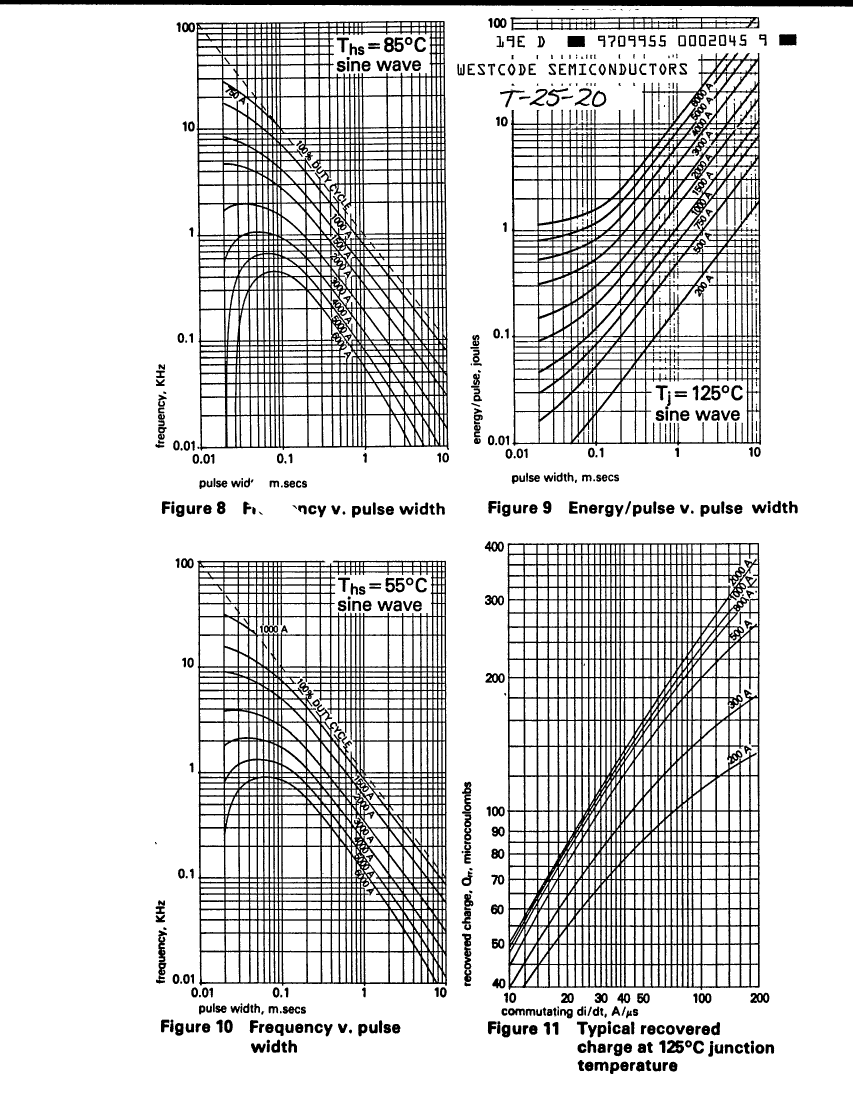

P300CH02CK0 Overview

Silicon Controlled Rectifier, SILICON CONTROLLED RECTIFIER,200V V(DRM),1.18KA I(T),TO-200AC

Parameter Name	Attribute value
Maker	IXYS
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Nominal circuit commutation break time	20 µs
Critical rise rate of minimum off-state voltage	20 V/us
Maximum DC gate trigger current	300 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	1000 mA
Maximum leakage current	75 mA
On-state non-repetitive peak current	9500 A
Maximum on-state current	1180000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	200 V
surface mount	NO
Trigger device type	SCR
