W9001B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> W9001B

W9001B: DescriptionPushbutton Switch, SPST, Momentary, 10A, 28VDC, Solder And Screw Terminal, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size66KB，1 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

W9001B Overview

Pushbutton Switch, SPST, Momentary, 10A, 28VDC, Solder And Screw Terminal, Panel Mount-threaded

W9001B Parametric

Parameter Name	Attribute value
Maker	Eaton
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	LARGE BUTTON TYPE
body height	10.74 mm
Body length or diameter	17.46 mm
Contact (AC) maximum rated R load	10A@120VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Electrical life	25000 Cycle(s)
Manufacturer's serial number	W9000
Installation features	PANEL MOUNT-THREADED
Maximum operating force	22 N
seal	SPLASH PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER AND SCREW

Preview

Download Datasheet

View All

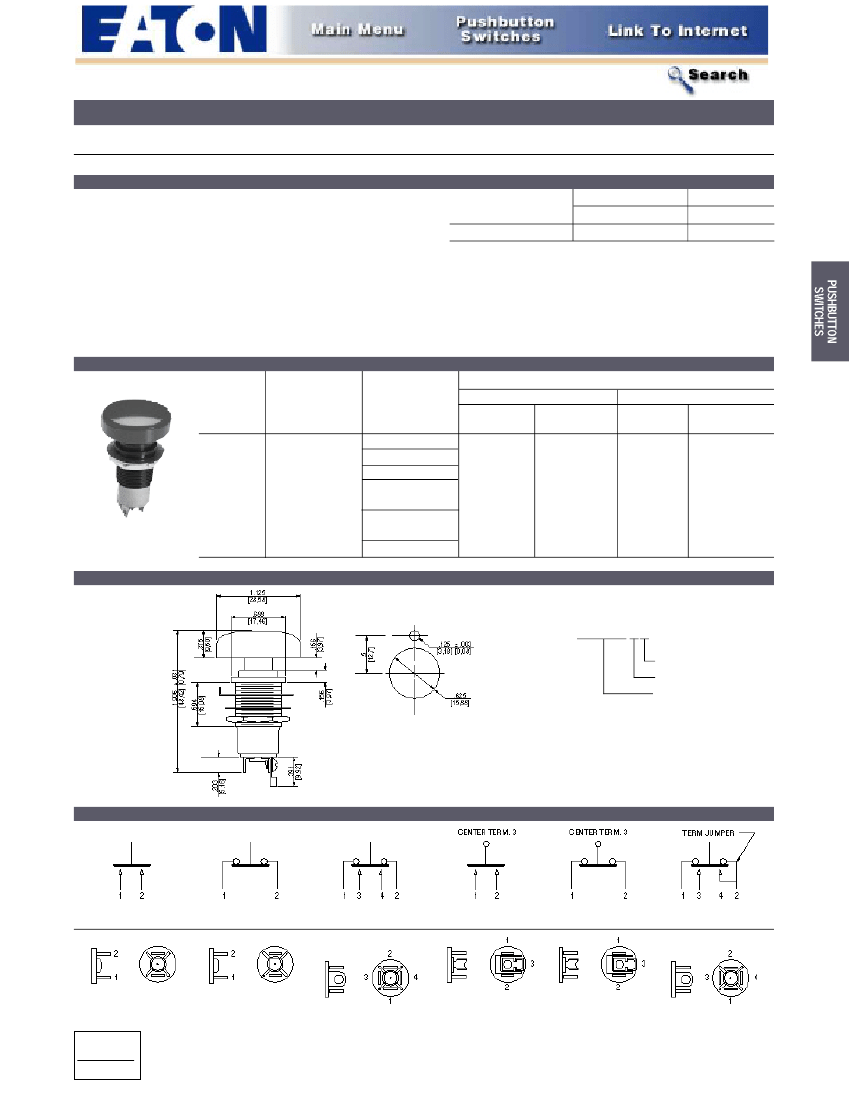

PUSHBUTTON SWITCHES

Series—W9000

FEATURES

• Swivel action allows operation from

any angle

• Large button

• Splash proof

• Momentary snap action

• Solder lug terminals

• Variety of adapter and button colors

SPECIFICATIONS

Swivel Action Pushbutton Switches

CURRENT RATINGS

28VD Cy

Inductive

Lamp

120VAC

Resistive Inductiv e

• Meets MIL-S-8805 seal level 6 (splash proof)

Par t

Number

Type of

• Electrical life: 25,000 operations minimum

Number of Poles Operation Resistive

at rated load

W9000

Momentary

• Mechanical life: 200,000 operations

p.f. = .75

(50,000 operations for 3 terminal design)

3 amps max. through center terminal.

• Operating force: 4 ± 1 lb (17.6N ± 4.4N)

• Total plunger travel:

0.085 in. (2.2mm) approx.

• Weight with adapter:

0.088 lbs approx.

SELECTION TABLE

SERIES AND TYPE

Code Sufﬁxes - Add to Cat. No.

Base

Catalog

Number

W9001

W9002

W9003

W9004

Momentary Snap Action

Operation

Circuit

and Schematic

1P.S.T.-N.O.

1P.S.T.-N.C.

1 P.-2 Circuit

1 P.S.T.

3 Terminal N.O.

W9005

W9006

1 P.S.T.

3 Terminal N.C.

1P.D.T.-N.O.-N.C.

Black

Clear

None

Red

Black

Gray

None

Color

Code Sufﬁx

Color

Code Sufﬁx

Adapter Color

Pushbutton Color

W9000

DIMENSIONS—W9000

PANEL CUTOUT

WHEN ORDERING SPECIFY...

W9001CB

BUTTON COLOR

ADAPTOR COLOR

BASE SWITCH

BASIC SWITCH & SCHEMATIC DIAGRAM

W9001

W9002

W9003

W9004

W9005

W9006

Normally Open

STANDARD

0.00 = inches

[0,0] = mm

Dimensions for reference only.

Normally Closed

Two Circuit

3 Terminal N.O.

3 Terminal N.C.

S.P.D.T .

For W9006 or SPDT circuit, mount terminal jumper to terminals #2 and #4.

Mounting and terminal hardware supplied unassembled.
