CMVMFREQ: DescriptionCMOS Output Clock Oscillator, 2MHz Min, 52MHz Max; CategoryPassive components oscillator; File Size70KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric Compare View All

CMVMFREQ Overview

CMOS Output Clock Oscillator, 2MHz Min, 52MHz Max

CMVMFREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MtronPTI
Reach Compliance Code	unknown
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	120 ppm
frequency stability	40%
JESD-609 code	e4
linearity	5%
Manufacturer's serial number	CMV
Installation features	SURFACE MOUNT
Maximum operating frequency	52 MHz
Minimum operating frequency	2 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
physical size	7.67mm x 5.26mm x 2.11mm
longest rise time	5 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

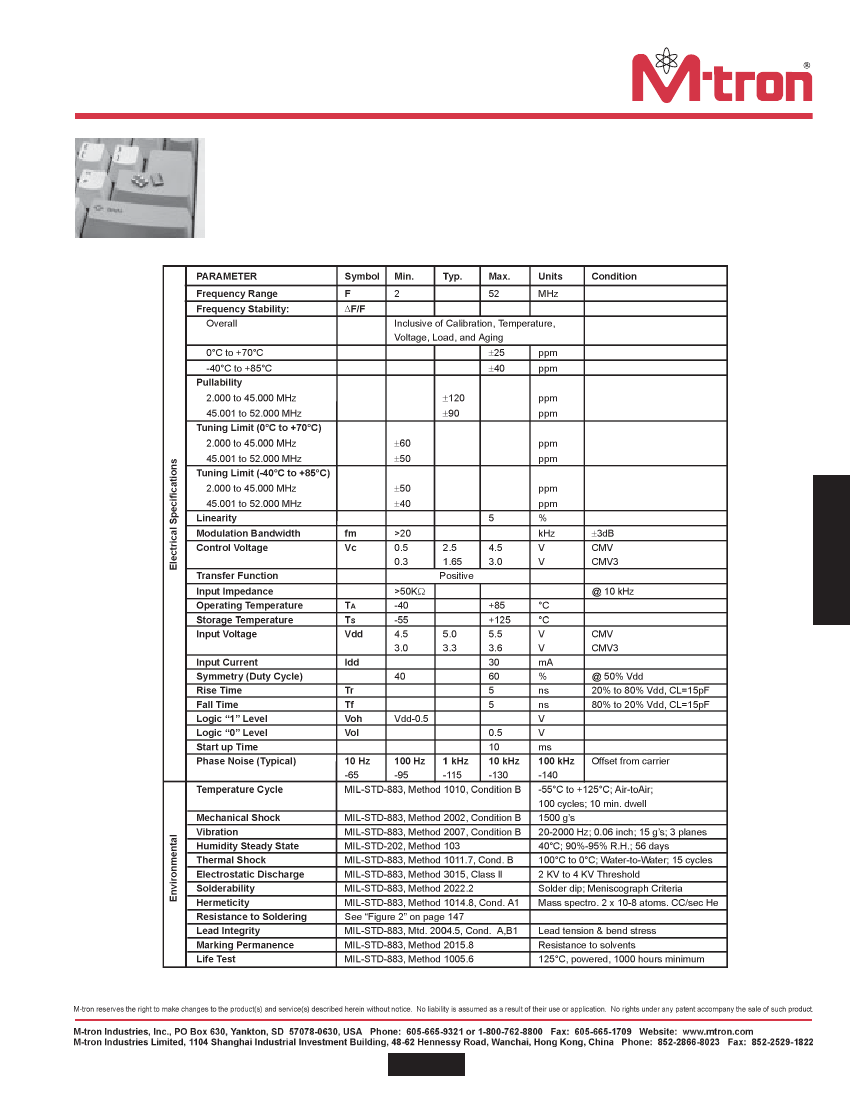

CMV & CMV3 Series

5x7 mm, 5.0 or 3.3 Volt, CMOS, VCXO

•

Former

Product

•

Phase-Locked Loops (PLL’s), Clock

Recovery, Reference Signal Tracking,

Synthesizers, Frequency Modulation/

Demodulation

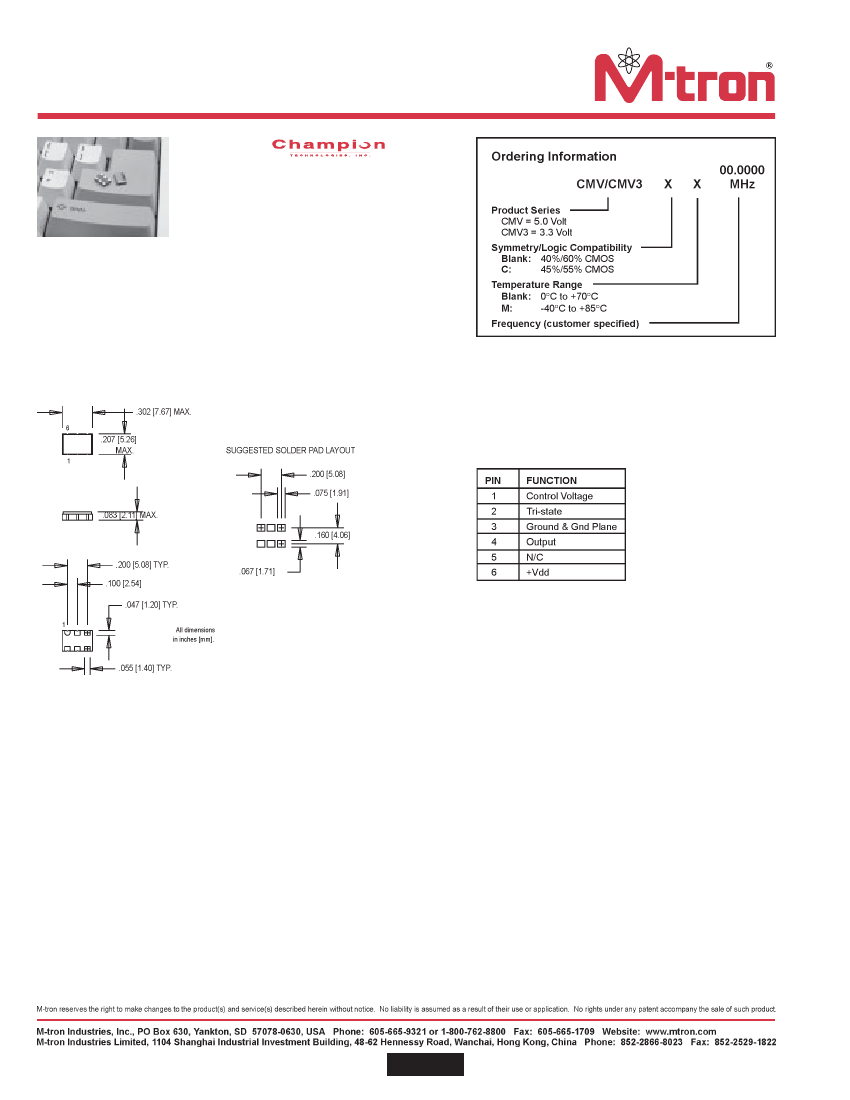

Pin Connections

8

CMVMFREQ Related Products

	CMVMFREQ	CMV3CFREQ	CMVFREQ	CMV3CMFREQ	CMV3MFREQ	CMVCFREQ	CMVCMFREQ	CMV3FREQ
Description	CMOS Output Clock Oscillator, 2MHz Min, 52MHz Max	CMOS Output Clock Oscillator, 2MHz Min, 52MHz Max	CMOS Output Clock Oscillator, 2MHz Min, 52MHz Max	CMOS Output Clock Oscillator, 2MHz Min, 52MHz Max	CMOS Output Clock Oscillator, 2MHz Min, 52MHz Max	CMOS Output Clock Oscillator, 2MHz Min, 52MHz Max	CMOS Output Clock Oscillator, 2MHz Min, 52MHz Max	CMOS Output Clock Oscillator, 2MHz Min, 52MHz Max
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum control voltage	4.5 V	3 V	4.5 V	3 V	3 V	4.5 V	4.5 V	3 V
Minimum control voltage	0.5 V	0.3 V	0.5 V	0.3 V	0.3 V	0.5 V	0.5 V	0.3 V
maximum descent time	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO
Frequency offset/pull rate	120 ppm	120 ppm	120 ppm	120 ppm	120 ppm	120 ppm	120 ppm	120 ppm
frequency stability	40%	25%	25%	40%	40%	25%	40%	25%
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
linearity	5%	5%	5%	5%	5%	5%	5%	5%
Manufacturer's serial number	CMV	CMV3	CMV	CMV3	CMV3	CMV	CMV	CMV3
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	52 MHz	52 MHz	52 MHz	52 MHz	52 MHz	52 MHz	52 MHz	52 MHz
Minimum operating frequency	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz
Maximum operating temperature	85 °C	70 °C	70 °C	85 °C	85 °C	70 °C	85 °C	70 °C
Oscillator type	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
physical size	7.67mm x 5.26mm x 2.11mm	7.67mm x 5.26mm x 2.11mm	7.67mm x 5.26mm x 2.11mm	7.67mm x 5.26mm x 2.11mm	7.67mm x 5.26mm x 2.11mm	7.67mm x 5.26mm x 2.11mm	7.67mm x 5.26mm x 2.11mm	7.67mm x 5.26mm x 2.11mm
longest rise time	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns
Maximum supply voltage	5.5 V	3.6 V	5.5 V	3.6 V	3.6 V	5.5 V	5.5 V	3.6 V
Minimum supply voltage	4.5 V	3 V	4.5 V	3 V	3 V	4.5 V	4.5 V	3 V
Nominal supply voltage	5 V	3.3 V	5 V	3.3 V	3.3 V	5 V	5 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	40/60 %	45/55 %	40/60 %	45/55 %	40/60 %	45/55 %	45/55 %	40/60 %
Terminal surface	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)
