KSA022-79G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> KSA022-79G

KSA022-79G: DescriptionIC Socket, SIP22, 22 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size144KB，2 Pages; ManufacturerAdvanced Interconnections Corp.; Environmental Compliance

Download Datasheet Parametric View All

KSA022-79G Overview

IC Socket, SIP22, 22 Contact(s), ROHS COMPLIANT

KSA022-79G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Advanced Interconnections Corp.
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SOCKET ADAPTER
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	BRASS/COPPER ALLOY
Device slot type	IC SOCKET
Type of equipment used	SIP22
Shell material	POLYIMIDE
JESD-609 code	e4
Number of contacts	22

Preview

Download Datasheet

View All

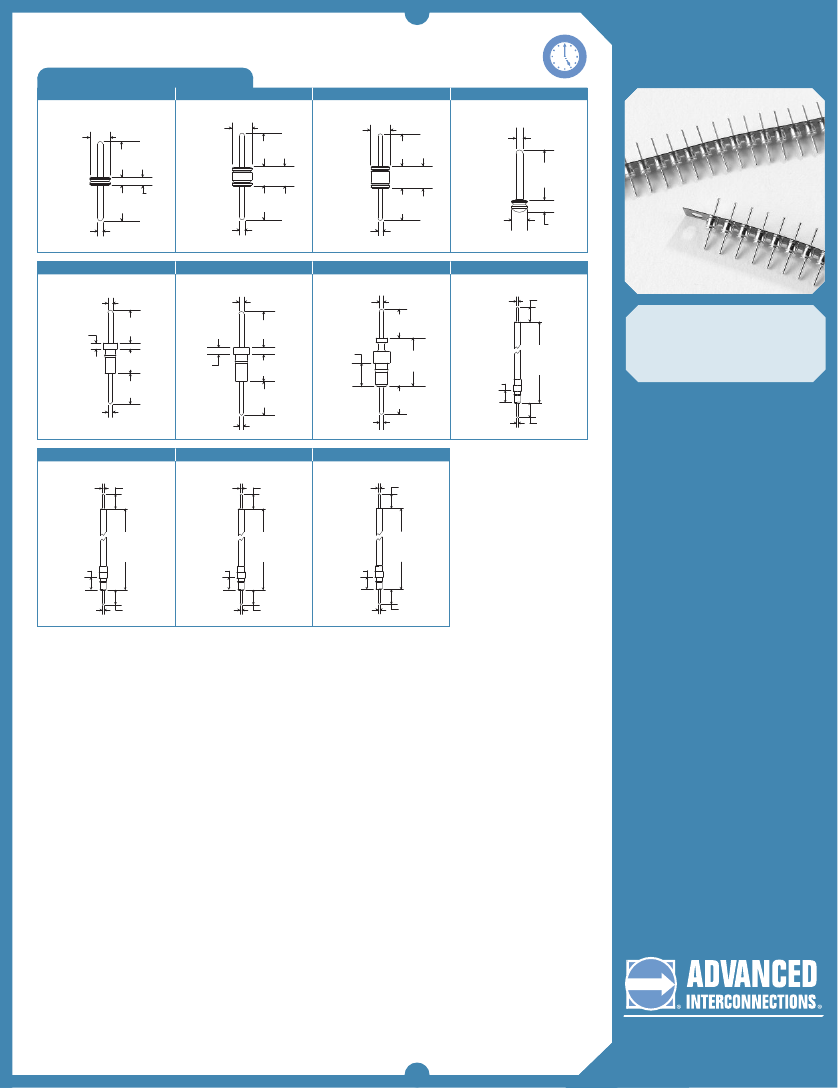

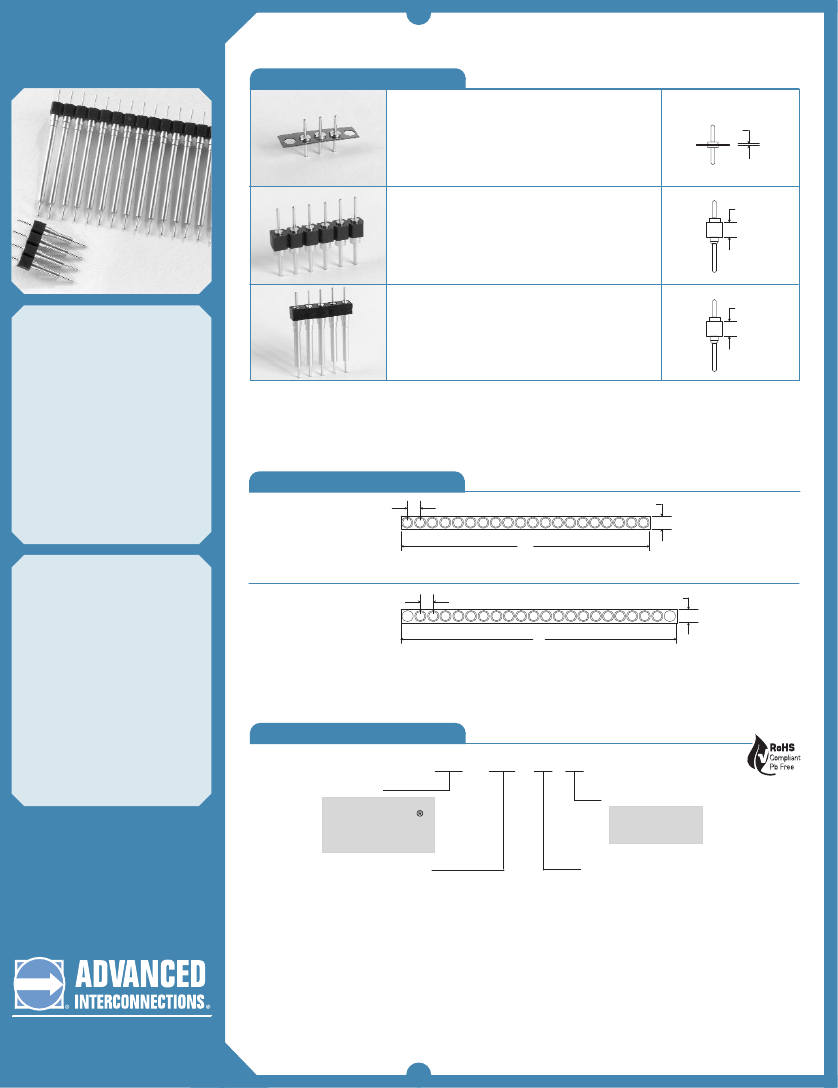

SIP Adapters

Table of Models

SIP Adapters

Molded and Peel-A-Way Insulators

Description:

Peel-A-Way

Strips (KSA)

Material: Polyimide Film

Index: -269°C to 400°C (-452°F to 752°F)

.005 Typ.

(.13)

Description:

Molded Snap Strips (RSA)

Mat’l: High Temp. Liquid Crystal Polymer (LCP)

Index: -40°C to 260°C (-40°F to 500°F)

.095

(2.41)

Features:

• Available in three body types:

Peel-A-Way

Removable Terminal

Carriers, molded Solid Strips, and

molded Snap Strips [breakable at

.100/(2.54mm)].

• Board to board applications.

• Peel-A-Way

Removable Terminal

Carrier can be easily removed to

allow inspection of solder joints

on both sides of PC board, or left

in place for added stability.

• Custom designs available.

Description:

Molded Solid Strips (RNA)

Mat’l: High Temp. Liquid Crystal Polymer (LCP)

Index: -40°C to 260°C (-40°F to 500°F)

.095

(2.41)

RSA replaces SA, RNA replaces NA and HNA.

Dimensional Information

Molded

Body Types

.100 Typ.

(2.54)

.100

(2.54)

Specifications:

Terminals:

Brass - Copper Alloy

(C36000) ASTM-B-16

Plating:

G - Gold over Nickel

M - Matte Tin over Nickel

T - Tin/Lead over Nickel

Gold per ASTM-B-488

Matte Tin per ASTM545-97

Tin/Lead per MIL-P-81728

Nickel per QQ-N-290

Peel-A-Way

Body Types

.095

.100 Typ.

(2.54)

A Dimension = number of pins X .100/(2.54)

.100

(2.54)

A Dimension = [number of pins X .100/(2.54)] + .200/(5.08)

How To Order

KSA

Body Type

RoHS Compliant:

032

-79

Terminal Plating

RoHS Compliant:

KSA - Peel-A-Way

RSA - Molded Snap

RNA - Molded Solid

Number of Pins

KSA: 2-100 pos.

RSA: 20, 30 or 32 pos.

RNA: 3-20, 30 or 32 pos.

Note: Quick-Turn delivery is not available on products with Matte Tin plating.

G - Gold

M - Matte Tin

T - Tin/Lead

Terminal Type

See options on next page

5 Energy Way, West Warwick, RI 02893 USA

Tel: 800.424.9850 | 401.823.5200

Fax: 401.823.8723

info@advanced.com | www.advanced.com

Catalog 16

rev. Sept. 07

Products shown covered by patents issued and/or pending. Specifications subject to change without notice.

inch/(mm)
