BDS650 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BDS650

BDS650: DescriptionTRANSISTOR 3000 mA, 100 V, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size132KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BDS650 Overview

TRANSISTOR 3000 mA, 100 V, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal

BDS650 Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BUILT-IN BIAS RESISTOR
Shell connection	COLLECTOR
Maximum collector current (IC)	3 A
Collector-emitter maximum voltage	100 V
Configuration	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
Minimum DC current gain (hFE)	1000
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	10000 ns
Maximum opening time (tons)	2000 ns

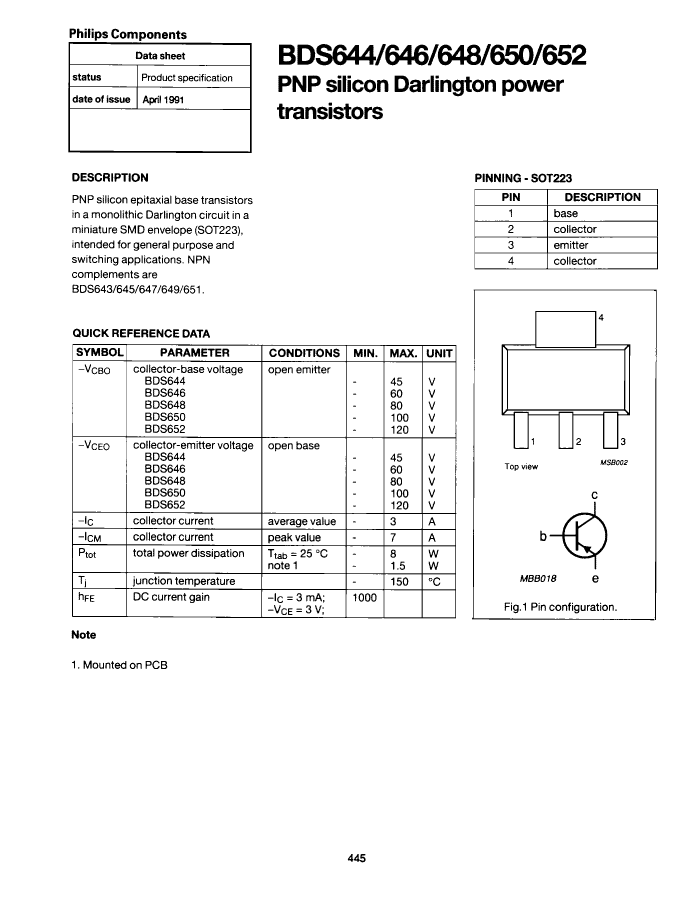

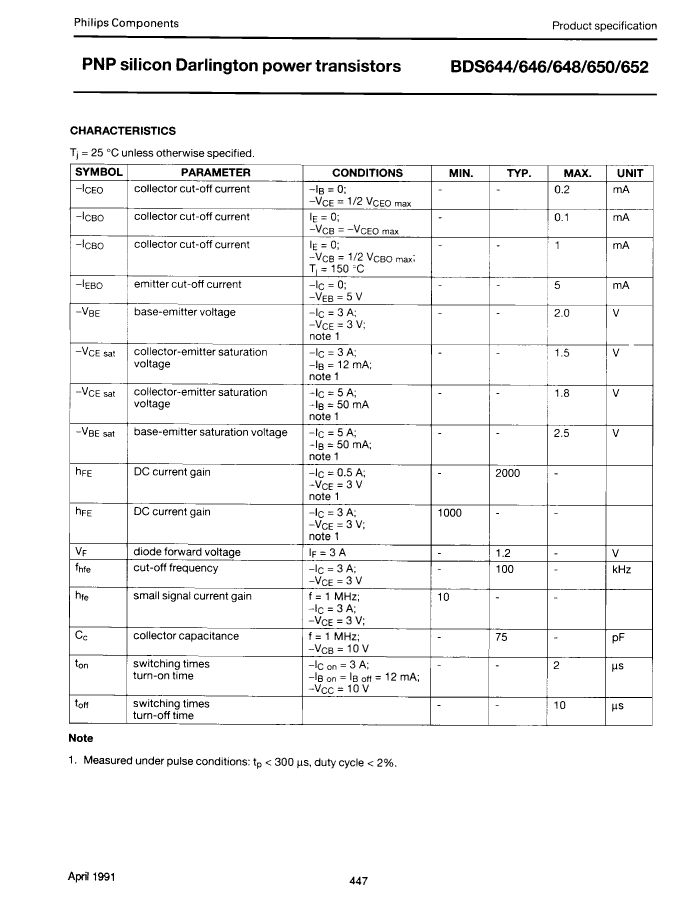

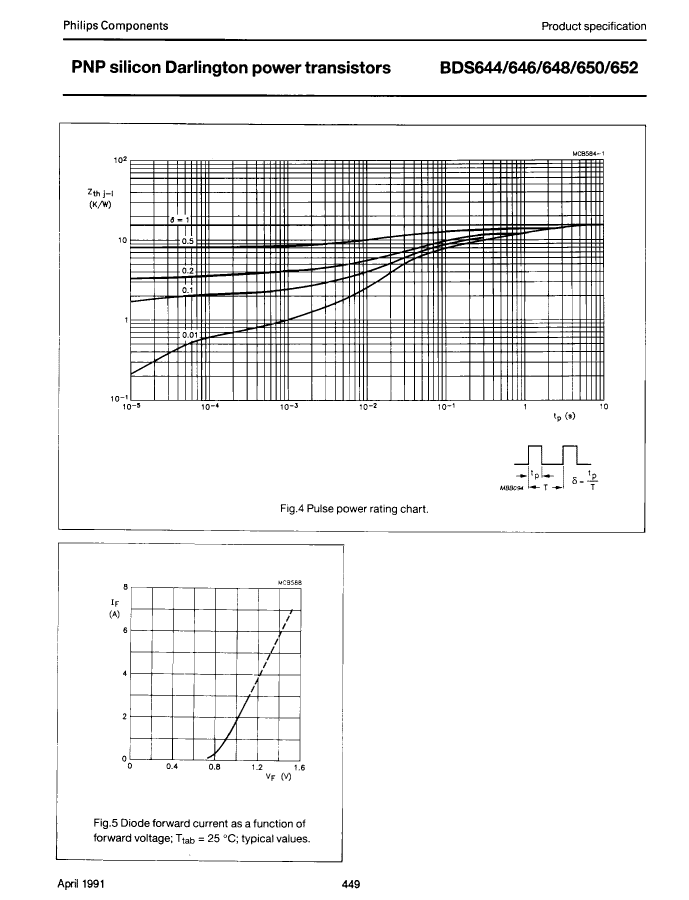

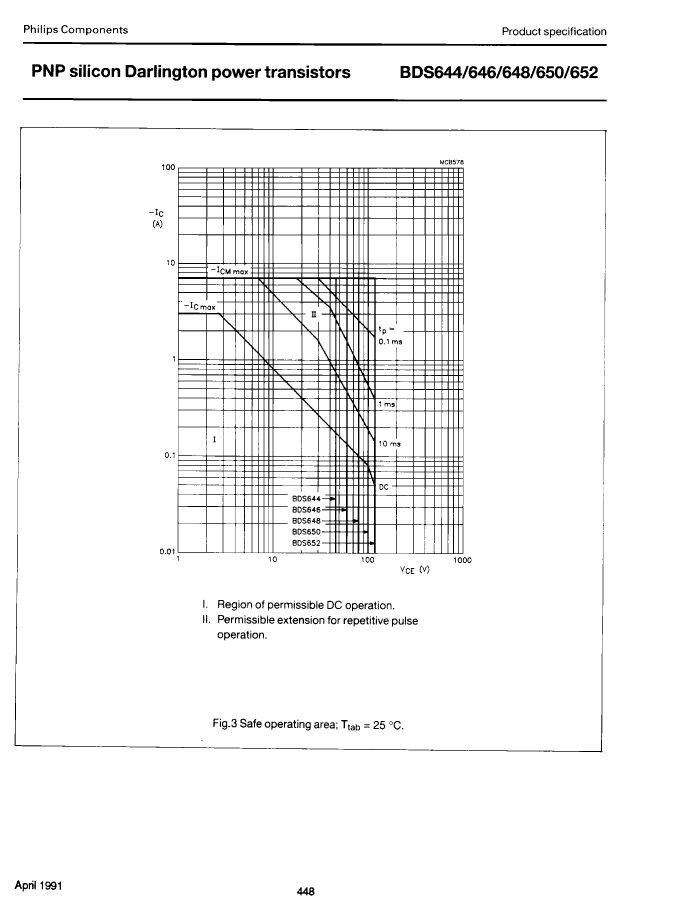

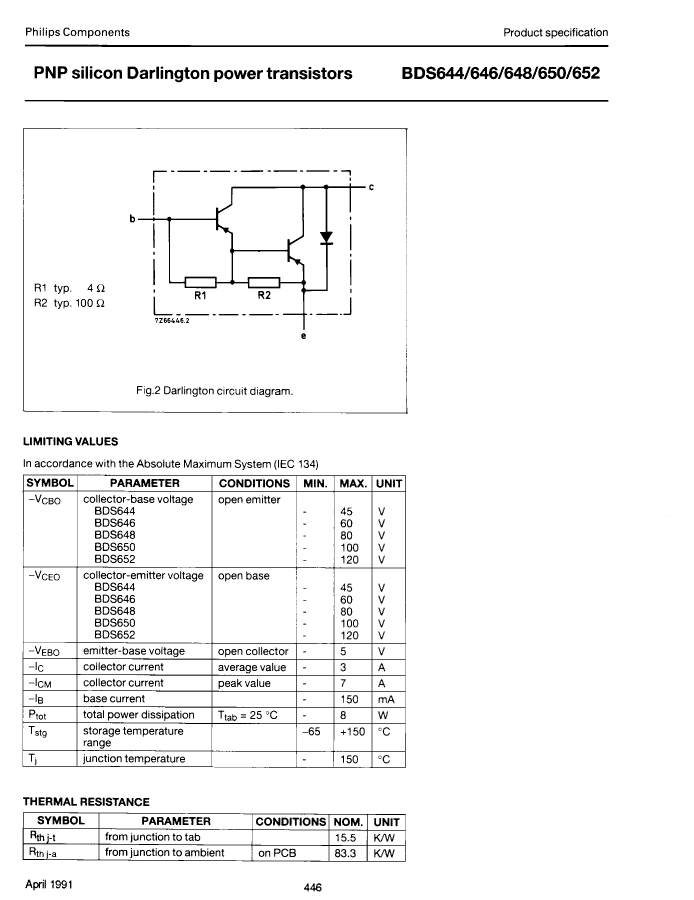

Preview

Download Datasheet

View All

BDS650 Related Products

	BDS650	BDS652	BDS652-T	BDS650-T	BDS646	BDS644	BDS648	BDS648-T	BDS644-T	BDS646-T
Description	TRANSISTOR 3000 mA, 100 V, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 3000 mA, 120 V, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 3000 mA, 120 V, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 3000 mA, 100 V, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 3000 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 3000 mA, 45 V, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 3000 mA, 80 V, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 3000 mA, 80 V, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 3000 mA, 45 V, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 3000 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal
package instruction	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BUILT-IN BIAS RESISTOR	BUILT-IN BIAS RESISTOR	BUILT-IN BIAS RESISTOR	BUILT-IN BIAS RESISTOR	BUILT-IN BIAS RESISTOR	BUILT-IN BIAS RESISTOR	BUILT-IN BIAS RESISTOR	BUILT-IN BIAS RESISTOR	BUILT-IN BIAS RESISTOR	BUILT-IN BIAS RESISTOR
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Collector-emitter maximum voltage	100 V	120 V	120 V	100 V	60 V	45 V	80 V	80 V	45 V	60 V
Configuration	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
Minimum DC current gain (hFE)	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4	4	4
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maximum off time (toff)	10000 ns	10000 ns	10000 ns	10000 ns	10000 ns	10000 ns	10000 ns	10000 ns	10000 ns	10000 ns
Maximum opening time (tons)	2000 ns	2000 ns	2000 ns	2000 ns	2000 ns	2000 ns	2000 ns	2000 ns	2000 ns	2000 ns
Maker	NXP	NXP	NXP	-	NXP	-	-	-	NXP	NXP
Base Number Matches	-	1	1	1	-	1	1	1	-	-
