HM2PN1PDP2C5Z1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM2PN1PDP2C5Z1

HM2PN1PDP2C5Z1: DescriptionBoard Connector, 132 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size136KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2PN1PDP2C5Z1 Overview

Board Connector, 132 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal

HM2PN1PDP2C5Z1 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	22 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (16) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HM2PN1PDP2C5
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	6
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	132
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

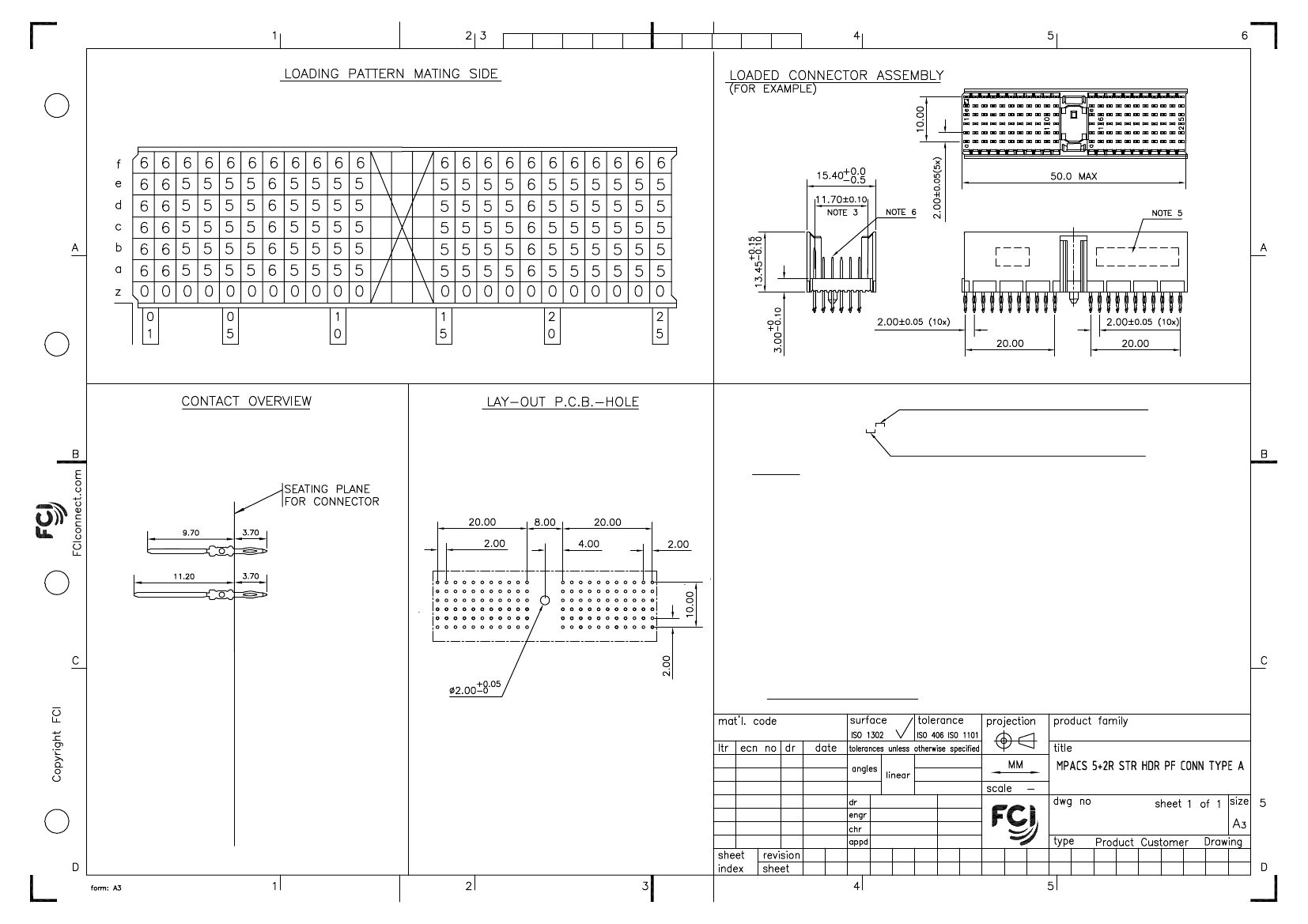

HM2PN1PDP2C5----

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THIS PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

PART NO: HM2PN1PDP2C5----

SEE NOTE 4

I05-0139

I06-0099

MINI

2005/08/10

2006/07/07

0°±1°

MINI K VANDANATH 2005/03/08

BIJU K PAUL

2005/03/08

2006/07/07

.0±0.2

.00±0.1

MILLIPACS

(WIDTH = 15.4 MAX)

BS, C ,203028,222

PDM: Rev:B

STATUS:

Released

Printed: Dec 03, 2007
