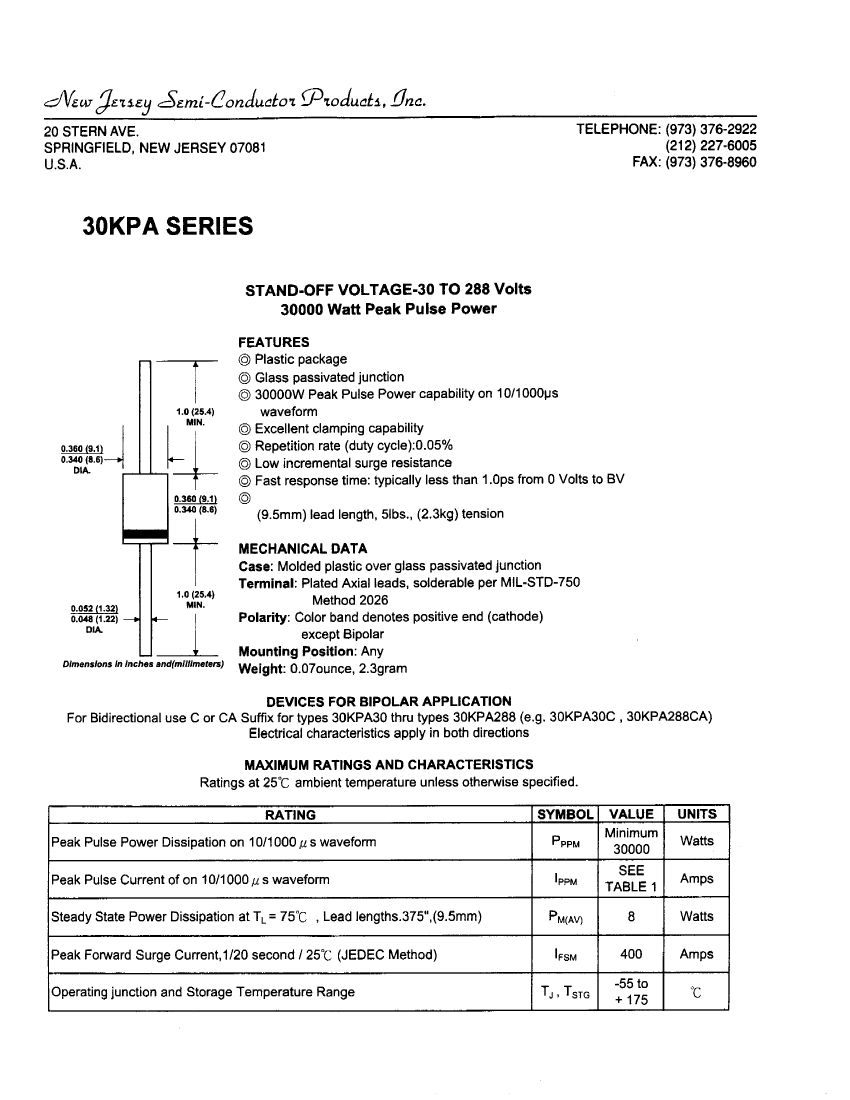

^£.m.i-dondu(itoi ^Product*., Dnc.

20 STERN AVE.

SPRINGFIELD, NEW JERSEY 07081

U.S.A.

TELEPHONE: (973) 376-2922

(212)227-6005

FAX: (973) 376-8960

30KPA SERIES

STAND-OFF VOLTAGE-30 TO 288 Volts

30000 Watt Peak Pulse Power

FEATURES

waveform

(9.5mm) lead length, 5lbs., (2.3kg) tension

MECHANICAL DATA

Case:

Molded plastic over glass passivated junction

Terminal:

Plated Axial leads, solderable per MIL-STD-750

Method 2026

Polarity:

Color band denotes positive end (cathode)

except Bipolar

Mounting Position: Any

Wejgnt:

1.0(25.4)

MIN.

0.360 (9.1)

0.340 (8.6)-

DIA.

D.360 (9.1)

0.340 (8.6)

0.052(1.32)

0.048(1.22)

DIA.

1.0 (25.4)

MIN.

Dimensions In Inches andfmllllmeters)

0,07

ounc

e, 2.3gram

DEVICES FOR BIPOLAR APPLICATION

For Bidirectional use C or CA Suffix for types 30KPA30 thru types 30KPA288 (e.g. 30KPA30C , 30KPA288CA)

Electrical characteristics apply in both directions

MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25°C ambient temperature unless otherwise specified.

RATING

Peak Pulse Power Dissipation on 1 0/1 000

s waveform

Peak Pulse Current of on 1 0/1 000

s waveform

Steady State Power Dissipation at T

= 75°C , Lead lengths.375", (9.5mm)

Peak Forward Surge Current, 1/20 second / 25°C (JEDEC Method)

Operating junction and Storage Temperature Range

SYMBOL

PpPM

VALUE

Minimum

30000

SEE

TABLE 1

400

-55 to

+ 175

UNITS

Watts

Amps

Watts

Amps

' PPM

PM(AV)

IFSM

Tj , T

STG

°C
