Description:
As required by ANSI/ESD S20.20 Packaging standard ANSI/ESD S541 these
conductive boxes are marked with the ESD protective symbol. They contain one
piece of high density foam for insertion of component leads and one piece of low
density foam which acts as a cushioning material.
57000
has only 1 piece of foam, all other sizes have 2 pieces of foam.
*Low
density foam not included in item
57000
Properties:
Material:
Resistance:
ITEM NO.
*
57000
57002
57004
57006
57010
57008
57012
INSIDE DIMENSIONS WITHOUT FOAM
SIZE - MM
33 x 33 x 12
73 x 51 x 16
90 x 64 x 16
107 x 82 x 13
229 x 126 x 21
229 x 126 x 30
229 x 126 x 40
SIZE - INCHES
1.3 x 1.3 x 0.46
2.9 x 2 x 0.63
3.5 x 2.5 x 0.63
4.2 x 3.2 x 0.52
9 x 5 x 0.81
9 x 5 x 1.19
9 x 5 x 1.58
Black conductive polypropylene
Less than 1 x10E5 ohms
(per ANSI EOS/ESD S11.11)
± 1/32"
0° to 120° F
Molded one-piece (57000-57006),
Pin two-piece (57008-57012)
Snap
1/4" (.25", 6mm) thick low density foam
1/4" (.25", 6mm) thick high density foam
Size Tolerance:
Temperature Limits:
Hinge:
Closure:
Top Foam:
Bottom Foam:
* All boxes have the ESD Protective Symbol molded into them.
ANSI/ESD S541 section 6.1 Inside an EPA “Packaging used within an EPA (that
satisfies the minimum requirements of ANSI/ESD S20.20) shall be:
1. Low charge generation.
2. Dissipative or conductive materials for intimate contact.”
ANSI/ESD S541 section 7.2.2 Resistance of Dissipative Materials “A static
dissipative material shall have a surface resistance of greater than or equal to
1.0 x 10^4 Ohms but less than 1.0 x 10^11 Ohms. Packaging materials that are
in intimate contact with devices should be dissipative.”
Specifications and procedures subject to change without notice
Made in America

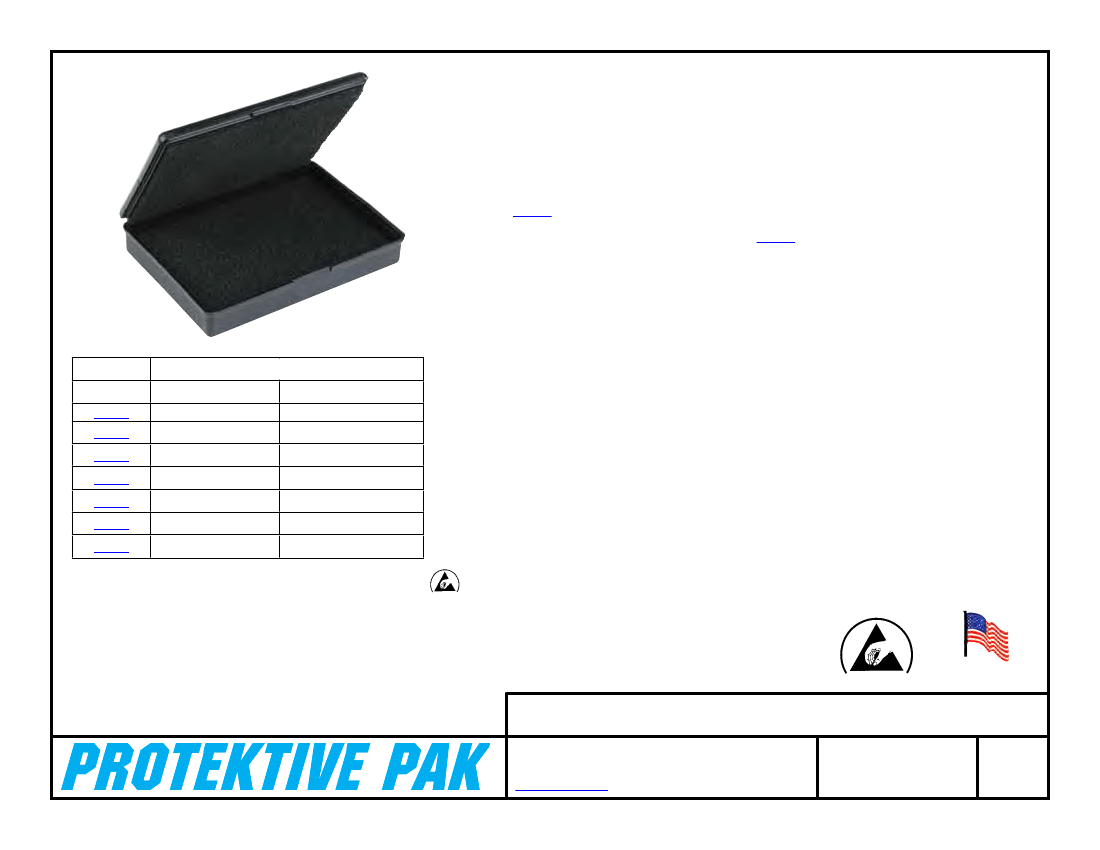

Conductive Hinged Box with Foam
PROTEKTIVE PAK
13520 MONTE VISTA AVENUE, CHINO, CA 91710
PHONE (909) 627-2578, FAX (909) 363-7331
ProtektivePak.com
DRAWING NUMBER
57000
DATE:
April
2010
© 2010 DESCO INDUSTRIES INC.
Employee Owned
