EFXLDM-TTL-90J datasheet, PDF - EEWORLD Datasheet

EFXLDM-TTL-90J: DescriptionActive Delay Line, 1-Func, 10-Tap, True Output, TTL, J LEAD, MODULE-14/13; Categorylogic logic; File Size580KB，1 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

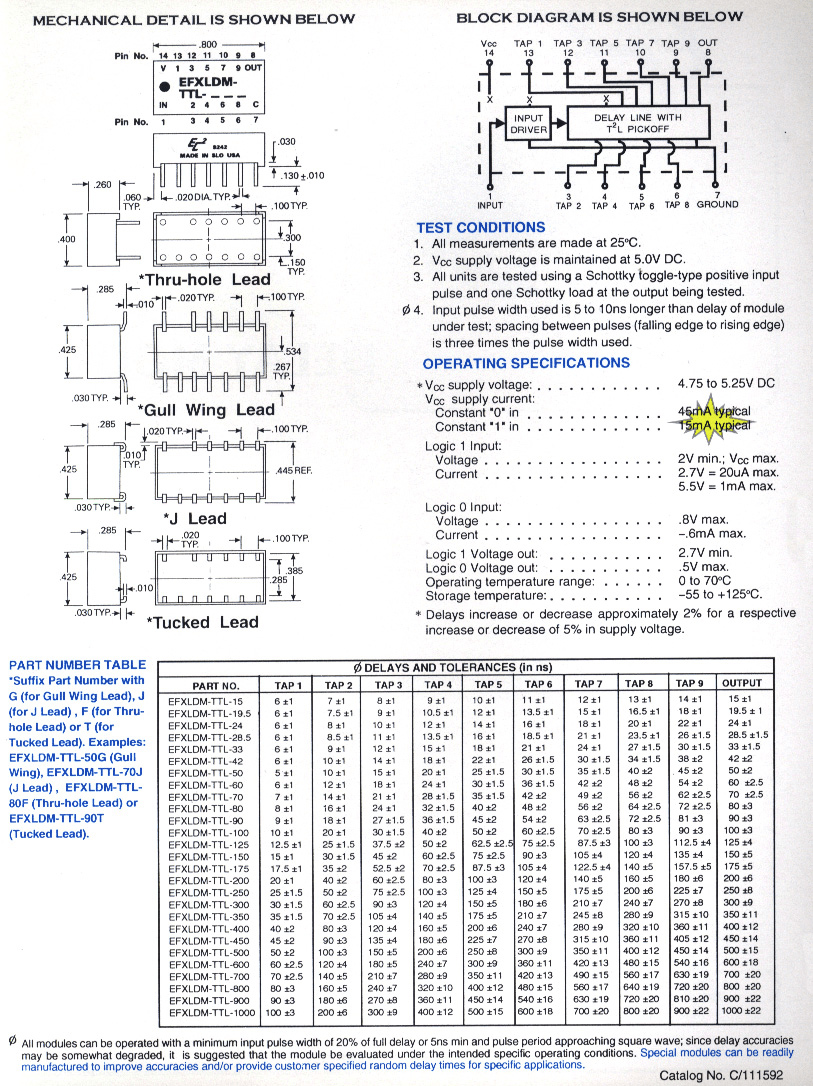

EFXLDM-TTL-90J Overview

Active Delay Line, 1-Func, 10-Tap, True Output, TTL, J LEAD, MODULE-14/13

Parameter Name	Attribute value
Maker	Engineered Components Co.
Parts packaging code	MODULE
package instruction	SOJ,
Contacts	14/13
Reach Compliance Code	unknown
Other features	TAP TO TAP DELAY TOL.[NS] VARIES; INTERNAL TERMINATION; MAX RISE TIME CAPTURED
series	F
JESD-30 code	R-XDSO-J13
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	13
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	7.239 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	90 ns
