SC-0510-16-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> SC-0510-16-T

SC-0510-16-T: DescriptionDirectional Coupler, 500MHz Min, 1000MHz Max, 0.2dB Insertion Loss-Max, SURFACE MOUNT PACKAGE-4; CategoryWireless rf/communication Radio frequency and microwave; File Size253KB，1 Pages; ManufacturerRLC Electronics Inc

Download Datasheet Parametric View All

SC-0510-16-T Overview

Directional Coupler, 500MHz Min, 1000MHz Max, 0.2dB Insertion Loss-Max, SURFACE MOUNT PACKAGE-4

SC-0510-16-T Parametric

Parameter Name	Attribute value
Maker	RLC Electronics Inc
Reach Compliance Code	unknown
Other features	I/P POWER-MAX(PEAK)=3000WATT
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	46.99 dBm
Maximum insertion loss	0.2 dB
Maximum operating frequency	1000 MHz
Minimum operating frequency	500 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.15

Preview

Download Datasheet

View All

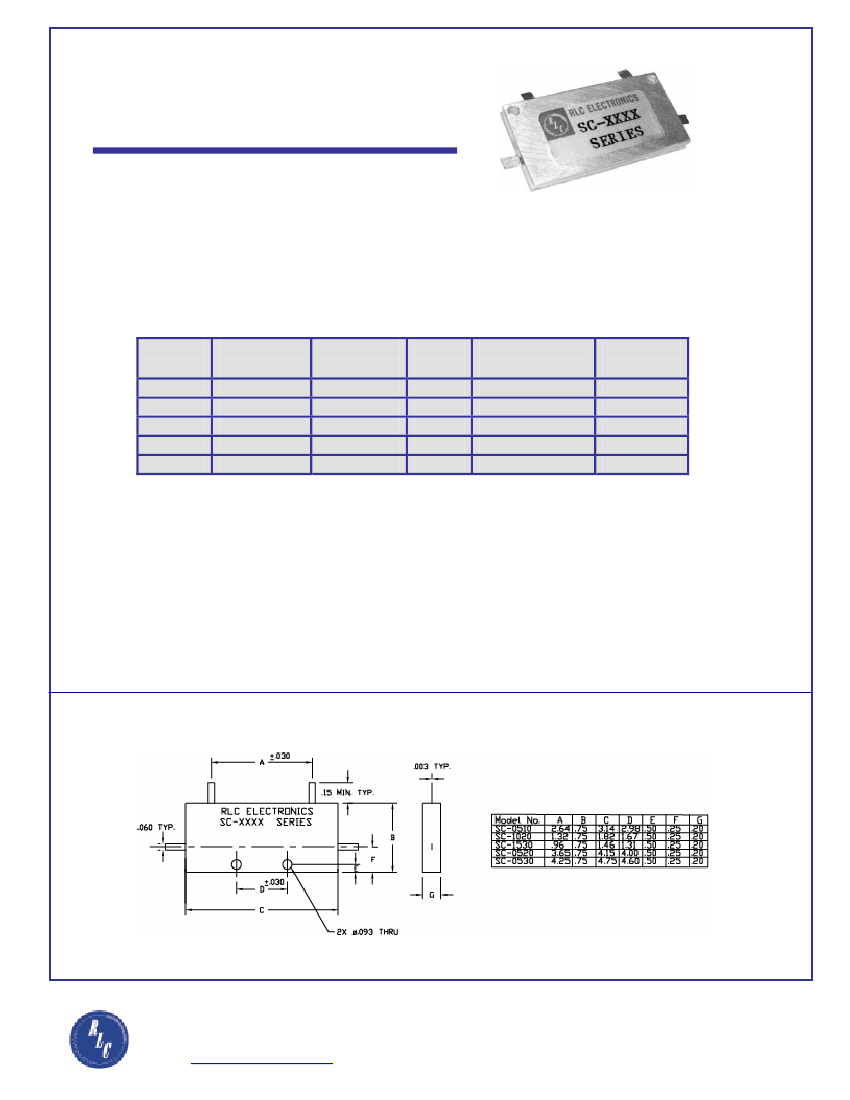

Surface Mount

Directional Couplers

RLC Electronics’ Surface Mount Directional

Couplers simplify installation, while still providing

the high directivity and low VSWR of standard

couplers. These units are available in both

octave or multi-octave bandwidths, over the

frequency range of 500 to 3000 MHz. Coupling

values of 10, 16, or 20 dB are standard.

Specifications

SC-

Model

SC-0510-

SC-1020-

SC-1530-

SC-0520-

SC-0530-

Frequency Directivity VSWR

Frequency

Loss

(GHz)

Min.(dB)

Max. Deviation(dB) Max.(dB)

.50-1.00

1.00-2.00

1.50-3.00

.50-2.00

.50-3.00

1.15

1.20

1.25

±.75

.20

.25

.30

Coupling (nominal)

.5 dB, 16

.5 dB, 20

1.0 dB

Impedance

50 ohms

Power

50 watts average, 3 Kw peak

Connector:

Tabs for surface mount

Temperature:

-55 to +85° C

Environment:

Mil-E-5400, Class 1A

Note:

Does not include coupling loss

To designate the coupler desired use:

(1) 0510, 1020, etc. for model number

(3) T for built in .5 watt termination,

U for no termination.

(2) Coupling value in dB.

OUTLINE DRAWING

Specifications subject to change without notification.

Tolerances unless otherwise specified are .xx +/- .02, xxx +/- .005

Specials requiring closer tolerances, different frequency ranges, special connectors

different materials, finishes, etc. can be furnished upon request.

RLC ELECTRONICS, INC.

83 Radio Circle, Mount Kisco, New York 10549 Telephone 914-241-1334 Fax 914-241-1753

e-mail:

sales@rlcelectronics.com

www.rlcelectronics.com
