S1L7 Pin Diode Switch
Single Pole, Single Throw
Absorptive
Features:
•
Incorporated TTL-compatible driver for
convenient system integration and operates
from +5 V and -15 V DC power supplies.
DC blocks at all RF ports.
Ruggedized construction.
RoHS-compliant versions available.
Hermetic versions available.
•
•
•
•
Specifications:
Parameter
Frequency Range
Insertion Loss (max)
VSWR (max) 50 ohms
Isolation (min)
Switching Speed (max)
CW RF Power, Operating (max)
Specification
1 – 18
3.0
2.0
65
100
0.5
Units
GHz
dB
ratio
dB
nsec
W
Notes:
DC Bias:
(Standard)
DC Bias:
(-5 option)
DC Bias:
(-12 option)
Control:
+5 V +/-0.5 V @ 50 mA max
-15 V +/- 3 V @ 50 mA max
+5 V +/- 0.5 V @ 60 mA max
-5 V +/ -0.5 V @ 60 mA max
+15 V +/- 3 V @ 50 mA max
-15 V +/- 3 V @ 50 mA max
TTL 0 = Low Loss
TTL 1 = Isolation
Mechanical Specifications:
Case Style:
Finish:
Bias & Control Pins:
Weight:
Mounting:
S1 Outline
Gold Plate per MIL-G-45204
ø0.02” x 0.15” long
20 g max
ø0.10” through holes
(4) places
Absorptive Switch: 50 ohm termination present at both RF ports
(in isolation mode).
Switching speed is defined as 50% TTL to 90% RF (t-on) and 50%
TTL to 10% RF (t-off).
Screening:
Internal Visual per MIL-STD-883, Method 2017
Temperature Cycle: -65 °C to +100 °C, 10 cycles
Hermetically-sealed switches are fine and gross leak checked per
MIL-STD-883, Method 1014.
Optional High-Rel screening available upon request. Contact the
factory to discuss your screening requirements.
Environmental Specifications:
MIL-E-5400, MIL-STD-202, MIL-E-16400
Operating Temp:
-55 °C to +85 °C
Storage Temp:
-65 °C to +125 °C
Humidity:
MIL-STD-202F, M103, Cond B
Shock:
MIL-STD-202F, M213, Cond B
Altitude:
MIL-STD-202F, M105, Cond B
Vibration:
MIL-STD-202F, M204, Cond B
Thermal Shock:
MIL-STD-202F, M107, Cond A
Temperature Cycle:
MIL-STD-202F, M105C, Cond D
SIGNAL & CONTROL SOLUTIONS
Revision Date: 1/20/2014
40 Industrial Way East, Eatontown , NJ 07724 [USA]
Phone: (732) 460-0212, Fax: (732) 460-0214
www.aeroflex.com/ascs, email: ascs-sales@aeroflex.com
SIGNAL & CONTROL SOLUTIONS
S1L7 Pin Diode Switch
SPST, Absorptive
0.15

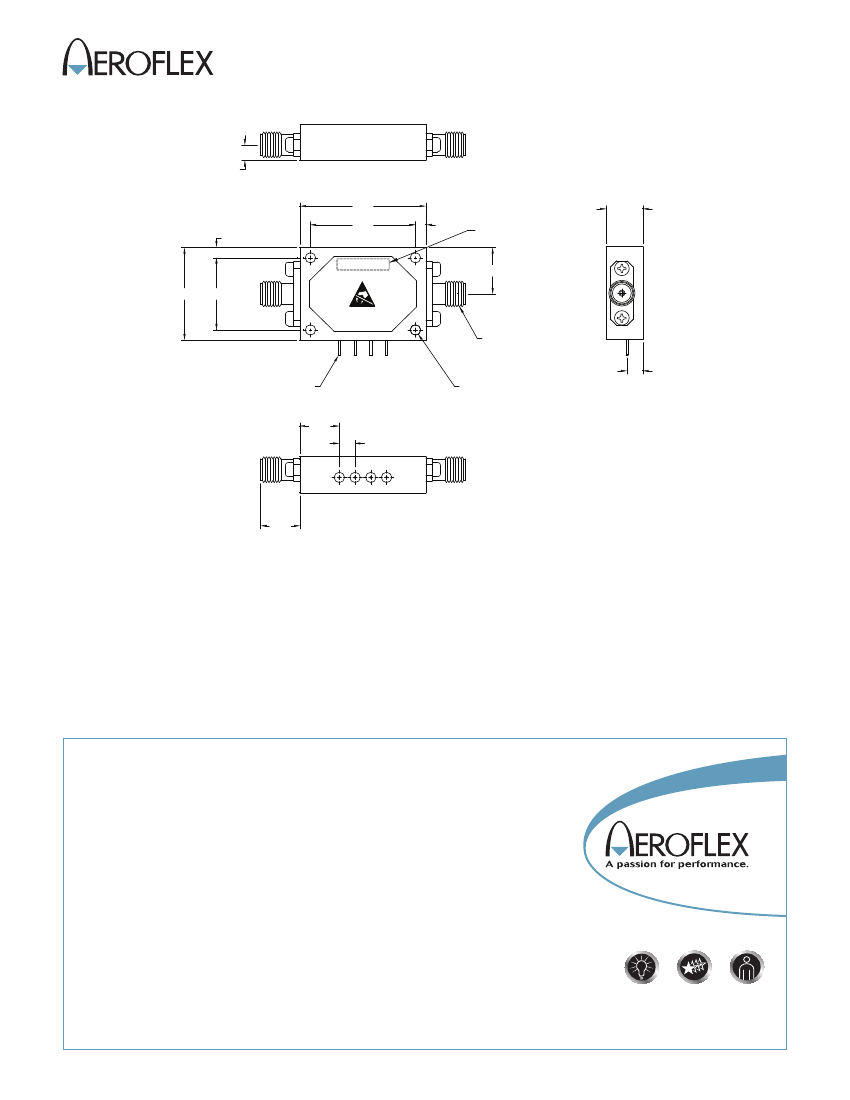

Outline Drawing:
1.20
1.00
0.10
0.10
0.35
MODEL NUMBER
ACC
0.90
0.70
0.45
J1
SN:
0000
DC:
J2
WWYY
E1
+V
-V
G
SMA FEMALE
(2) PLCS.
Ø0.020 X 0.15 LG
SOLDER PIN
(4) PLCS.
Ø 0.10 THRU
MOUNTING HOLE
(4) PLCS.
0.15
0.38
0.15 (3) PLCS.
0.38
REF.
OUTLINE CASE STYLE S1
Part Number Ordering Information:
•
•
•
•
•
•
•
•
Add
Add
Add
Add
Add
Add
Add
Add
“-RC” suffix: RoHS-compliant
“-H” suffix: Hermetic seal
“-5” suffix: +/-5 V DC supplies
“-5-RC” suffix: +/-5 V DC supplies, RoHS-compliant
“-5-H” suffix: +/-5 V DC supplies, Hermetic seal
“-12” suffix: +/-15 V DC supplies
“-12-RC” suffix: +/-15 V DC supplies, RoHS-compliant
“-12-H” suffix: +/-15 V DC supplies, Hermetic seal
