ECS-299-20-33-C-D-N-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-299-20-33-C-D-N-TR

ECS-299-20-33-C-D-N-TR: DescriptionParallel - Fundamental Quartz Crystal, 29.999MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size379KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-299-20-33-C-D-N-TR Overview

Parallel - Fundamental Quartz Crystal, 29.999MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN

ECS-299-20-33-C-D-N-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECS
package instruction	ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.01%
frequency tolerance	10 ppm
JESD-609 code	e4
load capacitance	20 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	29.999 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L3.2XB2.5XH0.7 (mm)/L0.126XB0.098XH0.028 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

Low Profile

3.2 x 2.5 mm Footprint

Extended Temp. Range Option

RoHS Compliant

ECX-32

SMD CRYSTAL

The sub miniature ECX-32 is a compact SMD Crystal. The

3.2 x 2.5 x 0.7 mm ceramic package is ideal for today's

SMD manufacturing environment.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency

Frequency Tolerance

Frequency Stability (ref @ 25°C)

Shunt Capacitance

Load Capacitance

Equivalent Series Resistance

Drive Level

Operating Temperature

Storage Temperature

Aging Characteristics (Per Year)

opr

stg

@ +25°C ± 3°C

-20

-40

Specify in P/N

12.000 ~ 29.999 MHz

30.000 ~ 60.000 MHz

+25

100

+70

+85

±5

CONDITIONS

Fundamental Mode

@ +25°C

-20 ~ +70°C

ECX-32

MIN

12.000

TYP

MAX

60.000

± 50 *

5.0

UNITS

MHz

ppm

Ω

µW

°C

ppm

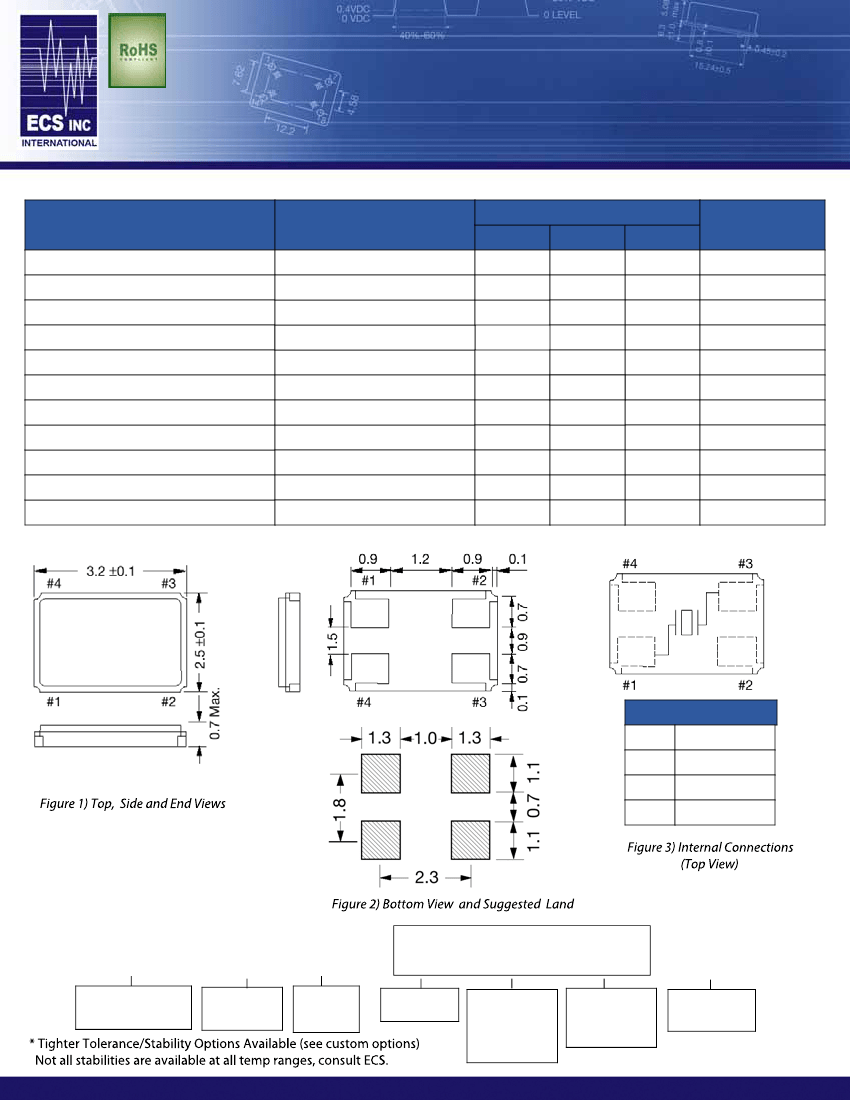

PACKAGE DIMENSIONS (mm)

Pad Connections

In/Out

Gnd

In/Out

Gnd

PART NUMBERING GUIDE: Example ECS-160-20-33-TR

ECS - Frequency Abbreviation - Load -

160 = 16.000 MHz

See P/N Guide for

Std Frequencies

20 = 20 pF

S = Series

Custom Options

- Tolerance

A = ± 25 ppm

C = ± 10 ppm

Package Type

-33 =

ECX-32

Stability - Temp Range

D = ±100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

K = ± 10 ppm

L = -10 ~ +70°C

M = -20 ~ +70°C

N = -40 ~ +85°C

P = -40~+105°C

Packaging

-TR =

Tape & Reel

1K/Reel

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
