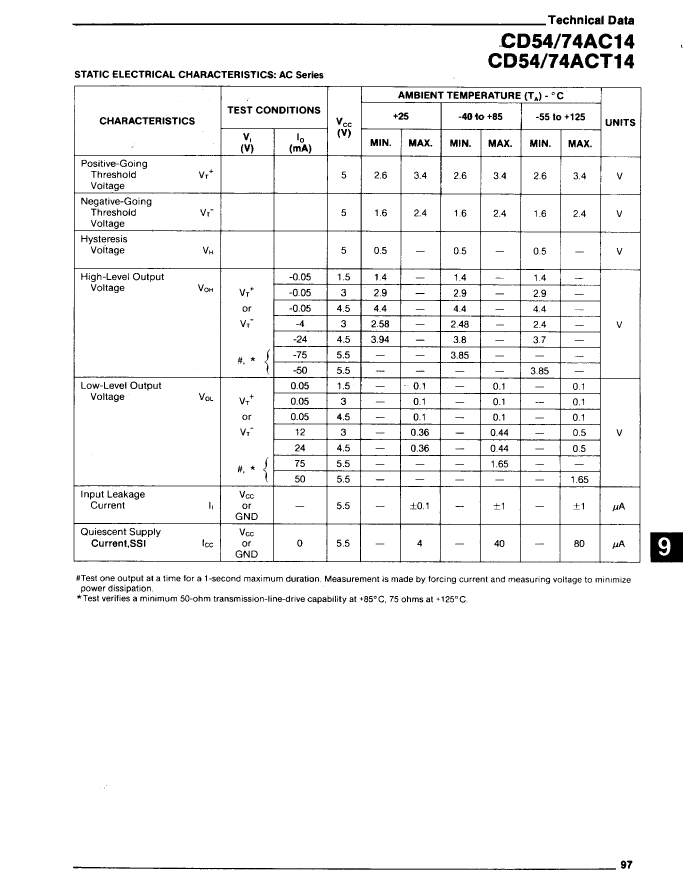

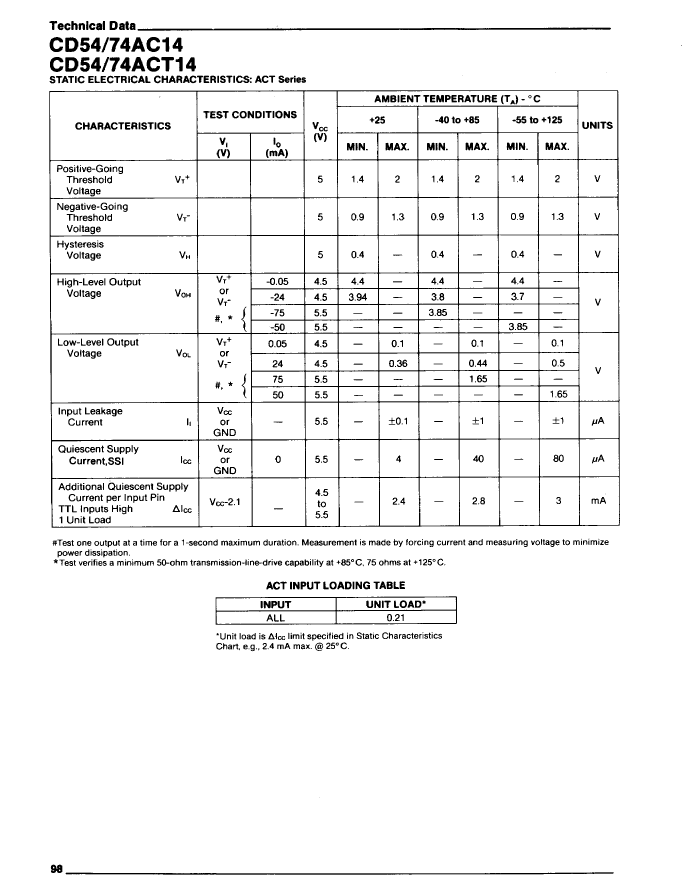

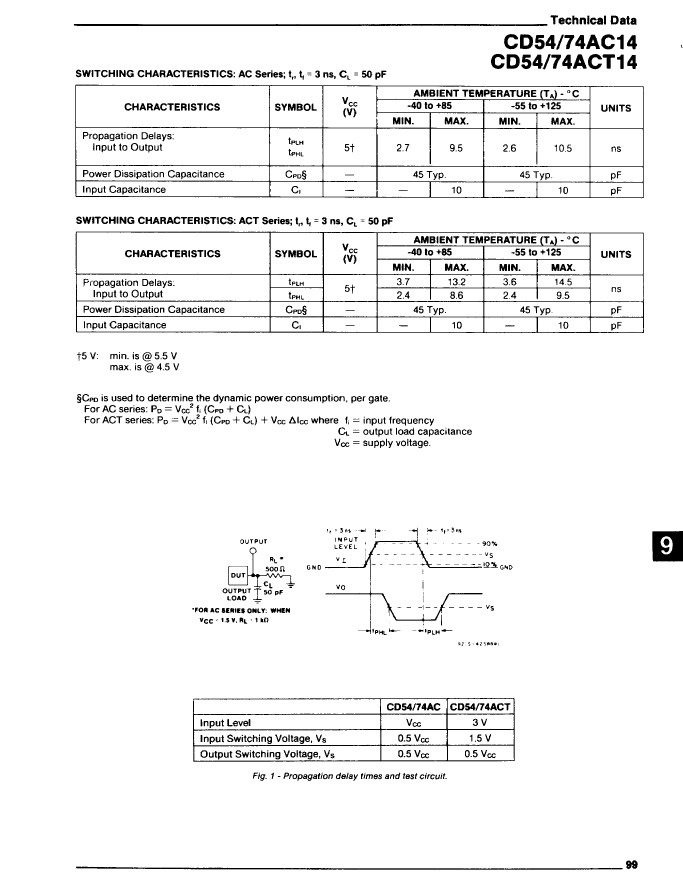

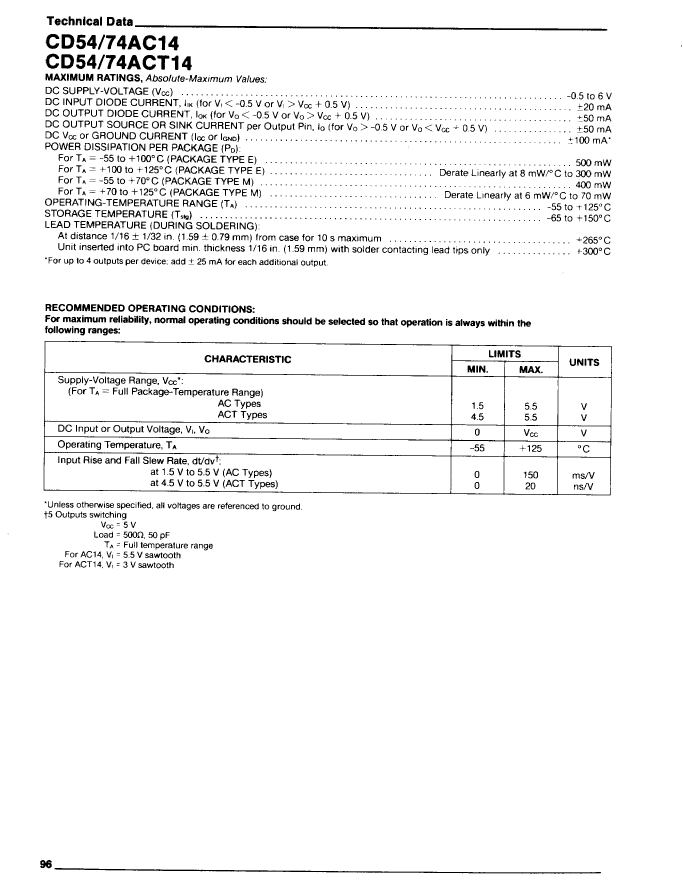

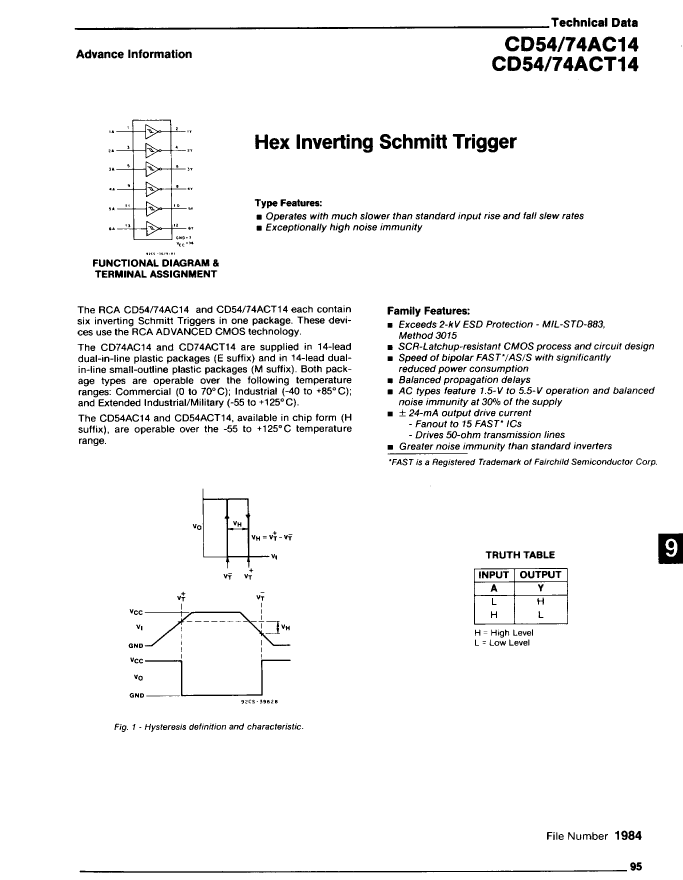

Preview

CD74AC14M96: DescriptionIC,LOGIC GATE,HEX INVERTER,AC-CMOS,SOP,14PIN,PLASTIC; Categorylogic logic; File Size221KB，5 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

CD74AC14M96 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74AC14M96	-	-	View	Buy Now

CD74AC14M96 Overview

IC,LOGIC GATE,HEX INVERTER,AC-CMOS,SOP,14PIN,PLASTIC

CD74AC14M96 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	SOP, SOP14,.25
Reach Compliance Code	not_compliant
series	AC
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.012 A
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
power supply	3.3/5 V
Prop。Delay @ Nom-Sup	10.5 ns
propagation delay (tpd)	10.5 ns
Certification status	Not Qualified
Schmitt trigger	YES
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

CD74AC14M96 Related Products

	CD74AC14M96	CD54AC14F3A	CD54AC14F	CD74ACT14M	CD74AC14M	CD74ACT14E	CD74ACT14M96	CD74AC14E	5962-01-379-3891
Description	IC,LOGIC GATE,HEX INVERTER,AC-CMOS,SOP,14PIN,PLASTIC	IC,LOGIC GATE,HEX INVERTER,AC-CMOS,DIP,14PIN,CERAMIC	IC,LOGIC GATE,HEX INVERTER,AC-CMOS,DIP,14PIN,CERAMIC	INVERT GATE	IC,LOGIC GATE,HEX INVERTER,AC-CMOS,SOP,14PIN,PLASTIC	INVERT GATE	INVERT GATE	IC,LOGIC GATE,HEX INVERTER,AC-CMOS,DIP,14PIN,PLASTIC	IC,LOGIC GATE,HEX INVERTER,ACT-CMOS,DIP,14PIN,PLASTIC
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Reach Compliance Code	not_compliant	unknown	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	_compli
JESD-30 code	R-PDSO-G14	R-XDIP-T14	R-XDIP-T14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14	R-PDIP-T14	R-PDIP-T14
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER
MaximumI(ol)	0.012 A	0.012 A	0.012 A	0.024 A	0.012 A	0.024 A	0.024 A	0.012 A	0.024 A
Number of terminals	14	14	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	SOP	SOP	DIP	SOP	DIP	DIP
Encapsulate equivalent code	SOP14,.25	DIP14,.3	DIP14,.3	SOP14,.25	SOP14,.25	DIP14,.3	SOP14,.25	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
power supply	3.3/5 V	3.3/5 V	3.3/5 V	5 V	3.3/5 V	5 V	5 V	3.3/5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	YES	YES	YES	YES	YES	YES	YES	YES	YES
surface mount	YES	NO	NO	YES	YES	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	SOP, SOP14,.25	-	-	SOP, SOP14,.25	SOP, SOP14,.25	DIP, DIP14,.3	SOP, SOP14,.25	DIP, DIP14,.3	DIP, DIP14,.3
series	AC	-	-	ACT	AC	ACT	ACT	AC	-
JESD-609 code	e0	-	e0	e0	e0	e0	e0	e0	-
Load capacitance (CL)	50 pF	-	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Number of functions	6	-	-	6	6	6	6	6	-
Number of entries	1	-	-	1	1	1	1	1	-
Prop。Delay @ Nom-Sup	10.5 ns	-	10.5 ns	14.5 ns	10.5 ns	14.5 ns	14.5 ns	10.5 ns	-
propagation delay (tpd)	10.5 ns	-	-	14.5 ns	10.5 ns	14.5 ns	14.5 ns	10.5 ns	-
Maximum supply voltage (Vsup)	5.5 V	-	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	-
Minimum supply voltage (Vsup)	1.5 V	1.5 V	1.5 V	4.5 V	1.5 V	4.5 V	4.5 V	1.5 V	-
Nominal supply voltage (Vsup)	5 V	-	-	5 V	5 V	5 V	5 V	5 V	5 V
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
