BA6840AFS-T1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> The signal circuit> BA6840AFS-T1

BA6840AFS-T1: DescriptionBrushless DC Motor Controller, 1.3A, PDSO20, SSOP-20; CategoryOther integrated circuit (IC) The signal circuit; File Size174KB，9 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BA6840AFS-T1 Overview

Brushless DC Motor Controller, 1.3A, PDSO20, SSOP-20

BA6840AFS-T1 Parametric

Parameter Name	Attribute value
Maker	ROHM Semiconductor
Parts packaging code	SSOP
package instruction	SSOP,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G20
length	8.7 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Maximum output current	1.3 A
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	2.01 mm
Maximum supply current (Isup)	6 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.25 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	5.4 mm

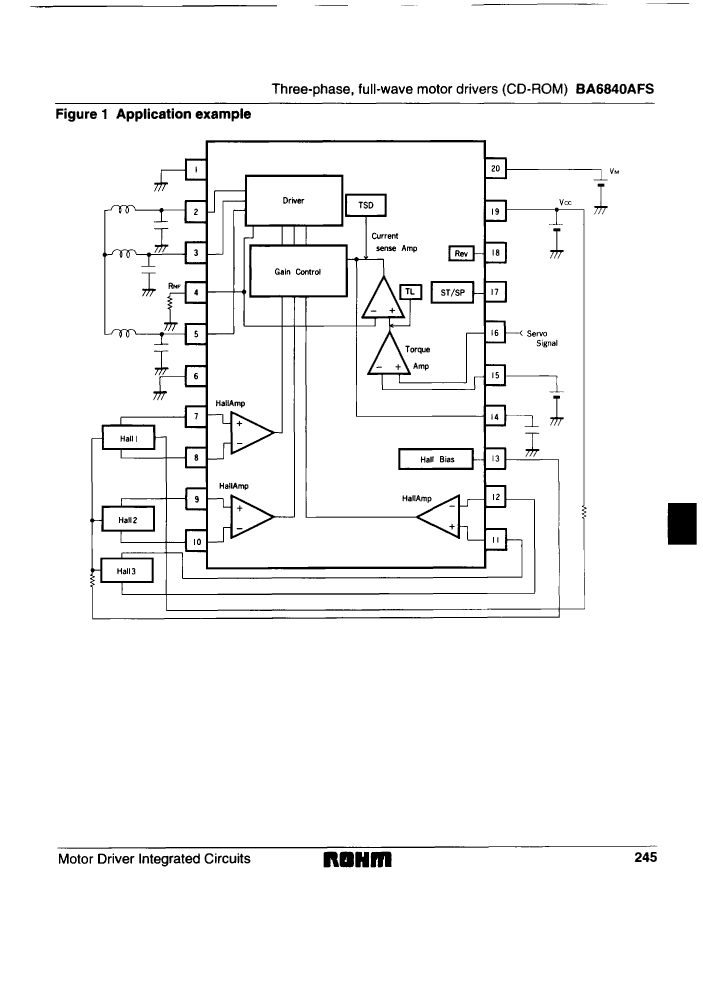

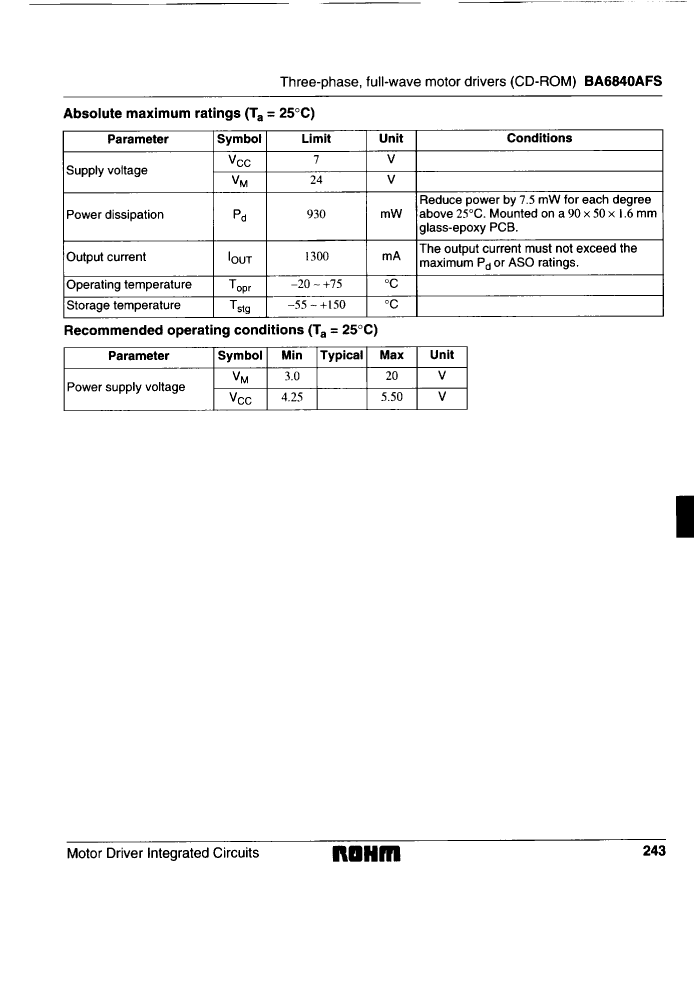

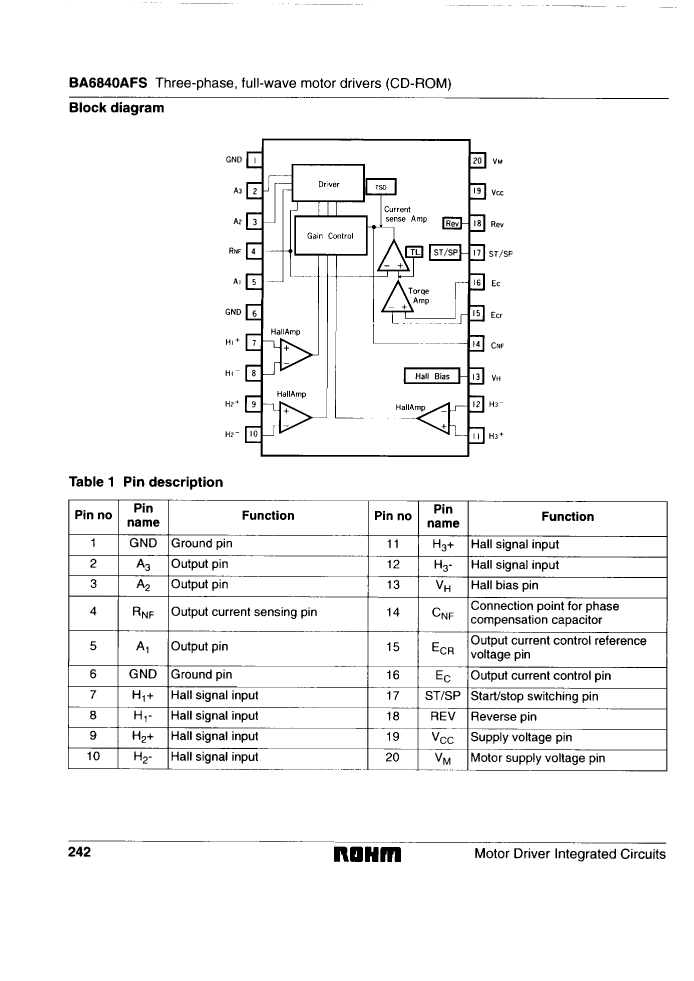

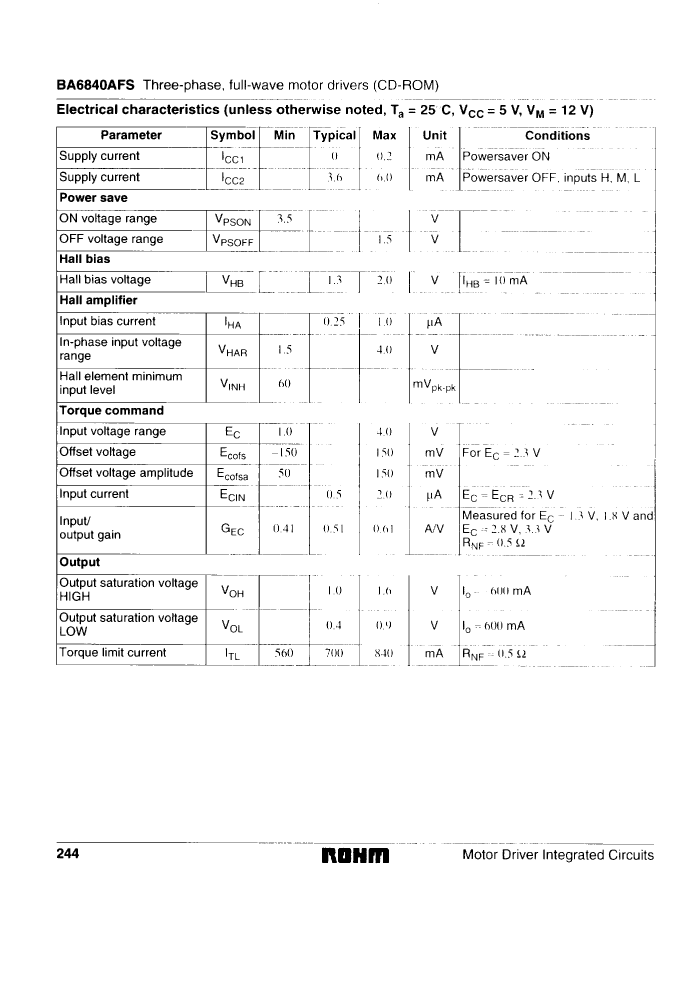

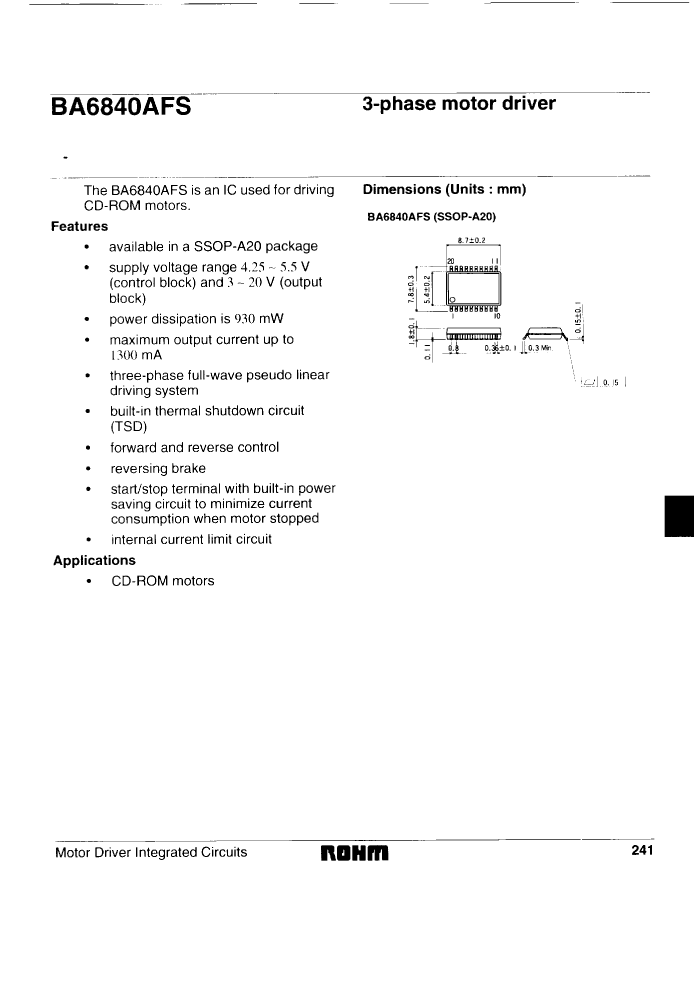

Preview

Download Datasheet

View All

BA6840AFS-T1 Related Products

	BA6840AFS-T1	BA6840AFSE2	BA6840AFST2	BA6840AFS-T2	BA6840AFS-E2	BA6840AFST1
Description	Brushless DC Motor Controller, 1.3A, PDSO20, SSOP-20	BRUSHLESS DC MOTOR CONTROLLER, 1.3A, PDSO20, 0.80 MM PITCH, SSOP-20	BRUSHLESS DC MOTOR CONTROLLER, 1.3A, PDSO20, 0.80 MM PITCH, SSOP-20	Brushless DC Motor Controller, 1.3A, PDSO20, SSOP-20	Brushless DC Motor Controller, 1.3A, PDSO20, SSOP-20	BRUSHLESS DC MOTOR CONTROLLER, 1.3A, PDSO20, 0.80 MM PITCH, SSOP-20
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SSOP	SSOP	SSOP	SSOP	SSOP	SSOP
package instruction	SSOP,	SSOP,	SSOP,	SSOP,	SSOP,	SSOP,
Contacts	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
length	8.7 mm	8.7 mm	8.7 mm	8.7 mm	8.7 mm	8.7 mm
Number of functions	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20
Maximum output current	1.3 A	1.3 A	1.3 A	1.3 A	1.3 A	1.3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SSOP	SSOP	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.01 mm	2.01 mm	2.01 mm	2.01 mm	2.01 mm	2.01 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.25 V	4.25 V	4.25 V	4.25 V	4.25 V	4.25 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	5.4 mm	5.4 mm	5.4 mm	5.4 mm	5.4 mm	5.4 mm
