12V, N-channel Trench MOSFET
Product data sheet
1. General description
N-channel enhancement mode Field-Effect Transistor (FET) in a 4 bumps Wafer Level
Chip-Size Package (WLCSP) using Trench MOSFET technology.
2. Features and benefits
•
•
•
•
Low threshold voltage
Ultra small package: 0.78 × 0.78 × 0.35 mm
Trench MOSFET technology
ElectroStatic Discharge (ESD) protection > 2 kV HBM
3. Applications
•
•
•
•
Relay driver
High-speed line driver
Low-side loadswitch
Switching circuits
4. Quick reference data
Table 1.
Symbol
V
DS
V
GS
I
D
R
DSon
Quick reference data
Parameter
drain-source voltage
gate-source voltage
drain current
V
GS
= 4.5 V; T
amb
= 25 °C; t ≤ 5 s
V
GS
= 4.5 V; I
D
= 3 A; T
j
= 25 °C
[1]
Conditions
T
j
= 25 °C
Min
-
-8
-
Typ
-
-
-
Max
12
8
6
Unit
V
V
A
Static characteristics
drain-source on-state
resistance
[1]
2
-
36
42
mΩ
Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated, mounting pad for
drain 6 cm .
Scan or click this QR code to view the latest information for this product
NXP Semiconductors
PMCM4401VNE
12V, N-channel Trench MOSFET
5. Pinning information
Table 2.
Pin
A1
A2
B1
B2
Pinning information
Symbol Description
G
S
D
S
gate
source
drain
source
B
S
017aaa255
Simplified outline
1
A
2
Graphic symbol
D
G
Transparent top view
WLCSP4 (OL-
PMCM4401VNE)
6. Ordering information
Table 3.
Ordering information
Package
Name
PMCM4401VNE
WLCSP4
Description
WLCSP4: wafer level chip-size package; 4 bumps
(2 x 2)
Version
OL-PMCM4401VNE
Type number
7. Marking
Table 4.
Marking codes
Marking code
P
Type number
PMCM4401VNE
PIN A1
INDICATION
2
1
A
B
Top view, balls down
MARKING CODE
(EXAMPLE)
aaa-012880
Fig. 1.
WLCSP4 marking code description
PMCM4401VNE
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2015. All rights reserved
Product data sheet
24 July 2015
2 / 15
NXP Semiconductors
PMCM4401VNE
12V, N-channel Trench MOSFET
8. Limiting values
Table 5.
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
V
DS
V
GS
I
D
Parameter
drain-source voltage
gate-source voltage
drain current
V
GS
= 4.5 V; T
amb
= 25 °C; t ≤ 5 s
V
GS
= 4.5 V; T
amb
= 25 °C
V
GS
= 4.5 V; T
amb
= 100 °C
I
DM
P
tot
peak drain current
total power dissipation
T
amb
= 25 °C; single pulse; t
p
≤ 10 µs
T
amb
= 25 °C
T
sp
= 25 °C
T
j
T
amb
T
stg
I
S
junction temperature
ambient temperature
storage temperature
[2]
[1]
[1]
[1]
[1]
Conditions
T
j
= 25 °C
Min
-
-8
-
-
-
-
-
-
-
-55
-55
-65
Max
12
8
6
4.7
3
19
400
1300
Unit
V
V
A
A
A
A
mW
mW
12500 mW
150
150
150
°C
°C
°C
Source-drain diode
source current
[1]
[2]
T
amb
= 25 °C
2
[1]
-
1.1
A
Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated, mounting pad for
drain 6 cm .
Device mounted on an FR4 Printed Circuit Board (PCB), single-sided copper, tin-plated and standard
footprint.
PMCM4401VNE
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2015. All rights reserved
Product data sheet
24 July 2015
3 / 15
NXP Semiconductors
PMCM4401VNE
12V, N-channel Trench MOSFET
120
P
der
(%)
80
017aaa123
120
I
der
(%)
80
017aaa124
40
40
0
- 75
- 25
25
75
125
T
j
(°C)
175
0
- 75
- 25
25
75
125
T
j
(°C)
175

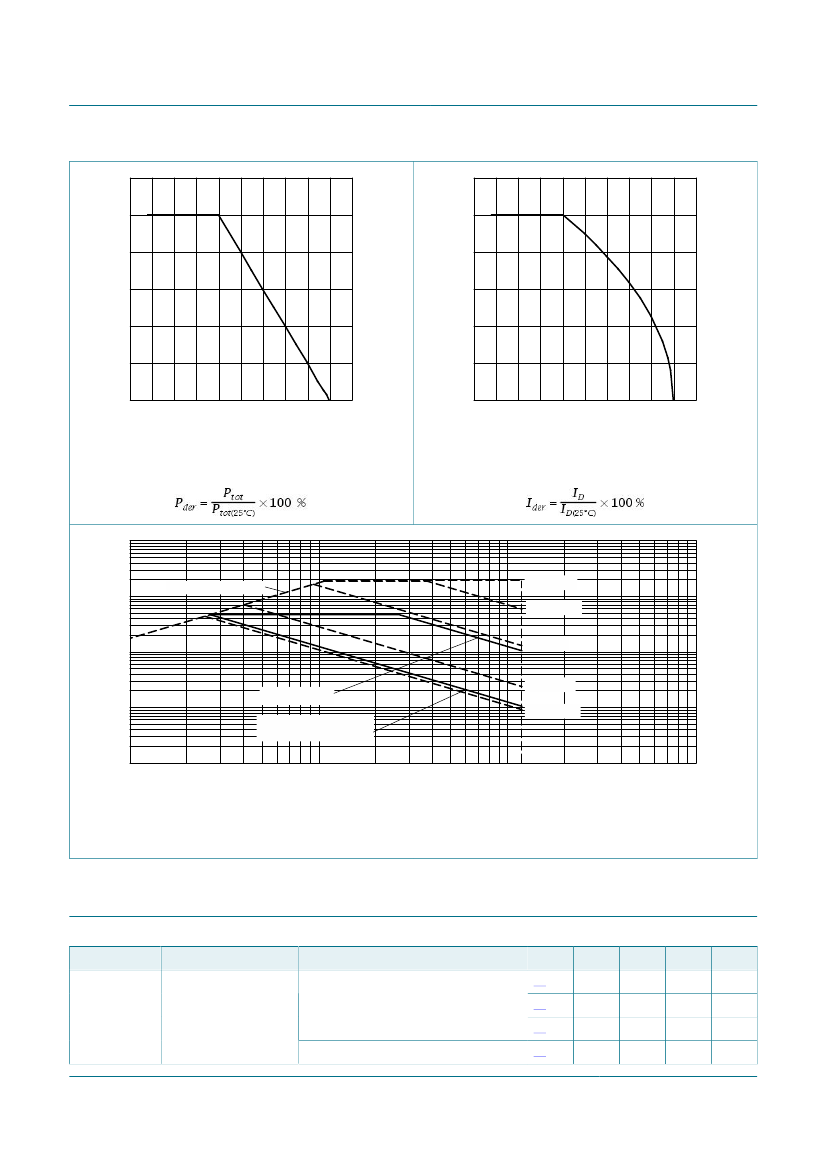

Fig. 2.
Normalized total power dissipation as a
function of junction temperature
Fig. 3.
Normalized continuous drain current as a
function of junction temperature
10
2
I
D
(A)
10
Limit R
DSon
= V
DS
/I
D
aaa-019061
t
p
= 10 µs
t
p
= 100 µs
t
p
= 1 ms
1
10
-1
DC; T
sp
= 25 °C
DC; T
amb
= 25 °C;
drain mounting pad 6 cm
2
t
p
= 10 ms
t
p
= 100 ms
10
-2
10
-1
1
10
V
DS
(V)
10
2
I
DM
= single pulse
Fig. 4.
Safe operating area; junction to ambient; continuous and peak drain currents as a function of drain-
source voltage
9. Thermal characteristics
Table 6.
Symbol
R
th(j-a)
Thermal characteristics
Parameter
thermal resistance
from junction to
ambient
Conditions
in free air
[1]
[2]
[3]
Min
-
-
-
-
Typ
250
70
85
50
Max
300
85
100
60
Unit
K/W
K/W
K/W
K/W
4 / 15
in free air; t ≤ 5 s
PMCM4401VNE
All information provided in this document is subject to legal disclaimers.
[3]
© NXP Semiconductors N.V. 2015. All rights reserved
Product data sheet
24 July 2015
NXP Semiconductors
PMCM4401VNE
12V, N-channel Trench MOSFET
Symbol
R
th(j-sp)
Parameter
thermal resistance
from junction to solder
point
[1]
[2]
[3]
Conditions
Min
-
Typ
5
Max
10
Unit
K/W
Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard
footprint.
Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for drain 6 cm .
aaa-013734
2
Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for drain, 4-layer, 1 cm .
2
10
3
Z
th(j-a)
(K/W)
duty cycle = 1
0.75
0.50
10
2
0.33
0.25
0.20
0.10
0.05
10
0
0.02
0.01
1
10
-3
10
-2
10
-1
1
10
10
2
t
p
(s)
10
3
FR4 PCB, standard footprint

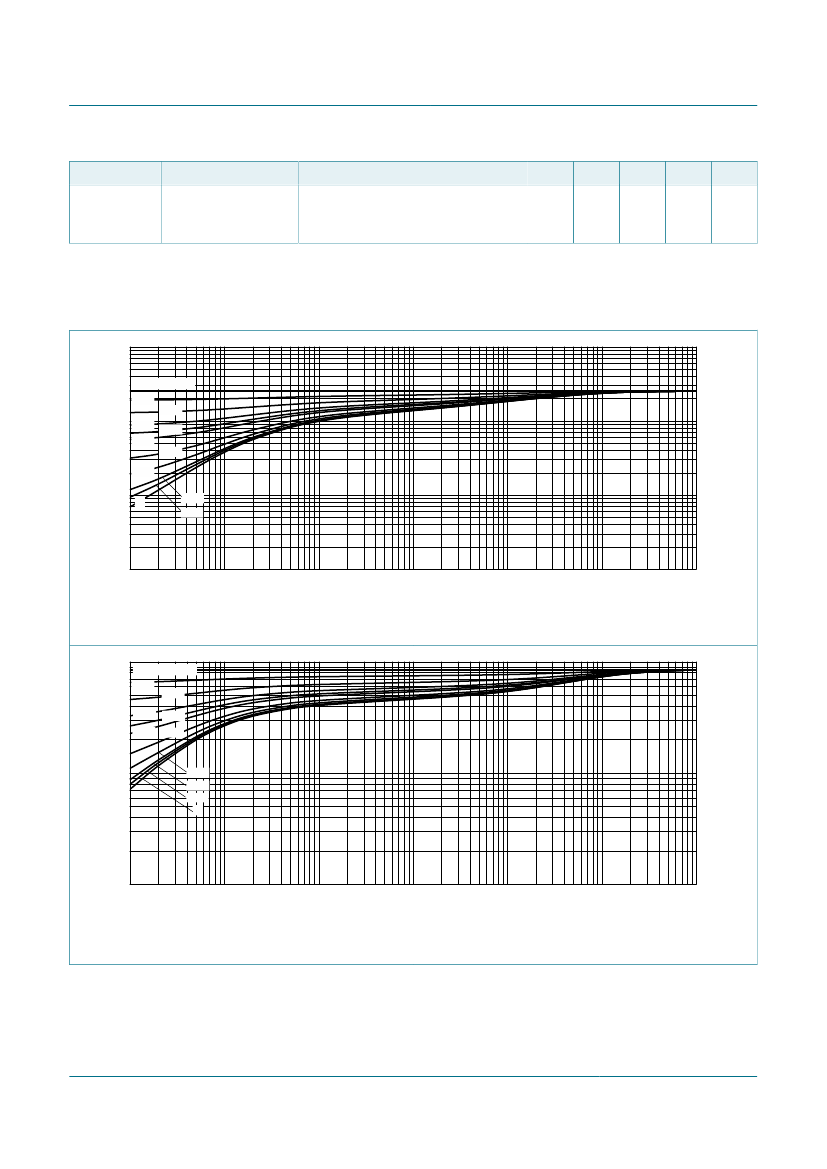

Fig. 5.
Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
10
2
aaa-013735
duty cycle = 1
0.75
0.50
0.25
Z
th(j-a)
(K/W)
0.33
0.20 0.10
10
0.05
0.02
0.01
0
1
10
-3
10
-2
10
-1
2
1
10
10
2
t
p
(s)
10
3
FR4 PCB, mounting pad for drain 6 cm
Fig. 6.
Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
PMCM4401VNE
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2015. All rights reserved
Product data sheet
24 July 2015
5 / 15
