REVISION AD
C3
BTH-XXX-XX-X-D-XX
(No OF POSITIONS -1) x .01969[.5000]
No OF POSITIONS
030, ***050, 060, 090,
*120, *150
(PER ROW)
LEAD STYLE -02 ONLY: 030 - 180
MULTIPLES OF 10
*SEE NOTE 7
LEAD STYLE
-01: .1680[4.267]
-02: .2861[7.264]
(030 -180 POSITIONS AVAILABLE)
-03: .4042[10.267]
-04: .6000[15.240]
-05: .7180[18.237]
-06: .8360[21.234]
-09: .5224[13.269]
*** = 50 POS. ONLY AVAILABLE FOR
-01 AND -02 LEAD STYLE
(REF ASP-65267-02)
T-1SXX-XX-X
"A"
.003[.08]
.001[.03]
(SEE NOTE 3)
OPTION
-A: ALIGNMENT PINS
(USE BTH-XXX-XX-D-A FOR
STYLES -01 & -02)(FOR STYLES
-03 THRU -09, SEE TABLE 4 &
FIG. 4, SHEET 3)
-LC: LOCKING CLIPS (SEE NOTE 8)"
(USE LC-08-TM-01)
-K: POLYIMIDE FILM
(USE K-500-300, SEE FIG. 2)
(AVAILABLE ON STYLES -01
THRU -04 & -09 ONLY)
(SEE NOTE 6)
-TR: TAPE & REEL (120 POS MAX)
[N/A ON -05 THRU -06]
ROW SPECIFICATION
-D: DOUBLE (USE BTH-XXX-XX-D
& BTHH-XXX-XX-D)
PLATING SPECIFICATION
-F: FLASH SELECTIVE GOLD WITH MATTE
TIN TAILS(USE T-1SXX-XX-F)
(SEE NOTE 5)
-L: LIGHT SELECTIVE GOLD WITH MATTE
TIN TAILS(USE T-1SXX-XX-L)
-H: HEAVY GOLD
(USE T-1SXX-XX-H)
-C: ELECTRO-POLISHED SELECTIVE
(USE T-1SXX-XX-C)
(No OF POS. x .01969[.5000]) + .1968[5.000] REF
DO NOT
SCALE FROM
THIS PRINT
.1082 2.749 REF
.0197±.0030 0.500±0.076 TYP
01
.0080 0.203
REF
.2350 5.969
REF
AD
.1550 3.937 REF
(SEE NOTE 9)
02
.0470 1.194 REF

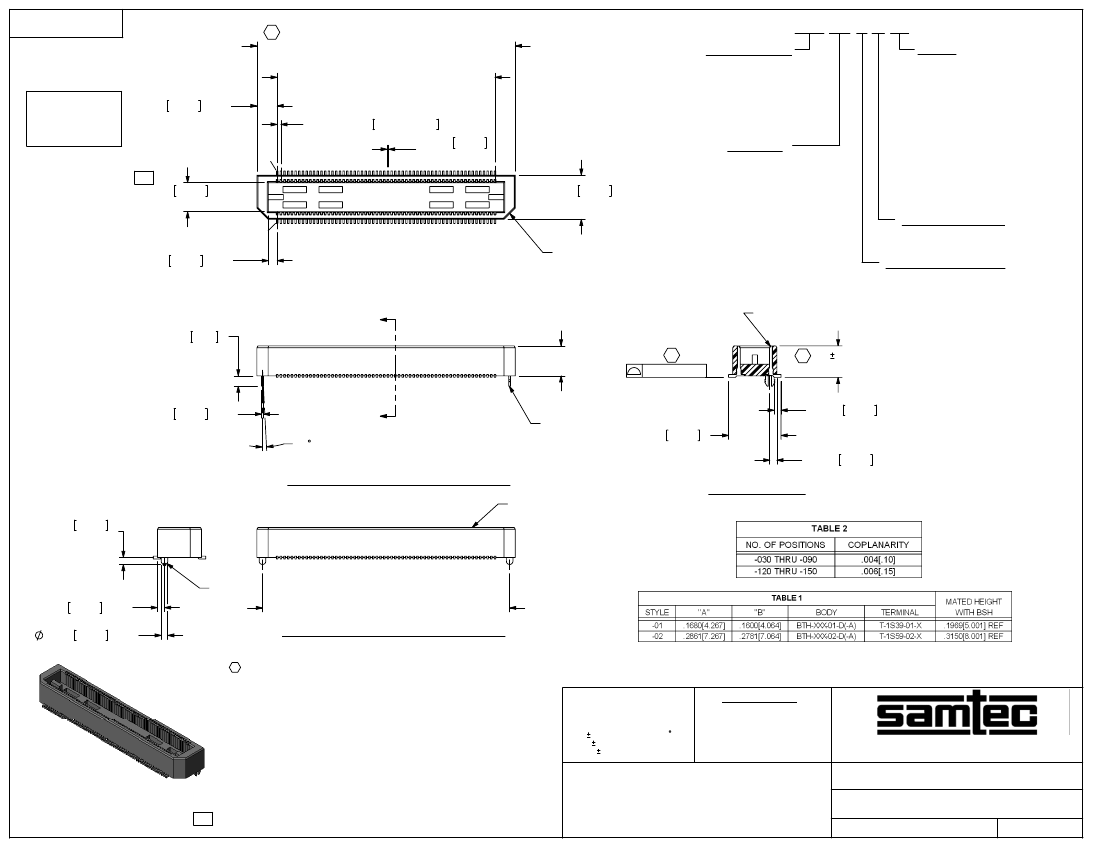

BTH-XXX-XX-D
"A"
.055 1.40
"B" REF
C2
C1
SEE TABLE 2
.0100 0.254 REF
"A"
2 MAX SWAY
(TYP)
LC-08-TM-01
.0370 0.940 REF
.2800 7.112
.0375 0.953 REF
-LC: LOCKING CLIP OPTION SHOWN
BTH-XXX-XX-D-A
.0375 0.952
REF
SECTION "A"-"A"
R
.0375 0.953 REF
.0350 0.889 REF
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: 6 OZ. FOR STYLES -01 & -02
8 OZ. FOR STYLES -03 THRU -09
3. MAXIMUM VARIANCE OF .002[.05].
4. LEAD STYLES -03 THRU -09: TOP BODY (BTH)
CANNOT HAVE -A OPTION.
5. -L PLATING CAN BE SUBSTITUTED FOR -F PLATING.
6. IF PART OPTION IS PACKAGED IN TRAY,
USE K-DOT-.276-.375-.005.
7. FOR NEW APPLICATIONS REQUIRING THESE POSITIONS,PLEASE
CONTACT SAMTEC INTERCONNECT PROCESSING GROUP.
8. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE
–LC OPTION IS NOT COMPATIBLE WITH AUTO PLACEMENT.
SAMTEC RECOMMENDS MANUAL PLACEMENT FOR ALL
ASSEMBLIES WITH THE –LC OPTION.
9. MINIMUM ROW TO ROW IS .152 [3.86], PIN CAN EXTEND PAST
THE WALL: .003 [.08].
(No OF POS. x .01969[.5000]) + .1368[3.475] REF
-A: ALIGNMENT PIN OPTION SHOWN
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
.XX: .01[.3]
.XXX: .005 [.13]
.XXXX: .0020 [.051]
MATERIAL:
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
DECIMALS
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.533333
DESCRIPTION:
INSULATOR: BLACK LCP
FLAMMABILITY RATING: UL 94V-O
TERMINAL: PHOS BRONZE
F:\DWG\MISC\MKTG\BTH-XXX-XX-X-D-XX-MKT.SLDDRW
.5mm DOUBLE ROW TERMINAL ASSEMBLY
DWG. NO.
AD
BTH-XXX-XX-X-D-XX
5/28/1999
SHEET
1
OF
3
BY:
DEAN P
REVISION AD
-K: POLYIMIDE FILM PAD OPTION
[USE K-500-300]
(SEE NOTE 6)
"R" REF
"S"
.021 0.52

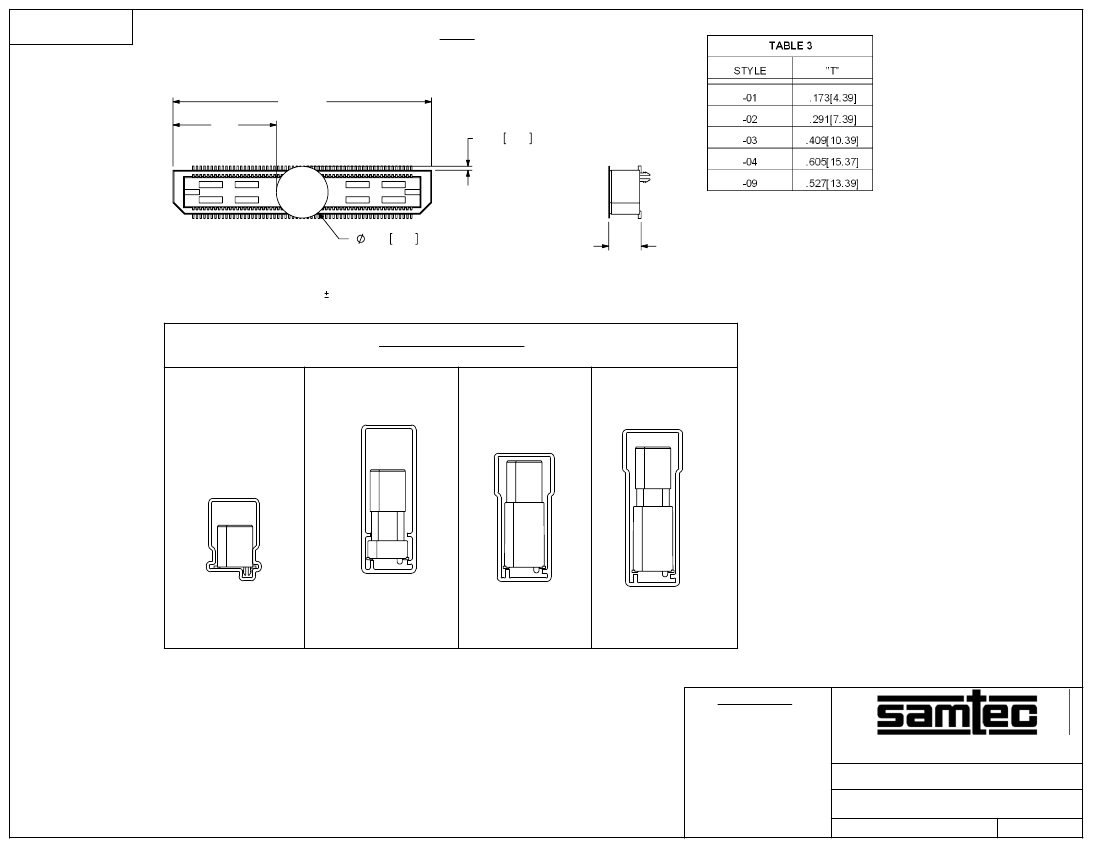

FIG. 2
.276 7.01
"T"
NOTE: "R" = (No OF POSITIONS x .01969[.5000]) + .1968[5.000]
"S" = (("R" - .276[7.01]) / 2) .020[.51]
(PARTS TO HAVE POSITIOIN #01 LOADED IN SAME DIRECTION AS ARROW)
[STYLES -01 & -02]
[STYLES -03, -04, & -09]
[STYLE -05]
[STYLE -06]
PACKAGING VIEW
TUBE: PT-1-24-01-78
PLUG: TP-03
TUBE: PT-1-24-01-98
PLUG: TP-26
TUBE: PT-1-24-02-105
PLUG: TP-26
TUBE: PT-1-24-01-105
PLUG: TP-26
F:\DWG\MISC\MKTG\BTH-XXX-XX-X-D-XX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1.875:1
.5mm DOUBLE ROW TERMINAL ASSEMBLY
BTH-XXX-XX-X-D-XX
5/28/1999
SHEET
2
OF
3
BY:
DEAN P
REVISION AD
01
02
BTH-XXX-02-D (SEE NOTE 4)
"B"
.278 7.06 REF
T-1S60-XX-X
C
.003
.001
(SEE NOTE 3)
SEE TABLE 2
(SEE SHEET 1)
C4
.010 0.25 REF
2 MAX SWAY
(TYP)
"B"
.055 1.397
BTHH-XXX-01-D
.2810 7.137 REF
.0370 0.940 REF
.0605 1.537 REF
SECTION "B"-"B"
.265 6.73 REF

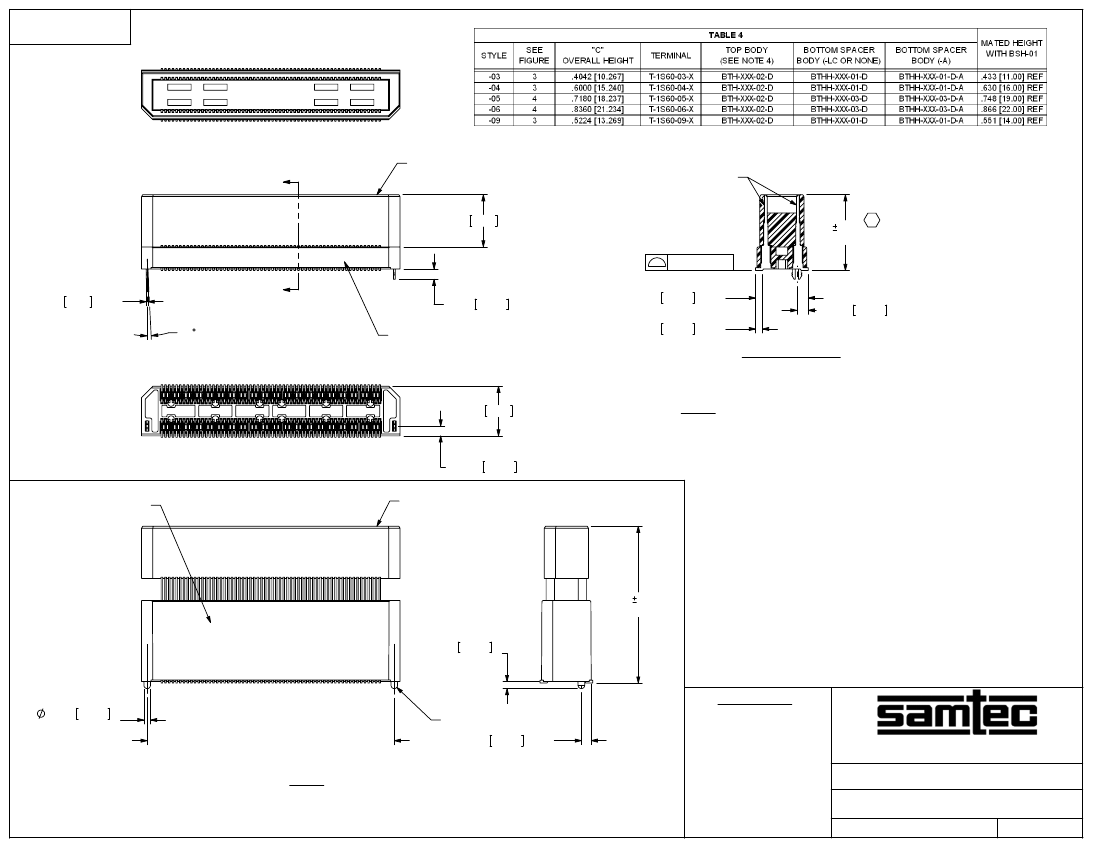

BTH-060-03-X-D-LC SHOWN
(STYLES -03, -04, & -09)
(DIIFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1)
FIG. 3
.0525 1.334
BTHH-XXX-03-D-A
BTH-XXX-02-D (SEE NOTE 4)
"C"
.001[.03]
(SEE NOTE 3)
.0375 0.953
REF
.003[.08]
F:\DWG\MISC\MKTG\BTH-XXX-XX-X-D-XX-MKT.SLDDRW
PROPRIETARY NOTE
.0350 0.889
REF
R
(No OF POS x .01969[.50000]) + .1368[3.475] REF
.0525 1.334 REF
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
-A: ALIGNMENT PIN OPTION
BTH-060-06-X-D-A SHOWN
[STYLES -05 & -06]
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1)
FIG. 4
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.533333
.5mm DOUBLE ROW TERMINAL ASSEMBLY
BTH-XXX-XX-X-D-XX
5/28/1999
SHEET
3
OF
3
BY:
DEAN P
