BUK753R1-40E
11 September 2012
N-channel TrenchMOS standard level FET
Product data sheet
1. Product profile
1.1 General description
Standard level N-channel MOSFET in a SOT78 package using TrenchMOS technology.
This product has been designed and qualified to AEC Q101 standard for use in high
performance automotive applications.
1.2 Features and benefits
•
AEC Q101 compliant
•
Repetitive avalanche rated
•
Suitable for thermally demanding environments due to 175 °C rating
•
True standard level gate with VGS(th) rating of greater than 1V at 175 °C
1.3 Applications
•
12 V Automotive systems
•
Motors, lamps and solenoid control
•
Start-Stop micro-hybrid applications
•
Transmission control
•
Ultra high performance power switching
1.4 Quick reference data
Table 1.
Symbol
V
DS
I
D
P
tot
R
DSon
Quick reference data
Parameter
drain-source voltage
drain current
total power dissipation
Conditions
T
j
≥ 25 °C; T
j
≤ 175 °C
V
GS
= 10 V; T
mb
= 25 °C;
Fig. 1
T
mb
= 25 °C;
Fig. 2
V
GS
= 10 V; I
D
= 25 A; T
j
= 25 °C;
Fig. 11
V
GS
= 10 V; I
D
= 25 A; V
DS
= 32 V;
Fig. 13; Fig. 14
[1]
Continuous current is limited by package.
[1]
Min
-
-
-
Typ
-
-
-
Max
40
100
234
Unit
V
A
W
Static characteristics
drain-source on-state
resistance
-
2.6
3.1
mΩ
Dynamic characteristics
Q
GD
gate-drain charge
-
22
-
nC
Scan or click this QR code to view the latest information for this product
NXP Semiconductors
BUK753R1-40E
N-channel TrenchMOS standard level FET
2. Pinning information
Table 2.
Pin
1
2
3
mb
Pinning information
Symbol Description
G
D
S
D
gate
drain
source
mounting base; connected to
drain
G
mbb076
Simplified outline
mb
Graphic symbol
D
S
1 2 3
TO-220AB (SOT78A)
3. Ordering information
Table 3.
Ordering information
Package
Name
BUK753R1-40E
TO-220AB
Description
plastic single-ended package; heatsink mounted; 1 mounting
hole; 3-lead TO-220AB
Version
SOT78A
Type number
4. Marking
Table 4.
Marking codes
Marking code
BUK753R1-40E
Type number
BUK753R1-40E
5. Limiting values
Table 5.
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
V
DS
V
DGR
V
GS
I
D
Parameter
drain-source voltage
drain-gate voltage
gate-source voltage
drain current
Conditions
T
j
≥ 25 °C; T
j
≤ 175 °C
R
GS
= 20 kΩ
T
j
≤ 175 °C; DC
T
mb
= 25 °C; V
GS
= 10 V;
Fig. 1
T
mb
= 100 °C; V
GS
= 10 V;
Fig. 1
I
DM
BUK753R1-40E
Min
-
-
-20
[1]
[1]
Max
40
40
20
100
100
798
Unit
V
V
V
A
A
A
-
-
-
peak drain current
T
mb
= 25 °C; pulsed; t
p
≤ 10 µs;
Fig. 4
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2012. All rights reserved
Product data sheet
11 September 2012
2 / 13
NXP Semiconductors
BUK753R1-40E
N-channel TrenchMOS standard level FET
Symbol
P
tot
T
stg
T
j
I
S
I
SM
E
DS(AL)S
Parameter
total power dissipation
storage temperature
junction temperature
Conditions
T
mb
= 25 °C;
Fig. 2
Min
-
-55
-55
Max
234
175
175
Unit
W
°C
°C
Source-drain diode
source current
peak source current
T
mb
= 25 °C
pulsed; t
p
≤ 10 µs; T
mb
= 25 °C
I
D
= 100 A; V
sup
≤ 40 V; R
GS
= 50 Ω;
V
GS
= 10 V; T
j(init)
= 25 °C; unclamped;
Fig. 3
[1]
[2]
[3]
200
I
D
(A)
150
[1]
-
-
100
798
A
A
Avalanche ruggedness
non-repetitive drain-source
avalanche energy
[2][3]
-
419
mJ
Continuous current is limited by package.
Single-pulse avalanche rating limited by maximum junction temperature of 175 °C.
Refer to application note AN10273 for further information.
003aah195
120
P
der
(%)
80
03aa16
(1)
100
40
50
0
0
50
100
150
T
mb
(° C)
200
0
0
50
100
150
T
mb
(°C)
200
(1) Capped at 120A due to package
Fig. 1.
Continuous drain current as a function of
mounting base temperature
Fig. 2.
Normalized total power dissipation as a
function of mounting base temperature
BUK753R1-40E
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2012. All rights reserved
Product data sheet
11 September 2012
3 / 13
NXP Semiconductors
BUK753R1-40E
N-channel TrenchMOS standard level FET
10
3
I
AL
(A)
10
2
003aah196
(1)
10
(2)
1
(3)
10
-1
10
-3
10
-2
10
-1
1 t (ms) 10
AL
Fig. 3.

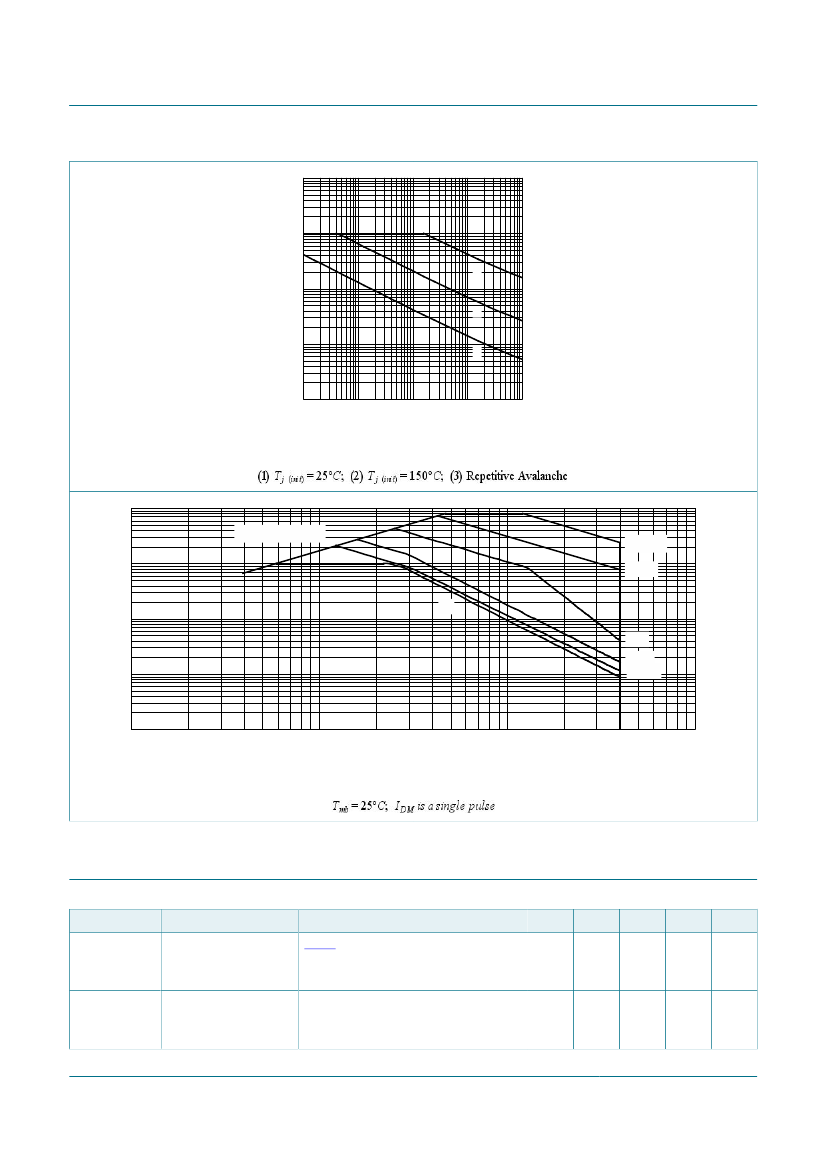

Single pulse avalanche rating; avalanche current as a function of avalanche time
10
3
I
D
(A)
10
2
Limit R
DSon
= V
DS
/ I
D
003aah197
t
p
=10 µ s
100 µ s
DC
1 ms
10
1
10 ms
100 ms
10
-1
10
-1
1
10
V
DS
(V)
10
2
Fig. 4.
Safe operating area; continuous and peak drain currents as a function of drain-source voltage
6. Thermal characteristics
Table 6.
Symbol
R
th(j-mb)
Thermal characteristics
Parameter
thermal resistance
from junction to
mounting base
thermal resistance
from junction to
ambient
Conditions
Fig. 5
Min
-
Typ
-
Max
0.64
Unit
K/W
R
th(j-a)
vertical in still air
-
60
-
K/W
BUK753R1-40E
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2012. All rights reserved
Product data sheet
11 September 2012
4 / 13
NXP Semiconductors
BUK753R1-40E
N-channel TrenchMOS standard level FET
1
Z
th(j-mb)
δ = 0.5
(K/W)
0.2
10
-1
0.1
0.05
0.02
10
-2
single shot
P
003aah198
δ=
t
p
T
t
p
t
T
10
-3
10
-6
10
-5
10
-4
10
-3
10
-2
10
-1
t
p
(s)
1
Fig. 5.
Transient thermal impedance from junction to mounting base as a function of pulse duration
7. Characteristics
Table 7.
Symbol
V
(BR)DSS
Characteristics
Parameter
drain-source
breakdown voltage
gate-source threshold
voltage
Conditions
I
D
= 250 µA; V
GS
= 0 V; T
j
= 25 °C
I
D
= 250 µA; V
GS
= 0 V; T
j
= -55 °C
I
D
= 1 mA; V
DS
= V
GS
; T
j
= 25 °C;
Fig. 9; Fig. 10
I
D
= 1 mA; V
DS
= V
GS
; T
j
= -55 °C;
Fig. 10
I
D
= 1 mA; V
DS
= V
GS
; T
j
= 175 °C;
Fig. 10
I
DSS
drain leakage current
V
DS
= 40 V; V
GS
= 0 V; T
j
= 25 °C
V
DS
= 40 V; V
GS
= 0 V; T
j
= 175 °C
I
GSS
gate leakage current
V
GS
= 20 V; V
DS
= 0 V; T
j
= 25 °C
V
GS
= -20 V; V
DS
= 0 V; T
j
= 25 °C
R
DSon
drain-source on-state
resistance
V
GS
= 10 V; I
D
= 25 A; T
j
= 25 °C;
Fig. 11
V
GS
= 10 V; I
D
= 25 A; T
j
= 175 °C;
Fig. 12; Fig. 11
Dynamic characteristics
Q
G(tot)
Q
GS
Q
GD
BUK753R1-40E
Min
40
36
2.4
-
1
-
-
-
-
-
-
Typ
-
-
3
-
-
0.2
-
2
2
2.6
-
Max
-
-
4
4.5
-
2
500
100
100
3.1
5.9
Unit
V
V
V
V
V
µA
µA
nA
nA
mΩ
mΩ
Static characteristics
V
GS(th)
total gate charge
gate-source charge
gate-drain charge
I
D
= 25 A; V
DS
= 32 V; V
GS
= 10 V;
Fig. 13; Fig. 14
-
-
-
79
20
22
-
-
-
nC
nC
nC
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2012. All rights reserved
Product data sheet
11 September 2012
5 / 13
