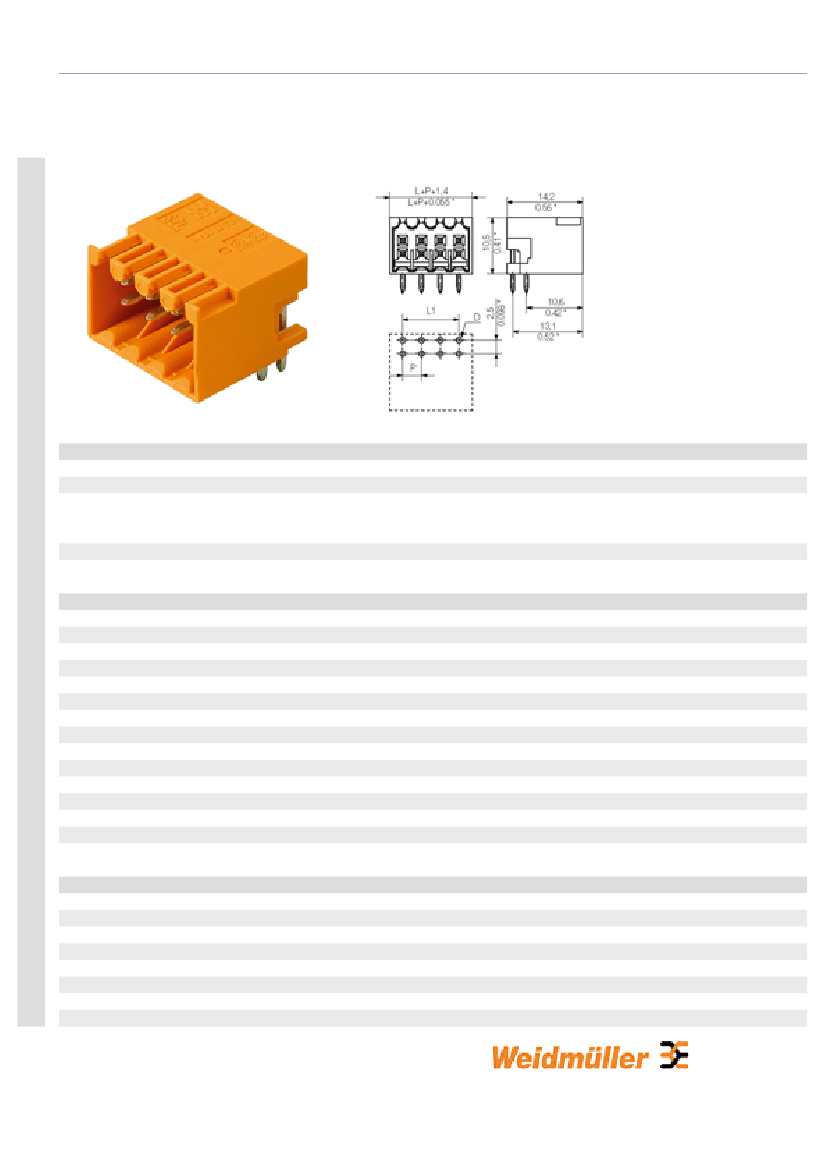

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) 2-row | Solder-
connection pin headers | S2L 3.5/90 | S2L 3.5/90G
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Fitted to PCB
Outgoing elbow
Pitch
Pitch in inch
No. of poles
Solder pin length
Can be coded
No. of rows
No. of solder pins per pole
Dia. of fitting hole
Fitting hole tolerance
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
1727860000
S2L 3.5/12/90G 3.5SN OR
PCB plug-in connector, Male connectors, Soldered
connection, Pitch: 3.50 mm, No. of poles: 12, 90°,
Box
4032248039371
50 pc(s).
Soldered connection
90°
3.5 mm
0.138 inch
12
3.5 mm
Yes
2
1
1.3 mm
+ 0.1 mm
17.5 mm
0.689 inch
IP 10
Safe from back-of-hand touch
PBT
orange
Similar to RAL 2000
IIIa
V-0
>= 200
Copper alloy
tinned
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) 2-row | Solder-
connection pin headers | S2L 3.5/90 | S2L 3.5/90G
Material data
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
Approvals
Approvals institutes
-25 °C
100
-25 °C
55 °C
93 %
10 A
10 A
9A
8.5 A
80 V
2.5 kV
125 V
2.5 kV
250 V
2.5 kV
3 x 1s with 77 A
50 V
5A
150 V
7A
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
S2L-SMT.LIB
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-01
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) 2-row | Solder-
connection pin headers | S2L 3.5/90 | S2L 3.5/90G
Similar products
Order No.
1727830000
1727990000
1755360000
1755520000
1727840000
1728000000
1755370000
1727850000
1728010000
1728020000
1755390000
1727870000
1728030000
1755400000
1755560000
1727880000
1728040000
1755410000
1755570000
1727890000
1728050000
1755420000
1727900000
1728060000
Part designation
S2L 3.5/6/90G 3.5SN OR
S2L 3.5/6/90G 3.5SN SW
S2L 3.5/6/90G 3.5AU OR
S2L 3.5/6/90G 3.5AU SW
S2L 3.5/8/90G 3.5SN OR
S2L 3.5/8/90G 3.5SN SW
S2L 3.5/8/90G 3.5AU OR
S2L 3.5/10/90G 3.5SN OR
S2L 3.5/10/90G 3.5SN SW
S2L 3.5/12/90G 3.5SN SW
S2L 3.5/12/90G 3.5AU OR
S2L 3.5/14/90G 3.5SN OR
S2L 3.5/14/90G 3.5SN SW
S2L 3.5/14/90G 3.5AU OR
S2L 3.5/14/90G 3.5AU SW
S2L 3.5/16/90G 3.5SN OR
S2L 3.5/16/90G 3.5SN SW
S2L 3.5/16/90G 3.5AU OR
S2L 3.5/16/90G 3.5AU SW
S2L 3.5/18/90G 3.5SN OR
S2L 3.5/18/90G 3.5SN SW
S2L 3.5/18/90G 3.5AU OR
S2L 3.5/20/90G 3.5SN OR
S2L 3.5/20/90G 3.5SN SW
Version
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 8, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 8, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 8, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 10, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 10, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 12, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 12, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 14, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 14, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 14, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 14, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 18, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 18, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 18, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 20, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 20, 90°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) 2-row | Solder-
connection pin headers | S2L 3.5/90 | S2L 3.5/90G
1755430000
1727910000
1727920000
1728080000
1727930000
1728090000
1755620000
1727940000
1728100000
1727950000
1728110000
1755480000
1727960000
1728120000
1755490000
1727970000
1727980000
S2L 3.5/20/90G 3.5AU OR
S2L 3.5/22/90G 3.5SN OR
S2L 3.5/24/90G 3.5SN OR
S2L 3.5/24/90G 3.5SN SW
S2L 3.5/26/90G 3.5SN OR
S2L 3.5/26/90G 3.5SN SW
S2L 3.5/26/90G 3.5AU SW
S2L 3.5/28/90G 3.5SN OR
S2L 3.5/28/90G 3.5SN SW
S2L 3.5/30/90G 3.5SN OR
S2L 3.5/30/90G 3.5SN SW
S2L 3.5/30/90G 3.5AU OR
S2L 3.5/32/90G 3.5SN OR
S2L 3.5/32/90G 3.5SN SW
S2L 3.5/32/90G 3.5AU OR
S2L 3.5/34/90G 3.5SN OR
S2L 3.5/36/90G 3.5SN OR
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 20, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 22, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 24, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 24, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 26, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 26, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 26, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 28, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 28, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 30, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 30, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 30, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 32, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 32, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 32, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 34, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.50 mm, No. of poles: 36, 90°, Box
-4-
