PI3HDMI1210-A
High-performance HDMI
TM
Signal Switch
w/ Integrated Side-band Signal Support
Features
• 4-Differential Channel 2:1 Mux/DeMux + 2-Channel 2:1
Mux/DeMux
• Deep Color
TM
Support
• Data Rate: 4.0Gbps for high data channels
• Clock rate max support @ 340 MHz
• Supports both AC coupled and DC coupled signals
• Switching speed: 4ns
• Isolation: -40dB@1GHz for high-speed channels
• Integrated ESD protection
• High-speed data bits & clock: 12kV HBM
8kV contact
• Side band signal bits: 2kV HBM
• Low bit-to-bit skew
• Enable/Disable time: 9ns
• Bidirectional
• Packaging (Pb-free & Green):
—48-pin BQSOP (B)
Description
Pericom Semiconductor’s PI3HDMI
TM
series of switch circuits
are targeted for high-resolution video networks that are based
on DVI/HDMI
TM
standards, and TMDS signal processing. The
PI3HDMI1210-A is a 2-to-1 HDMI
TM
Mux/DeMux Switch. The
device multiplexes differential signals to one of two corresponding
HDMI
TM
inputs. The switch is bidirectional and offers little or no
attenuation of the high-speed signals at the outputs. It is designed for
low bit-to-bit skew and high channel-to-channel noise isolation.
The maximum DVI/HDMI
TM
data rate of 4.0Gbps provides the
resolution required by the next generation HDTV and PC graphics.
Three differential channels are used for data (video signals for DVI
or audio/video signals for HDMI
TM
), and one differential channel is
used for Clock for decoding the TMDS signals at the outputs.
PI3HDMI1210-A was designed specifically to meet ATC-'sink'
requirements. Therefore, Pericom recommends locating this switch
at the sink to switch between multiple sources.
Block Diagram
Pin Description
V
DD
33
CP
D0+
D0-
D1+
D1-
V
DD
33
SEL
D2+
D2-
CLK+
CLK-
GND
V
DD
33
GND
CP
GND
A0
GND
A1
IN
V
DD
50
EN
CP
4-differential HDMI/DVI High Speed Signals
DxA, CLKA
Dx, CLK
4-differential HDMI/DVI High Speed Signals
DxB, CLKB
xB1
2 Side Band DVI/HDMI Signals
A
xB2
2 Side Band DVI/HDMI Signals
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
D0+A
D0-A
D1+A
D1-A
D2+A
D2-A
CLK+A
CLK-A
V
DD
33
D0+B
D0-B
D1+B
D1-B
D2+B
D2-B
CLK+B
CLK-B
V
DD
33
GND
0B1
0B2
1B1
1B2
GND
HDMI, High-Definition Multimedia Interface, and Deep Color are trademarks of
HDMI Licensing, LLC in the United States and other countries.
1
PS8917A
09/21/07
PI3HDMI1210-A
High-performance HDMI
TM
Signal Switch
w/ Integrated Side-band Signal Support
Truth Table
SEL(pin8)
L
L
H
H
EN(pin23)
L
L
H
Note:
1) x=0,1,2,3
2) n=0,1
Pin Description
Function
(1)
CLK
→
CLKA
D
x
→
D
x
A
D
x
→
D
x
B
CLK
→
CLKB
IN(pin21)
L
H
X
Function
(2)
A
n
→
n
B
1
A
n
→
n
B
2
A
n
=
n
B
1
=
n
B
2
=H
1
-Z
Pin Name
V
DD
33
CP
V
DD
50
Dx
DxA, DxB
SEL
IN
Ax, xB1, xB2
GND
EN\
Description
3.3V Power supply
Tie this pin to GND via 0.1μF capacitor for
optimal operation
5.0V Power supply
High Speed TMDS signal I/O
High Speed TMDS signal I/O
High Speed Signal Control
Side Band Signal Control
Side Band Signal I/O
GND pin
Global Enable for Side Band Signals
CLK, CLKA/B TMDS CLK signal I/O
Maximum Ratings
(Above which useful life may be impaired. For user guidelines,
not tested.)
Storage Temperature........................................–65°C to +150°C
DC Input Voltage for side band signals.................-0.5V to 5.5V
DC Output Current.............................................................20mA
Power Dissipation...............................................................0.5W
Supply Voltage V
DD
33
............................................3.0V to 3.6V
Supply Voltage V
DD
50
......................................4.2V to 5.5V
Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause
permanent damage to the device. This is a stress rating only and func-
tional operation of the device at these or any other conditions above those
indicated in the operational sections of this speci
fi
cation is not implied.
Exposure to absolute maximum rating conditions for extended periods
may affect reliability.
DC Power Supply Characteristics
Paramenter
VDD
33
VDD
50
Description
3.3V Power Supply
5.0 Power Supply
Min.
3.0
4.2
Max.
3.6
5.5
Units
V
V
HDMI, High-Definition Multimedia Interface, and Deep Color are trademarks of
HDMI Licensing, LLC in the United States and other countries.
2
PS8917A
09/21/07
PI3HDMI1210-A
High-performance HDMI
TM
Signal Switch
w/ Integrated Side-band Signal Support
DC Electrical Characteristics for Switching over Operating Range
(T
A
= –40°C to +85°C for high speed signals only)
Paramenter
VIH
SEL
(3)
VIL
SEL
(3)
VIK
HS
Notes:
1.
2.
3.
For Max. or Min. conditions, use appropriate value specified under Electrical Characteristics for the applicable device type.
Typical values are at T
A
= 25°C ambient and maximum loading.
V
IH
SEL
+ V
IL
SEL
are for SEL input only (pin 8)
Description
Input HIGH Voltage
Input LOW Voltage
Test Conditions
Guaranteed HIGH level
Guaranteed LOW level
Min.
2.8
Typ
(2)
Max.
2.0
0.9
Units
V
Clamp Diode Voltage V
DD
=Max., I
IN
=–18mA
DC Electrical Characteristics for Switching over Operating Range
(T
A
= –40°C to +85°C) for side band signals only
Paramenter
VIH
IN
(3)
VIL
IN
(3)
VIK
SB
(4)
IIH
IIL
Notes:
1.
2.
3.
For Max. or Min. conditions, use appropriate value specified under Electrical Characteristics for the applicable device type.
Typical values are at T
A
= 25°C ambient and maximum loading.
V
IH
IN
+ V
IL
IN
are for IN input only.
Description
Input HIGH Voltage
Input LOW Voltage
Input HIGH Current
Input LOW Current
Test Conditions
Guaranteed HIGH level
Guaranteed LOW level
V
DD
=Max., V
IN
=V
DD
V
DD
=Max., V
IN
=V
SS
Min.
2.1
Typ
(2)
Max.
0.8
-0.5
±5
±5
Units
V
Clamp Diode Voltage V
DD
=Max., I
IN
=–18mA
μA
HDMI, High-Definition Multimedia Interface, and Deep Color are trademarks of
HDMI Licensing, LLC in the United States and other countries.
3
PS8917A
09/21/07
PI3HDMI1210-A
High-performance HDMI
TM
Signal Switch
w/ Integrated Side-band Signal Support
Power Supply Characteristics
Parameters
I
CC
Description
Quiescent Power Supply Current
Test Conditions
(1)
V
DD
= Max., V
IN
= V
DD
or V
SS
Min.
Typ.
(2)
11
Max.
15
Units
mA
Notes:
1. For Max. or Min. conditions, use appropriate value specified under Electrical Characteristics for the applicable device type.
2. Typical values are at T
A
= 25°C ambient and maximum loading.
Dynamic Electrical Characteristics Over the Operating Range
(TA= -40º to +85ºC)
Parameter
X
TALK
X
TALK
O
IRR
O
IRR
BW
(1)
Description
Test Conditions
See Fig. 1 for Measurement
Setup,
f = 1.65Gbps
f = 10MHz
See Fig. 2 for Measurement
Setup,
f = 1.65Gbps
10MHz
Min.
Typ.
(3)
-30
-62
-40
-67
2.3
Max.
Units
HS
Crosstalk
SB
(2)
dB
HS
(1)
OFF Isolation
SB
(2)
HS DATA
(1)
-3dB Bandwith for HS data
@1.65 Gbps (8-bit deep color)
@2.0625 Gbps (10-bit deep
color)
@2.475 Gbps (12-bit deep
color)
@3.3 Gbps (16-bit deep color)
GHz
-.87
-0.96
dB
-1.18
-1.84
1.7
GHz
IL
HS
(1)
Insertion Loss
BW
CLOCK
(4)
-3dB Bandwidth for CLK
Notes:
1. High-speed signal path only
2. Side-band signal path only
3. Typical values are @ T
A
= 25˚C ambient
4. BW measured on CLK pins only (11, 12, 32, 33, 41 & 42)
HDMI, High-Definition Multimedia Interface, and Deep Color are trademarks of
HDMI Licensing, LLC in the United States and other countries.
4
PS8917A
09/21/07
PI3HDMI1210-A
High-performance HDMI
TM
Signal Switch
w/ Integrated Side-band Signal Support
HP4398B
R
HP11667A
PI3HDMI1210-A
S
T

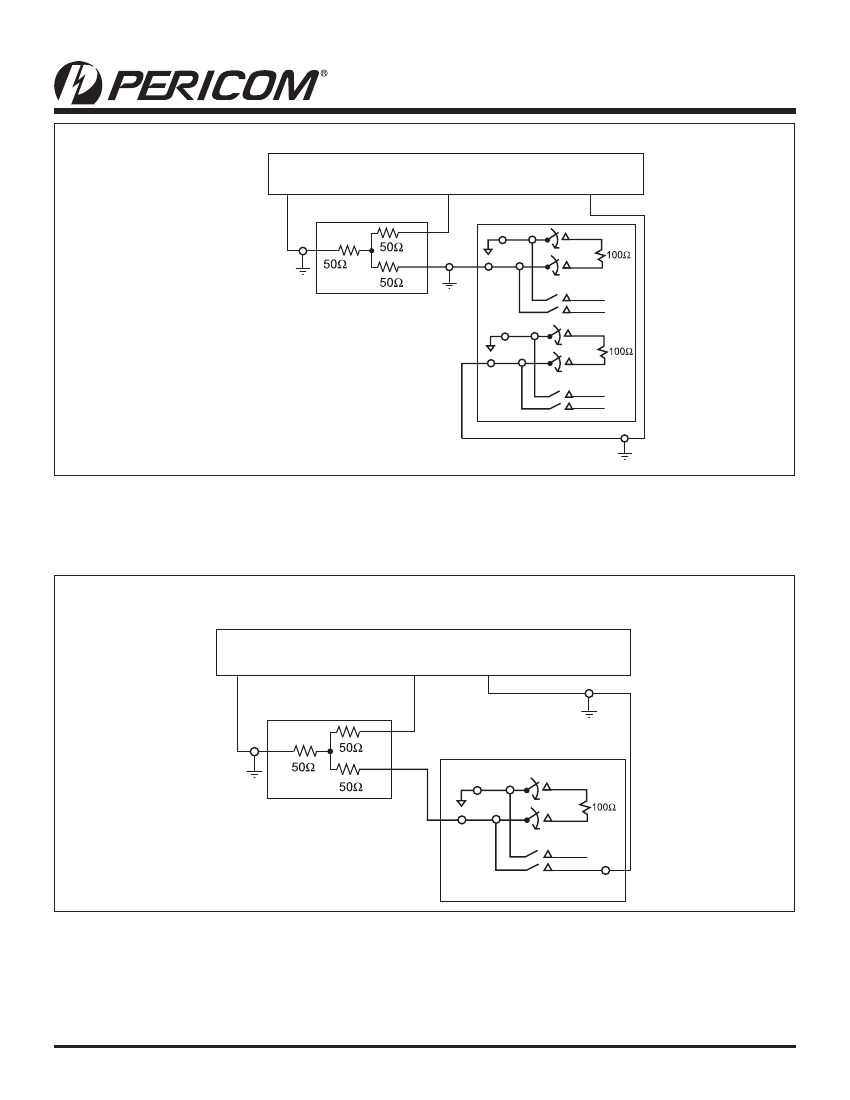

Fig 1. Crosstalk Setup
HP4396B
R
HP11667A
T
S
PI3HDMI1210-A
