PC3ST21NSZ Series
PC3ST21NSZ
Series
∗
V
DRM
: 600V, Zero cross type
DIP 4pin
Phototriac Coupler for triggering
Non-zero cross type is also available.
(PC3ST11NSZ
Series)
■
Description
PC3ST21NSZ Series
Phototriac Coupler include an
infrared emitting diode (IRED) optically coupled to an
output Phototriac.
These devices feature full wave control and are
ideal isolated drivers for medium to high current Triacs.
DIP package provides 5.0kV isolation from input to
output with superior commutative noise immunity.
■
Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),
file No. E64380 (as model No.
3ST21)
2. Approved by CSA, file No. CA95323 (as model No.
3ST21)
3. Package resin : UL flammability grade (94V-0)
∗
DIN EN60747-5-2 (successor standard of DIN VDE0884)
approved type is also available. (PC3SH21YFZ
Series)
■
Features
1. High repetitive peak off-state voltage (V
DRM
: 600V)
2. Zero crossing functionality (V
OX
: MAX. 20V)
3. I
FT
ranks available (see Model Line-up section in this
datasheet)
4. 4 pin DIP package
5. Superior noise immunity (dV/dt : MIN. 1 000V/µs)
6.
Double transfer mold construction (Ideal for Flow
Soldering)
7.
High isolation voltage between input and output
(V
iso
(rms) : 5.0kV)
■
Applications
1. Triggering for Triacs used to switch on and off
devices which require AC Loads.
For example heaters, fans, motors, solenoids, and
valves.
2. AC line control in power supply applications.
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
Sheet No.: D2-A07101FEN
Date Mar. 31. 2004
© SHARP Corporation
PC3ST21NSZ Series
■
Internal Connection Diagram
1
4
1
2
3
4
2
3
Anode
Cathode
Anode/Cathode
Cathode/Anode
Zero Crossing Circuit
■

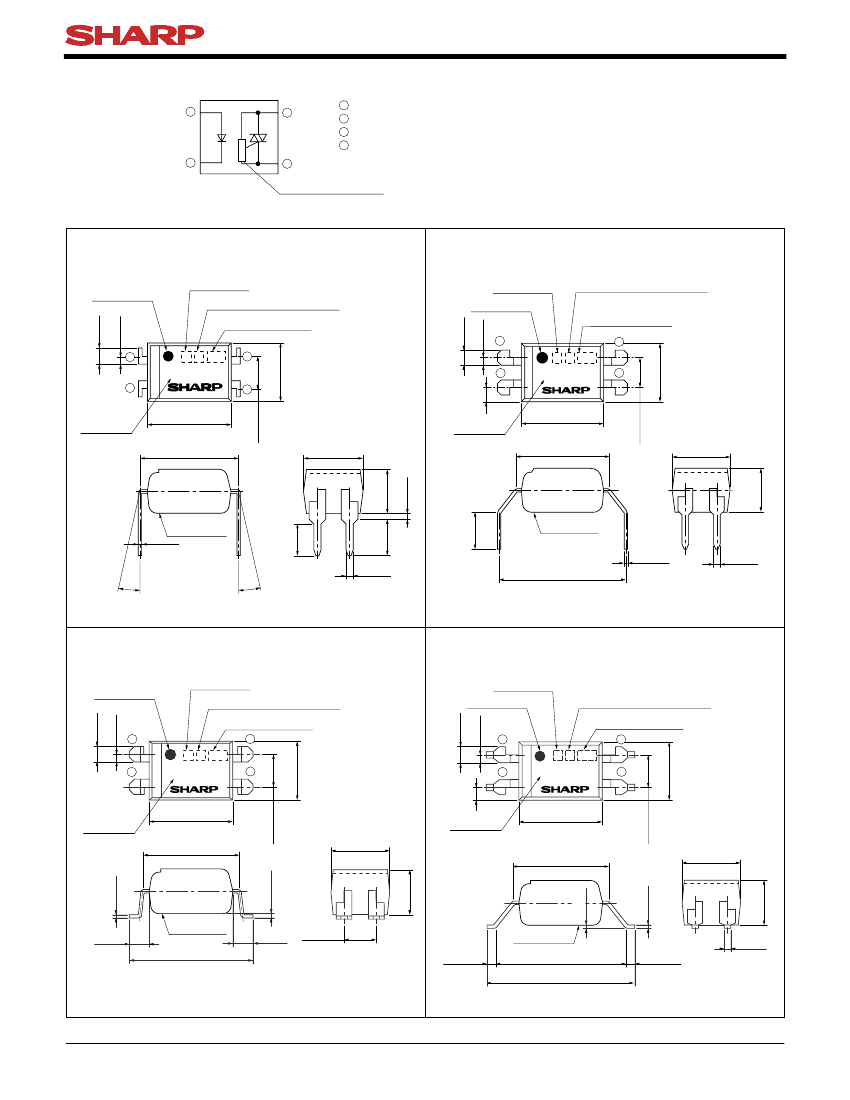

Outline Dimensions
1. Through-Hole [ex.
PC3ST21NSZ]
Anode mark
1.2
±0.3
0.6
±0.2
Rank mark
Factory identification mark
(Unit : mm)
2. Wide Through-Hole Lead-Form [ex.
PC3ST21NFZ]
Rank mark
Factory identification mark
Date code (2 digit)
1
4
Anode mark
1.2
±0.3
0.6
±0.2
Date code (2 digit)
2
3
2.54
±0.25
1.0
±0.1
3S T21
6.5
±0.5
7.62
±0.3
4.58
±0.5
1
4
2
3ST21
6.5
±0.5
3
Model No.
Model No.
4.58
±0.5
0.5
TYP.
3.5
±0.5
7.62
±0.3
2.54
±0.25
4.58
±0.5
4.58
±0.5
3.5
±0.5
0.26
±0.1
3.0
±0.5
MIN.
0.26
±0.1
θ
θ
2.7
Epoxy resin
2.7
±0.5
Epoxy resin
0.5
±0.1
0.5
θ
: 0 to 13˚
±0.1
10.16
±0.5
Product mass : approx. 0.23g
3. SMT Gullwing Lead-Form [ex.
PC3ST21NIP]
Anode mark
1.2
±0.3
0.6
±0.2
Rank mark
Factory identification mark
Product mass : approx. 0.23g
4. Wide SMT Gullwing Lead-Form [ex.
PC3ST21NUP]
Rank mark
Anode mark
1.2
±0.3
0.6
±0.2
Factory identification mark
Date code (2 digit)
Date code (2 digit)
1
4
1
4
4.58
±0.5
2
1.0
±0.1
3ST21
6.5
±0.5
3
2
3ST21
6.5
±0.5
3
2.54
±0.25
Model No.
7.62
±0.3
0.26
±0.1
4.58
±0.5
7.62
±0.3
2.54
Model No.
±0.25
4.58
±0.5
4.58
±0.5
±0.1
±0.25
3.5
±0.5
0.25
±0.25
1.0
+0.4
−0
Epoxy resin
10.0
+0
−0.5
1.0
+0.4
−0
2.54
±0.25
0.75
±0.25
Epoxy resin
10.16
12.0
±0.5
0.26
0.5
±0.1
0.75
±0.25
MAX
Product mass : approx. 0.21g
Product mass : approx. 0.22g
Sheet No.: D2-A07101FEN
2
3.5
±0.5
0.35
PC3ST21NSZ Series
Date code (2 digit)
1st digit
Year of production
A.D
Mark
2002
A
2003
B
2004
C
2005
D
2006
E
2007
F
2008
H
2009
J
2010
K
2011
L
2012
M
·
·
N
·
2nd digit
Month of production
Month
Mark
January
1
February
2
March
3
April
4
May
5
June
6
July
7
August
8
September
9
October
O
November
N
December
D
A.D.
1990
1991
1992
1993
1994
1995
1996
1997
1998
1999
2000
2001
Mark
P
R
S
T
U
V
W
X
A
B
C
·
·
·
repeats in a 20 year cycle
Factory identification mark
Factory identification Mark
no mark
Japan
Indonesia
Philippines
China
* This factory marking is for identification purpose only.
Please contact the local SHARP sales representative to see the actural status of the
production.
Country of origin
Rank mark
Refer to the Model Line-up table
Sheet No.: D2-A07101FEN
3
PC3ST21NSZ Series
■
Absolute Maximum Ratings
(T
a
=25˚C)
Parameter
Symbol
Rating
Unit
I
F
50
mA
Forward current
Input
V
R
6
V
Reverse voltage
0.1
A
RMS ON-state current I
T
(rms)
*3
Output
Peak one cycle surge current
I
surge
1.2
A
600
V
Repetitive peak OFF-state voltage V
DRM
*1
V
iso
(rms)
5.0
kV
Isolation voltage
T
opr
−30
to
+100
˚C
Operating temperature
T
stg
−55
to
+125
˚C
Storage temperature
*2
T
sol
270
*4
˚C
Soldering temperature
*1 40 to 60%RH, AC for 1minute, f=60Hz
*2 For 10s
*3 f=50Hz sine wave
*4 Lead solder plating models: 260˚C
Soldering area
■
Electro-optical Characteristics
Parameter
Forward voltage
Input
Reverse current
Repentitive peak OFF-state current
ON-state voltage
Holding current
Output
Critical rate of rise of OFF-state voltage
Zero cross voltage
Transfer Minimum trigger current
charac-
teristics Isolation resistance
Turn-on time
Rank B
Rank C
Rank B
Rank C
Symbol
V
F
I
R
I
DRM
V
T
I
H
dV/dt
V
OX
I
FT
R
ISO
t
on
Conditions
I
F
=20mA
V
R
=3V
V
D
=V
DRM
I
T
=0.1A
V
D
=4V
−
V
D
=1/√
2
·V
DRM
I
F
=15mA,
Resistance load
I
F
=8mA,
Resistance load
V
D
=4V,
R
L
=100Ω
DC500V,40 to 60%RH
V
D
=4V,
R
L
=100Ω,
I
F
=20mA
MIN. TYP.
−
1.2
−
−
−
−
−
−
0.1
−
1 000 2 000
−
−
5×10
10
−
−
−
10
11
−
1mm
(T
a
=25˚C)
MAX.
1.4
10
1
3.0
3.5
−
20
7
5
−
50
Unit
V
µA
µA
V
mA
V/µs
V
mA
Ω
µs
Sheet No.: D2-A07101FEN
4
