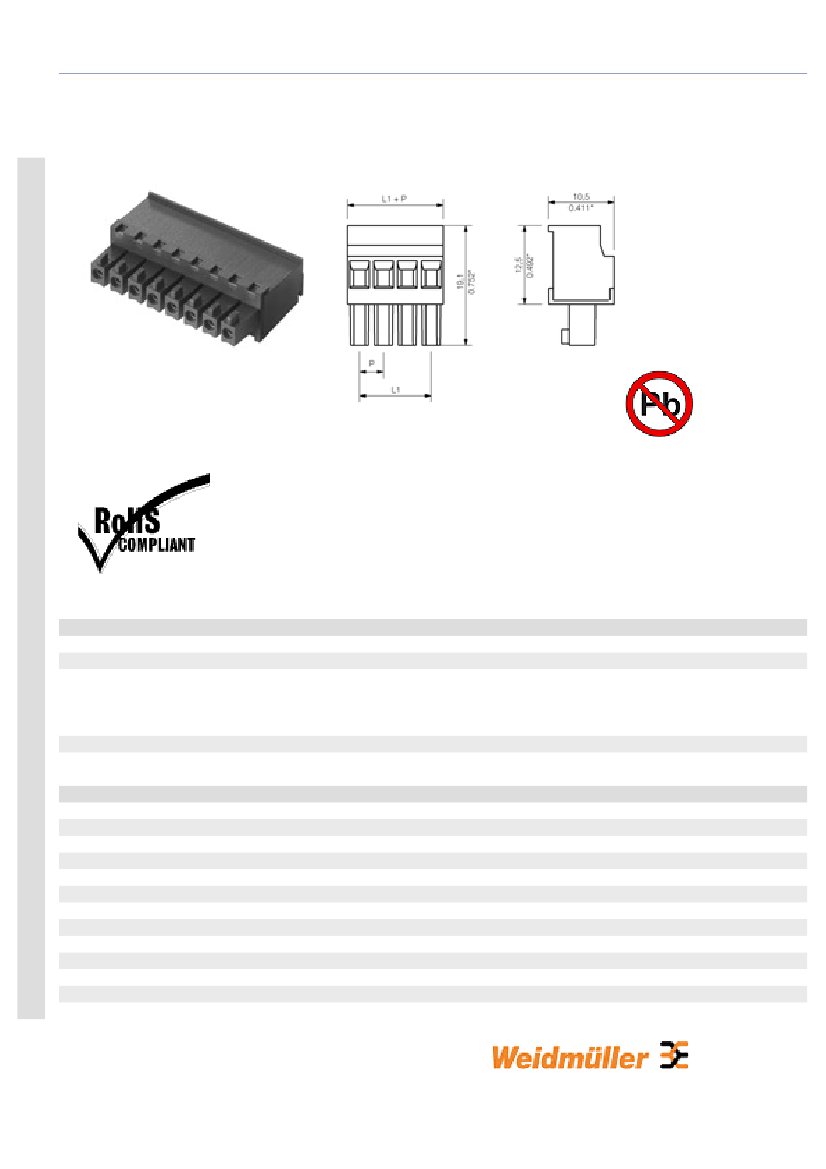

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Socket connectors,
screw clamp connection, pitch 3.81 | BCZ 3.81/90/270 | BCZ 3.81/270
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
No. of rows
Screwdriver blade
Screwdriver blade standard
Tightening torque, min.
Tightening torque, max.
Clamping screw
Stripping length
L1 in mm
1798170000
BCZ 3.81/08/270 SN BK BX
PCB plug-in connector, Female connectors,
Clamping yoke connection, Clamping range, max.:
1.5 mm², Pitch: 3.81 mm, No. of poles: 8, 270°,
Box
4032248241361
50 pc(s).
Clamping yoke connection
270°
3.81 mm
0.15 inch
8
1
0.4 x 2.5
DIN 5264
0.2
0.25 Nm
M2
7 mm
26.67 mm
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Socket connectors,
screw clamp connection, pitch 3.81 | BCZ 3.81/90/270 | BCZ 3.81/270
System parameters
L1 in inch
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
1.05 inch
IP 20
Safe from finger touch
PA GF
black
Similar to RAL 9011
II
V-0
>= 475
Copper alloy
tinned
0.08 mm²
1.5 mm²
28
16
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
2.4 mm x 1.5 mm ; 2.4 mm
17.5 A
15.9 A
17.5 A
14.1 A
320 V
160 V
160 V
2.5 kV
2.5 kV
2.5 kV
3 x 1s with 76 A
300 V
10 A
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Socket connectors,
screw clamp connection, pitch 3.81 | BCZ 3.81/90/270 | BCZ 3.81/270
CSA rating data
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor, min.
AWG conductor, max.
Approvals
Approvals institutes
28
16
300 V
10 A
28
16
Classifications
eClass 4.1
eClass 5.0
eClass 5.1
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1940190000
1798940000
1799010000
1940200000
1798160000
1799020000
1940210000
1798950000
Part designation
BCZ 3.81/02/270 SN OR BX
BCZ 3.81/02/270 SN BK BX
BCZ 3.81/02/270 SN GN BX
BCZ 3.81/03/270 SN OR BX
BCZ 3.81/03/270 SN BK BX
BCZ 3.81/03/270 SN GN BX
BCZ 3.81/04/270 SN OR BX
BCZ 3.81/04/270 SN BK BX
Version
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 2, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 2, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 2, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 3, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 3, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 3, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 4, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 4, 270°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Socket connectors,
screw clamp connection, pitch 3.81 | BCZ 3.81/90/270 | BCZ 3.81/270
1799030000
1940220000
1798960000
1799040000
1940230000
1798970000
1799050000
1940240000
1940400000
1940340000
1940250000
1799060000
1940260000
1940410000
1940350000
1940270000
1798980000
BCZ 3.81/04/270 SN GN BX
BCZ 3.81/05/270 SN OR BX
BCZ 3.81/05/270 SN BK BX
BCZ 3.81/05/270 SN GN BX
BCZ 3.81/06/270 SN OR BX
BCZ 3.81/06/270 SN BK BX
BCZ 3.81/06/270 SN GN BX
BCZ 3.81/07/270 SN OR BX
BCZ 3.81/07/270 SN BK BX
BCZ 3.81/07/270 SN GN BX
BCZ 3.81/08/270 SN OR BX
BCZ 3.81/08/270 SN GN BX
BCZ 3.81/09/270 SN OR BX
BCZ 3.81/09/270 SN BK BX
BCZ 3.81/09/270 SN GN BX
BCZ 3.81/10/270 SN OR BX
BCZ 3.81/10/270 SN BK BX
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 4, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 5, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 5, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 5, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 6, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 6, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 6, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 7, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 7, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 7, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 8, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 8, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 9, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 9, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 9, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 10, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 10, 270°, Box
-4-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Socket connectors,
screw clamp connection, pitch 3.81 | BCZ 3.81/90/270 | BCZ 3.81/270
1799070000
1940280000
1940420000
1940360000
1940290000
1798990000
1799080000
1940300000
1940430000
1940370000
1940310000
1940440000
1940380000
1940320000
1940450000
1940390000
1940330000
BCZ 3.81/10/270 SN GN BX
BCZ 3.81/11/270 SN OR BX
BCZ 3.81/11/270 SN BK BX
BCZ 3.81/11/270 SN GN BX
BCZ 3.81/12/270 SN OR BX
BCZ 3.81/12/270 SN BK BX
BCZ 3.81/12/270 SN GN BX
BCZ 3.81/13/270 SN OR BX
BCZ 3.81/13/270 SN BK BX
BCZ 3.81/13/270 SN GN BX
BCZ 3.81/14/270 SN OR BX
BCZ 3.81/14/270 SN BK BX
BCZ 3.81/14/270 SN GN BX
BCZ 3.81/15/270 SN OR BX
BCZ 3.81/15/270 SN BK BX
BCZ 3.81/15/270 SN GN BX
BCZ 3.81/16/270 SN OR BX
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 10, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 11, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 11, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 11, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 12, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 12, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 12, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 13, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 13, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 13, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 14, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 14, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 14, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 15, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 15, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 15, 270°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 1.5 mm², Pitch: 3.81 mm, No. of
poles: 16, 270°, Box
-5-
京公网安备 11010802033920号
EEWORLD
