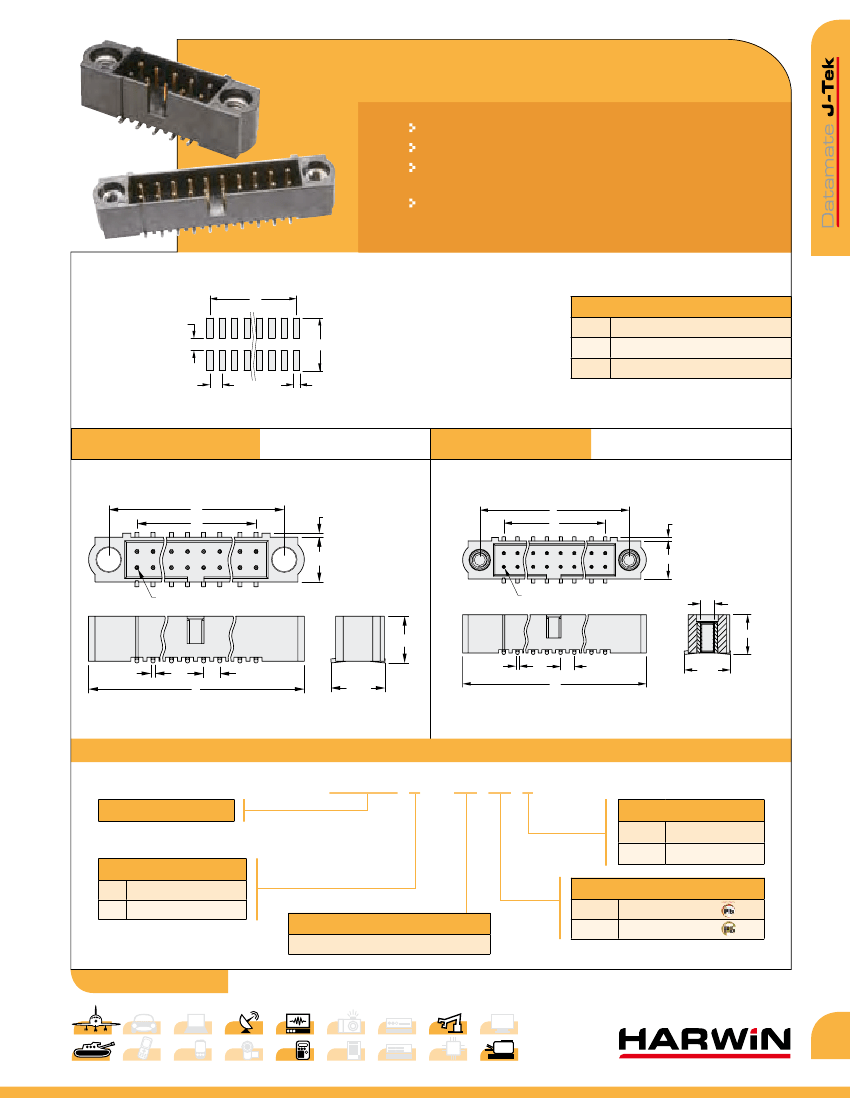

Datamate Connectors
Male Vertical Surface Mount
Contact datamate@harwin.com for tape & reel options.
Optional pick and place cap.
Mates with female connectors shown on
pages 28, 30, 31, 33 and 34.
Gull wing SMT tails simplify inspection process.
B
2.00
8.50
CALCULATON
A
B
C
B + 12
Total No. of contacts – 2
B+7
2.00
1.00
Recommended PC Board Pattern
WITHOuT JACKSCREWS
WITH JACKSCREWS
C
B
0.50
C
B
0.50
5.55
5.55
CONTACT No. 1
CONTACT No. 1
M2
5.8
5.8
ø
0.50
A
2.00
6.75
ø
0.50
A
2.00
6.75
HOW TO ORDER
M0 – 5 x 2 xx xx P
SERES CODE
PCK AND PLACE CAP
BLANK
P
No cap
Pick and place cap
TYPE
0
2
with Jackscrews
without Jackscrews
FNSH
22
Gold + Tin/Lead
Gold + Tin
TOTAL NO. OF CONTACTS
06, 10, 12, 14, 1, 20, 26, 34, 42, 50
42
www.harwin.com
All dimensions in mm.
