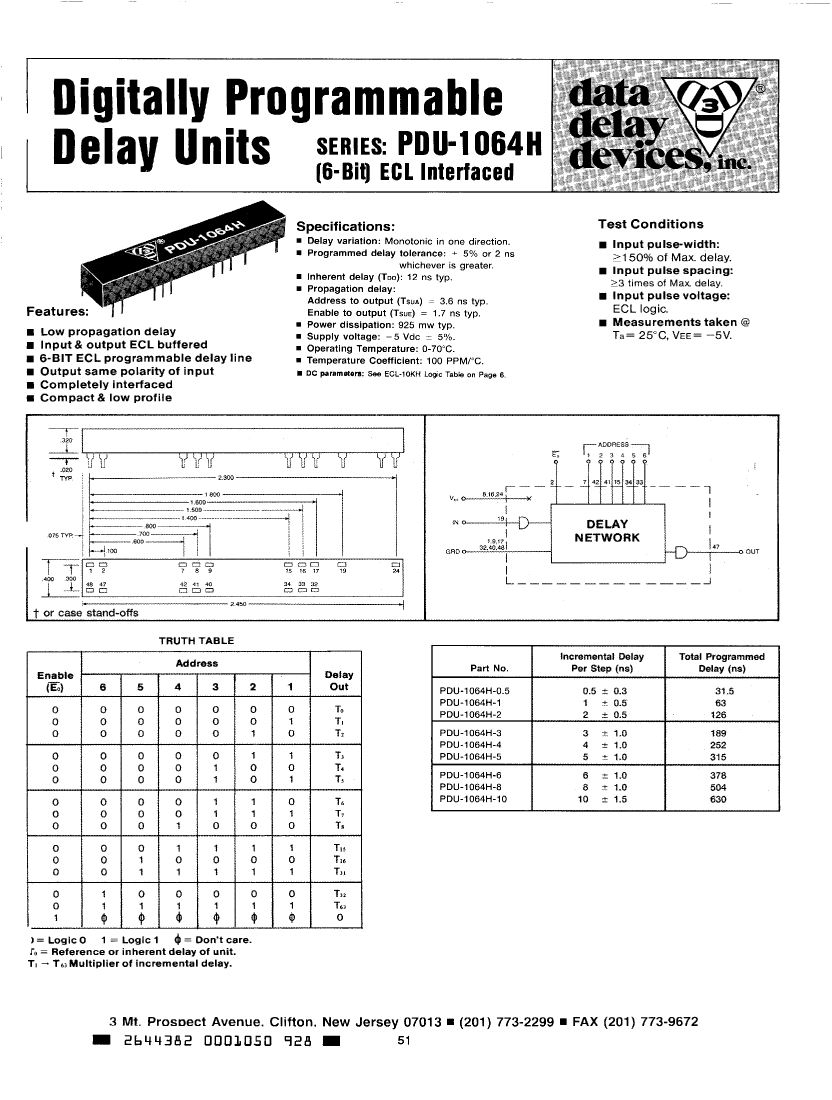

Active Delay Line, Programmable, 1-Func, 63-Tap, True Output, ECL, DIP-48/18
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Data Delay Devices |
| Parts packaging code | DIP |
| package instruction | DIP, DIP48,.3 |
| Contacts | 48/18 |
| Reach Compliance Code | compliant |
| Other features | WITH EBAR |
| series | 1064 |
| JESD-30 code | R-XDIP-T18 |
| length | 62.23 mm |
| Logic integrated circuit type | ACTIVE DELAY LINE |
| Number of functions | 1 |
| Number of taps/steps | 63 |
| Number of terminals | 18 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | OPEN-EMITTER |
| Output polarity | TRUE |
| Package body material | UNSPECIFIED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP48,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | -5 V |
| programmable delay line | YES |
| Prop。Delay @ Nom-Sup | 201 ns |
| Certification status | Not Qualified |
| Maximum seat height | 8.636 mm |
| surface mount | NO |
| technology | ECL |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Total delay nominal (td) | 189 ns |
| width | 7.62 mm |
| PDU-1064H-3 | PDU-1064H-0.5 | PDU-1064H-10 | PDU-1064H-1 | PDU-1064H-2 | PDU-1064H-6 | PDU-1064H-8 | PDU-1064H-5 | PDU-1064H-4 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Active Delay Line, Programmable, 1-Func, 63-Tap, True Output, ECL, DIP-48/18 | Active Delay Line, Programmable, 1-Func, 63-Tap, True Output, ECL, PDIP18, LOW PROFILE, DIP-48/18 | Active Delay Line, Programmable, 1-Func, 63-Tap, True Output, ECL, DIP-48/18 | Active Delay Line, Programmable, 1-Func, 63-Tap, True Output, ECL, DIP-48/18 | Active Delay Line, Programmable, 1-Func, 63-Tap, True Output, ECL, DIP-48/18 | Active Delay Line, Programmable, 1-Func, 63-Tap, True Output, ECL, DIP-48/18 | Active Delay Line, Programmable, 1-Func, 63-Tap, True Output, ECL, DIP-48/18 | Active Delay Line, Programmable, 1-Func, 63-Tap, True Output, ECL, DIP-48/18 | Active Delay Line, Programmable, 1-Func, 63-Tap, True Output, ECL, DIP-48/18 |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Maker | Data Delay Devices | Data Delay Devices | Data Delay Devices | Data Delay Devices | Data Delay Devices | Data Delay Devices | Data Delay Devices | Data Delay Devices | Data Delay Devices |
| Parts packaging code | DIP | DIP | DIP | DIP | DIP | DIP | DIP | DIP | DIP |
| package instruction | DIP, DIP48,.3 | LOW PROFILE, DIP-48/18 | DIP, DIP48,.3 | DIP-48/18 | DIP-48/18 | DIP, DIP48,.3 | DIP-48/18 | DIP-48/18 | DIP-48/18 |
| Contacts | 48/18 | 48/18 | 48/18 | 48/18 | 48/18 | 48/18 | 48/18 | 48/18 | 48/18 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Other features | WITH EBAR | WITH EBAR | WITH EBAR | WITH EBAR | WITH EBAR | WITH EBAR | WITH EBAR | WITH EBAR | WITH EBAR |
| series | 1064 | 10H | 1064 | 1064 | 1064 | 1064 | 1064 | 1064 | 1064 |
| JESD-30 code | R-XDIP-T18 | R-PDIP-T18 | R-XDIP-T18 | R-XDIP-T18 | R-XDIP-T18 | R-XDIP-T18 | R-XDIP-T18 | R-XDIP-T18 | R-XDIP-T18 |
| length | 62.23 mm | 62.23 mm | 62.23 mm | 62.23 mm | 62.23 mm | 62.23 mm | 62.23 mm | 62.23 mm | 62.23 mm |
| Logic integrated circuit type | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of taps/steps | 63 | 63 | 63 | 63 | 63 | 63 | 63 | 63 | 63 |
| Number of terminals | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Output characteristics | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | UNSPECIFIED | PLASTIC/EPOXY | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| encapsulated code | DIP | DIP | DIP | DIP | DIP | DIP | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP48,.3 | DIP48,.3 | DIP48,.3 | DIP48,.3 | DIP48,.3 | DIP48,.3 | DIP48,.3 | DIP48,.3 | DIP48,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | -5 V | -5 V | -5 V | -5 V | -5 V | -5 V | -5 V | -5 V | -5 V |
| programmable delay line | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Prop。Delay @ Nom-Sup | 201 ns | 43.5 ns | 642 ns | 75 ns | 138 ns | 390 ns | 516 ns | 327 ns | 264 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 8.636 mm | 8.636 mm | 8.636 mm | 8.636 mm | 8.636 mm | 8.636 mm | 8.636 mm | 8.636 mm | 8.636 mm |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| technology | ECL | ECL | ECL | ECL | ECL | ECL | ECL | ECL | ECL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Total delay nominal (td) | 189 ns | 43.5 ns | 630 ns | 63 ns | 126 ns | 378 ns | 504 ns | 315 ns | 252 ns |
| width | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm |
