ZDB25SOL2: DescriptionD Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size51KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric View All

ZDB25SOL2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZDB25SOL2	-	-	View	Buy Now

ZDB25SOL2 Overview

D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Receptacle,

ZDB25SOL2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ITT
Reach Compliance Code	compliant
Factory Lead Time	18 weeks 1 day
Other features	PANEL MOUNTABLE
body width	0.494 inch
subject depth	0.276 inch
body length	2.088 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	THERMOPLASTIC
MIL compliance	NO
Plug contact pitch	0.11 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
Shell material	STEEL
Housing size	3/B
Terminal pitch	2.8 mm
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

ZD Connectors

Receptacle

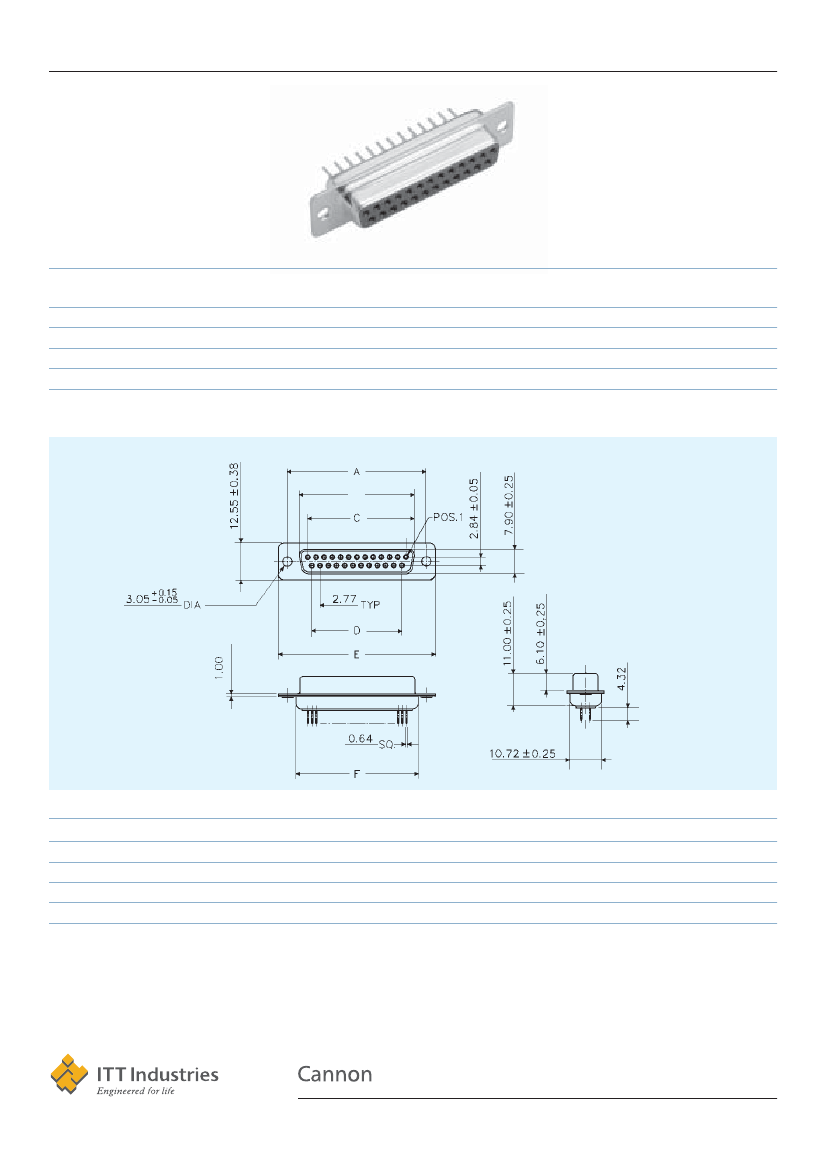

9 – 15 – 25 – 37 contacts

ZD* OL2 Straight PCB

Designation

Shell size /

Arrangement

E / 9

A / 15

B / 25

C / 37

Through hole

ZDE9SOL2

ZDA15SOL2

ZDB25SOL2

ZDC37SOL2

Rivnut

thread 4 - 40

ZDEE9SOL2

ZDAE15SOL2

ZDBE25SOL2

ZDCE37SOL2

Screwlock

thread 4 - 40

ZDEE9SOL2-AB

ZDAE15SOL2-AB

ZDBE25SOL2-AB

ZDCE37SOL2-AB

Boardlock and thread

4 - 40 2B

ZDEE9SOL2-146

ZDAE15SOL2-146

ZDBE25SOL2-146

ZDCE37SOL2-146

Boardlock and

screwlock 4 - 40 2B

ZDEE9SOL2-AB-146

ZDAE15SOL2-AB-146

ZDBE25SOL2-AB-146

ZDCE37SOL2-AB-146

Note: Class 2 - Add suffix A191

Example: ZDE9SOL2-A191

B

Shell

E

A

B

C

A ±

0,13

24,99

33,32

47,04

63,50

B ±

0,25

16,33

24,66

38,38

54,84

see page 44

see page 45

C ±

0,13

11,08

19,39

33,24

49,86

D ±

0,13

8,31

16,60

30,47

47,09

E ±

0,38

30,89

39,10

53,09

69,40

F ±

0,25

19,28

27,51

41,30

57,71

•

Mounting options

Panel cutouts

Accessories

see page 35, 36, 37, 38

Dimensions are shown in mm

Dimensions subject to change

23

www.ittcannon.com
