Product catalogue | PCB Components and Housings for Electronics | PCB terminals | Clamping yoke connection | LM
5.00 / 5.08 | LM 5.08/135
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Product family
Conductor connection system
Fitted to PCB
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
Fitted by customer
Max. adjacent poles per row
No. of rows
Solder pin length
Dia. of fitting hole
Fitting hole tolerance
No. of solder pins per pole

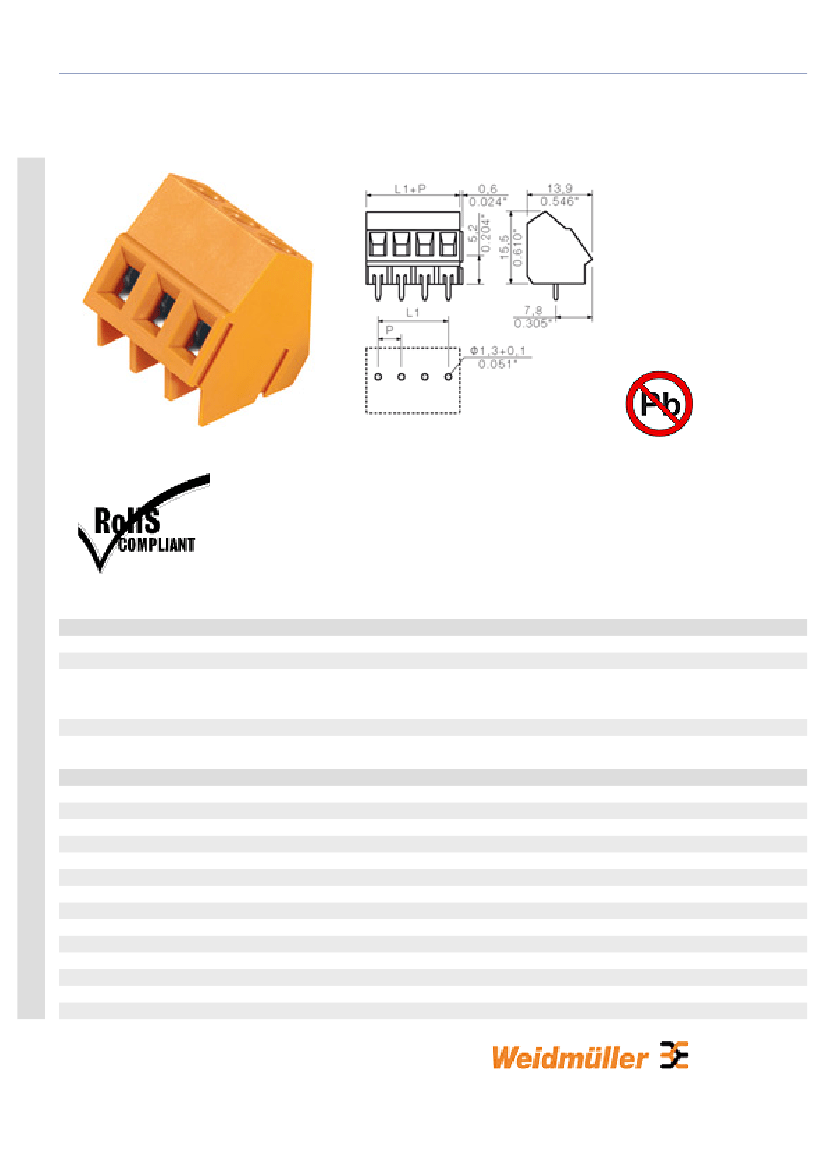

1716070000
LM5.08/3/135 SW
PCB terminal, Clamping yoke connection,
Soldered connection, Clamping range, max.: 2.5
mm², Pitch: 5.08 mm, No. of poles: 3, 135°, Box
4008190365363
500 pc(s).
System LM
Clamping yoke connection
Soldered connection
135°
5.08 mm
0.2 inch
3
yes
24
1
3.5 mm
1.3 mm
+ 0.1 mm
1
-1-
Product catalogue | PCB Components and Housings for Electronics | PCB terminals | Clamping yoke connection | LM
5.00 / 5.08 | LM 5.08/135
System parameters
Screwdriver blade
Screwdriver blade standard
Tightening torque, min.
Tightening torque, max.
Clamping screw
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Temperature of glow-wire test
Duration of glow-wire test
Contact base material
Contact surface
Storage temperature, min.
Storage temperature, max.
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
O.D. of conductor insulation, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
0.6 x 3.5
DIN 5264
0.4 Nm
0.5 Nm
M 2.5
6 mm
10.16 mm
0.4 inch
IP 20
Safe from finger touch
Wemid (PA)
black
Similar to RAL 9011
I
V-0
>= 600
750 °C
30 S
Copper alloy
tinned
-25 °C
55 °C
0.2 mm²
2.5 mm²
24
14
2.9 mm
0.2 mm²
2.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1.5 mm²
0.25 mm²
1.5 mm²
2.4 mm x 1.5 mm; 1.9mm
17.5 A
16 A
17.5 A
14.2 A
630 V
320 V
-2-
Product catalogue | PCB Components and Housings for Electronics | PCB terminals | Clamping yoke connection | LM
5.00 / 5.08 | LM 5.08/135
DIN IEC rating data
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage, user group D
Rated current, user group D
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1059 rating data
Rated voltage, user group D
Rated current, user group D
AWG conductor, min.
AWG conductor, max.
Approvals
Approvals institutes
250 V
4 kV
4 kV
4 kV
3 x 1s with 120 A
300 V
10 A
24
14
300 V
10 A
24
14
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
LM.lib
NK
EC001284
NK
NK
NK
-3-
Product catalogue | PCB Components and Housings for Electronics | PCB terminals | Clamping yoke connection | LM
5.00 / 5.08 | LM 5.08/135
Similar products
Order No.
1716120000
1716060000
1915440000
1716180000
1716130000
1915460000
1716190000
9994550000
9994340000
1915490000
1915350000
9994560000
9994350000
1915530000
1915360000
9994570000
Part designation
LM5.08/2/135 OR
LM5.08/2/135 SW
LM 5.08/2/135 GR
LM5.08/2/135 GN
LM5.08/3/135 OR
LM 5.08/3/135 GR
LM5.08/3/135 GN
LM5.08/4/135 3.5OR
LM5.08/4/135 3.5 SW
LM 5.08/4/135 GR
LM5.08/4/135 GN
LM5.08/5/135 3.5OR
LM5.08/5/135 3.5 SW
LM 5.08/5/135 GR
LM5.08/5/135 GN
LM5.08/6/135 3.5OR
Version
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 2,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 2,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 2,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 2,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 3,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 3,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 3,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 4,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 4,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 4,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 4,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 5,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 5,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 5,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 5,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 6,
135°, Box
-4-
Product catalogue | PCB Components and Housings for Electronics | PCB terminals | Clamping yoke connection | LM
5.00 / 5.08 | LM 5.08/135
9994360000
1915540000
1915370000
9994580000
9994370000
1915550000
1915380000
9994590000
9994380000
1915560000
1915390000
9994600000
9994390000
1915570000
1915400000
9994610000
9994400000
LM5.08/6/135 3.5 SW
LM 5.08/6/135 GR
LM5.08/6/135 GN
LM5.08/7/135 3.5OR
LM5.08/7/135 3.5 SW
LM 5.08/7/135 GR
LM5.08/7/135 GN
LM5.08/8/135 3.5OR
LM5.08/8/135 3.5 SW
LM 5.08/8/135 GR
LM5.08/8/135 GN
LM5.08/9/135 3.5OR
LM5.08/9/135 3.5 SW
LM 5.08/9/135 GR
LM5.08/9/135 GN
LM5.08/10/135 3.5OR
LM5.08/10/135 3.5 SW
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 6,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 6,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 6,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 7,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 7,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 7,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 7,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 8,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 8,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 8,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 8,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 9,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 9,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 9,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 9,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 10,
135°, Box
PCB terminal, Clamping yoke connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 10,
135°, Box
-5-
