L6611DTRT Overview

POWER SUPPLY SUPPORT CKT, PDSO20, SOP-20

L6611DTRT Parametric

Parameter Name	Attribute value
Maker	STMicroelectronics
Parts packaging code	SOIC
package instruction	,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G20
Number of terminals	20
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

L6611

DIGITALLY PROGRAMMABLE SECONDARY

HOUSEKEEPING CONTROLLER

OV/UV DETECTION FOR 3.3V, +5V, ±12V

RAILS AND 5V (OR 3.3V) AUX. VOLTAGE

AC MAINS UV (BROWNOUT) DETECTION

WITH HYSTERESIS

ON-LINE DIGITAL TRIMMING FOR 5V/12V,

3.3V, 5V (OR 3.3V) AUX. FEEDBACK

REFERENCES AND AC MAINS UV.

DIGITALLY SELECTABLE OPTIONS

ERROR AMPLIFIERS FOR 5V/12V RAILS

(MAIN SUPPLY), 3V3 POST-REGULATOR

(MAG_AMP OR LINEAR) AND AUXILIARY

SUPPLY.

MAIN SUPPLY ON/OFF CONTROL AND

POWER GOOD SIGNAL

50mA CROWBAR DRIVE FOR AUXILIARY

OUTPUT OVP.

OPEN GROUND PROTECTION

8ms DIGITAL SOFT START

64 ms UV/OC BLANKING AT START-UP

BCD TECHNOLOGY

DIP20

ORDERING NUMBERS:

L6611N

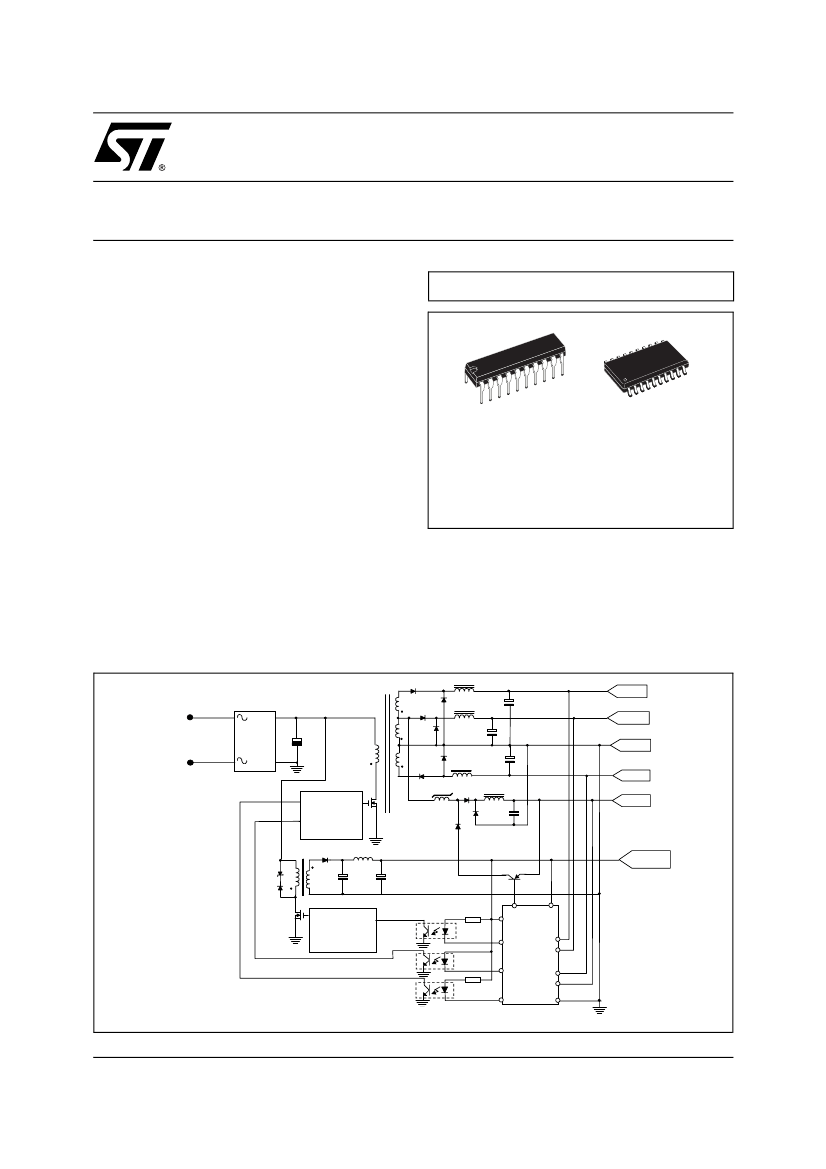

TYPICAL APPLICATION CIRCUIT

WIDE RANGE

MAINS

-O

APPLICATIONS

SWITCHING POWER SUPPLIES FOR

DESKTOP PC'S, SERVERS AND WEB

SERVERS

SUPERVISOR FOR DISTRIBUTED POWER

L6611D

L6611DTR(T & Reel)

SO20

+12V

+5V

COM

-12V

MAIN

CONTROL

+3.3V

+5Vaux

AUXILIARY

CONTROL

Bout

VDD

Cout

Dmon

12V

-12V

3V3

MFault

Aout

Gnd

L6611

April 2002

1/28

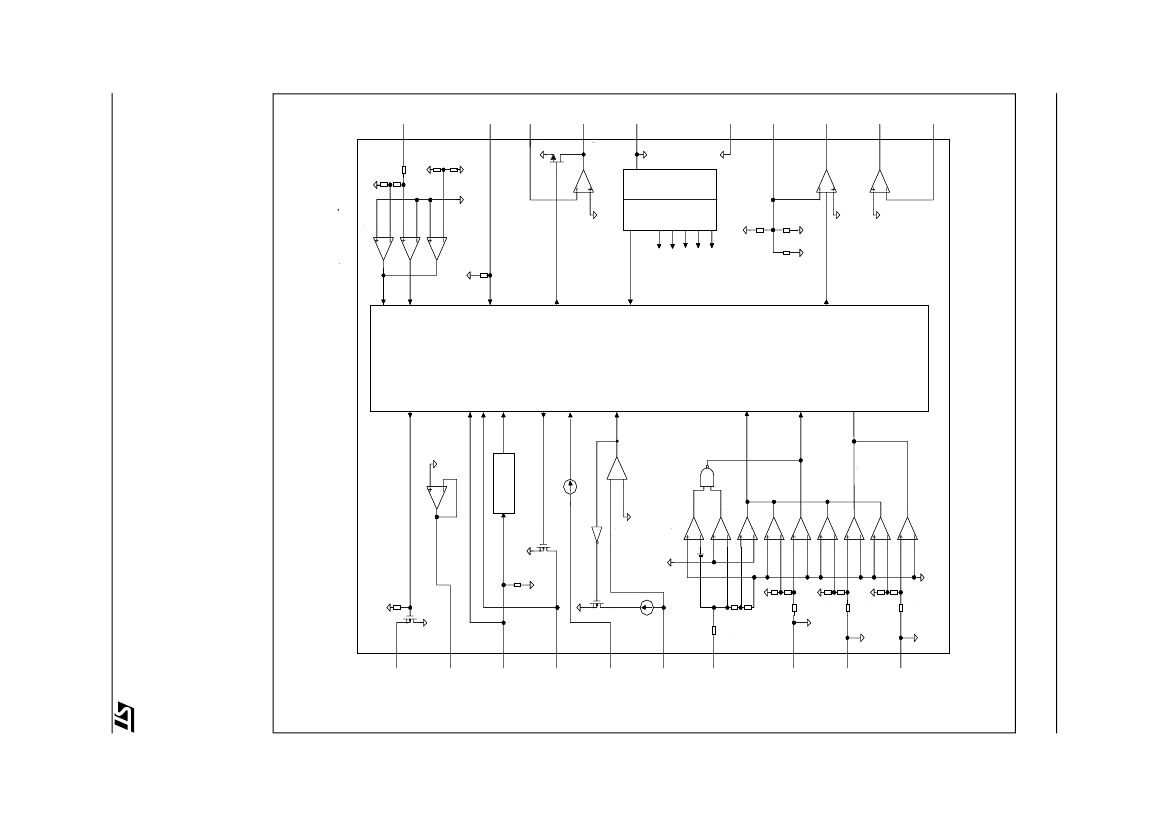

L6611

DESCRIPTION

The L6611 is a control and housekeeping IC developed in BCD technology; it is intended for acting at the sec-

ondary side of desktop PC's or server's switching power supplies, in presence of standard voltage rails (+3.3V,

+5V, ±12V) generated by a main converter and of a supply line generated by an auxiliary converter. The typical

application circuit is showed on the front page.

The Housekeeping's main function is to control and monitor the voltages generated by both the main and the

auxiliary converter: it senses those voltages, sends feedback signals to the primary controllers for regulation

and, upon detection of an undervoltage (UV), or overvoltage (OV) condition, reports such fault and takes proper

action to protect the system.

However, the peculiar feature of this IC is its digital programming capability that enables an accurate trimming

of the output voltage rails during production test via software, without any use of external discrete trimming com-

ponents or need for manual intervention on the PSU. It is also possible to program some of the monitoring func-

tions and select how UV and OC conditions are handled in the main converter: whether latched-mode (the

information is latched and released only by forcing the restart of the IC) or bouncing-mode (an attempt is made

to automatically restart the converter after 1 second wait).

A key feature of this IC is its contribution to a very low external component count. Besides the extensive use of

onboard programmable switches, which prevents the need for external trimming components, the IC embeds

reference voltages, error amplifiers and most of the housekeeping circuitry normally required.

PIN CONNECTION

(top view)

MFAULT

Binv

Bout

Aout

Ainv

Cout

Cinv

Dmon

DFAULT

Vdd

PIN DESCRIPTION

Pin #

Name

Main converter on/off control. This pin is a 10mA current sink used for driving an opto-isolator. It

is normally low when PS-ON (#13) is pulled low. If a fault is detected or PS-ON goes high, this

MFAULT

pin goes high too. To allow power up, the functions are digitally blanked out for a period (UVB

function) and MFAULT (#1) stays low. There is no delay for the OV protection function.

Binv

Inverting input to the error amplifier for the 3V3 post-regulator (either mag-amp or linear). The

non-inverting input is connected to an internal 1.25V reference that can be digitally trimmed.

Output of the 3V3 error amplifier. It typically drives either a PNP transistor that sets the mag-amp

core or the pass element of a linear regulator. Also node for error amplifier compensation. The

maximum positive level of this output is clamped at about 3.5V to improve response time. Large

signal slew rate is limited to reduce noise sensitivity.

-O

12V

3V3

PROG

GND

-12V

VREF

PS-ON

PW-OK

ACsns

Description

Bout

3/28

L6611

PIN DESCRIPTION

(continued)

Pin #

Name

Aout

Description

Output of the error amplifier for the main converter. This pin typically drives an optocoupler and is

also used for compensation along with Ainv (pin #5).

Main loop error amplifier inverting input. The non-inverting input is connected to an internal 2.5V

reference that can be digitally trimmed. A high impedance internal divider from +12V and +5V

UV/OV sense pins (#19, #20) eliminates the need for external divider in most applications. The

pin is used for error amplifier compensation.

Auxiliary loop optocoupler drive. Also node for error amp compensation. Large signal slew rate is

limited to reduce sensitivity to switching noise.

Inverting input for Auxiliary error amplifier. The non-inverting input is connected to an internal

1.25V reference that can be digitally trimmed.

Dual or Auxiliary UV/OV monitor, Dmon is programmable to monitor 3V3 or 5V. To allow a correct

power up, the UV function on this pin is blanked out during initial start-up. There is no delay for

the OV function.

Dual or Auxiliary fault protection. When Dmon (#8) recognizes an over voltage, DFAULT and

MFAULT (#1) go high. DFAULT is capable of sourcing up to 50mA. Possible applications are a

crowbar across the Auxiliary output or an opto-coupled fault signal to the primary side.

Positive input supply voltage. Vdd is normally supplied from the Auxiliary power supply output

voltage. If Vdd-UVL detects a sustained under voltage, PW-OK (#12) will be pulled low and

sending MFAULT (#1) high will disable the main converter.

Analog of bulk voltage for AC fail warning. The usual source of this analog pin is one of the

secondary windings of the main transformer. Hysteresis is provided through a trimmable 50µA

current sink on this pin that is activated as the voltage at the pin falls below the internal reference

(2.5V).

Power good signal for the Main converter. When asserted high, this pin indicates that the

voltages monitored are above their UV limits. There will be typically 250ms delay from the Main

outputs becoming good and PW-OK being asserted. This is nominally an open drain signal. To

improve robustness, this output has a limited current sink capability. In programming mode, this

pin is used for data input; then the absolute maximum rating will be Vdd+0.5V.

Control pin to enable the Main converter. This pin has debouncing logic. A recognized high value

on this pin will cause PW-OK (#12) to go immediately low and, after a delay of 2.5ms, to shut

down the main PWM by allowing MFAULT (#1) to go high. During normal operation (or if not

used) this pin has to be connected to a voltage lower than 0.8V. In programming mode, this pin

will be used to clock serial data into the chip.

2.5V reference for external applications. This is a buffered pin. Shorting this pin to ground or to

Vdd (#10) will not affect integrity of control or monitor references. An external capacitor (max.

100nF) is required whenever the pin is loaded (up to 5 mA), otherwise it can be left floating.

-12V UV/OV monitor. If connected to a voltage greater than 1.5V (e.g. VREF, #14), the function

will be disabled.

Ground pin. The connection integrity of this pin is constantly monitored and in case of either a

bond wire or a PCB trace going open, MFAULT (#1) and DFAULT (#9) will be forced high

switching off the supply.

The chip has 2 operating modes, depending on PROG input pin biasing:

–

normal mode:

PROG should be floating or shorted to ground;

–

programming mod

e: forcing PROG high (+5V), the chip enters programming mode. PW_OK

(#12) and PS_ON (#13) pins are disconnected from their normal functionality and they become

inputs for DATA and CLOCK allowing the chip to be programmed. The programming mode al-

lows selecting some options and adjusting some setpoints;

Ainv

Cout

Cinv

Dmon

DFAULT

Vdd

ACsns

PW-OK

/Data

PS-ON /

Clock

VREF

-12V

GND

-O

PROG

4/28

L6611

PIN DESCRIPTION

(continued)

Pin #

Name

3V3

Description

3V3 UV/OV monitor. It uses a separate reference to the feedback reference.

Input pin for 5V feedback, 5V current sense and 5V UV/OV monitor. 5V UV/OV uses a reference

separate from that used for feedback. This pin connects the 5V part of the Main error amplifier

feedback divider.

Input pin for 12V feedback, 12V current sense and 12V UV/OV monitor.12V UV/OV uses a

reference separate from that used for feedback. This pin connects the 12V part of the Main error

amplifier feedback divider.

12V

FUNCTION DESCRIPTION

Name

OVP

Description

Whenever one of the Main output voltages is detected going above its own OVP threshold, this

function set MFAULT (#1) high latching the outputs off. The latch is released after cycling PS-ON

(#13) switch or by reducing Vdd (#10) below the UV threshold.

Whenever one of the Main output voltages is detected going under its own UVP threshold, this

function sets MFAULT (#1) high; if latch mode has been selected, this function will be latched.

Otherwise an attempt will be made to restart the device after 1 second delay. If ACsns (#11) is

low due to a brownout condition, UVP is disabled.

Undervoltage blanking. When either converter is enabled, the relevant UV/OC monitoring circuits

must not intervene to allow all outputs to come within tolerance. 64 ms timing is provided; for the

auxiliary converter the timing starts as the IC has a valid supply, for the main converter it starts

as the ACsns pin detects a valid input voltage for the converter.

PW-OK delay. After power-up, when the all of the monitored voltages are above their own UV

threshold the PW-OK pin (#12) will be kept low for additional 250ms (typ.) to make sure all the

outputs are settled.

Power-off delay. As soon as PS-ON (#13) pin is recognized high, indicating an imminent turn-off

condition, PW-OK (#12) pin will go low immediately . The converter will be turned off after a

delay of 2.5ms.

The PS-ON signal input has debounce logic to prevent improper activation. All of the monitored

inputs have digital filtering/debounce logic on board for high noise immunity.

AC sense hysteresis. Programmable hysteresis is provided on the ACsns input (#11) to avoid

undesired shutdown caused by noise as the voltage at the pin is near the threshold or by the

voltage ripple across the bulk capacitor.

Vdd is monitored for overvoltage. If an overvoltage is detected, MFAULT (#1) and DFAULT (#9)

are latched high.

To prevent false signals of any of IC’s output pins, an under voltage lock-out circuit monitors Vdd

and keeps all IC’s output at their default OFF level until Vdd reaches a sufficient minimum

voltage for ensuring integrity. When Vdd goes below the UV threshold, all latches are reset and

volatile programming memory cleared.

Dmon (#8) is monitored to detect an overvoltage condition; in this case MFAULT (#1) and

DFAULT (#9) are latched high.

Dmon (#8) is monitored to detect an undervoltage condition; in this case MFAULT (#1) is latched

high and Cout (#6) is pulled low.

UVP

UVB

PW-OK delay

OFF delay

Debounce

AC-hysteresis

Vdd-OVP

-O

Vdd-UVL

Dual-OVP

Dual-UVP

5/28
